Thermaltake View Series

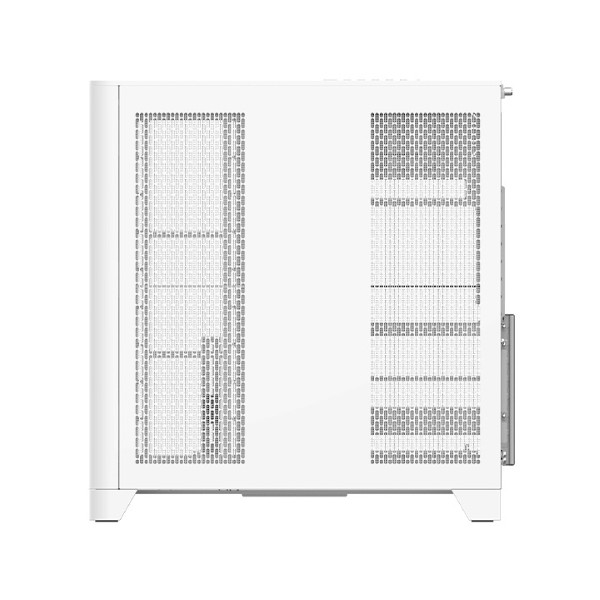

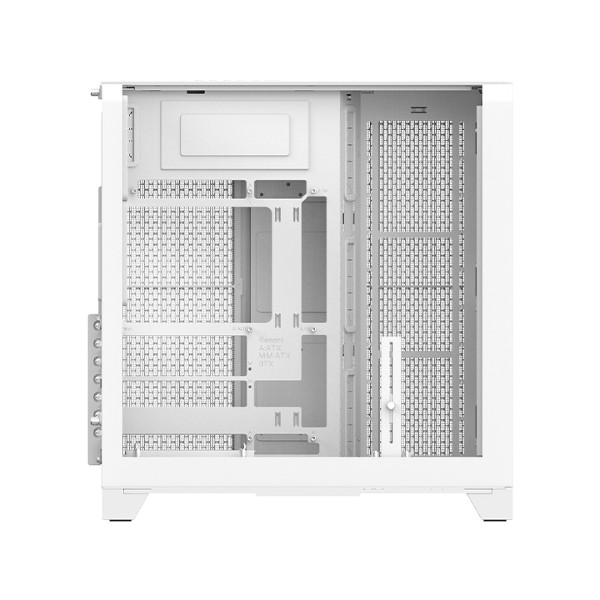

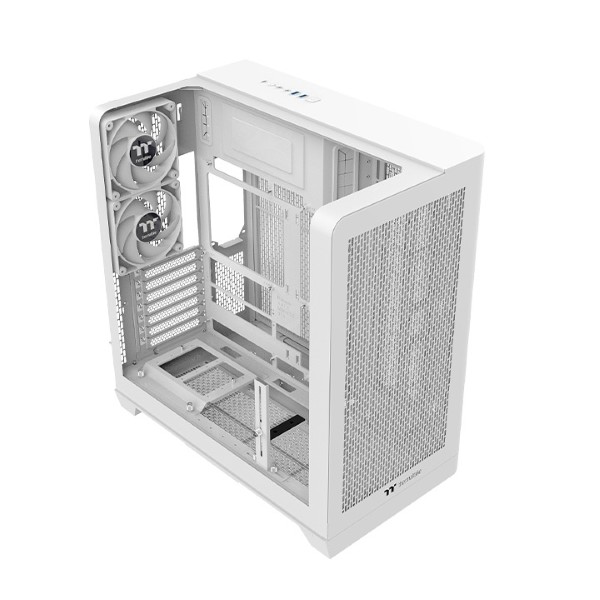

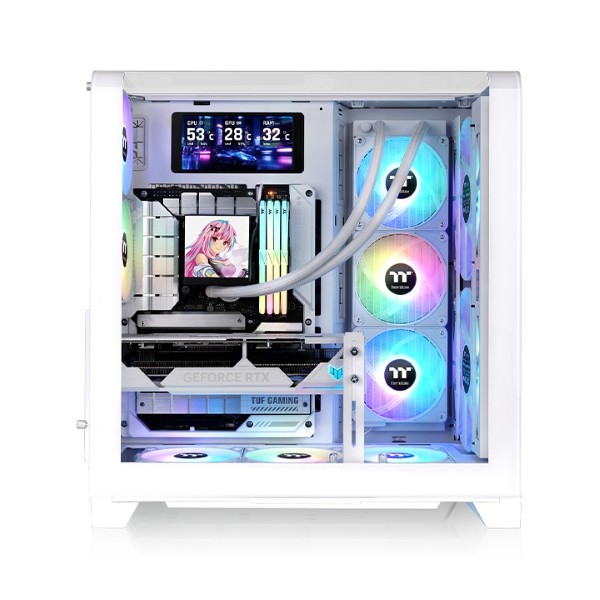

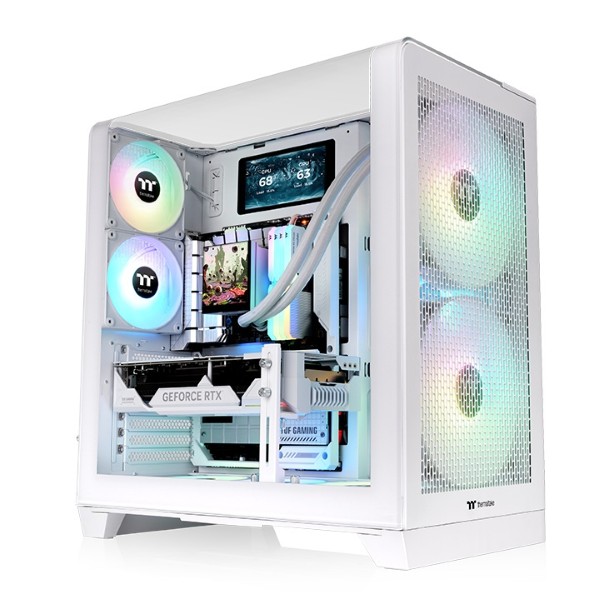

Thermaltake View 390 Air Snow Mid Tower ATX Cabinet
Create a premium gaming setup with a curved tempered-glass design, a perforated front panel, flexible cooling support and a clean Snow White finish.
Key Highlights
Curved Tempered Glass
A 4mm tempered-glass panel gives your PC a distinctive showcase appearance.
Dual CT120 Fans
Two pre-installed 120mm CT120 PWM rear exhaust fans support system airflow.
Flexible Cooling
Supports up to eleven 120mm fans and compatible radiators up to 360mm.
Rotatable PCIe Slots
Seven rotatable expansion slots provide flexible graphics card mounting options.
Introduction
The Thermaltake View 390 Air Snow Mid Tower ATX Cabinet combines an eye-catching curved tempered-glass design with practical airflow and flexible component compatibility. Its clean Snow White finish, perforated front panel and spacious interior make it a stylish choice for modern gaming PC builds.
Designed for Mini-ITX, Micro-ATX and ATX motherboards, the cabinet also supports selected hidden-connector motherboard designs. Two pre-installed CT120 PWM fans, multiple fan mounting positions and 360mm radiator compatibility give builders flexibility when planning their cooling setup.
Features and Technologies
Curved Tempered-Glass Design
The 4mm tempered-glass panel creates a distinctive curved showcase appearance, allowing you to display your internal PC components.

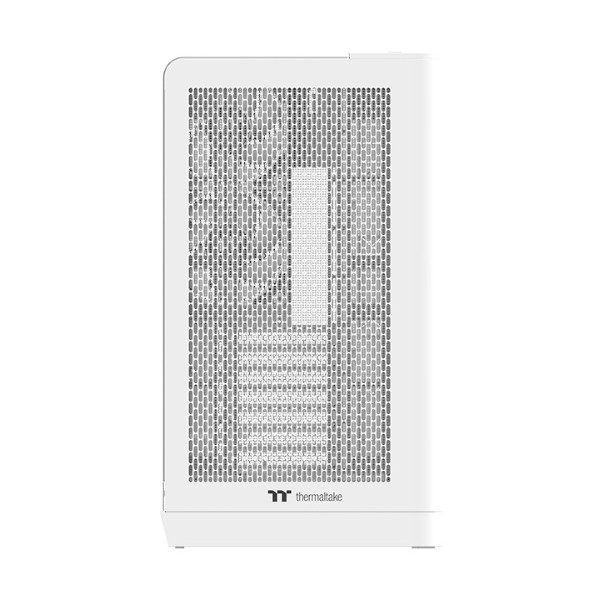

Perforated Front Panel
The perforated front panel helps draw fresh air into the cabinet and works with the exhaust fans to support airflow through the system.
Two Pre-installed CT120 Fans
Two 120mm CT120 PWM fans are pre-installed at the rear as exhaust fans. Each supports a speed range of 500–2000 RPM and a rated noise level of 25.8 dBA.
Extensive Fan Compatibility
The cabinet supports up to eleven 120mm fans across the front, right, rear and bottom positions. Selected positions also support 140mm and 200mm fans.
360mm AIO Radiator Support
Install compatible liquid-cooling radiators up to 360mm at the front or right-side mounting position, subject to component clearance.
Rotatable PCIe Slots
The seven-slot rotatable design gives builders flexibility for horizontal or vertical graphics card presentation.
Hidden-Connector Motherboard Support
Compatible with selected hidden-connector Micro-ATX and ATX motherboards from ASUS BTF, MSI Project Zero and GIGABYTE Project Stealth series.
GPU Support Bracket
The included GPU holder helps support a compatible graphics card and reduce sagging. A riser cable bracket is also provided for flexible installation arrangements.
Removable Dust Filters
Removable filters at the right and bottom help reduce dust entering the system and make routine maintenance easier.
Upgrade Your PC Showcase
The View 390 Air supports an optional 6-inch LCD Screen Kit. Add the compatible display kit to show real-time system information or personalise your setup with images and GIFs through Thermaltake TT RGB PLUS software. The LCD kit is sold separately.
Technical Specifications
Thermaltake
View 390 Air Snow
CA-11F-00M6WN-00
Mid Tower
Snow / White
SPCC Steel
503 × 287 × 485mm
1 × 4mm Tempered Glass
Mini-ITX, Micro-ATX, ATX
Micro-ATX and ATX
7 Rotatable Slots
2 × 120mm CT120 PWM Rear Exhaust
500–2000 RPM
3 × 120mm / 2 × 140mm / 2 × 200mm
3 × 120mm
2 × 120mm
3 × 120mm
Up to 11 × 120mm Fans
120 / 140 / 240 / 280 / 360mm
120 / 240 / 360mm
2 × 3.5-inch + 1 × 2.5-inch OR 3 × 2.5-inch
390mm with Radiator / 420mm without Radiator
160mm
200mm with 2.5-inch SSD / 260mm without 2.5-inch SSD
Standard PS2 PSU (Optional)
1 × USB 3.2 Gen 2 Type-C
2 × USB 3.0
HD Audio
Right and Bottom
Specifications are based on Thermaltake's published product information. Component fitment and cooling compatibility may vary depending on the installed hardware and configuration.
Ideal Use Cases
Gaming PC Builds
Build a powerful gaming desktop with room for compatible ATX hardware and high-performance graphics cards.
Custom Liquid Cooling
Use supported radiator mounting positions to create a compatible liquid-cooled PC configuration.
White Showcase Setups
Create a clean white-themed PC build with the Snow finish and curved tempered-glass panel.
Performance Workstations
Build a capable workstation with support for compatible ATX motherboards, storage and cooling components.
Before You Buy / Install
- Check your graphics card length: maximum supported length is 420mm without a radiator and 390mm with a radiator.
- Ensure your CPU air cooler does not exceed the 160mm height limit.
- Check PSU length against your storage configuration: up to 200mm with a 2.5-inch SSD or 260mm without one.
- Radiator and fan compatibility depends on mounting position and component dimensions. Check clearances before installation.
- The standard PS2 power supply is optional and must be purchased separately.
- The optional 6-inch LCD Screen Kit is sold separately.
- Verify that your hidden-connector motherboard belongs to a supported ASUS BTF, MSI Project Zero or GIGABYTE Project Stealth series.
Frequently Asked Questions
Which motherboard sizes are compatible with the Thermaltake View 390 Air Snow?
It supports Mini-ITX, Micro-ATX and ATX motherboards. Selected hidden-connector Micro-ATX and ATX motherboards are also supported.
How many fans are pre-installed?
Two 120mm CT120 PWM fans are pre-installed at the rear as exhaust fans.
What is the maximum fan capacity?
The cabinet supports up to eleven 120mm fans across the front, right, rear and bottom mounting positions. Some positions also support compatible 140mm or 200mm fans.
Does the View 390 Air support a 360mm radiator?
Yes. It supports a 360mm radiator at the front or right-side mounting position, subject to component clearance and installation requirements.
What is the maximum graphics card length?
It supports graphics cards up to 420mm without a radiator or up to 390mm with a radiator installed.
Does it support vertical GPU installation?
Its rotatable PCIe slots support horizontal and vertical GPU mounting arrangements. Check the required riser cable and installation compatibility before building.
What storage options are available?
The drive plate supports either two 3.5-inch drives and one 2.5-inch drive, or up to three 2.5-inch drives.
Is the 6-inch LCD screen included?
No. The 6-inch LCD Screen Kit is an optional accessory and is sold separately.
What are the front I/O connectivity options?
The cabinet provides one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports and an HD Audio connection.
