Thermaltake View 390 Air Butter Caramel Mid Tower ATX Cabinet
Bring a distinctive look to your PC setup with curved tempered glass, a perforated front panel, flexible cooling options and the warm Butter Caramel finish.
Key Highlights
Curved Tempered Glass
A one-piece curved 4mm tempered-glass panel provides a distinctive panoramic view of your components.
Two CT120 Fans
Comes with two pre-installed 120mm CT120 PWM rear exhaust fans.
Flexible Cooling
Supports up to eleven 120mm fans and compatible 360mm AIO radiators.
Rotatable PCIe Slots
Seven rotatable expansion slots provide flexibility for horizontal or vertical GPU mounting.
Introduction

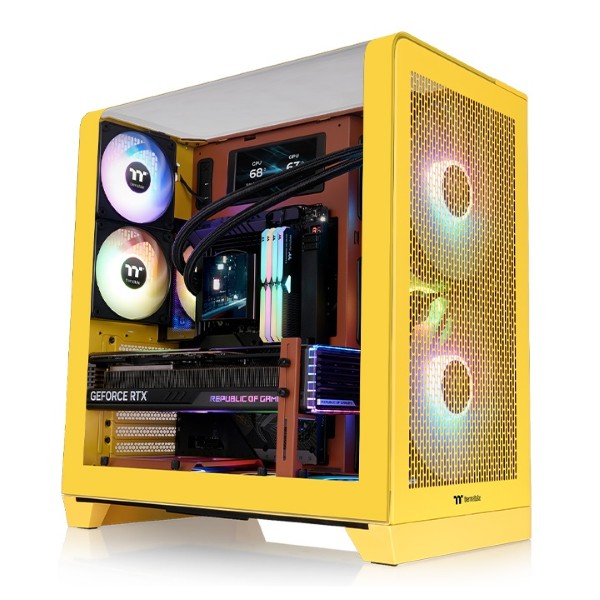

The Thermaltake View 390 Air Butter Caramel Mid Tower ATX Cabinet combines an eye-catching exterior with practical cooling and component compatibility. Its one-piece curved tempered-glass panel extends across the top and left side, while the perforated front panel helps provide airflow for your PC components.
Designed for Mini-ITX, Micro-ATX and ATX motherboards, the View 390 Air also supports selected hidden-connector motherboard designs. With two pre-installed CT120 fans, multiple fan mounting positions and support for up to 360mm radiators, it offers flexibility for gaming PCs and custom builds.
Features and Technologies
One-Piece Curved Tempered Glass
The 4mm tempered-glass panel extends across the top and left side, creating a distinctive panoramic showcase for your gaming hardware.

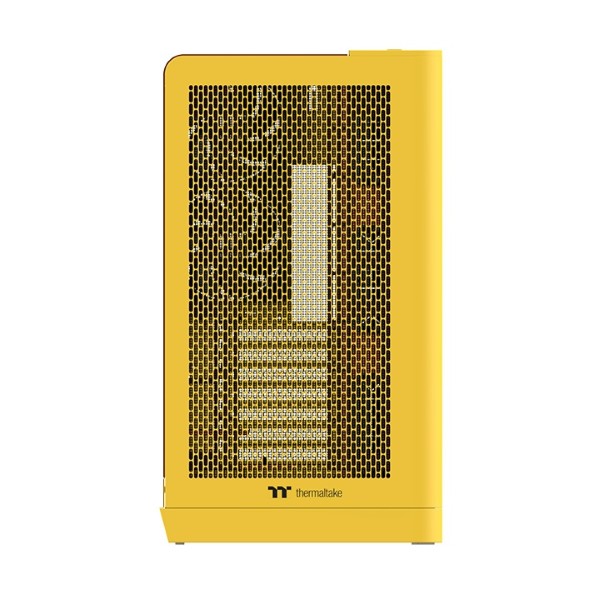

Perforated Front Panel
The perforated front panel helps draw fresh air into the chassis and supports the airflow path through the system.

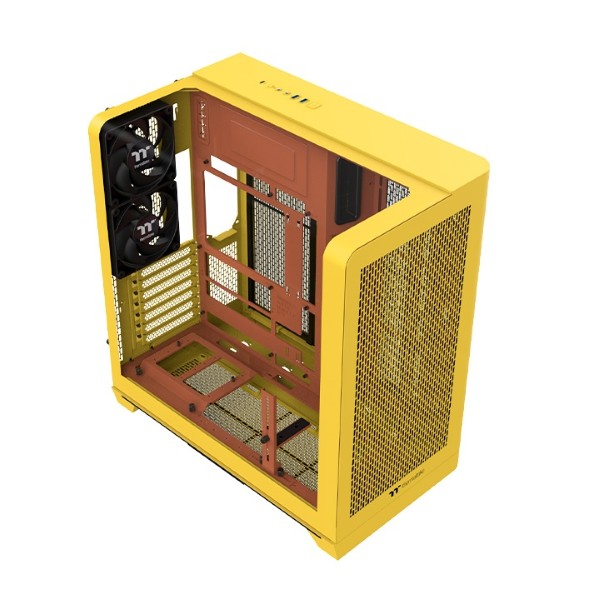

Two Pre-installed CT120 Fans
Two 120mm CT120 PWM fans are included at the rear as exhaust fans. They operate at 500–2000 RPM with a specified noise level of 25.8 dBA.
Extensive Fan Compatibility
The chassis supports up to eleven 120mm fans across the front, right, rear and bottom positions. The front also supports compatible 140mm and 200mm fans.
360mm AIO Radiator Support
Install compatible 120mm, 240mm or 360mm radiators at the front or right-side mounting position for liquid cooling configurations.
Rotatable PCIe Slots
The seven-slot patented design allows flexible horizontal or vertical graphics card mounting arrangements.

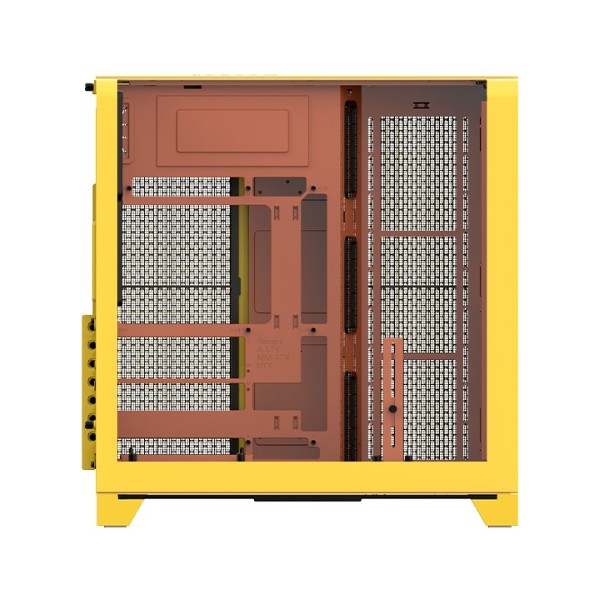

Hidden-Connector Motherboard Support
Compatible with selected hidden-connector Micro-ATX and ATX motherboards from ASUS BTF, MSI Project Zero and GIGABYTE Project Stealth series.
GPU Support Bracket
The included GPU holder helps support a compatible graphics card and reduce sagging. A riser cable bracket is also included for flexible GPU installation arrangements.

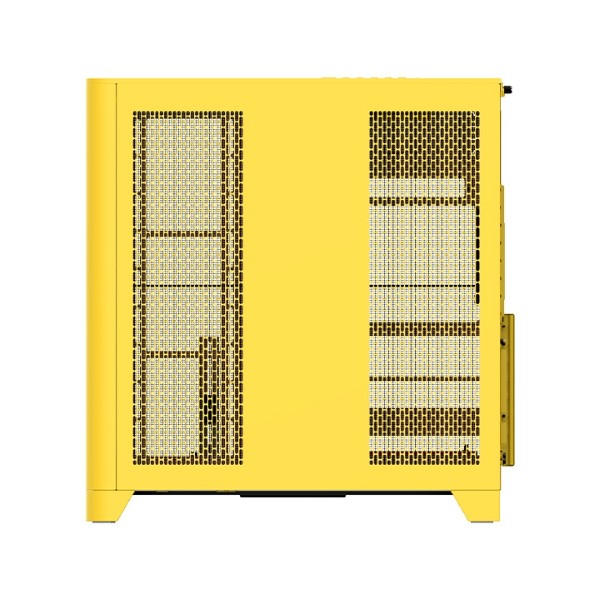

Removable Dust Filters
Removable dust filters at the right and bottom help protect internal components from dust and make maintenance easier.
Optional 6-inch LCD Screen Kit

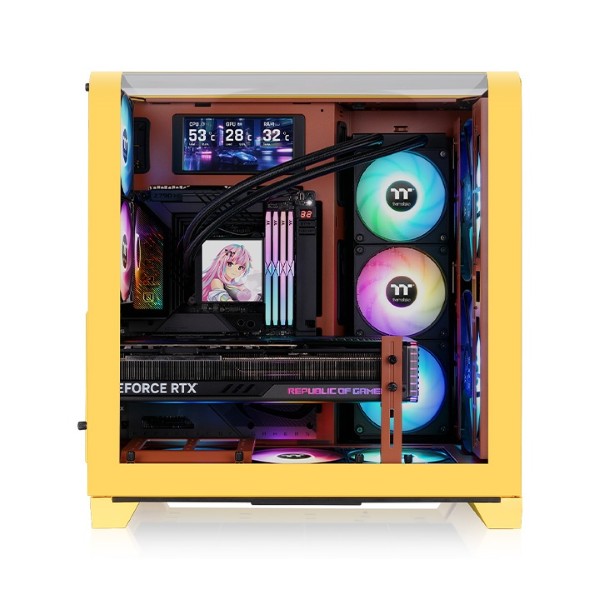

Personalise your View 390 Air with the optional 6-inch LCD Screen Kit. Through Thermaltake TT RGB PLUS software, the display can show real-time system information and customised images or GIFs. The LCD Screen Kit is sold separately.
Technical Specifications
Thermaltake
View 390 Air Butter Caramel
CA-11F-00MMWN-00
Mid Tower
Butter Caramel
SPCC Steel
503 × 287 × 485mm
1 × 4mm Tempered Glass
Mini-ITX, Micro-ATX, ATX
Micro-ATX and ATX
7 Rotatable Slots
2 × 120mm CT120 PWM Rear Exhaust
3 × 120mm / 2 × 140mm / 2 × 200mm
3 × 120mm
2 × 120mm
3 × 120mm
Up to 11 × 120mm Fans
120 / 140 / 240 / 280 / 360mm
120 / 240 / 360mm
2 × 3.5-inch + 1 × 2.5-inch OR 3 × 2.5-inch
390mm with Radiator / 420mm without Radiator
160mm
200mm with 2.5-inch SSD / 260mm without 2.5-inch SSD
Standard PS2 PSU (Optional)
1 × USB 3.2 Gen 2 Type-C
2 × USB 3.0
HD Audio
Right and Bottom
Specifications are based on Thermaltake's published product information. Component fitment and cooling compatibility may vary depending on the installed hardware and configuration.
Ideal Use Cases
Gaming PC Builds
Build a gaming desktop with support for compatible ATX hardware, modern graphics cards and multiple cooling options.
Liquid-Cooled Systems
Use the supported radiator mounting positions to create a compatible AIO liquid-cooled PC configuration.
Showcase PC Setups
Display your hardware through the curved glass panel and distinctive Butter Caramel finish.
Performance Workstations
Create a capable workstation with compatible ATX components, storage drives and custom cooling.
Before You Buy / Install
- Check graphics card length: maximum supported length is 420mm without a radiator and 390mm with a radiator.
- Ensure your CPU air cooler does not exceed the 160mm height limit.
- Check PSU length against your storage configuration: up to 200mm with a 2.5-inch SSD or 260mm without one.
- Radiator and fan compatibility depends on mounting position and component dimensions. Check clearances before installation.
- The standard PS2 power supply is optional and must be purchased separately.
- The optional 6-inch LCD Screen Kit is sold separately.
- Verify that your hidden-connector motherboard belongs to a supported ASUS BTF, MSI Project Zero or GIGABYTE Project Stealth series.
Frequently Asked Questions
Which motherboard sizes are compatible with the Thermaltake View 390 Air Butter Caramel?
It supports Mini-ITX, Micro-ATX and ATX motherboards, including selected compatible hidden-connector Micro-ATX and ATX designs.
How many fans are pre-installed?
Two 120mm CT120 PWM fans are pre-installed at the rear as exhaust fans.
What is the maximum fan capacity?
The cabinet supports up to eleven 120mm fans across the front, right, rear and bottom mounting positions. The front also supports compatible 140mm and 200mm fans.
Does the View 390 Air support a 360mm radiator?
Yes. It supports a compatible 360mm radiator at the front or right-side mounting position.
What is the maximum graphics card length?
It supports graphics cards up to 420mm without a radiator or up to 390mm with a radiator installed.
Does it support vertical GPU installation?
Yes. Its rotatable PCIe slots support horizontal and vertical GPU mounting arrangements. Check the required riser cable and installation compatibility before building.
What storage options are available?
The drive plate supports either two 3.5-inch drives and one 2.5-inch drive, or up to three 2.5-inch drives.
Is the 6-inch LCD screen included?
No. The 6-inch LCD Screen Kit is an optional accessory and is sold separately.
What connectivity options are available?
The cabinet provides one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports and an HD Audio connection.
