Thermaltake View Series

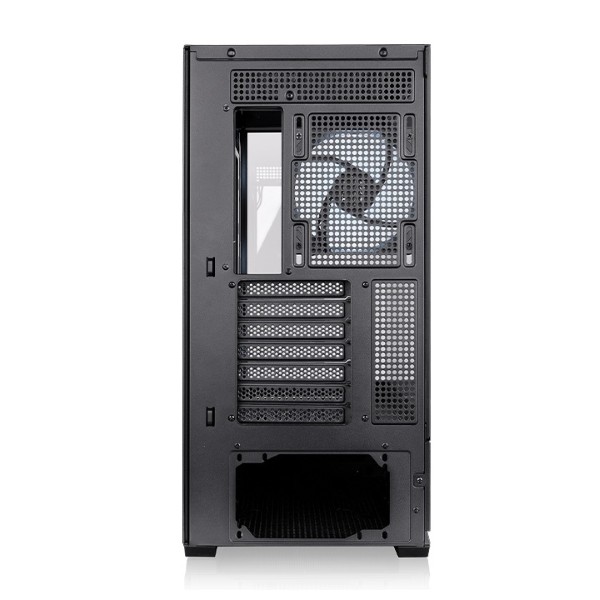

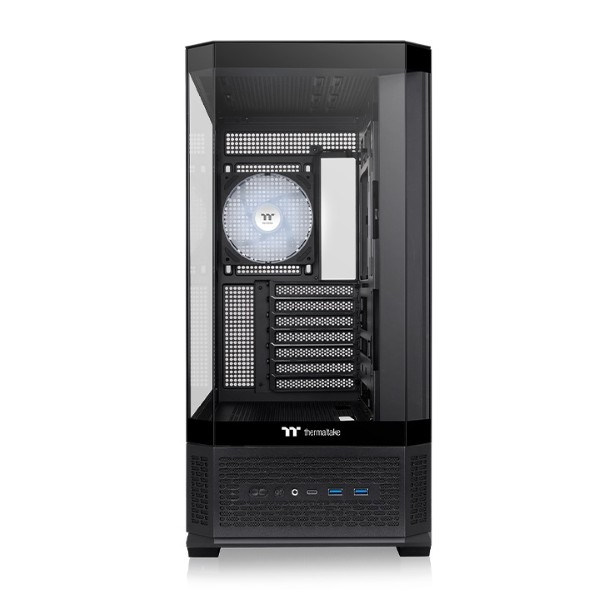

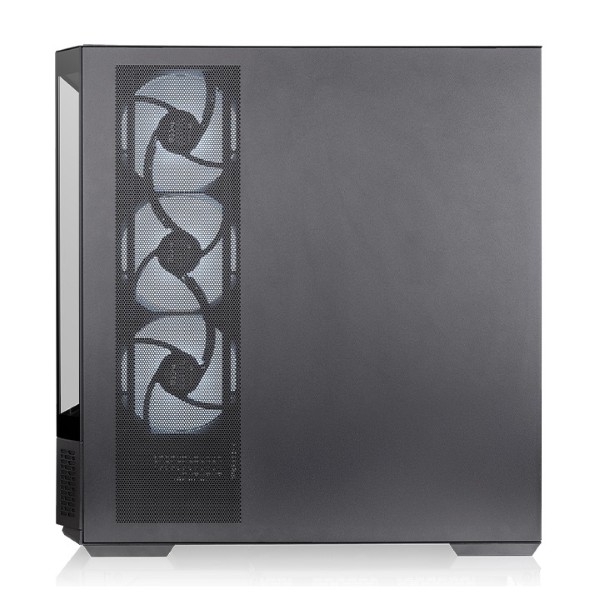

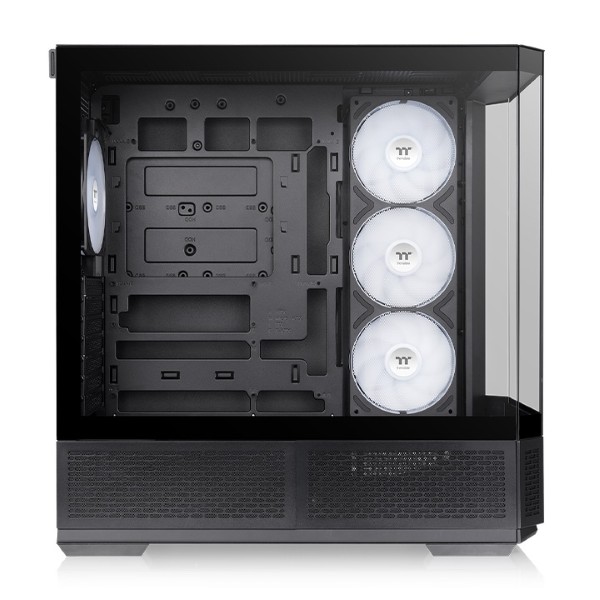

Thermaltake View 370 TG ARGB Mid Tower ATX Cabinet
Showcase your gaming hardware with four tempered-glass panels, vibrant ARGB lighting, flexible cooling options and a sleek black finish.
Key Highlights
Four Tempered-Glass Panels
Four 4mm tempered-glass panels provide a panoramic showcase for your PC components.
Pre-installed ARGB Fans
Includes one SF360 ARGB PWM reverse fan and one SF120 ARGB PWM rear fan.
360mm Radiator Support
Supports compatible 360mm radiators at the top and motherboard-side mounting positions.
Hidden-Connector Support
Compatible with selected ASUS BTF, MSI Project Zero and GIGABYTE Project Stealth motherboards.
Introduction
The Thermaltake View 370 TG ARGB Mid Tower ATX Cabinet combines a panoramic showcase design with versatile cooling and modern hardware compatibility. Its four 4mm tempered-glass panels provide an expansive view of your components, while the black exterior creates a sophisticated look for gaming and performance PC setups.
Designed for Mini-ITX, Micro-ATX and ATX motherboards, this cabinet also supports selected hidden-connector motherboard designs. It comes with a pre-installed SF360 ARGB PWM reverse fan on the motherboard side and an SF120 ARGB PWM rear fan, offering a ready-to-use cooling and lighting foundation for your build.
Features and Technologies
Panoramic Tempered-Glass Design
Four 4mm tempered-glass panels create an impressive showcase appearance, allowing you to display your internal hardware and lighting effects.
Pre-installed SF360 ARGB Reverse Fan
A 360mm SF360 ARGB PWM reverse fan is pre-installed on the motherboard side as an intake fan. It operates at 500–1800 RPM with a rated noise level of 36.4 dBA.
Pre-installed SF120 ARGB Fan
One 120mm SF120 ARGB PWM fan is pre-installed at the rear as an exhaust fan. It operates at 500–1800 RPM with a rated noise level of 29.3 dBA.
Extensive Cooling Compatibility
Supports up to ten 120mm fans across the top, motherboard side, rear and power-cover mounting positions for flexible airflow configurations.
360mm AIO Radiator Support
Install compatible radiators up to 360mm at the top or motherboard-side position. The rear also supports a 120mm radiator.
Hidden-Connector Motherboard Support
Supports selected hidden-connector Micro-ATX and ATX motherboards, including ASUS BTF, MSI Project Zero and GIGABYTE Project Stealth series.
Rotatable PCIe Expansion Slots
The seven expansion slots feature a patented rotatable design, providing flexibility for compatible horizontal or vertical graphics card installations.
ARGB Lighting Synchronisation
The ARGB lighting can be synchronised with compatible motherboard software from ASUS, GIGABYTE, MSI and ASRock through a 5V motherboard lighting header.
Enhanced Dust Protection
Dust filters at the top, bottom and PSU chamber vents help reduce dust entering the system and make maintenance easier.

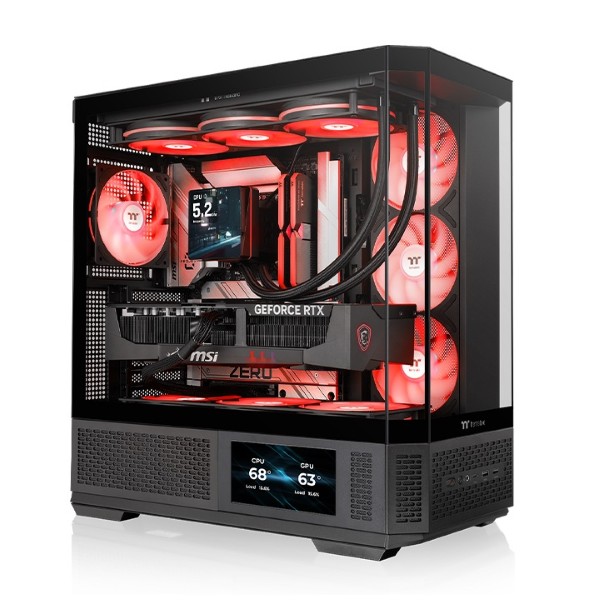

Personalise Your PC with an Optional LCD Screen
The View 370 TG ARGB supports an optional 6-inch LCD Screen Kit. This accessory works with TT RGB PLUS 3.0 and AI Forge, allowing users to personalise the display through the TT PlayLink app. The LCD Screen Kit is sold separately.
Technical Specifications
Thermaltake
View 370 TG ARGB
CA-11N-00M1WN-00
Mid Tower
Black
SPCC Steel
492.5 × 235 × 478.8mm
4 × 4mm Tempered Glass
Mini-ITX, Micro-ATX, ATX
Micro-ATX and ATX
7 Rotatable Slots
1 × SF360 ARGB PWM Reverse Fan + 1 × SF120 ARGB PWM Fan
500–1800 RPM
500–1800 RPM
3 × 120mm / 2 × 140mm
3 × 120mm
1 × 120mm
3 × 120mm
Up to 10 × 120mm Fans
120 / 140 / 240 / 280 / 360mm
120 / 240 / 360mm
120mm
1 × 3.5-inch + 1 × 2.5-inch OR 2 × 2.5-inch
420mm
165mm
279mm (200mm Suggested)
Standard PS2 PSU (Optional)
1 × USB 3.2 Gen 2 Type-C
2 × USB 3.0
1 × HD Audio
Top, Bottom and PSU Chamber Vents
Specifications are based on Thermaltake's published product information and user manual. Fan and radiator compatibility depends on mounting position and component dimensions. PSU clearance is 279mm maximum, with 200mm suggested.
Ideal Use Cases
Gaming PC Builds
Build a powerful gaming desktop with support for compatible ATX hardware and graphics cards up to 420mm.
ARGB Showcase Builds
Display your components and lighting effects through four tempered-glass panels and pre-installed ARGB fans.
Liquid-Cooled Systems
Use compatible 360mm radiator mounting positions to create a custom liquid-cooled gaming configuration.
Performance Workstations
Create a capable workstation with compatible ATX motherboards, storage and flexible cooling options.
Before You Buy / Install
- Check your graphics card length: the maximum supported GPU length is 420mm.
- Ensure your CPU air cooler does not exceed the 165mm height limit.
- The maximum PSU length is 279mm; Thermaltake suggests a 200mm PSU length for the recommended configuration.
- Check radiator and fan clearance for the selected mounting position before installation.
- The standard PS2 power supply is optional and must be purchased separately.
- The optional 6-inch LCD Screen Kit is sold separately.
- For motherboard ARGB synchronisation, use a compatible 5V addressable RGB header. Do not connect the ARGB signal cable to a 12V RGB header.
- Verify that your hidden-connector motherboard belongs to a supported ASUS BTF, MSI Project Zero or GIGABYTE Project Stealth series.
Frequently Asked Questions
Which motherboard sizes are compatible with the Thermaltake View 370 TG ARGB?
It supports Mini-ITX, Micro-ATX and ATX motherboards, along with selected hidden-connector Micro-ATX and ATX motherboard designs.
How many fans are pre-installed?
It comes with two pre-installed fans: one SF360 ARGB PWM reverse fan on the motherboard side and one SF120 ARGB PWM fan at the rear.
What is the maximum fan capacity?
The cabinet supports up to ten 120mm fans across the top, motherboard side, rear and power-cover positions.
Does the View 370 TG ARGB support a 360mm radiator?
Yes. It supports compatible 360mm radiators at the top and motherboard-side mounting positions.
What is the maximum graphics card length?
The cabinet supports graphics cards up to 420mm in length, subject to the installed component configuration.
Does it support hidden-connector motherboards?
Yes. It supports selected ASUS BTF, MSI Project Zero and GIGABYTE Project Stealth Micro-ATX and ATX motherboards.
What storage options are available?
The cabinet supports one 3.5-inch HDD and one 2.5-inch SSD, or up to two 2.5-inch SSDs.
Is the 6-inch LCD screen included?
No. The 6-inch LCD Screen Kit is an optional accessory and is sold separately.

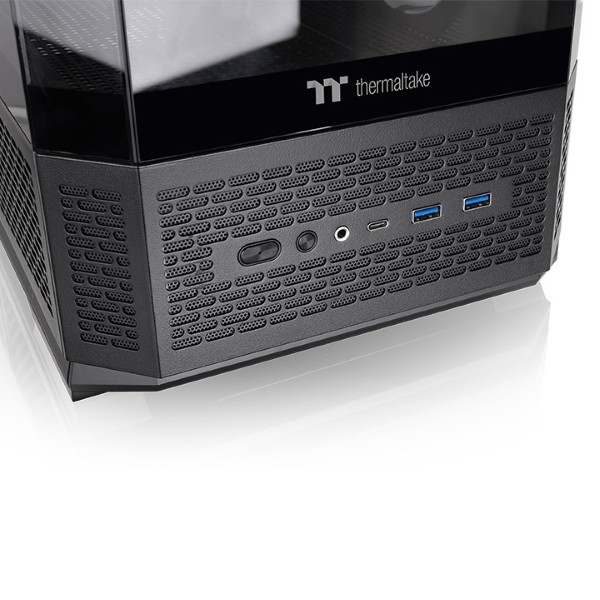

What are the front I/O connectivity options?
The cabinet provides one USB 3.2 Gen 2 Type-C port, two USB 3.0 Type-A ports and one HD Audio connection.
