THERMALTAKE CORE SERIES

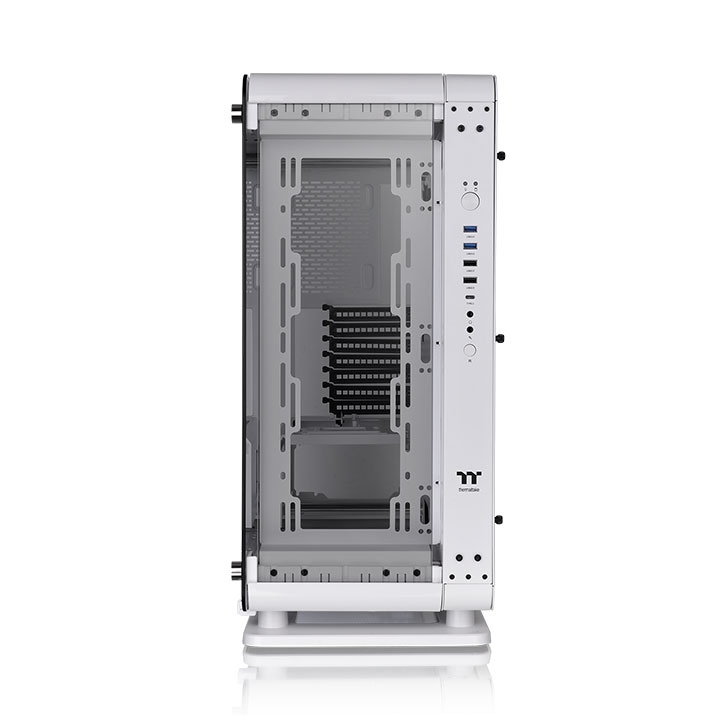

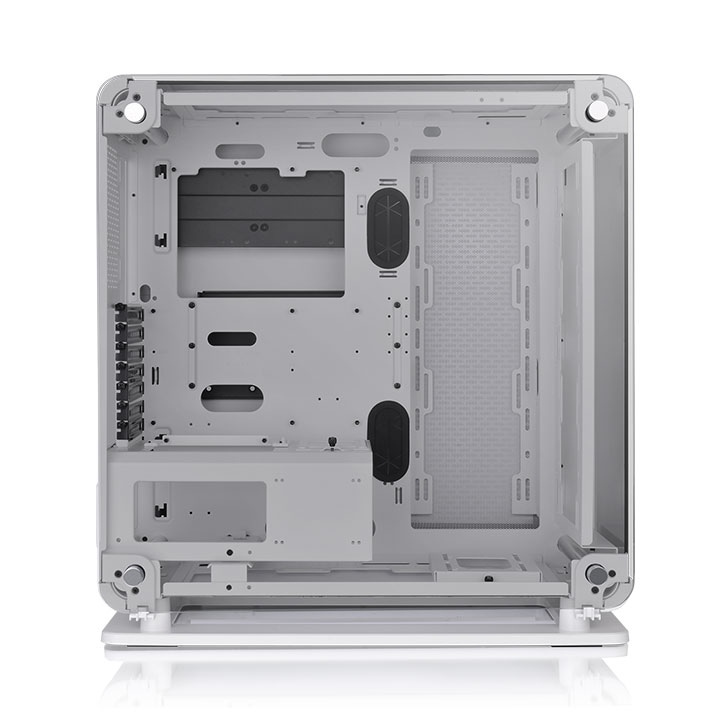

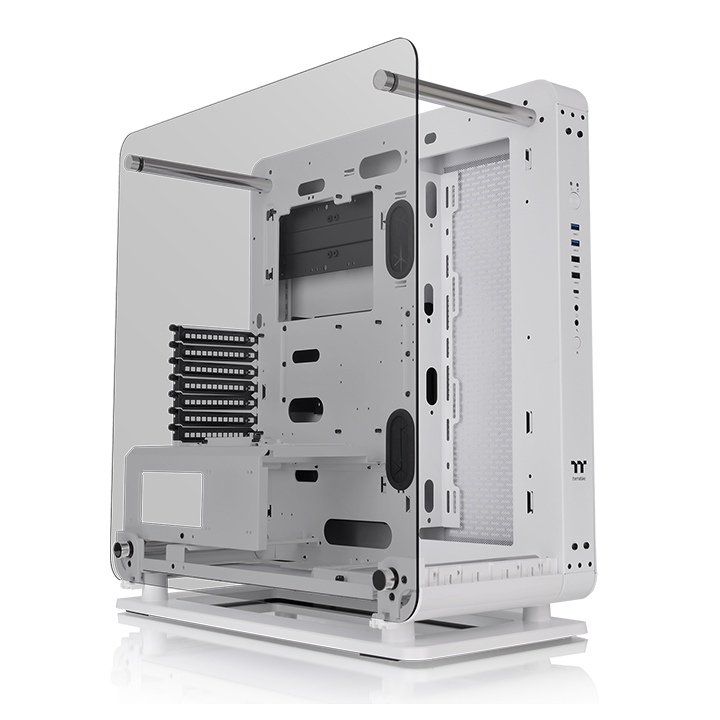

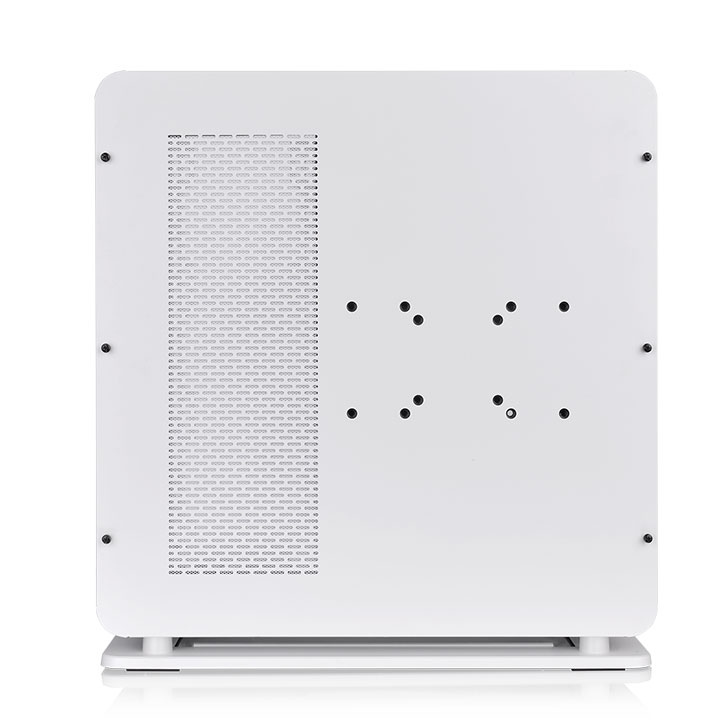

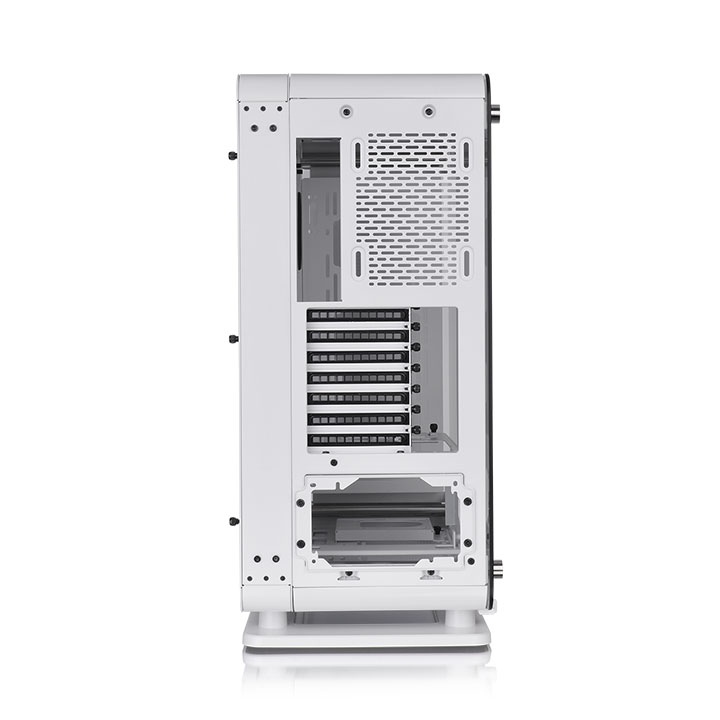

Thermaltake Core P6 TG Snow White Mid Tower Gaming Cabinet
A transformable gaming chassis with a modular design, three tempered glass panels and flexible cooling support. Switch between a clean closed configuration and an open-frame showcase build.
Key Highlights
Transformable Design
Convert the chassis between a closed case and an open-frame configuration.
Triple Tempered Glass
Three 4mm tempered glass panels showcase the components inside.
Flexible Cooling
Multiple mounting locations for fans and radiators up to 360mm.
Rotatable PCI-E Slots
Seven expansion slots with a patented rotatable design for flexible GPU installation.
Introduction
The Thermaltake Core P6 TG Snow is a white ATX mid-tower gaming cabinet designed for PC enthusiasts who want a distinctive showcase build with flexible hardware installation options. Its transformable structure lets users choose between a traditional enclosed layout and an open-frame presentation.
Built with an SPCC chassis and three 4mm tempered glass panels, the Core P6 TG Snow supports Mini-ITX, Micro-ATX, ATX and CEB motherboards. Its modular layout, rotatable PCI-E slots and extensive fan and radiator mounting options make it suitable for custom gaming and liquid-cooling systems.
Features and Technologies
Transformable Open-Frame Structure
The modular chassis can be configured as a closed case or converted into an open-frame design, giving builders more flexibility in presentation and accessibility.
Three 4mm Tempered Glass Panels
The three tempered glass panels provide a clear view of the internal components and create a premium showcase appearance for custom PC builds.
Rotational PCI-E Slots
The patented seven-slot rotational PCI-E design and additional GPU support bracket allow flexible graphics card installation, including vertical mounting configurations.
Extensive Fan Mounting Options
Fan mounting locations are available at the front, top, rear, motherboard side and bottom, with support for selected 120mm and 140mm fan configurations.
Liquid Cooling Compatibility
The chassis supports radiators up to 360mm at the front, top and motherboard side, with additional 240mm radiator support at the bottom.
Modern Front I/O Connectivity
Convenient connectivity includes a USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, two USB 2.0 ports and an HD Audio connection.
Build a Showcase PC Your Way
The Core P6 TG Snow combines a transformable frame, three tempered glass panels and flexible component mounting. Create a clean enclosed gaming setup or open the chassis for a more accessible showcase build, with support for custom air and liquid-cooling configurations.
Technical Specifications
Thermaltake
Core P6 TG Snow
CA-1V2-00M6WN-00
Mid Tower
Snow White
SPCC Steel
565 × 255 × 530mm
17.84kg
3 × 4mm Tempered Glass
Mini-ITX, Micro-ATX, ATX, CEB
7 Rotatable Slots
4 × 3.5" or 8 × 2.5"
1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.0, 2 × USB 2.0, 1 × HD Audio
Standard PS2 ATX PSU
180mm
200mm
Up to 458mm without radiator
Up to 430mm
Fan Support
Up to 3 × 120mm or 2 × 140mm
Up to 3 × 120mm or 2 × 140mm
1 × 120mm
Up to 3 × 120mm or 2 × 140mm
Up to 3 × 120mm or 2 × 140mm
Radiator Support
120 / 140 / 240 / 280 / 360mm
120 / 140 / 240 / 280 / 360mm
120mm
120 / 140 / 240 / 280 / 360mm
120 / 240mm
Note: Fan and radiator support depends on mounting position and component configuration. GPU clearance varies with the installation of a reservoir or radiator. The manufacturer lists the PSU as optional; it is not specified as included. Confirm component dimensions and clearances before purchase.
Ideal Use Cases
High-End Gaming PCs
Build a powerful gaming system with support for large graphics cards and multiple cooling options.
Custom Liquid-Cooled Builds
Create custom cooling configurations with support for multiple radiator mounting positions.
Showcase PC Setups
Display internal components through three tempered glass panels or use the open-frame configuration.
PC Modding Projects
Explore flexible component layouts and vertical GPU installation for customised builds.
Before You Buy / Install
- Check that your motherboard is Mini-ITX, Micro-ATX, ATX or CEB and fits the supported dimensions.
- Verify graphics card length against the available clearance for your chosen radiator and reservoir arrangement.
- Confirm that your CPU cooler is within the 180mm height limit.
- Ensure your standard PS2 ATX power supply is no longer than 200mm.
- Plan fan and radiator positions before installation, as supported sizes vary by mounting location.
- The listed specifications do not identify pre-installed case fans. Plan your cooling setup separately.
- Check the required mounting accessories and component clearances before converting the chassis to an open-frame layout.
Frequently Asked Questions
Is the Thermaltake Core P6 TG Snow a mid-tower cabinet?
Yes. The Core P6 TG Snow is a mid-tower gaming cabinet designed to support Mini-ITX, Micro-ATX, ATX and CEB motherboards.
Can the Core P6 TG Snow be converted into an open-frame case?
Yes. Its transformable modular design allows users to configure the cabinet as a closed case or an open-frame setup.
How many tempered glass panels does this cabinet have?
It features three 4mm tempered glass panels for a clear view of the internal components.
Does the Core P6 TG Snow support a 360mm liquid cooling radiator?
Yes. It supports 360mm radiators at the front, top and motherboard side. The bottom supports radiators up to 240mm.
What is the maximum graphics card length supported?
The maximum listed graphics card clearance is 458mm without a radiator. It is 430mm with a radiator, 400mm without a reservoir and 300mm with a reservoir. Actual clearance depends on the installed cooling components.
Does this cabinet support vertical GPU installation?
Yes. Its rotatable PCI-E slots and additional GPU support bracket provide flexible graphics card mounting options. Check the required riser cable and installation accessories separately.
Are cooling fans included with the Core P6 TG Snow?
The manufacturer's listed specifications provide fan mounting support but do not specify pre-installed case fans. Check the package contents with the seller before purchase.
What are the front connectivity options?
The front I/O panel includes one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, two USB 2.0 ports and one HD Audio connection.
