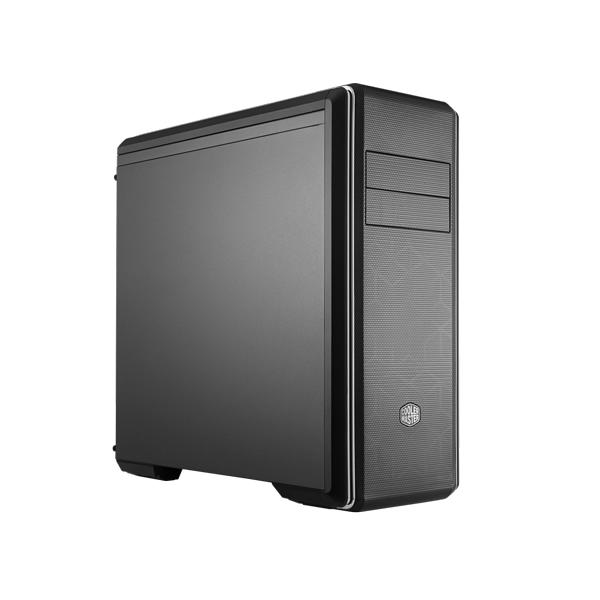

Cooler Master MasterBox CM694 E-ATX Mid-Tower Cabinet Black
Designed for flexible, high-capacity PC builds, the Cooler Master MasterBox CM694 combines a curved mesh front, modular drive cages, three pre-installed 120mm fans and support for large motherboards. Its spacious interior, graphics card stabiliser and extensive storage options make it suitable for gaming systems, creative workstations and enthusiast desktop builds.
Key Highlights
Curved Mesh Front
A distinctive mesh front panel supports airflow while giving the cabinet a clean, performance-focused appearance.
Three Pre-installed Fans
Two 120mm front fans and one 120mm rear fan provide a ready-to-use baseline for chassis airflow.
Modular Storage
Three removable drive cages provide flexible storage arrangements for compatible 2.5-inch SSDs and 3.5-inch HDDs.
Graphics Card Stabiliser
The included stabiliser helps support compatible graphics cards, with clearance depending on its position and the drive cage arrangement.
Introduction
The Cooler Master MasterBox CM694 E-ATX Mid-Tower Cabinet is built for users who need a flexible chassis with substantial storage capacity and broad hardware compatibility. Its curved mesh front, black finish and practical internal layout make it suitable for a wide range of enthusiast PC configurations.
The cabinet supports Mini-ITX, Micro-ATX and ATX motherboards, along with compatible E-ATX boards up to 12 × 10.7 inches. Modular drive cages let builders adapt the internal layout to their storage and cooling needs, while top radiator support up to 360mm provides additional options for liquid-cooled systems.
Features and Technologies

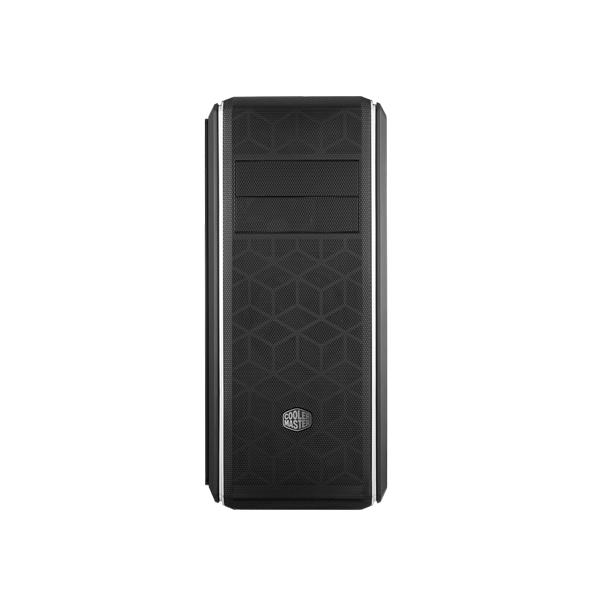

Curved Mesh Front Panel
The curved mesh front gives the CM694 its distinctive appearance while allowing air to enter through the front intake. It complements the included front fans and provides a practical foundation for cooling-focused builds.

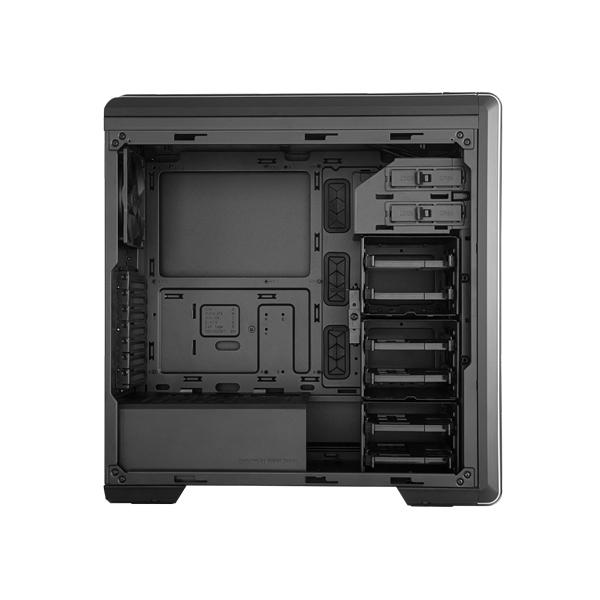

Flexible Drive Cage System
Three modular drive cages accommodate a large collection of storage drives. Removing selected cages can create extra room for front radiators or longer component configurations, depending on the intended layout.
Graphics Card Stabiliser
The stabiliser helps support compatible graphics cards inside the chassis. The available GPU length depends on the stabiliser position and whether drive cages remain installed.
Three Pre-installed 120mm Fans
Two front intake fans and one rear exhaust fan are included. Additional supported fan positions at the front and top allow the cooling configuration to be expanded.
Extensive Radiator Support
The top supports compatible radiators up to 360mm. Front radiator installation can require the removal of drive cages, with larger radiators also requiring removal of the optical drive cage.
Modern Front Connectivity
The front I/O panel includes two USB Type-A ports, one USB Type-C port and a combined headset jack for convenient access to supported peripherals and audio devices.
Built for Storage and Cooling Flexibility
The MasterBox CM694 stands out with its modular drive cage system, support for up to six 3.5-inch HDDs and eight 2.5-inch SSDs in the specified configuration, and radiator mounting options up to 360mm. Its layout allows builders to balance storage capacity, cooling and graphics card clearance. Some configurations require drive cage removal, so plan the full component layout before assembly.
Technical Specifications
Specifications refer to the steel-side-panel model MCB-CM694-KN5N-S00. The tempered-glass variant has a different model number and slightly different dimensions. E-ATX motherboard installation may limit cable-management options, and some front radiator sizes require removal of drive cages and the optical drive cage. Confirm the exact SKU and configuration before purchase.
Ideal Use Cases
High-End Gaming PCs
Build a gaming desktop with a powerful graphics card, compatible cooling hardware and multiple storage drives.
Creative Workstations
Suitable for workstation configurations that need flexible component placement and substantial local storage.
Storage-Heavy Builds
The modular drive cages support multiple HDDs and SSDs for large media libraries, backups and data-intensive projects.
Custom Liquid-Cooled PCs
Compatible radiator mounting positions and a flexible interior help builders plan a suitable liquid-cooling arrangement.
Before You Buy / Install
- Confirm the exact model number. The steel-side-panel model MCB-CM694-KN5N-S00 differs from the tempered-glass variant MCB-CM694-KG5N-S00.
- E-ATX motherboard support is limited to boards up to 12 × 10.7 inches, and installation can reduce cable-management space.
- Check the graphics card length against the stabiliser and drive cage arrangement. The maximum available clearance changes with the internal layout.
- Front radiator installation can require removing two of the three drive cages. A 280mm or 360mm front radiator also requires removing the optical drive cage as specified.
- For top radiator installations, follow the recommended mounting arrangement: radiator below the bracket and fans above it for maximum compatibility.
- Check PSU length and drive cage placement before assembly; the available PSU clearance is reduced when a drive cage occupies the rear position.
- Verify the number of included fans, storage brackets and accessories supplied with the exact unit before purchasing.
Frequently Asked Questions
Which motherboard sizes are supported by the Cooler Master MasterBox CM694?
The CM694 supports Mini-ITX, Micro-ATX and ATX motherboards, as well as compatible E-ATX boards up to 12 × 10.7 inches. Larger motherboards may affect cable-management options.
How many fans are included with the CM694?
The specified model includes two 120mm front fans and one 120mm rear fan. These are standard fans rather than ARGB fans in the listed steel-side-panel configuration.
How many storage drives can the cabinet support?
The specified configuration supports up to six 3.5-inch HDDs and eight 2.5-inch SSDs, with two 5.25-inch drive bays also available. Actual simultaneous mounting depends on the selected drive and cage arrangement.
Can I install a 360mm radiator?
Yes. A compatible 360mm radiator can be installed at the top. Front 360mm radiator installation requires removal of two drive cages and the optical drive cage, as specified by the manufacturer.
What is the maximum graphics card length?
The maximum listed graphics card clearance is 410mm. It becomes 350mm with the stabiliser and 280mm with both the stabiliser and drive cage in the specified configuration. Check the intended arrangement before installation.
Does the CM694 include a graphics card support bracket?
Yes. The CM694 includes a graphics card stabiliser designed to support compatible graphics cards. Its position can affect the available graphics card length.
What connectivity is available on the front I/O panel?
The listed model includes two USB 3.0 Type-A ports, one USB 3.1 Type-C port and one 3.5mm combined headset jack. The exact port capabilities depend on the connected motherboard headers.
Does the black CM694 have a tempered glass side panel?
The black CM694 is available in different side-panel versions. The MCB-CM694-KN5N-S00 model has a steel side panel, while MCB-CM694-KG5N-S00 is the tempered-glass version. Check the model number when ordering.
