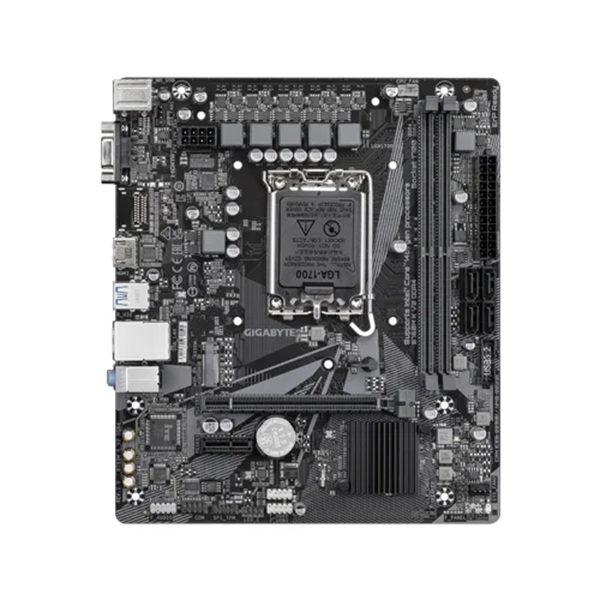

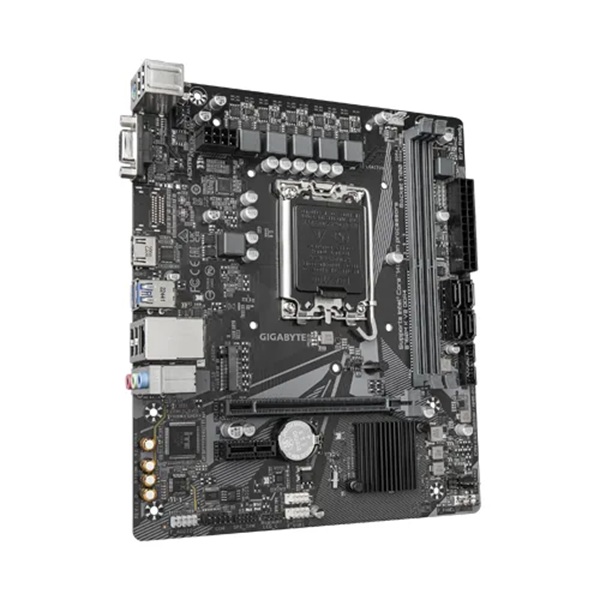

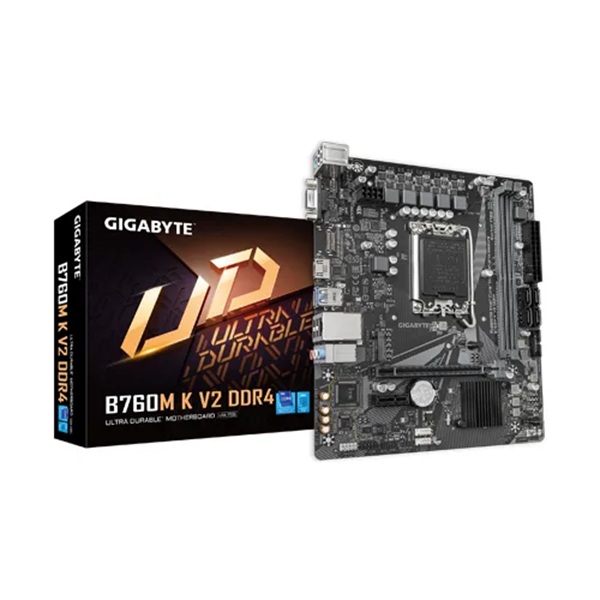

Gigabyte B760M K V2 DDR4 M-ATX Motherboard
Features:
- Supports Intel Core 14th /13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- 4+1+1 Phases Low RDS(on) MOSFETs
- Solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
- High Current Support: Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control: Up to 7 temperature/fan speed control points for precise fan curve
- Dual Curve Mode: Slope/Stair dual mode for different user scenario
- Fan Stop: Fan can stop completely below users' specified temperature point
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
Use Cases
1. Budget Intel Gaming PC
The GIGABYTE B760M K V2 DDR4 is suitable for building a compact Intel gaming PC with compatible 12th, 13th or 14th Gen Intel processors. It provides a PCIe 4.0 x16 slot for a dedicated graphics card and DDR4 dual-channel memory support.
Suitable for:
1080p gaming
Esports gaming
Entry-level to mid-range gaming PCs
Gaming with NVIDIA GeForce or AMD Radeon GPUs
Gaming + everyday multitasking
2. DDR4-Based Intel PC Upgrade
This motherboard is particularly suitable for customers who already have compatible DDR4 RAM and want to build or upgrade to an Intel LGA1700/B760 platform without moving to DDR5.
It provides 2 DDR4 DIMM slots with support for up to 64GB RAM.
3. Home & Office PC
The motherboard can be used for everyday productivity systems with a compatible Intel processor.
Suitable for:
Microsoft Office
Internet browsing
Accounting software
Online classes
Video conferencing
Business applications
General multitasking
4. Compact Micro-ATX PC
With a 22.3 × 19.3 cm Micro-ATX form factor, the B760M K V2 DDR4 is suitable for compact desktop builds.
It can be installed in compatible Micro-ATX or ATX PC cabinets.
5. NVMe SSD-Based PC
The motherboard has 1 × M.2 connector supporting PCIe 3.0 x4/x2 NVMe SSDs, making it suitable for a fast boot and application drive. It also provides 4 × SATA 6Gb/s ports for additional storage.
Example:
M.2 NVMe SSD → Windows + software
SATA SSD/HDD → games, documents and media
6. Entry-Level Content Creation PC
The B760M K V2 DDR4 can be used for basic photo editing, graphic design and content creation when paired with a suitable Intel processor, adequate RAM and dedicated GPU where required.
Suitable for:
Photoshop
Canva
Lightroom
Basic video editing
Graphic design
Social-media content creation
7. Multi-Display Productivity Setup

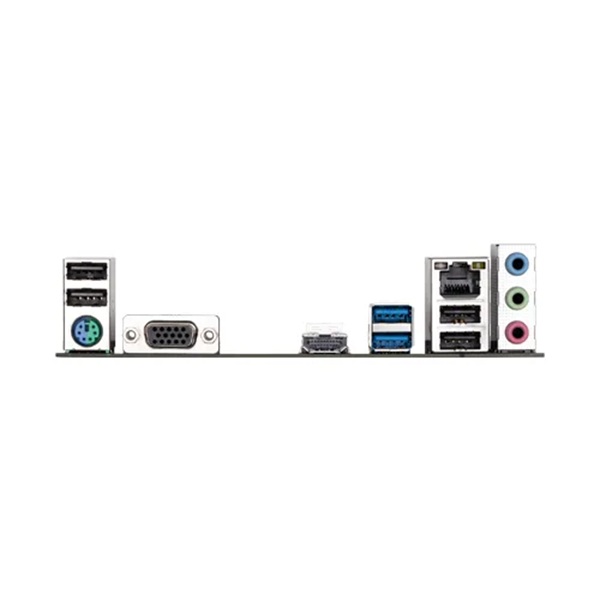

The motherboard provides HDMI and D-Sub display outputs. With a compatible Intel processor featuring integrated graphics, these can be used for display connectivity.
Common Buying Questions
Q1. Which processors are compatible with GIGABYTE B760M K V2 DDR4?
It uses the Intel LGA1700 socket and supports compatible 14th Gen, 13th Gen and 12th Gen Intel Core processors, along with supported Pentium Gold and Celeron processors.
Q2. Does B760M K V2 DDR4 support DDR4 RAM?
Yes. This motherboard specifically supports DDR4 RAM and has 2 DDR4 DIMM slots.
Q3. Can I use DDR5 RAM on B760M K V2 DDR4?
No. The B760M K V2 DDR4 is designed for DDR4 memory. DDR5 RAM cannot be installed in its DDR4 DIMM slots.
Q4. What is the maximum RAM supported?
The motherboard supports up to 64GB DDR4 RAM, using two DIMM slots, with up to 32GB supported per slot.
Q5. What DDR4 speed does it support?
It officially supports DDR4 2133/2400/2666/2933/3000/3200 MT/s memory. The actual supported speed can depend on the CPU and memory configuration.
Q6. Does it support XMP?
Yes. The motherboard supports Intel XMP memory modules.
Q7. How many M.2 slots does it have?
It has 1 × M.2 slot, supporting PCIe 3.0 x4/x2 NVMe SSDs.
Q8. Does it support NVMe SSD?
Yes. Its M.2 slot supports compatible PCIe 3.0 x4/x2 NVMe SSDs.
Q9. How many SATA ports are available?
It has 4 × SATA 6Gb/s connectors, allowing you to connect SATA SSDs and HDDs.
Q10. Can I use an RTX graphics card?
Yes. The motherboard has 1 × PCIe 4.0 x16 slot for a compatible dedicated graphics card. It can be paired with suitable NVIDIA GeForce RTX/GTX or AMD Radeon graphics cards, subject to GPU power, size and system requirements.
Q11. Is B760M K V2 DDR4 good for gaming?
It can be used for a gaming PC with a compatible Intel processor, DDR4 RAM, dedicated graphics card and suitable SSD. Actual gaming performance depends on the complete system configuration.
Q12. Can I use Core i5 with this motherboard?
Yes. Compatible LGA1700 Intel Core i5 processors from supported generations can be used.
Q13. Can I use Core i7 with B760M K V2 DDR4?
Compatible Intel Core i7 processors can be used. For higher-performance processors, choose an appropriate CPU cooler, power supply and case airflow for the complete system.
Q14. Does it have Wi-Fi?
No, this model does not have integrated Wi-Fi. Customers requiring wireless connectivity can add a compatible Wi-Fi PCIe adapter or USB Wi-Fi adapter.
Q15. Does it have Bluetooth?
No integrated Bluetooth module is specified. Bluetooth can be added through a compatible wireless adapter.
Q16. Does it have LAN?
Yes. It has a Realtek Gigabit Ethernet LAN controller for wired networking.
Q17. Is it a Micro-ATX motherboard?
Yes. The motherboard uses a Micro-ATX form factor measuring 22.3 × 19.3 cm.
Q18. Which cabinet is compatible with B760M K V2 DDR4?
Compatible Micro-ATX and ATX cabinets can be used. For a gaming PC, also check the cabinet's GPU length and CPU cooler clearance.
Q19. Does it have HDMI?
Yes. It has 1 × HDMI port, supporting up to 4096 × 2160 @ 60Hz when supported by the processor's integrated graphics.
Q20. Does it have VGA/D-Sub?
Yes. It provides 1 × D-Sub port, supporting up to 1920 × 1200 @ 60Hz.
Q21. Can I use the motherboard without a graphics card?
Yes, if the installed Intel processor has integrated graphics. If you use an Intel processor with an F suffix, such as a compatible i5-12400F, the processor does not provide integrated graphics, so a dedicated GPU is required for display output.
Q22. Does it support PCIe 4.0?
Yes. The main PCIe x16 slot supports PCIe 4.0 x16. The M.2 slot, however, is PCIe 3.0 x4/x2, so customers should not confuse the PCIe 4.0 graphics slot with the M.2 storage interface.
Q23. Does it support Windows 11?
Yes. GIGABYTE lists support for Windows 11 64-bit as well as Windows 10 64-bit.
Q24. Does it have Q-Flash?
Yes. GIGABYTE lists Q-Flash support for this motherboard.
