| Model |

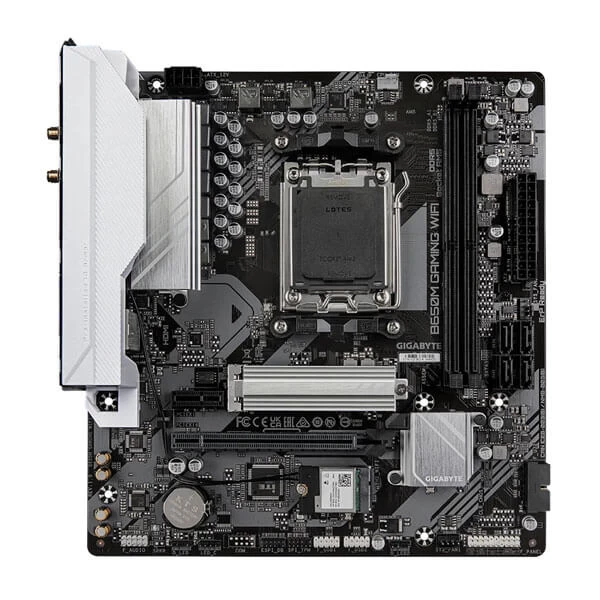

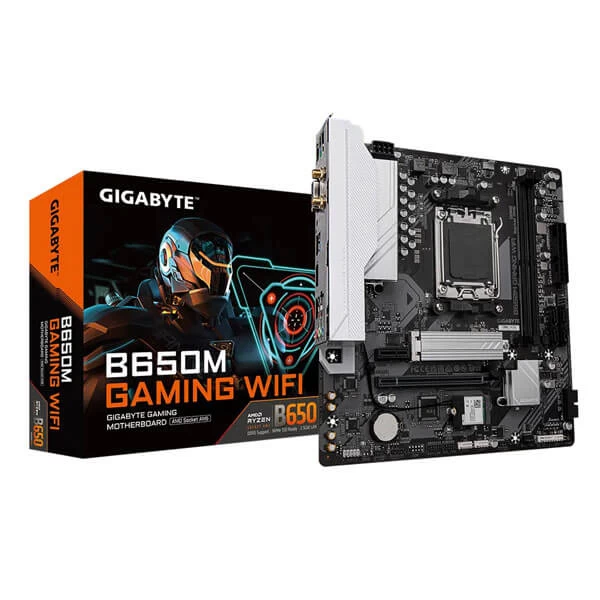

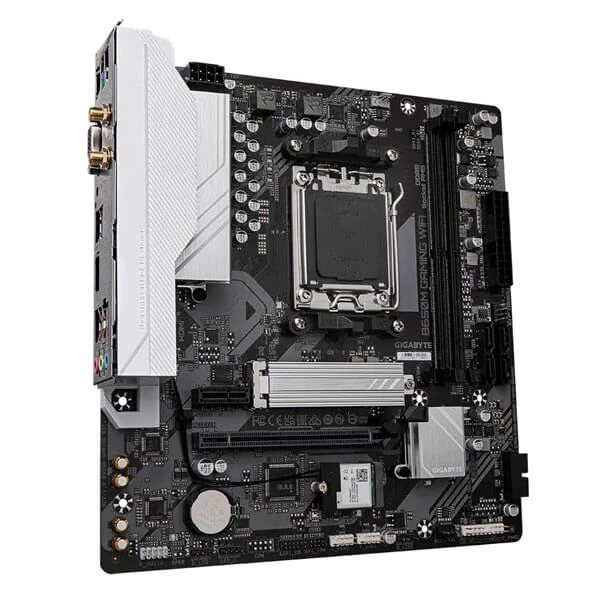

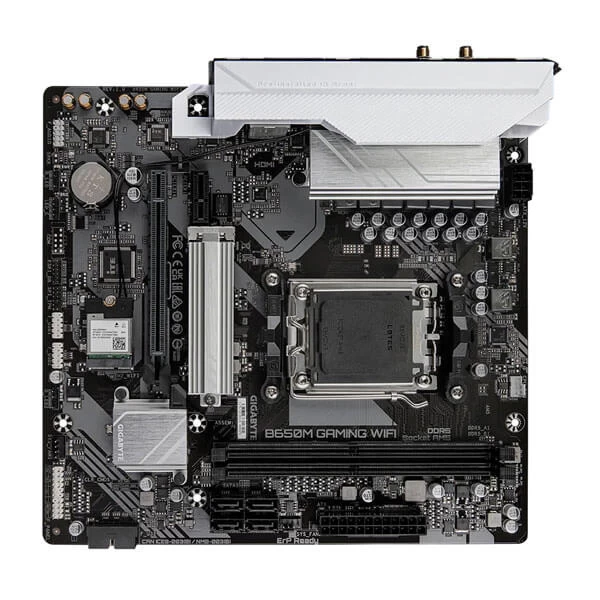

B650M GAMING WIFI |
| CPU |
AMD Socket AM5, support for: |
| AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| (Please refer "CPU Support List" for more information.) |
| Chipset |
AMD B650 |
| Memory |
Support for DDR5 7600(OC)/ 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| Dual channel memory architecture |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme |
| Memory Profile (XMP) memory modules |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics |
Integrated Graphics Processor with AMD Radeon Graphics support: |
| - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| * Support for HDMI 2.1 version and HDCP 2.3. |
| ** Support for native HDMI 2.1 TMDS compatible ports. |
| (Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek Audio CODEC |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN |
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
Realtek Wi-Fi RTL8821CE |
| - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band |
| - BLUETOOTH 5.0 |
| - Support for 11ac wireless standard |
| (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode |
| - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Chipset: |
| - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface |
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: |
| - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs |
| - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| 4 x SATA 6Gb/s connectors |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |
CPU: |
| - 2 x USB 3.2 Gen 1 ports on the back panel |
| - 1 x USB 2.0/1.1 port on the back panel |
| Chipset: |
| - 2 x USB 3.2 Gen 1 ports available through the internal USB header |
| - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) |
| Chipset+USB 2.0 Hub: |
| - 2 x USB 2.0/1.1 ports available through the internal USB header |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector |
| 1 x CPU fan header |
| 2 x system fan headers |
| 2 x addressable LED strip headers |
| 1 x RGB LED strip header |
| 1 x M.2 Socket 3 connector |
| 4 x SATA 6Gb/s connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x USB 3.2 Gen 1 header |
| 2 x USB 2.0/1.1 headers |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) |
| 1 x Clear CMOS jumper |

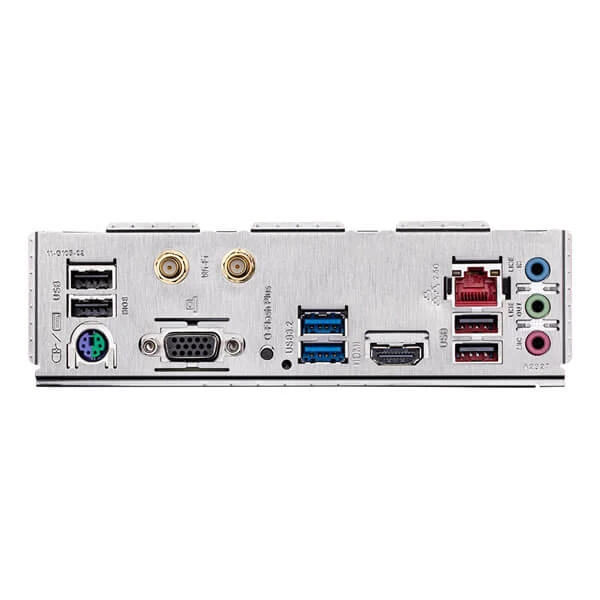

| Back Panel Connectors |
4 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port |
| 1 x D-Sub port (Note) |
| 1 x Q-Flash Plus button |
| 2 x USB 3.2 Gen 1 ports |
| 1 x HDMI port (Note) |
| 1 x RJ-45 port |
| 3 x audio jacks |
| |
| (Note) Actual support may vary by CPU. |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection |
| Temperature detection |
| Fan speed detection |
| Water cooling flow rate detection |
| Fan fail warning |
| Fan speed control |
| |
| * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS |
1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Support for Q-Flash |
| Support for Q-Flash Plus |
| Bundled Software |
Norton Internet Security (OEM version) |
| LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit |
| Support for Windows 10 64-bit |
| Form Factor |
Micro ATX Form Factor; 24.0cm x 22.5cm |
| Warranty |
3 Years |
| Note |
Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
