Thermaltake View Series
Thermaltake View 390 Air Future Dusk Mid Tower ATX Cabinet
Showcase your gaming hardware with a distinctive curved tempered-glass design, a perforated front panel, flexible cooling support and a striking Future Dusk finish.
Key Highlights
Curved Tempered Glass
A distinctive curved 4mm tempered-glass panel creates an impressive view of your PC components.
Dual CT120 Fans
Two pre-installed 120mm CT120 PWM exhaust fans are positioned at the rear.
Flexible Cooling
Supports up to eleven 120mm fans and up to 360mm radiators in compatible positions.
Rotatable PCIe Slots
The seven-slot design supports flexible horizontal or vertical graphics card presentation.
Introduction
The Thermaltake View 390 Air Future Dusk Mid Tower ATX Cabinet combines a distinctive showcase appearance with practical airflow and component compatibility. Its curved tempered-glass panel and perforated front panel give your gaming setup an eye-catching look while supporting ventilation.
Designed for Mini-ITX, Micro-ATX and ATX motherboards, this cabinet also supports selected hidden-connector motherboard designs. With two pre-installed CT120 fans, extensive fan mounting options and 360mm radiator compatibility, it offers flexibility for custom gaming and performance PC builds.
Features and Technologies
Curved Tempered-Glass Design
The 4mm tempered-glass panel gives the cabinet a distinctive curved showcase appearance, allowing your internal components to remain visible.

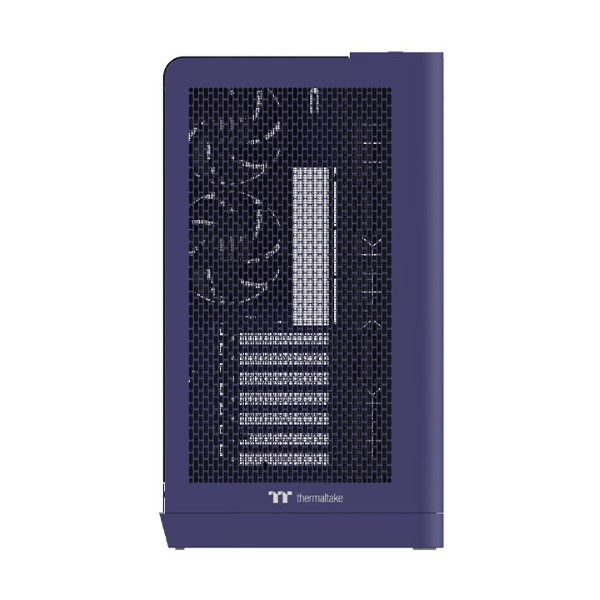

Perforated Front Panel
The perforated front panel helps bring fresh air into the system and works with the rear exhaust fans to support airflow.

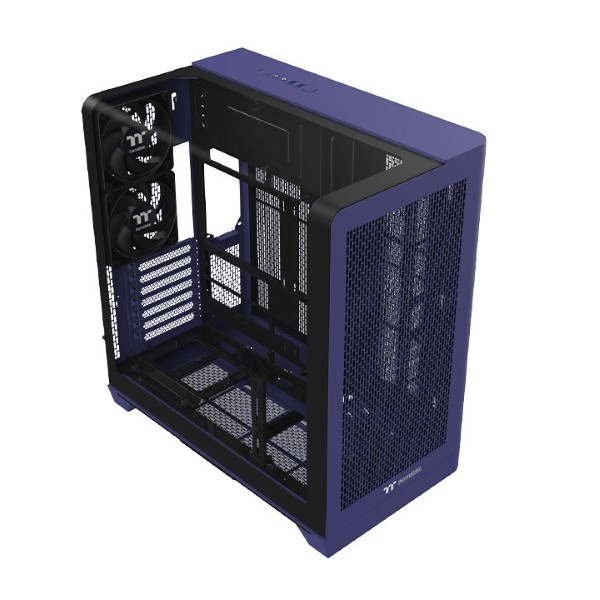

Two Pre-installed CT120 Fans
Two 120mm CT120 PWM fans are pre-installed at the rear as exhaust fans. Each supports a speed range of 500–2000 RPM.
Extensive Fan Compatibility
Fan mounting options include up to three 120mm fans at the front, three on the right, two at the rear and three at the bottom.
360mm AIO Radiator Support
Install compatible liquid cooling radiators up to 360mm at the front or right-side mounting position, subject to component clearance.
Rotatable PCIe Slots
The seven expansion slots feature a rotatable design, giving builders flexibility when positioning and displaying a compatible graphics card.
Hidden-Connector Motherboard Support
Compatible with selected hidden-connector Micro-ATX and ATX motherboards from ASUS BTF, MSI Project Zero and GIGABYTE Project Stealth series.
GPU Support Bracket
The included GPU holder helps support a compatible graphics card and reduce sagging. A riser cable bracket is also provided for flexible installation arrangements.
Removable Dust Filters
Removable filters at the right and bottom help reduce dust entering the system and make routine cleaning easier.
Upgrade Your PC Showcase

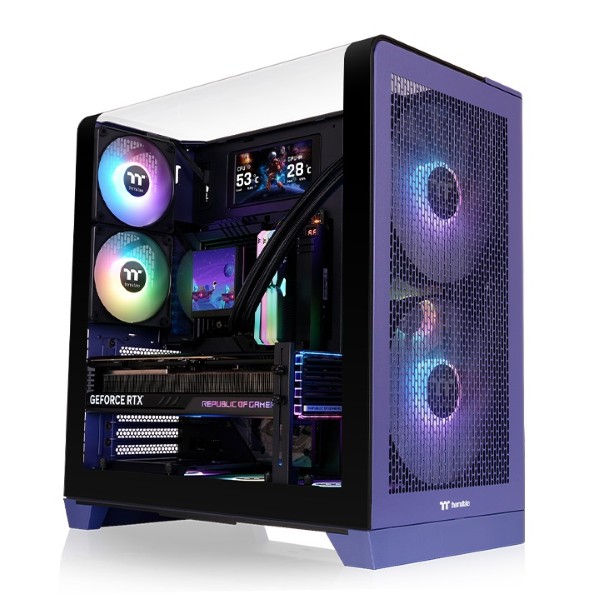

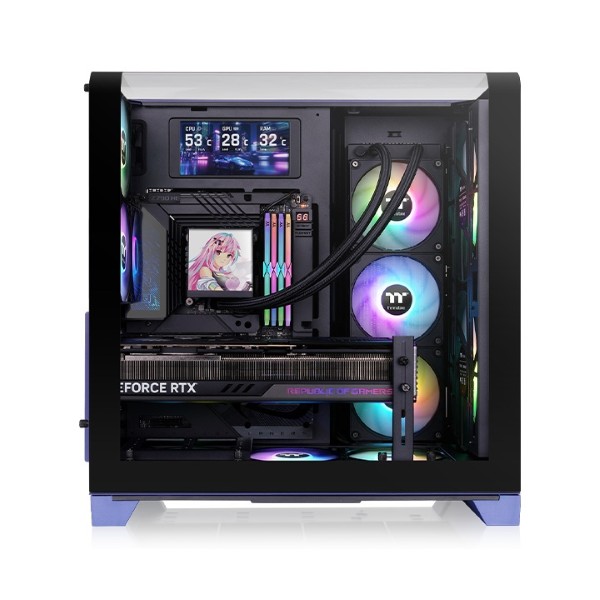

The View 390 Air supports an optional 6-inch LCD Screen Kit. Add the compatible display kit to show real-time system information or personalise your setup with images and GIFs through Thermaltake TT RGB PLUS software. The LCD kit is sold separately.
Technical Specifications
Thermaltake
View 390 Air Future Dusk
CA-11F-00MNWN-00
Mid Tower
Future Dusk
SPCC Steel
503 × 287 × 485mm
1 × 4mm Tempered Glass
Mini-ITX, Micro-ATX, ATX
Micro-ATX and ATX
7 Rotatable Slots
2 × 120mm CT120 PWM Rear Exhaust
Front: 3 × 120mm / 2 × 140mm / 2 × 200mm
Right: 3 × 120mm; Rear: 2 × 120mm; Bottom: 3 × 120mm
Up to 11 × 120mm Fans
120 / 140 / 240 / 280 / 360mm
120 / 240 / 360mm
2 × 3.5-inch + 1 × 2.5-inch OR 3 × 2.5-inch
390mm with Radiator / 420mm without Radiator
160mm
200mm with 2.5-inch SSD / 260mm without 2.5-inch SSD
Standard PS2 PSU (Optional)
1 × USB 3.2 Gen 2 Type-C
2 × USB 3.0
HD Audio
Right and Bottom
Specifications are based on Thermaltake's published product information. Component fitment and cooling compatibility may vary depending on the installed hardware and configuration.
Ideal Use Cases
Gaming PC Builds
Build a powerful gaming desktop with room for compatible ATX hardware and high-performance graphics cards.
Custom Liquid Cooling
Use supported radiator mounting positions to create a compatible liquid-cooled PC configuration.
Showcase Setups
Display your components through the curved tempered-glass panel and distinctive Future Dusk finish.
Performance Workstations
Create a capable workstation with support for compatible ATX motherboards, storage and cooling components.
Before You Buy / Install
- Check your graphics card length: maximum supported length is 420mm without a radiator and 390mm with a radiator.
- Ensure your CPU air cooler does not exceed the 160mm height limit.
- Check PSU length against your storage configuration: up to 200mm with a 2.5-inch SSD or 260mm without one.
- Radiator and fan compatibility depends on mounting position and component dimensions. Check clearances before installation.
- The standard PS2 power supply is optional and must be purchased separately.
- The optional 6-inch LCD Screen Kit is sold separately.
- Verify that your hidden-connector motherboard belongs to a supported ASUS BTF, MSI Project Zero or GIGABYTE Project Stealth series.
Frequently Asked Questions
Which motherboard sizes are compatible with the Thermaltake View 390 Air Future Dusk?
It supports Mini-ITX, Micro-ATX and ATX motherboards. Selected hidden-connector Micro-ATX and ATX motherboards are also supported.
How many fans are pre-installed?
Two 120mm CT120 PWM fans are pre-installed at the rear as exhaust fans.
What is the maximum fan capacity?
The cabinet supports up to eleven 120mm fans across the front, right, rear and bottom mounting positions. Some positions also support compatible 140mm or 200mm fans.
Does the View 390 Air support a 360mm radiator?
Yes. It supports a 360mm radiator at the front or right-side mounting position, subject to component clearance and installation requirements.
What is the maximum graphics card length?
It supports graphics cards up to 420mm without a radiator or up to 390mm with a radiator installed.
Does it support vertical GPU installation?
Its rotatable PCIe slots support horizontal and vertical GPU mounting arrangements. Check the required riser cable and installation compatibility before building.
What storage options are available?
The drive plate supports either two 3.5-inch drives and one 2.5-inch drive, or up to three 2.5-inch drives.
Is the 6-inch LCD screen included?
No. The 6-inch LCD Screen Kit is an optional accessory and is sold separately.
What are the front I/O connectivity options?
The cabinet provides one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports and an HD Audio connection.
