MSI Pro B860M-A WiFi DDR5 Intel LGA 1851 M-ATX Motherboard
Original price was: ₹28,910.₹16,790Current price is: ₹16,790.
- Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System
- Extended Heatsink, MOSFET thermal pads rated for 7W/mK,
- EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Thunderbolt 4 port, 5G LAN with Intel Wi-Fi 7 Solution
- Audio Boost: Reward your ears with studio grade sound quality
In stock
Description

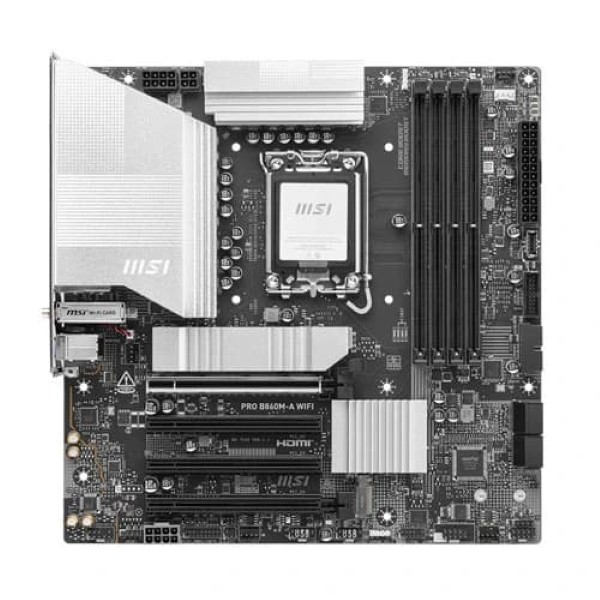

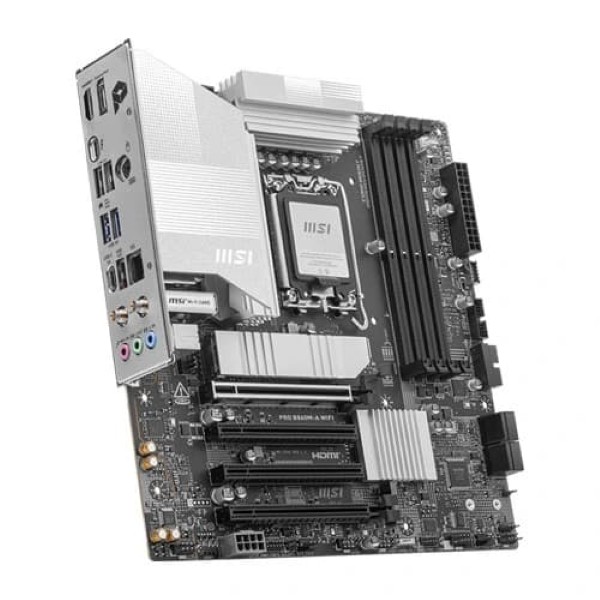

MSI Pro B860M-A WiFi DDR5 Intel LGA 1851 M-ATX Motherboard
MSI PRO B860M-A WIFI Motherboard offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel Core Ultra processors.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
12+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with MSI PRO B860M-A WIFI flagship VRM design built with a total of 12+1+1+1 digital power phases. With 8+4 pin power connectors, PRO B860M-A WIFI is ready for the challenge of high-end processors.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
MSI PRO B860M-A WIFI Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
Additional information
| Motherboard brand chipset | |
|---|---|
| MOTHERBOARD CHIPSET | |
| Motherboard form factor | |
| Motherboard socket |
Brand
MSI
Specification
| Chipset | INTEL B860 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) |
| LGA 1851 | |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 8800+ MT/s | |
| • 1DPC 2R Max speed up to 7200+ MT/s | |
| • 2DPC 1R Max speed up to 6400+ MT/s | |
| • 2DPC 2R Max speed up to 5600+ MT/sSupports Intel® POR Speed and JEDEC Speed | |
| Supports Memory Overclocking and Intel® XMP 3.0 | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM | |
| Onboard Graphics | 1x HDMI™ |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* | |
| 1x DisplayPort | |
| Support DisplayPort 1.4, maximum resolution of 4K 60Hz* | |
| 1x Type-C DisplayPort | |
| Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 4x PCI-E x16 slot |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) | |
| PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) | |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Storage | 3x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices | |
| 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Onboard Thunderbolt | 1x Thunderbolt4 ports (Rear) |
| Supports up to 40Gbps transfer rate with Thunderbolt devices | |
| Supports up to 20Gbps transfer rate with USB4 devices | |
| Supports up to 10Gbps transfer rate with USB 3.2 devices | |
| Supports up to 5V/3A,15W power charging | |
| Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices | |
| Supports up to 8K display | |
| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 5Gbps Type A (Rear) | |
| 1x USB 5Gbps Type C (Rear) | |
| 4x USB 5Gbps Type A (Front) | |
| 1x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Front) | |
| LAN | Realtek® 8126 5Gbps LAN |
| Internal IO | 1x Thunderbolt5 card connector(JTBT5, support RTD3) |
| 1x Power Connector(ATX_PWR) | |
| 2x Power Connector(CPU_PWR) | |
| 1x Power Connector(PCIE_PWR 8pin) | |
| 1x CPU Fan | |
| 1x Combo Fan (Pump_Sys Fan) | |
| 3x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 4x USB 5Gbps Type A ports | |
| 1x USB 10Gbps Type C ports | |
| Wireless LAN & Bluetooth | Intel® Wi-Fi 7 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM | |
| LED Feature | 4x EZ Debug LED |

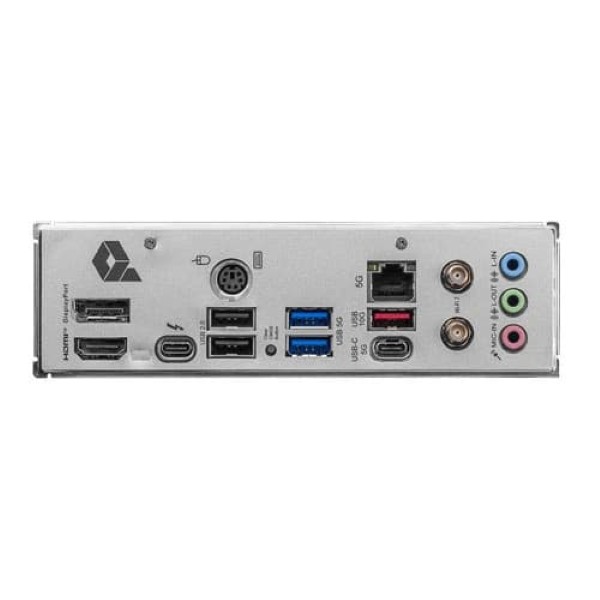

| Back Panel Ports | 1. DisplayPort |
| 2. Keyboard / Mouse | |
| 3. USB 5Gbps Type-A | |
| 4. 5G LAN | |
| 5. Wi-Fi / Bluetooth | |
| 6. Audio Connectors | |
| 7. HDMI™ | |
| 8. Thunderbolt™ 4 40Gbps (Type-C) | |
| 9. USB 2.0 | |
| 10. Clear CMOS Button | |
| 11. USB 10Gbps Type-A | |
| 12. USB 5Gbps Type-C | |
| Operating System | Support for Windows® 11 64-bit |
| PCB Info | mATX |
| 243.84mmx243.84mm | |
| Warrranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
