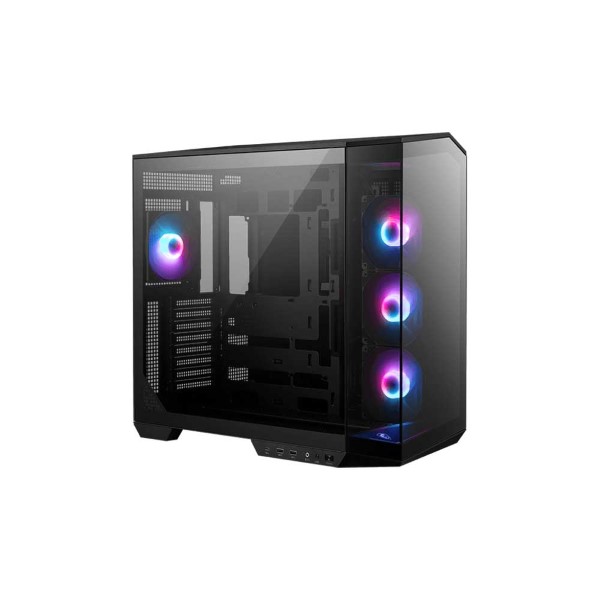

MSI MAG PANO 100R PZ BLACK
MSI MAG PANO 100R PZ Black Mid-Tower ATX Gaming Cabinet
Create a bold gaming setup with the MSI MAG PANO 100R PZ Black. Its 270-degree panoramic tempered glass, four included ARGB fans and flexible cooling options make it an impressive foundation for modern gaming hardware.
Key Highlights
270° Panoramic Glass
Showcase your gaming components and RGB lighting through the expansive tempered-glass viewing area.
Four ARGB Fans Included
Three side-mounted reverse-blade ARGB fans and one rear ARGB fan provide lighting and airflow straight out of the box.
Up to 380mm GPU
Accommodates compatible graphics cards up to 380mm long, subject to the installed components and available clearance.
Flexible Liquid Cooling
Supports radiators up to 360mm at compatible top, side and bottom mounting positions.
A Bold Black Cabinet for Modern Gaming Builds
The MSI MAG PANO 100R PZ Black Mid-Tower ATX Gaming Cabinet combines a sleek black finish with a 270-degree panoramic tempered-glass design. It is designed for PC builders who want to showcase their hardware, coordinated lighting and carefully arranged components.
The cabinet supports ATX, Micro-ATX and Mini-ITX motherboards, along with compatible back-connect ATX and Micro-ATX motherboard designs. Its spacious interior accommodates compatible graphics cards, storage drives and a range of air- or liquid-cooling configurations.
Four pre-installed ARGB fans provide a coordinated lighting setup from the start. The included 1-to-4 ARGB fan-control board helps organize compatible lighting connections, while removable dust filters make routine maintenance easier.
With modern USB Type-C connectivity, multiple radiator mounting positions and support for large graphics cards, the MAG PANO 100R PZ Black is a versatile choice for a stylish gaming PC.
Features and Technologies
270-Degree Panoramic Design
The expansive tempered-glass viewing area highlights the motherboard, graphics card and RGB lighting for an eye-catching showcase build.

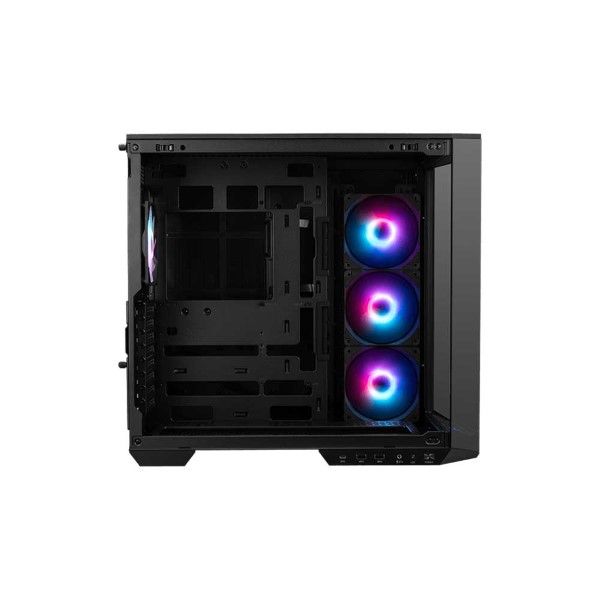

Four Pre-Installed ARGB Fans
Three 120mm reverse-blade ARGB fans are mounted on the side, accompanied by one 120mm ARGB fan at the rear for a coordinated appearance and airflow setup.
Extensive Cooling Support
Multiple fan positions and support for radiators up to 360mm provide flexibility when planning cooling for compatible high-performance hardware.
Back-Connect Motherboard Support
Compatible back-connect ATX and Micro-ATX motherboards can help reduce visible motherboard cable clutter for a cleaner-looking build.
ARGB Fan Control Board
The included 1-to-4 ARGB fan-control board supports compatible lighting connections and helps simplify RGB organization inside the cabinet.
Modern Front I/O
The front panel includes one USB 20Gbps Type-C port, two USB 5Gbps Type-A ports, audio connections, a power button and an LED switch.
Showcase Hardware with Flexible Cooling Options
The MAG PANO 100R PZ Black combines panoramic glass with a showcase-oriented fan layout to put compatible PC components in view. Its black finish works well with dark-themed builds, RGB lighting and contrasting component colours.
Plan GPU clearance, radiator placement, PSU dimensions and cable routing before assembly. The cabinet supports vertical GPU mounting, but a compatible riser cable is sold separately.
Technical Specifications
Product and Design
MSI
MAG PANO 100R PZ
Mid-Tower Gaming Cabinet
Black
270-degree panoramic tempered glass
518.7 × 290 × 482mm (L × W × H)
8
Removable top, side and bottom filters
Motherboard and Component Compatibility
ATX, Micro-ATX and Mini-ITX
Compatible ATX and Micro-ATX layouts
380mm
166mm
Standard ATX PSU
200mm
Supported; compatible riser cable sold separately
Cooling and Fan Support
4 × 120mm ARGB fans
3 × 120mm ARGB reverse-blade
1 × 120mm ARGB
3 × 120mm or 3 × 140mm
3 × 120mm or 2 × 140mm
3 × 120mm, 2 × 140mm or 2 × 160mm
1 × 120mm
Top: up to 360mm; side: up to 360mm; bottom: up to 360mm; rear: 120mm
Storage and Connectivity
3 × 2.5-inch drives
2 × 2.5-inch / 3.5-inch combo mounts
1 × USB 20Gbps Type-C
2 × USB 5Gbps Type-A
Audio-out and mic-in
Power button and LED switch
Included 1-to-4 ARGB fan-control board
Specifications are based on MSI's published MAG PANO 100R PZ product information. Component clearances can vary with fan, radiator, drive and cable configurations. Verify compatibility before purchase.
Ideal Use Cases
High-Performance Gaming
Build a modern gaming PC with room for a compatible graphics card, capable cooling and supporting components.
Black-Themed Builds
Pair the black exterior with dark components, contrasting accents or RGB lighting for a coordinated setup.
Showcase Gaming Setups
The panoramic glass design makes it easy to display carefully arranged hardware and lighting.
Liquid-Cooled Systems
Plan a compatible liquid-cooling configuration using the cabinet's supported radiator mounting positions.
Before You Buy / Install
- Confirm that you are purchasing the black MAG PANO 100R PZ version.
- Check your motherboard form factor and confirm back-connect compatibility if using a rear-connector motherboard.
- Ensure your graphics card is no longer than 380mm and your CPU cooler is no taller than 166mm.
- Confirm that your ATX power supply is within the 200mm maximum length and allows sufficient room for cable routing.
- Check radiator thickness, fan placement and component clearance before planning a multi-radiator configuration.
- Four 120mm ARGB fans are included. Additional fans, radiators and liquid-cooling hardware may need to be purchased separately.
- A compatible GPU riser cable is required for vertical graphics-card installation and is sold separately.
- Check your motherboard's available headers and follow the relevant manuals when connecting ARGB lighting and the fan-control board.
- Clean the removable dust filters periodically to help maintain airflow and reduce dust buildup.
Frequently Asked Questions
How many fans come with the MSI MAG PANO 100R PZ Black?
It includes four 120mm ARGB fans: three reverse-blade fans on the side and one fan at the rear.
Which motherboards are supported?
The cabinet supports ATX, Micro-ATX and Mini-ITX motherboards, as well as compatible back-connect ATX and Micro-ATX designs.
What is the maximum graphics-card length?
The specified maximum graphics-card length is 380mm. Check the clearance for your specific GPU and planned cooling configuration before installation.
Does this cabinet support a 360mm radiator?
Yes. It supports radiators up to 360mm at compatible top, side and bottom positions. Verify radiator thickness and component clearance when planning your setup.
Can I mount my graphics card vertically?
Yes, vertical GPU mounting is supported. A compatible riser cable is sold separately, so confirm the required cable and clearance before purchasing.
Which USB ports are available on the front panel?
The front I/O includes one USB 20Gbps Type-C port, two USB 5Gbps Type-A ports, audio-out and mic-in connections, a power button and an LED switch.
Is the black version suitable for an RGB gaming PC?
Yes. Its black finish, panoramic glass and included ARGB fans make it suitable for dark-themed builds, RGB lighting and contrasting component colours.
