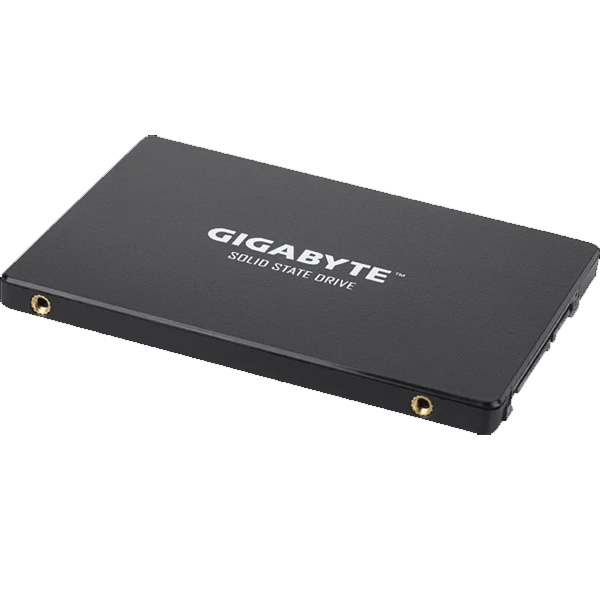

Gigabyte 240Gb Sata Ssd
- Form Factor: 2.5-inch internal SSD
- Interface: SATA 6.0Gb/s
- Total Capacity: 240GB*
- Warranty: Limited 3-years
- Sequential Read speed : up to 500 MB/s
- Sequential Write speed : up to 420 MB/s
- TRIM & S.M.A.R.T supported
|
Interface |
SATA 6.0Gb/s |
|
Form Factor |
2.5-inch internal SSD |
|
Total Capacity |
240GB |
|
NAND |
NAND Flash |
|
External DDR Cache |
N/A |
|
Sequential Read speed |
Up to 500 MB/s |
|
Sequential Write speed |
Up to 420 MB/s |
|
Random Read IOPS |
up to 50k |
|
Random Write IOPS |
up to 75k |
|
Dimension |
69.85 x 7 x 100 mm |
|
Mean time between failure (MTBF) |
2M hours |
|
Power Consumption (Active) |
Average: R : 2240mW; W : 2610mW |
|
Power Consumption (Idle) |
170mW |
|
Temperature (Operating) |
0°C to 70°C |
|
Temperature (Storage) |
-40°C to 85°C |
|
Warranty |
1. Limited 3-years or 100TBW |
| 2. Limited warranty based on 3 years or 100TBW, whichever comes first. | |
| *TBW (Terabyte Written):Terabytes Written is the total amount of data that can be written into an SSD before it is likely to fail. | |
| 3. The "percentage of SSD life" (SMART ID: E7 or A9) in SMART page of the "GIGABYTE SSD toolbox" program will be used as the determining criteria when the number is 0 means out of warranty. (A new unused product will show the percentage of 100.) | |
|
Note |
• Test system configuration: configuration may vary by models; we will choose the latest platform for verification. |
| • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. | |
| • Speeds based on internal testing. Actual performance may vary. | |
| • 1GB = 1 billion bytes. Actual useable capacity may vary. |
