| Category |
Specification |
| Brand |
Fractal Design |
| Product Series |
Meshify 3 |
| Product Name |
Meshify 3 Ambience Pro RGB Black TG Light Tint |
| Model Number |
FD-C-MES3A-03 |
| Cabinet Type |
Mid Tower |
| Color |
Black |
| Side Panel |
Tempered Glass (Light Tint) |
| Front Panel |
Rockface High-Airflow Mesh Front Panel |
| Chassis Material |
Steel, Tempered Glass, Plastic |
| RGB Lighting |
Yes |
| RGB Type |
Addressable RGB (5V ARGB) |
| RGB Controller |
Not Included (Connects directly to Motherboard ARGB Header) |
| Included RGB Fans |
3 × 140mm Momentum RGB PWM Fans |
| Fan Daisy Chain |
Yes |
| Motherboard RGB Compatibility |
ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome Sync |
| PSU Included |
No |
| PSU Support |
ATX |
| Motherboard Support |
E-ATX (Up to 277 mm Wide), ATX, Micro-ATX, Mini-ITX |
| Expansion Slots |
7 |
| 3.5"/2.5" Drive Bays |
02-Apr |
| Dedicated 2.5" SSD Mounts |
2 (Supports up to 6 SSDs Total) |
| 5.25" Drive Bays |
None |
| Maximum GPU Length |
349 mm |
| Maximum GPU Height |
176 mm (Including Power Cable) |
| Maximum CPU Cooler Height |
173 mm |
| Maximum PSU Length |
180 mm |
| Cable Management Clearance |
34.5 mm |

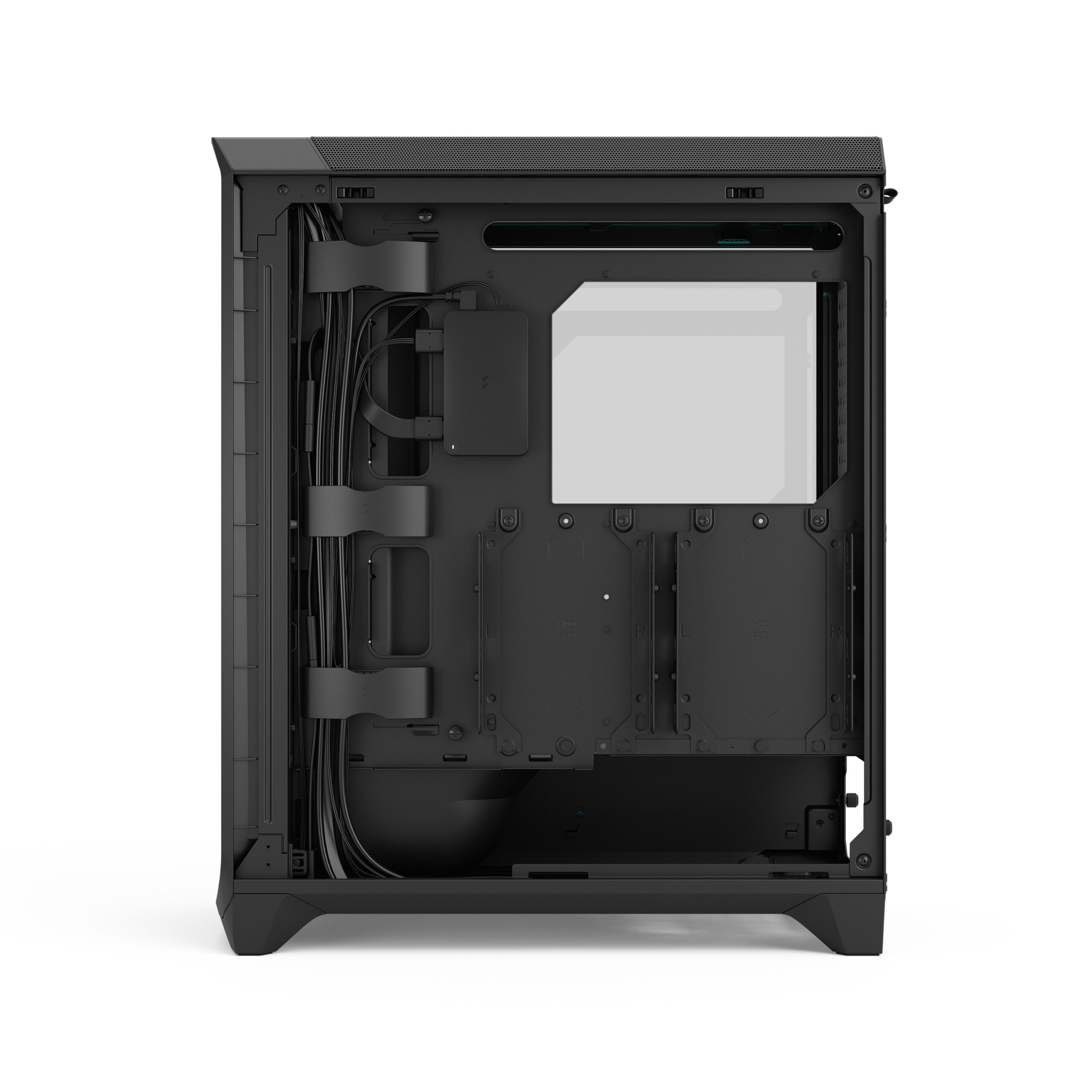

| Cable Routing |
3 Velcro Straps + 3 Cable Guides |
| Cable Cover |
Yes |

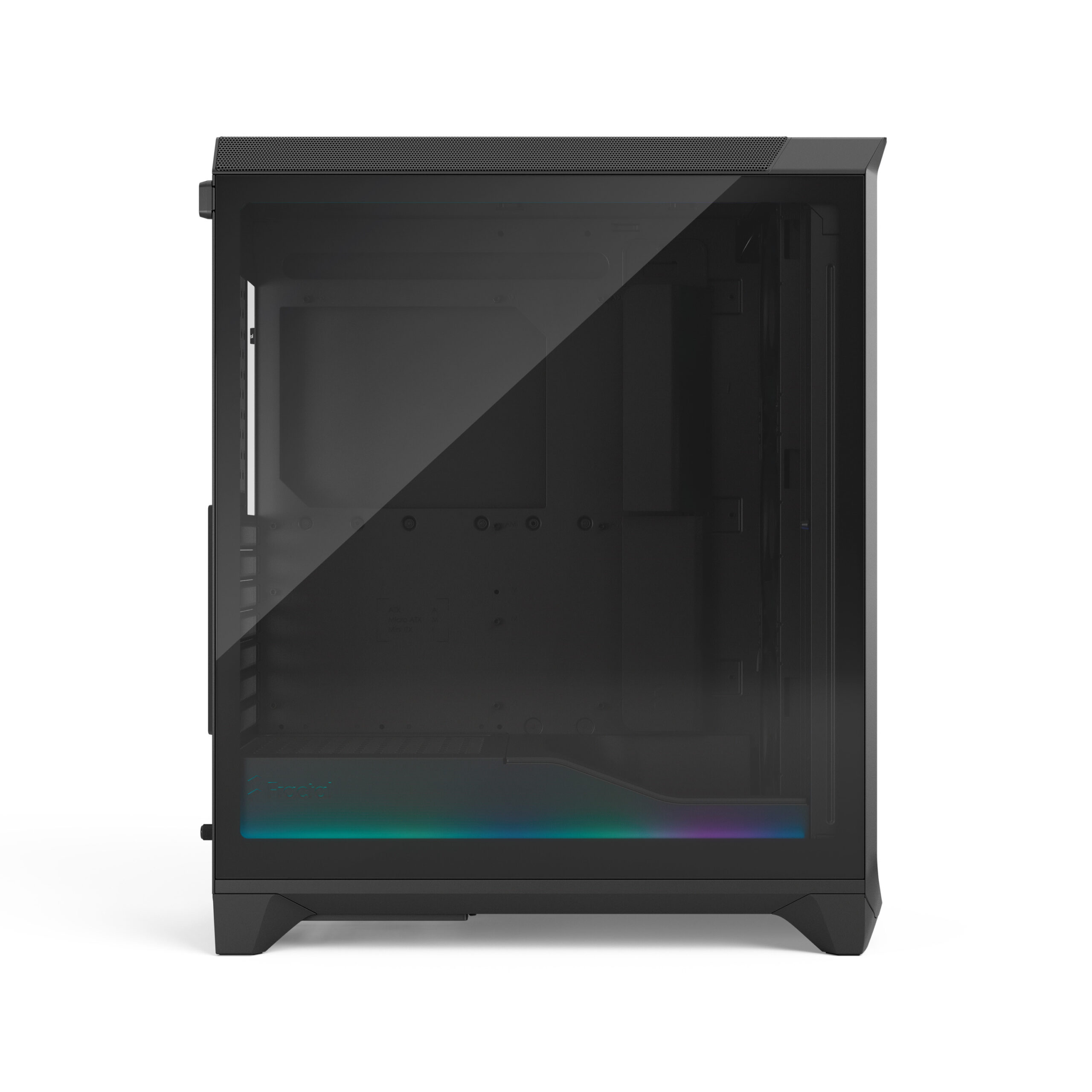

| Left Side Panel |
Tempered Glass (Light Tint) |

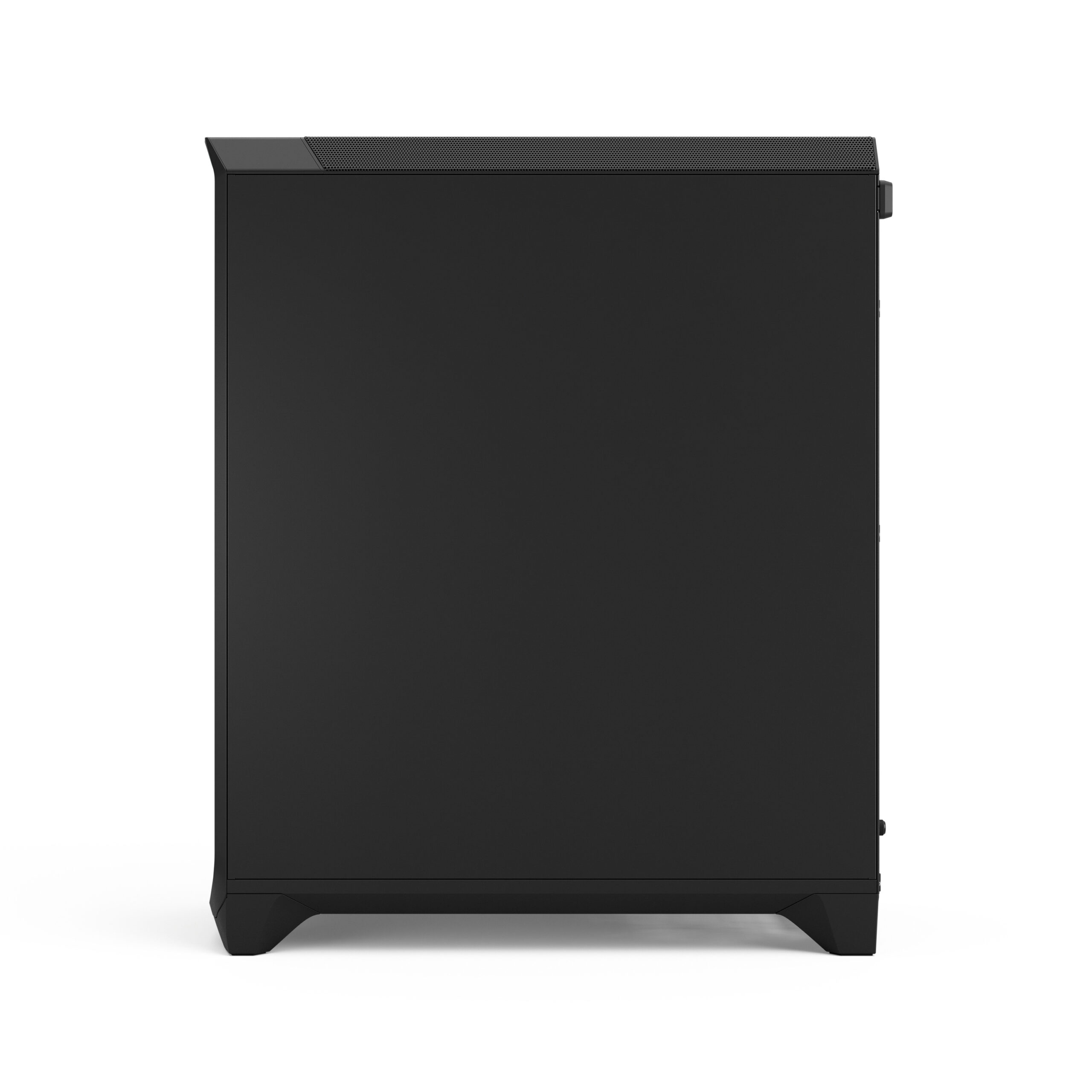

| Right Side Panel |
Industrial Steel |
| Front Fan Support |
3 × 120 mm or 3 × 140 mm |
| Top Fan Support |
2 × 120 mm or 2 × 140 mm |
| Rear Fan Support |
1 × 120 mm |
| Bottom Fan Support |
Not Supported |
| Maximum Fan Support |
6 × 120 mm or 5 × 140 mm + 1 × 120 mm |
| Pre-installed Fans |
Front: 3 × 140 mm Momentum RGB PWM Fans |
| Front Radiator Support |
Up to 360 mm / 280 mm |
| Top Radiator Support |
Up to 280 mm / 240 mm |
| Rear Radiator Support |
120 mm |
| Bottom Radiator Support |
Not Supported |
| Dust Filters |
Bottom PSU Dust Filter |
| Front I/O Ports |
1 × USB Type-C (USB 3.2 Gen 2×2, 20 Gbps), 2 × USB Type-A (USB 3.2 Gen 1, 5 Gbps), 1 × Audio Combo Jack, Power Button |
| USB Type-C |
20 Gbps |
| USB Type-A |
5 Gbps ×2 |
| Audio Port |
3.5 mm Audio/Mic Combo Jack |
| Tool-less Design |
Yes |
| Push-to-Lock Panels |
Left & Right Panels, Front Panel, Top Panel, Bottom Dust Filter, PSU Bracket |
| Thumb Screws |
Captive Thumb Screws |
| Case Dimensions (L × W × H) |
433 × 229 × 507 mm |
| Chassis Dimensions (Without Feet) |
423 × 229 × 483 mm |
| Package Dimensions |
596 × 345 × 550 mm |
| Net Weight |
8.8 kg |
| Package Weight |
10.6 kg |
| Accessories Included |
Cabinet, Accessory Box, User Manual, Mounting Screws, Cable Ties |
| Warranty |
2 Years |
