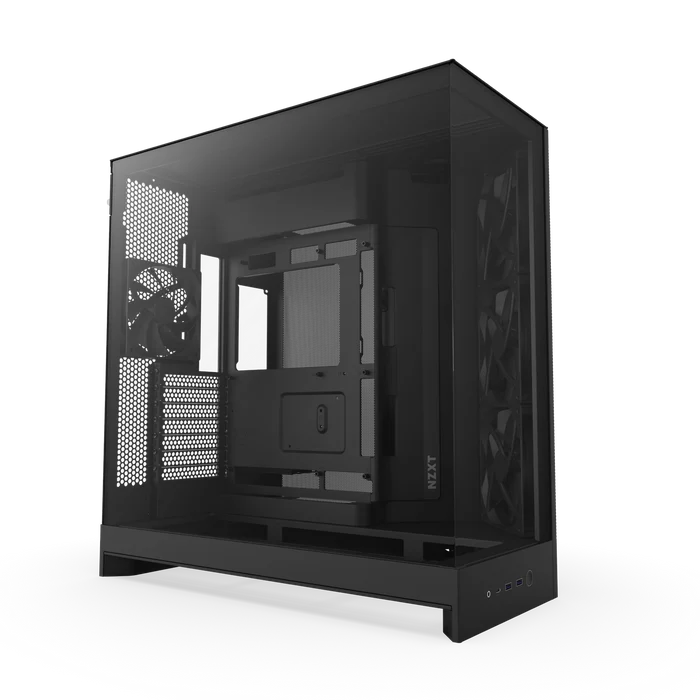

NZXT H9 Flow Large Dual-Chamber ATX Mid-Tower Case (Black)


Overview

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

Dual-Chamber Design

Separates main components from the PSU and drives for improved thermal performance and cable management.

Optimized Airflow

Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

Pre-Installed Fans

Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)

Ten-Fan Capacity

Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

Panoramic View

Showcase every detail of your build with seamless, wraparound tempered glass paneling.

Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

Easy Cable Management

Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.

Back-Connect Ready

Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

Dimensions
Height 506 mm (19.9 in)
Width 315 mm (12.4 in)
Depth 481 mm (18.9 in)
Volume 76.7 L
Weight 12.46 kg (27.47 lb)
General
Enclosure Type Mid-tower
Motherboard Compatibility E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
Rear-Connecting Motherboard Support (BTF, Project Zero) Yes (ATX)
Materials SGCC steel, clear tempered glass (white), tinted tempered glass (black)
Clearance
CPU Cooler Height 165mm
GPU Length Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
PSU Length 200 mm
Top Radiator & Fan Thickness Up to 80 mm (360 mm) Up to 62 mm (420 mm)
Front I/O Ports
USB 3.2 Type-A 2
USB 3.2 Gen2x2 Type-C 1
Headset Jack 1
Expansion Slots
Standard 7
Vertical 0
Drive Bays
2.5″ 4+2
3.5″ 2
Fan Support
Front-Right 3 x 120 mm / 3 x 140 mm (3 x F140Q (CV) included)
Top 3 x 120 mm / 3 x 140 mm
Bottom 3 x 120 mm / 3 x 140 mm
Rear 1 x 120 mm (1 x F120Q (CV) included)
Radiator Support
Front-Right Up to 420 mm
Top Up to 420 mm
Bottom Up to 360 mm
Rear Up to 120 mm
Fan Specs – F140Q (CV)
Model F140Q (CV)
Speed 1,350 ± 150 RPM
Airflow 100.25 CFM
Static Pressure 1.4 mmH2O
Noise 22.9 dBA
Fan Connector 3-Pin
Fan Specs – F140Q (CV)
Model F120Q (CV)
Speed 1,350 ± 150 RPM
Airflow 60.2 CFM
Static Pressure 1.05 mmH2O
Noise 24.1 dBA
Fan Connector 3-Pin
Warranty 2 Years
Note** **Prices, Specifications & Features are subject to change without notice
