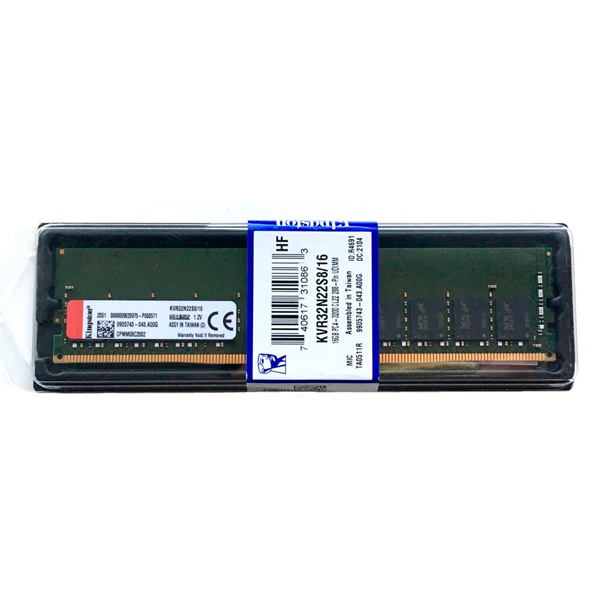

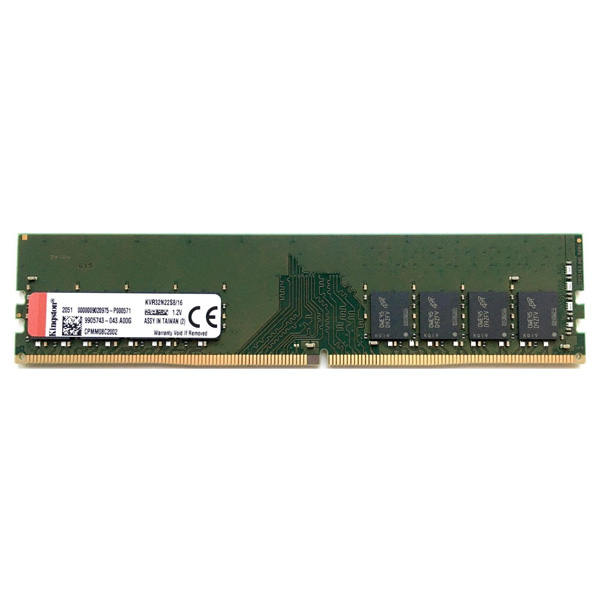

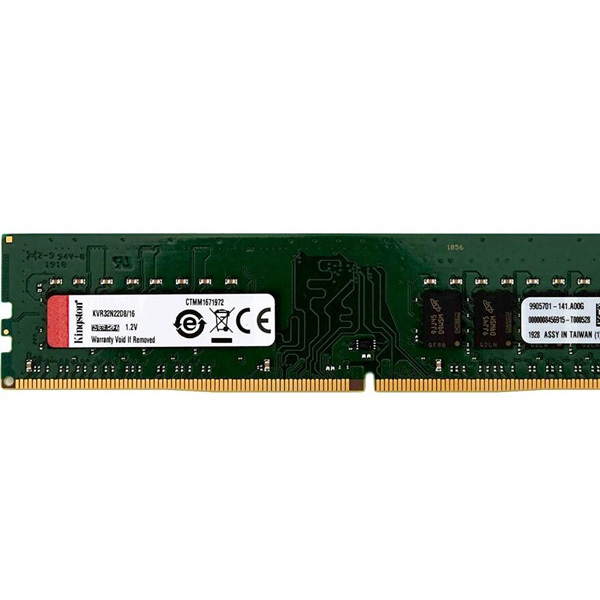

Kingston KVR 16gb 3200MHz DDR4 Desktop Ram

Name: Kingston KVR 16gb 3200MHz DDR4 Desktop Ram
Brand: Kingston
SKU: KVR32N22D8/16
Price: 15190 INR
Availability: InStock

DESCRIPTION SPECIFICATIONS

KVR32N22D8/16

16GB 2Rx8 2G x 64-Bit PC4-3200

CL22 288-Pin DIMM

Continued

FEATURES
This document describes ValueRAM's KVR32N22D8/16 is a 2G x
64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8,
memory module, based on sixteen 1G x 8-bit FBGA components. The
SPD is programmed to JEDEC standard latency DDR4-3200 timing of
22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The
electrical and mechanical specifications are as follows

Specification	Details
Brand	Kingston
Product Series	ValueRAM
Model	KVR32N22D8/16
Capacity	16GB
Memory Type	DDR4 SDRAM
Form Factor	288-Pin UDIMM (Desktop)
Module Type	Unbuffered DIMM (UDIMM)
ECC	Non-ECC
Registered	No
Memory Speed	3200MT/s (DDR4-3200)
PC Rating	PC4-25600
CAS Latency	CL22
Timing	22-22-22
Data Width	64-bit
Rank	Dual Rank (2Rx8)
DRAM Organization	2G x 64-bit
Voltage	1.2V
Buffered	No
Pin Count	288 Pins
Heat Spreader	No
XMP Support	No (JEDEC Standard)
SPD	JEDEC Standard Programmed
Burst Length	BC4 / BL8
Number of Banks	16 Internal Banks (4 Bank Groups × 4 Banks)
On-Die Termination	Supported
Data Bus Inversion (DBI)	Supported
Auto Self Refresh	Low-Power Auto Self Refresh (LPASR)
PCB Height	31.25 mm (1.23")
Contact Material	Gold-Plated Fingers
Operating Temperature	0°C to +85°C
Storage Temperature	-55°C to +100°C
Compliance	JEDEC Standard, RoHS Compliant, Halogen-Free
Compatibility	Compatible with DDR4 Desktop Motherboards Supporting 3200MT/s UDIMM Memory
Warranty	Limited Lifetime Warranty
