CPU
|
AMD Socket AM5, support for: |
| AMD Ryzen™ 9000 Series Processors/ |
| AMD Ryzen™ 8000 Series Processors/ |
| AMD Ryzen™ 7000 Series Processors |
| Chipset |
AMD X870E |
| Memory |
Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Dual channel memory architecture |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics |
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: |
| – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz |
| * Support for DisplayPort 1.4 version and HDR. |
| Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| ** Support for native HDMI 2.1 TMDS compatible ports. |
| – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz |
| * Support for HDMI 1.4 version |
| (Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek® ALC1220 CODEC |
| * The back panel line out jack supports DSD audio. |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure |
| 7.1-channel audio, access the audio software for audio settings. |
| Support for S/PDIF Out |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module |
Qualcomm® Wi-Fi 7 QCNCM865 |
| – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| – BLUETOOTH 5.3 |
| – Support for 11be 320MHz wireless standard |
| (Actual data rate may vary depending on environment and equipment.) |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. |
| Expansion Slots |
1x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
| * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. |
| When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. |
| AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) |
| Chipset: |
| – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) |
| – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Storage Interface |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
| AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting |
| Socket 3, M key, type 22110/2280 SSDs: |
| AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| * The M2B_CPU and M2C_CPU connectors will become unavailable when using the |
| AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors. |
| 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| 4 x SATA 6Gb/s connectors |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |
CPU+ASMedia USB4® controller: |
| – 2 x USB4® USB Type-C® ports on the back panel |
| CPU: |
| – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| Chipset: |
| – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header |
| – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| – 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors |
| 1 x CPU fan header |
| 1 x CPU fan/water cooling pump header |
| 4 x system fan headers |
| 2 x system fan/water cooling pump headers |
| 3 x addressable RGB Gen2 LED strip headers |
| 1 x RGB LED strip header |
| 4 x SATA 6Gb/s connectors |
| 4 x M.2 Socket 3 connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support |
| 2 x USB 3.2 Gen 1 headers |
| 2 x USB 2.0/1.1 headers |
| 1 x noise detection header |
| 1 x HDMI port (Note) |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only) |
| 1 x power button |
| 1 x reset button |
| 2 x temperature sensor headers |
| 1 x reset jumper |
| 1 x Clear CMOS jumper |

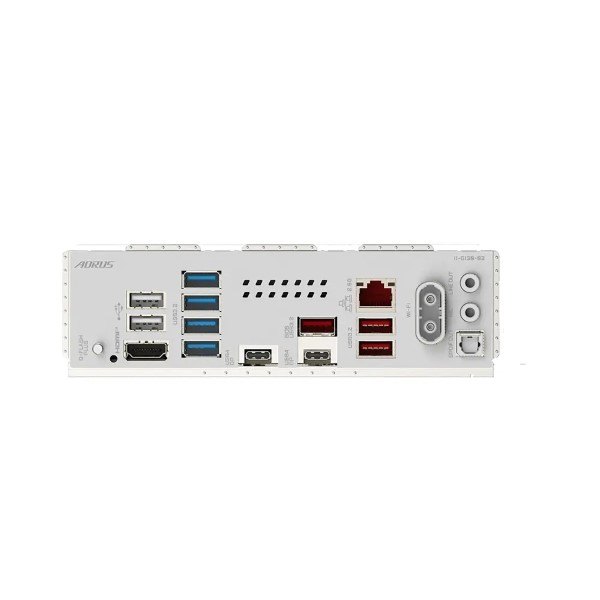

| Back Panel Ports |
1 x Q-Flash Plus button |
| 2 x USB 2.0/1.1 ports |
| 1 x HDMI port (Note) |
| 4 x USB 3.2 Gen 1 ports |
| 2 x USB4® USB Type-C® port (DisplayPort (Note)) |
| 3 x USB 3.2 Gen 2 Type-A ports (red) |
| 1 x RJ-45 port |
| 2 x antenna connectors (2T2R) |
| 1 x optical S/PDIF Out connector |
| 2 x audio jacks |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection |
| Temperature detection |
| Fan speed detection |
| Water cooling flow rate detection |
| Fan fail warning |
| Fan speed control |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| Noise detection |
| BIOS |
1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Feature |
Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Support for Q-Flash |
| Support for Q-Flash Plus |
| Support for Smart Backup |
| Bundled Software |
Norton® Internet Security (OEM version) |
| LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
| Warranty |
3 Years |
| Note** |
**Prices, Specifications & Features are subject to change without notice |
