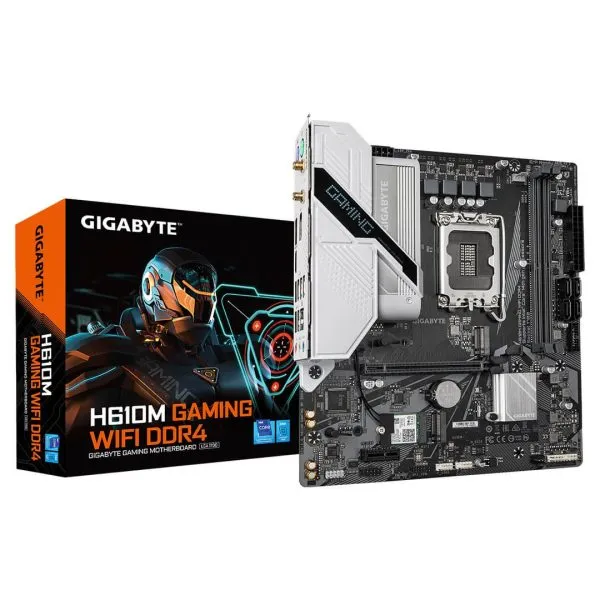

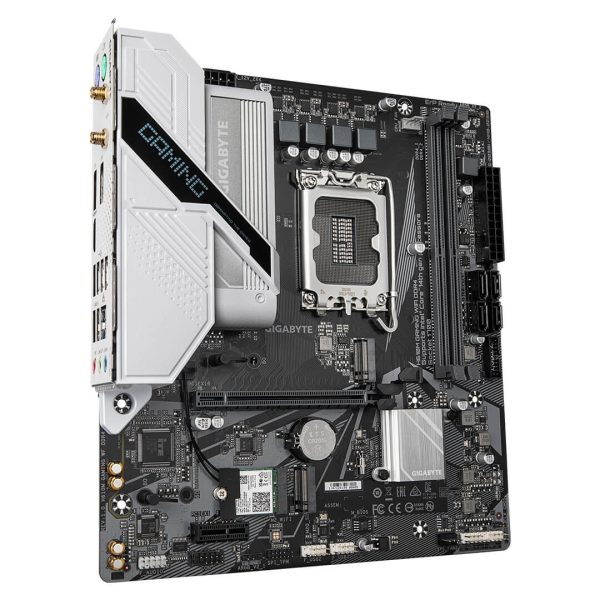

GIGABYTE H610M Gaming WIFI Intel LGA1700 DDR4 M-ATX Motherboard
GIGABYTE H610M Gaming WIFI Intel LGA1700 DDR4 M-ATX Motherboard
GIGABYTE H610M Gaming WIFI Intel LGA1700 DDR4 M-ATX Motherboard
GIGABYTE H610M Gaming WIFI Intel LGA1700 DDR4 M-ATX Motherboard
GIGABYTE H610M Gaming WIFI Intel LGA1700 DDR4 M-ATX Motherboard
GIGABYTE H610M Gaming WIFI Intel LGA1700 DDR4 M-ATX Motherboard

GIGABYTE H610M Gaming WIFI Intel LGA1700 DDR4 M-ATX Motherboard

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+1+1 Hybrid Digital VRM Design
  • EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
  • Fast Networks： Wi-Fi 802.11ac & GbE LAN
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
₹8,690.00
Name
Chat on WhatsApp

FAQs

Yes, we provide GST billing for all eligible purchases. You will receive a GST invoice with your order.
Yes, this product includes official brand warranty as per the manufacturer’s terms.
Yes, EMI options (including No-cost EMI on select cards) may be available at checkout depending on your bank and order value.
Orders placed before the daily cut-off time are dispatched the same day (working days). Actual delivery time depends on your pincode.

GIGABYTE H610M Gaming WIFI Intel LGA1700 DDR4 M-ATX Motherboard

Feature

Durable Performance

GIGABYTE H610M Gaming WIFI Ultra Durable  motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

The best VRM design ever built with the highest quality components.

• 6+1+1 Phases digital PWM + Low RDS(on) MOSFETs• Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.

Single 32GB Support

GIGABYTE H610M Gaming WIFI motherboard populates 2 memory DIMMs per channel with 32GB support per DIMM, and total memory capacity is 64GB. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing

Thermal

Enlarged MOSFET Heatsink

Future Connectivity

GIGABYTE H610M Gaming WIFI The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ac Wi-Fi

The onboard 802.11ac Wi-Fi module supports Dual Band and up to 1.73Gbps, 5x faster Wi-Fi speed than 802.11n and also supports BLUETOOTH 4.2 and above.

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

PCIe 4.0 Hardware Design

GIGABYTE H610M Gaming WIFI Featuring one or multiple PCIe 4.0 x16 slot, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

Hi-Fi Audio

High-End Audio Capacitors

GIGABYTE H610M Gaming WIFI These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard

Essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Easy Friendly

GIGABYTE H610M Gaming WIFI Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Smart Fan 6

ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

High Current Support:

Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.

Precision Control:

Multiple temperature/fan speed control points for precise fan curve.

Dual Curve Mode:

Slope/Stair dual mode for different user scenario.

Fan Stop:

Fan can stop completely below users’ specified temperature point.Smart Fan 6 BIOS UI

Enhance Fan Curve UI :

Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.

Slope/Stair Dual Graph Mode :

GIGABYTE H610M Gaming WIFI Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.

Manual Input :

For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.

EZ Tuning :

Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.

Fan Curve Profile :

Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

GIGABYTE Control Center

GIGABYTE H610M Gaming WIFI Unified software platform for all Gigabyte supported products.
CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE’s website for the latest CPU support list.) L3 cache varies with CPU
Chipset Intel® H610 Express Chipset
Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: – 2 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module Intel® Wireless- AC 9560 (PCB rev. 1.0) – WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band – BLUETOOTH 5.1 – Support 11ac 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) (M2P_SB) – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support) (M2Q_SB) – 4 x SATA 6Gb/s connectors
USB Chipset: – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+2 USB 2.0 Hubs: – 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 2 x addressable RGB Gen2 LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper

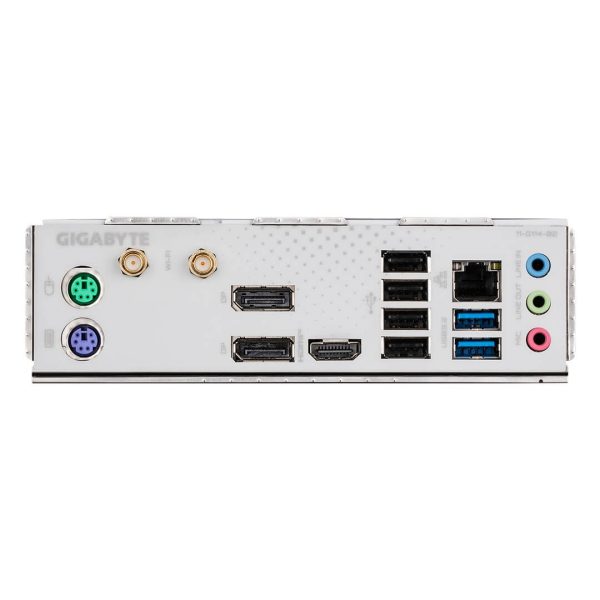

Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x SMA antenna connectors (2T2R) 2 x DisplayPorts 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash
Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 22.0cm
Hardware
  • Gigabyte H610
  • Intel H610
  • MICRO ATX
  • LGA 1700
