| CPU |
AMD Socket AM5, support for: |
| AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors |
| * Please refer to “CPU Support List” for more information. |
| Chipset |
AMD B650 |
| Memory |
Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory |
| Dual channel memory architecture |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) |
| Onboard Graphics |
Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz |
| * Support for DisplayPort 1.4 version and HDR. |
| – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| * Support for HDMI 2.1 version and HDCP 2.3. |
| ** Support for native HDMI 2.1 TMDS compatible ports. |
| (Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek® Audio CODEC |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
Realtek® Wi-Fi 6E RTL8852CE |
| – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| – BLUETOOTH 5.3 |
| – Support for 11ax 160MHz wireless |
| (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| – AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode |
| |
| – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| |
| – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| |
| Chipset: |
| |
| – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Storage Interface |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: |
| |
| – AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| |
| – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| |
| – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| |
| 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: |
| |
| – AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs |
| |
| – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| |
| – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs |
| |
| 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs |
| |
| 4 x SATA 6Gb/s connectors |
| |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |
CPU: |
| |
| – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| |
| – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| |
| CPU + USB 2.0 Hub: |
| |
| – 4 x USB 2.0/1.1 ports on the back panel |
| |
| Chipset: |
| |
| – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header |
| |
| – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) |
| |
| – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| |
| Chipset+USB 3.2 Gen 1 Hub: |
| |
| – 4 x USB 3.2 Gen 1 ports on the back panel |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |
| |
| 1 x 8-pin ATX 12V power connector |
| |
| 1 x 4-pin ATX 12V power connector |
| |
| 1 x CPU fan header |
| |
| 1 x CPU fan/water cooling pump header |
| |
| 3 x system fan headers |
| |
| 1 x system fan/water cooling pump header |
| |
| 3 x addressable RGB Gen2 LED strip headers |
| |
| 1 x RGB LED strip header |
| |
| 3 x M.2 Socket 3 connectors |
| |
| 4 x SATA 6Gb/s connectors |
| |
| 1 x front panel header |
| |
| 1 x front panel audio header |
| |
| 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support |
| |
| 1 x USB 3.2 Gen 1 header |
| |
| 2 x USB 2.0/1.1 headers |
| |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| |
| 1 x reset button |
| |
| 1 x reset jumper |
| |
| 1 x Clear CMOS jumper |

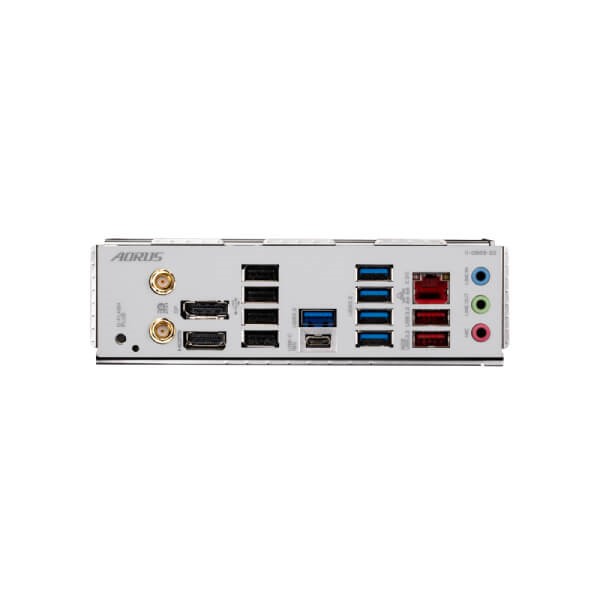

| Back Panel Connectors |
1 x Q-Flash Plus button |
| |
| 2 x SMA antenna connectors (2T2R)jk |
| |
| 1 x DisplayPort |
| |
| 1 x HDMI port |
| |
| 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| |
| 2 x USB 3.2 Gen 2 Type-A ports (red) |
| |
| 5 x USB 3.2 Gen 1 ports |
| |
| 4 x USB 2.0/1.1 ports |
| |
| 1 x RJ-45 port |
| |
| 3 x audio jacks |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection |
| |
| Temperature detection |
| |
| Fan speed detection |
| |
| Water cooling flow rate detection |
| |
| Fan fail warning |
| |
| Fan speed control |
| |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
1 x 256 Mbit flash |
| |
| Use of licensed AMI UEFI BIOS |
| |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC) |
| |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| |
| Support for Q-Flash |
| |
| Support for Q-Flash Plus |
| BUNDLE SOFTWARE |
Norton® Internet Security (OEM version) |
| |
| LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit |
| |
| Support for Windows 10 64-bit |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
| Warranty |
3 Years |
| Note |
Price, feature and specifications are subject to change without notice. |
