DEEPCOOL GAMER STORM PN-M SERIES

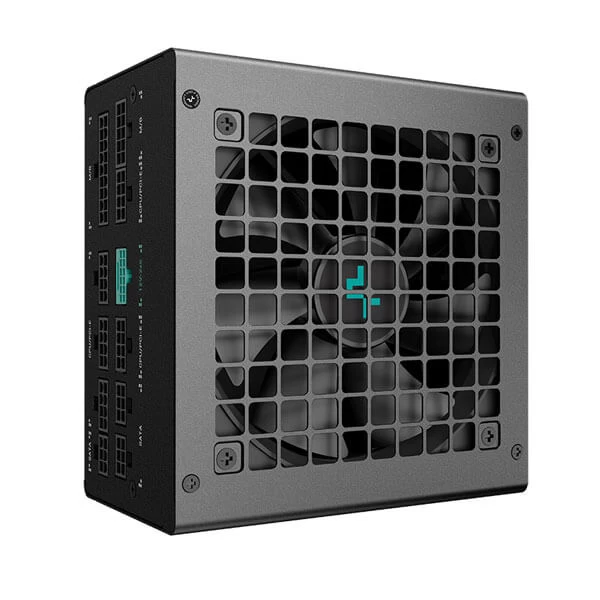

DeepCool Gamer Storm PN750M 750W 80 PLUS Gold Power Supply
Modern ATX 3.1 power delivery, fully modular sleeved cables, Gold-rated efficiency and a native 450W-capable 12V-2x6 GPU cable for compatible gaming and performance PCs.
PN750M at a Glance
Introduction
The DeepCool Gamer Storm PN750M 750W 80 PLUS Gold Power Supply (R-PN750M-FC0B-JGIN) is designed for modern gaming desktops and performance-oriented PC builds that need efficient power delivery, modern GPU connectivity and flexible cable management.
Built to the Intel ATX12V 3.1 specification and compatible with PCIe 5.1 graphics power requirements, the PN750M includes a native 12V-2x6 cable rated to provide up to 450W for compatible graphics cards. Its 750W capacity is suitable for a range of systems, depending on the CPU, GPU and total system power requirements.

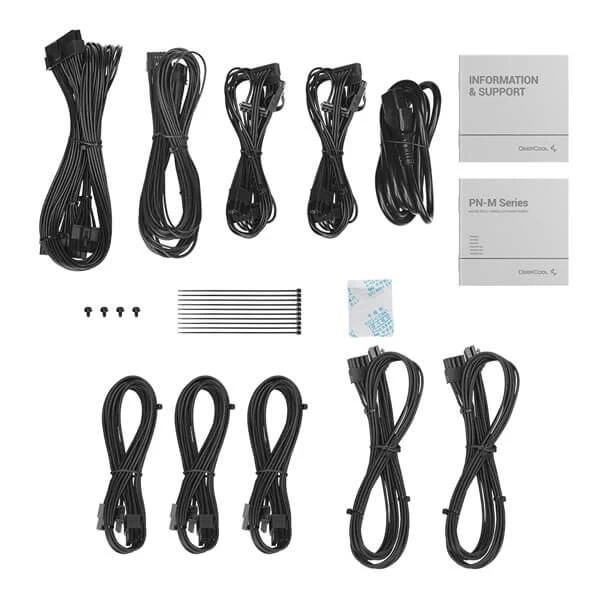

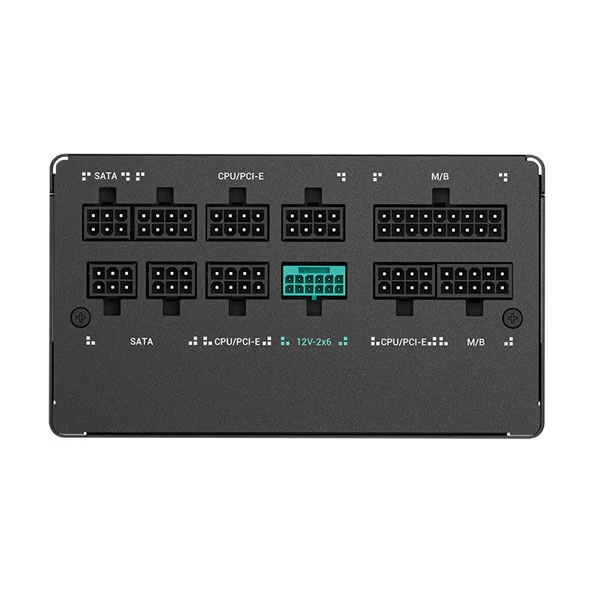

The fully modular design allows you to connect only the cables your build needs. Sleeved cables give the installation a cleaner appearance, while the compact 140mm-long chassis fits many standard ATX-compatible cases.
An FDB cooling fan, active PFC, full-bridge SRC LLC topology and DC-to-DC conversion combine efficiency-focused design with thermal management and power regulation.
Key Features
750W Continuous Power
Provides 750W of rated output for compatible gaming and productivity systems. Check the combined power requirements of the CPU, GPU and other components before purchase.
80 PLUS Gold Efficiency
Carries 80 PLUS Gold certification and is also rated Gold by Cybenetics. DeepCool specifies efficiency of at least 90% at 50% load under its stated test conditions.
Native 12V-2x6 GPU Cable
Includes a dedicated 16-pin 12V-2x6 cable rated for up to 450W for compatible modern graphics cards, reducing the need for a separate multi-connector adapter for this connection.
ATX 3.1 and PCIe 5.1
Designed for the ATX12V 3.1 standard, with support for modern graphics power requirements and transient power excursions defined by the applicable specification.

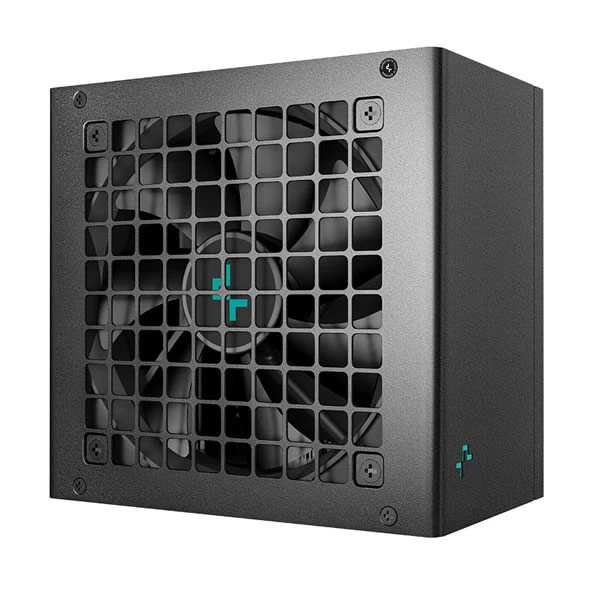

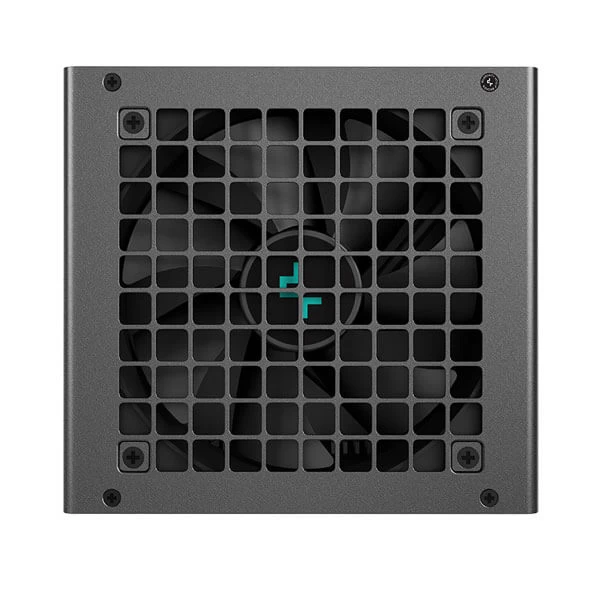

120mm FDB Fan
The fluid dynamic bearing fan adjusts its speed according to the PSU's cooling needs, helping balance airflow, temperature and operating noise.
Comprehensive Protection
Includes OPP, OVP, SCP, OTP, OCP, UVP, SIP and NLO protection functions, alongside a Japanese bulk capacitor and a specified hold-up time of at least 16ms at 80% load.
Power Delivery and Cooling Technology

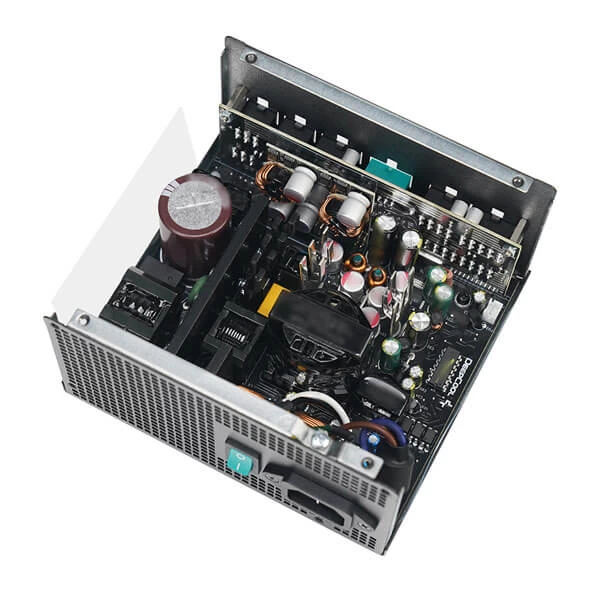

The PN750M combines active power factor correction with full-bridge SRC LLC topology and DC-to-DC conversion. This design supports efficient power conversion and regulated output for compatible PC components.
Its ATX 3.1 design addresses the transient power demands of modern systems. The included native 12V-2x6 cable supports up to 450W for compatible GPUs; the PSU's total 750W rating and the graphics card's own requirements must still be considered when planning a build.
The 120mm fluid dynamic bearing fan adjusts its speed according to thermal requirements. DeepCool specifies operation from 0°C to 40°C and a minimum hold-up time of 16ms at 80% load.
The manufacturer lists a mean time between failures (MTBF) of 100,000 hours. This is a reliability specification, not a guarantee that an individual unit will operate for that duration.
Technical Specifications
Specifications are based on DeepCool's official PN750M product page. The 450W rating refers to the supplied 12V-2x6 GPU cable, not the PSU's total output. Connector availability and compatibility should be checked against the exact system configuration.
Ideal Use Cases
Mainstream Gaming PCs
A potential fit for gaming builds whose CPU, GPU and other components are within the PSU's 750W capacity and connector limits.
Content Creation
Supports compatible workstations used for editing, development, design and other productivity workloads.
Modern GPU Builds
The native 12V-2x6 cable is useful for compatible graphics cards that require the 16-pin power connection within the cable's 450W rating.
Clean Custom Builds
Fully modular, sleeved cables make it easier to connect only the required leads and create a tidy interior layout.
Before You Build
- Check the exact CPU and GPU power recommendations before deciding whether 750W provides sufficient capacity for your system.
- The included 12V-2x6 cable is rated for up to 450W. Verify that the graphics card's power requirement and connector are compatible with this cable.
- The PSU is fully modular. Use the supplied cables or replacements explicitly approved for this exact PSU; modular PSU cables are not universally interchangeable.
- The chassis measures 150 × 140 × 86mm. Confirm case clearance and leave adequate room for cable bends and airflow.
- The manufacturer lists a 10-year limited warranty. Review the applicable terms, including DeepCool's stated restrictions concerning mining and other abnormal uses.
- For high-power graphics cards, overclocking or future upgrades, account for transient power requirements and total system load instead of relying on wattage alone.
Frequently Asked Questions
1. Is the DeepCool PN750M a 750W power supply?
Yes. The PN750M is rated for 750W of continuous power. Whether it is sufficient for a particular build depends on the processor, graphics card and complete system load.
2. Is the PN750M fully modular?
Yes. Its power cables are detachable, so you can connect only the cables required for your system and improve cable-management flexibility.
3. Does the PN750M support ATX 3.1 and PCIe 5.1?
Yes. DeepCool specifies ATX12V 3.1 and PCIe 5.1 compatibility for the PN750M, including a native 12V-2x6 GPU power cable.
4. What is the power rating of its native 12V-2x6 cable?
DeepCool specifies up to 450W for the included native 12V-2x6 cable. It should be used only with compatible graphics cards and within the PSU's overall power limits.
5. What does 80 PLUS Gold certification mean?
It indicates that the PSU meets defined power-conversion efficiency requirements. DeepCool also lists Cybenetics Gold certification and specifies at least 90% efficiency at 50% load under its stated conditions.
6. Which fan does the PN750M use?
It uses a 120mm fluid dynamic bearing (FDB) fan that adjusts its speed according to the power supply's cooling requirements.
7. What are the dimensions of the PN750M?
The manufacturer lists dimensions of 150 × 140 × 86mm (W × L × H). Check the case's PSU clearance and cable-routing space before installation.
8. What warranty does the DeepCool PN750M include?
DeepCool specifies a 10-year limited warranty, subject to the applicable warranty terms and exclusions.
