GAMER STORM PN-D SERIES

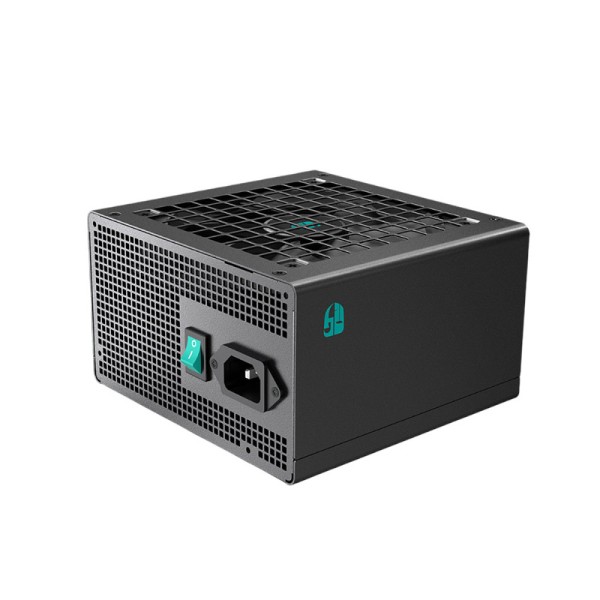

DeepCool PN750D V2 750W 80 PLUS Gold Power Supply
Reliable 750W power, ATX 3.1 compliance, PCIe 5.1 support and a dedicated 12V-2x6 GPU cable in a straightforward, non-modular design for modern PC builds.
DeepCool PN750D V2 at a Glance
Introduction
The DeepCool Gamer Storm PN750D V2 750W 80 PLUS Gold Power Supply (R-PN750D-FC0B-JGIN-V2) is designed for modern desktop PCs that need efficient power delivery and support for newer graphics-card power connections. Its 750W continuous output makes it a potential fit for compatible gaming PCs, productivity systems and mainstream enthusiast builds.
Built around the ATX 3.1 specification, the PN750D V2 supports PCIe 5.1 and includes a native 12V-2x6 GPU power cable rated for up to 450W. Its 80 PLUS Gold certification and Cybenetics Gold efficiency rating indicate a focus on power-conversion efficiency.
A 120mm hydro bearing fan adjusts its speed according to cooling demand. The internal design combines active power factor correction, full-bridge SRC LLC topology and DC-to-DC conversion.
The PN750D V2 uses a non-modular cable design, so its cables are permanently attached. This keeps the connection layout straightforward, although careful cable management is important when building in a compact case.
Key Features
750W Continuous Output
Provides 750W of rated power for compatible PC configurations, with a +12V rail rated at 62.5A for the main CPU and GPU power demands.
80 PLUS Gold Efficiency
80 PLUS Gold certification and a Cybenetics Gold rating indicate efficient power conversion under their respective testing conditions.
Native 12V-2x6 GPU Cable
Includes a dedicated 16-pin 12V-2x6 cable rated for up to 450W for compatible modern graphics cards.
ATX 3.1 and PCIe 5.1
Designed to meet ATX 3.1 requirements and support PCIe 5.1 graphics power connectivity for compatible modern systems.

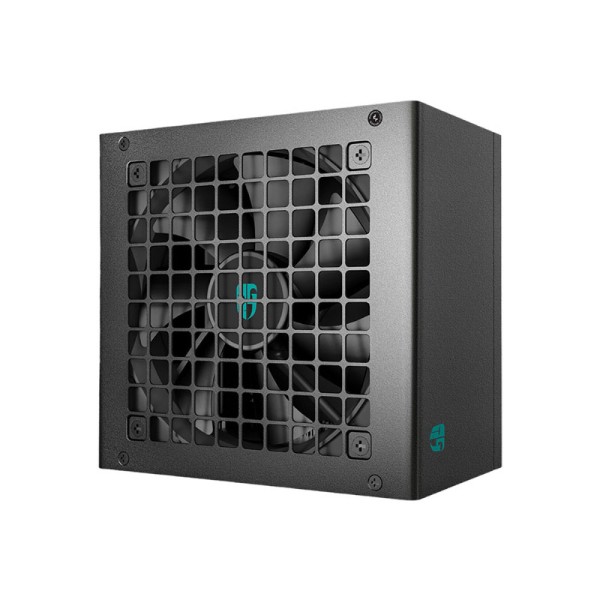

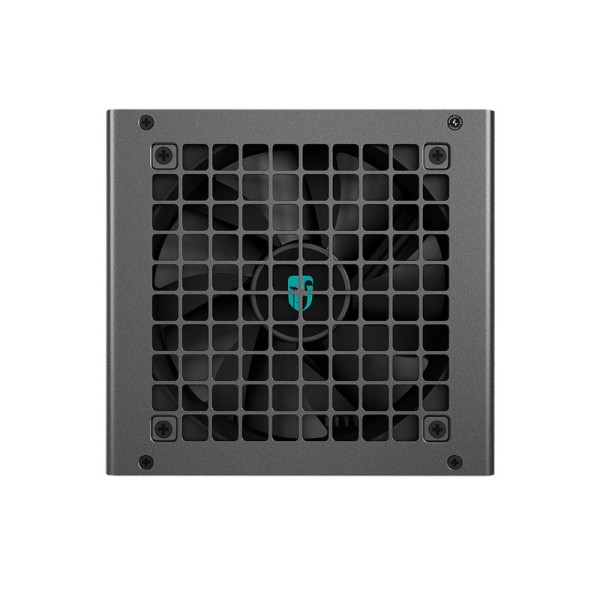

120mm Hydro Bearing Fan
The hydro bearing fan adjusts its speed to the PSU's cooling requirements, helping maintain airflow as the system load changes.
Comprehensive Protection
Includes over-power, over-voltage, short-circuit, over-temperature, over-current, under-voltage, surge and inrush, and no-load operation protections.
Power Delivery and Cooling Technology
The PN750D V2 combines active PFC, full-bridge SRC LLC topology and DC-to-DC conversion. This architecture is designed to support efficient power conversion and stable output across compatible system loads.
The dedicated 12V-2x6 connection supports modern graphics cards with a compatible 16-pin power input. DeepCool specifies a maximum cable capability of 450W, so GPU power requirements must be checked before purchase.
Its 120mm hydro bearing fan dynamically adjusts cooling according to PSU temperature and workload. The unit also specifies a hold-up time of at least 16ms at 80% load and an operating temperature range of 0°C to 40°C.
DeepCool lists operation at altitudes up to 5,000 metres above sea level and an MTBF rating of 100,000 hours. MTBF is a statistical reliability measure, not a guaranteed service life for an individual unit.
Technical Specifications
Specifications are based on DeepCool's PN750D V2 documentation and matching Indian listings. Confirm the exact regional SKU and included cables with the seller before purchase.
Recommended Use Cases
Mainstream Gaming PCs
Suitable for compatible gaming builds whose processor, graphics card and total system demand fit within a 750W PSU.
Modern GPU Builds
The native 12V-2x6 cable supports compatible graphics cards with a 16-pin power input rated within the cable's 450W capability.
Productivity Workstations
A potential fit for development, office productivity and content-creation systems with compatible component power requirements.
Long-Term PC Builds
Gold efficiency, multiple protection features and a 10-year limited warranty make it worth considering for a long-term build.
Before You Buy
- This is a non-modular PSU. All cables remain attached, so allow enough space for cable routing in your case.
- The native 12V-2x6 cable is rated for up to 450W. Check the exact graphics card's power requirements and recommended PSU wattage.
- The three PCIe 6+2-pin connectors and two EPS connectors should not be confused with the native 12V-2x6 GPU connection. Confirm the correct cable for each component.
- The chassis measures 150 × 140 × 86mm. Confirm physical clearance and cable space in the intended cabinet.
- The PSU's operating temperature rating is 0–40°C. Good case airflow helps it operate within its specified conditions.
- Use only the cables supplied with this PSU. Modular cables from other power supplies may have different pinouts and can damage connected components.
Frequently Asked Questions
1. Is the DeepCool PN750D V2 an ATX 3.1 power supply?
Yes. DeepCool specifies ATX12V v3.1 compliance and PCIe 5.1 support for the PN750D V2.
2. Is the PN750D V2 fully modular?
No. It is a non-modular power supply, meaning its power cables are permanently attached to the unit.
3. Does it include a native 12V-2x6 GPU cable?
Yes. The PN750D V2 includes a native 16-pin 12V-2x6 cable specified for up to 450W. Check that your GPU's connector and power requirements are compatible.
4. What does 80 PLUS Gold mean?
80 PLUS Gold is an efficiency certification indicating that the power supply meets defined power-conversion efficiency requirements. Actual efficiency varies with load and input conditions.
5. How many PCIe and CPU power connectors are included?
The specification lists three PCIe 6+2-pin connectors, two 4+4-pin CPU/EPS connectors and one native 12V-2x6 GPU connector.
6. Is 750W enough for a gaming PC?
It can be suitable for many compatible gaming configurations. Check the exact GPU and CPU recommendations, peak power demand and the requirements of all installed components before purchasing.
7. What are the dimensions of the PN750D V2?
The unit measures 150 × 140 × 86mm (width × length × height). Confirm PSU clearance and cable-routing space in your case.
8. What warranty does the DeepCool PN750D V2 include?
DeepCool lists a 10-year limited warranty for the V2 model. Warranty coverage is subject to the manufacturer's applicable terms and regional conditions.
