DEEPCOOL PL-D SERIES POWER SUPPLY
DeepCool PL650D 650W 80 PLUS Bronze ATX 3.1 Power Supply
Reliable 650W continuous power, Bronze efficiency, native PCIe 5.1 GPU power connectivity and hydro-bearing cooling for compatible gaming and productivity PCs.
DeepCool PL650D at a Glance
Introduction
The DeepCool PL650D 650W 80 PLUS Bronze Power Supply (R-PL650D-FC0B-IN-V2) is designed for desktop systems that need dependable power delivery, modern GPU connectivity and practical cooling. Its 650W continuous output makes it a potential fit for compatible everyday PCs, mainstream gaming systems and productivity builds.
Based on the updated ATX 3.1 design, the PL650D includes a native 12V-2x6 connector rated for up to 300W and supports PCIe 5.1 GPU power connectivity. This offers a direct connection for compatible graphics cards within the connector's power rating and the PSU's overall capacity.
Its 80 PLUS Bronze certification indicates power-conversion efficiency under defined test conditions. Active PFC and DC-to-DC conversion support the PSU's power-delivery design, while the 120mm hydro-bearing fan provides cooling during operation.
The PL650D is non-modular, so its cables remain permanently attached. With a standard ATX form factor and five-year manufacturer warranty, it is designed for straightforward integration into compatible desktop PC builds.
Key Features
650W Continuous Power
Provides 650W of rated continuous output for compatible systems. Check the combined power requirements of your CPU, graphics card, storage and other components before selecting a PSU.
80 PLUS Bronze Efficiency
Bronze-certified power conversion with at least 85% efficiency at the specified typical 50% load condition, helping reduce wasted energy under that test condition.
Native 12V-2x6 GPU Power
Includes a native 16-pin 12V-2x6 connector rated for up to 300W. Verify the graphics card's connector, recommended PSU capacity and power requirements before installation.
ATX 3.1 and PCIe 5.1
Designed around Intel's ATX 3.1 power-supply standard, with PCIe 5.1-compatible GPU power connectivity for supported modern graphics cards.

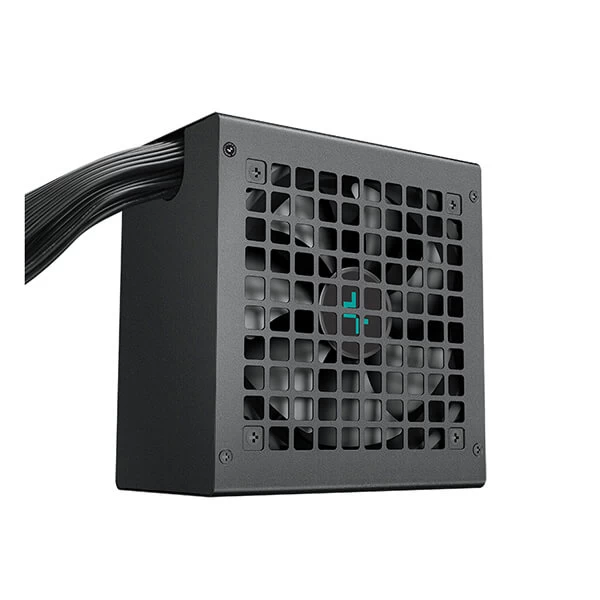

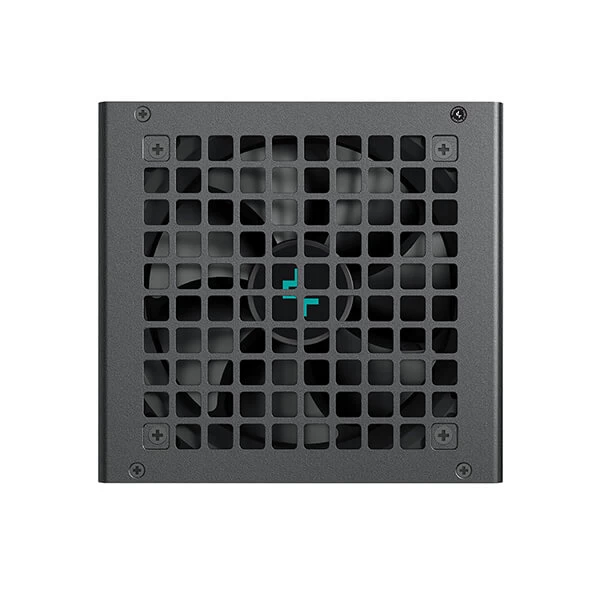

120mm Hydro-Bearing Fan
The hydro-bearing fan provides airflow to cool internal components during operation. Actual noise and cooling performance depend on load, ambient temperature and installation.
Multiple Protection Features
Includes over-power, over-voltage, short-circuit, over-temperature, over-current and under-voltage protection, along with surge and inrush protection and no-load operation protection.
Power Delivery and Cooling Technology

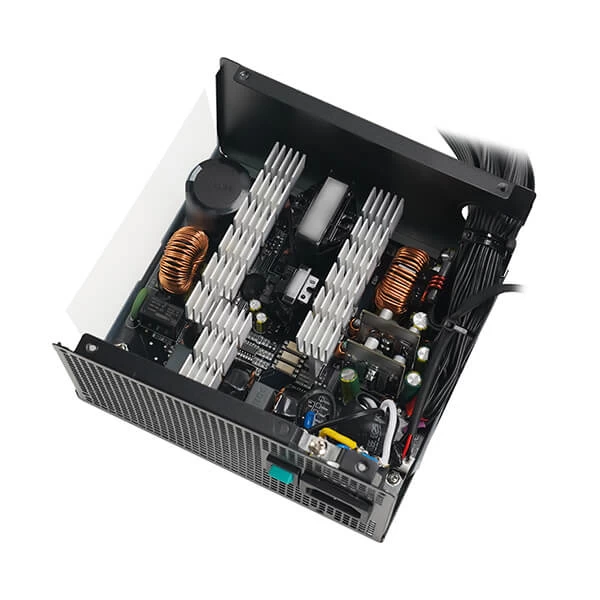

The PL650D combines active Power Factor Correction (PFC) with DC-to-DC conversion. This design supports power conversion and regulation across the PSU's output rails for compatible PC components.
Its ATX 3.1 design is specified to handle brief power excursions in accordance with the standard. DeepCool lists a hold-up time of at least 16ms under the stated full-load test condition, supporting short interruptions in input power within the limits of the specification.
The native 12V-2x6 GPU cable is rated for up to 300W. That rating applies to the cable connection, not an assurance that every 300W graphics card is suitable for a 650W PSU; total system demand and the manufacturer's recommendations still matter.
A 120mm hydro-bearing fan provides active cooling. The specified operating temperature range is 0°C to 40°C, and the stated MTBF is 100,000 hours; MTBF is a statistical reliability figure, not a guaranteed service life.
Technical Specifications
Specifications are based primarily on DeepCool's official PL650D V2 product page. Connector ratings and overall PSU suitability must be checked against the exact graphics card and complete system configuration.
Ideal Use Cases
Mainstream Gaming PCs
A potential fit for gaming systems whose processor, graphics card and total power demand are suitable for a 650W PSU.
Everyday Desktop Systems
Suitable for compatible home and office PCs used for productivity, browsing, communication and daily computing.
Entry-Level GPU Workloads
Can support compatible GPU-equipped systems for development, light content creation and other workloads within the power budget.
Modern GPU Connectivity
The native 12V-2x6 cable is useful for supported graphics cards rated to draw up to 300W through that connection, provided the full system is appropriately powered.
Before You Build
- Check the recommended PSU wattage for your exact CPU and graphics card. A 650W rating is not automatically sufficient for every GPU that uses a 16-pin connector.
- The native 12V-2x6 connection is rated for up to 300W. Do not assume it supports 450W or 600W GPU power delivery.
- This is a non-modular PSU. Its power cables are permanently attached, so plan cable routing and unused-cable management before installation.
- Check the case clearance for the 150 × 140 × 86mm unit and allow enough room for cable bends and airflow.
- Use only the supplied GPU power cables and follow the graphics-card manufacturer's connection instructions. Do not mix modular cables from other PSU models.
Frequently Asked Questions
1. Is the DeepCool PL650D a 650W power supply?
Yes. The PL650D is rated for 650W of continuous output. Check the power requirements of your complete PC before choosing it.
2. Does the PL650D support ATX 3.1?
Yes. The R-PL650D-FC0B-IN-V2 belongs to the updated PL650D V2 specification listed by DeepCool as ATX12V 3.1.
3. What is the GPU power connector rating?
The native 12V-2x6 16-pin connector is rated for up to 300W. The graphics card's total power demand and recommended PSU wattage must also be considered.
4. Is the DeepCool PL650D modular?
No. It is a non-modular power supply, so the cables are permanently attached to the unit.
5. What does 80 PLUS Bronze mean?
It indicates that the PSU meets defined power-conversion efficiency requirements. DeepCool lists at least 85% efficiency at the specified typical 50% load condition.
6. Which cooling fan does the PL650D use?
It uses a 120mm hydro-bearing fan to cool the internal components during operation.
7. What are the dimensions of the DeepCool PL650D?
The unit measures 150 × 140 × 86mm (width × length × height). Check your case's PSU clearance before installation.
8. What warranty does the PL650D include?
The listed manufacturer warranty is five years, subject to DeepCool's applicable warranty terms and conditions.
