DEEPCOOL GAMER STORM POWER SUPPLY

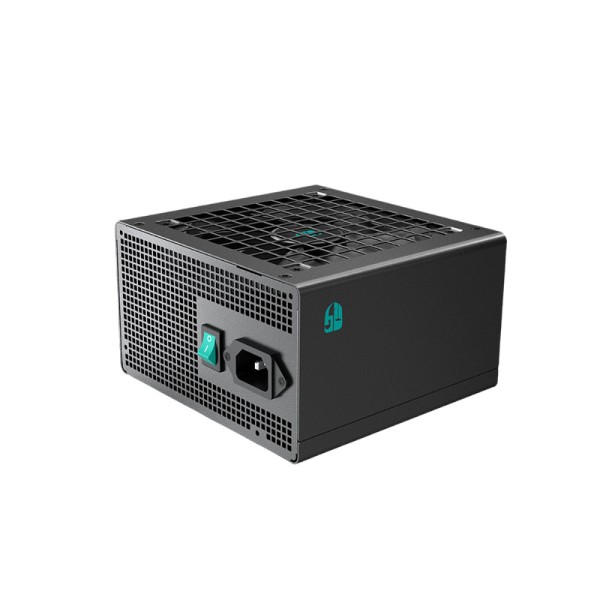

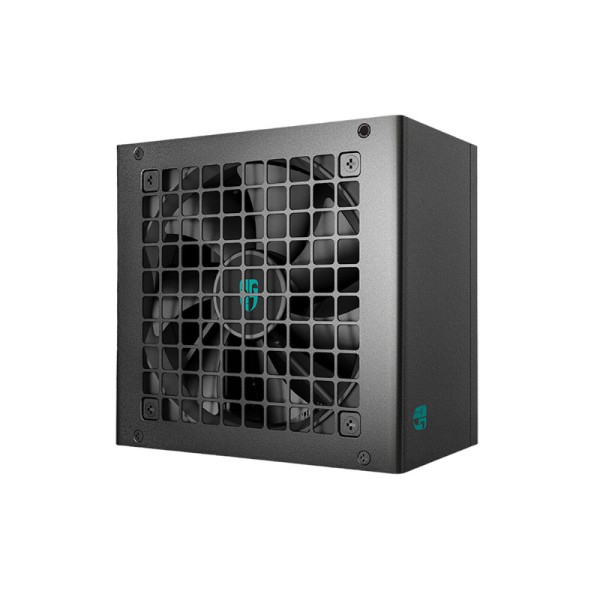

DeepCool Gamer Storm PN650D 650W 80 PLUS Gold Power Supply
Efficient 650W power delivery with ATX 3.1 support, a 12V-2x6 GPU cable, hydro-bearing fan cooling and a robust internal power-conversion design for compatible gaming PCs.
DeepCool PN650D at a Glance
Introduction
The DeepCool Gamer Storm PN650D 650W 80 PLUS Gold Power Supply (R-PN650D-FC0B-JGIN-V2) is designed for desktop users seeking efficient power delivery for gaming, productivity and everyday computing. Its 650W output and ATX 3.1 design make it an option for compatible modern PC configurations.
The PN650D combines 80 PLUS Gold certification with active power factor correction, full-bridge SRC LLC topology and DC-to-DC conversion. DeepCool advertises efficiency of at least 90% at a typical 50% load, helping reduce conversion losses under the specified test conditions.
A 120mm hydro-bearing fan adjusts cooling according to operating requirements. The included 12V-2x6 GPU cable supports compatible modern graphics cards, with the manufacturer's product description specifying up to 450W through this cable.
Its non-modular design keeps the cables permanently attached, while the 140mm chassis length supports installation in many standard ATX-compatible PC cases.
Key Features
650W Continuous Power
Provides a rated 650W output for compatible processors, graphics cards, storage devices and other desktop components.
80 PLUS Gold Efficiency
Gold certification and advertised efficiency of at least 90% at 50% load help limit power-conversion losses under the specified conditions.
12V-2x6 GPU Connection
Includes a native 16-pin 12V-2x6 cable for compatible graphics cards. DeepCool's product description specifies up to 450W for this connection.
ATX 3.1 Design
Designed to the ATX12V 3.1 specification, supporting compatible modern desktop platforms and graphics-card power requirements.

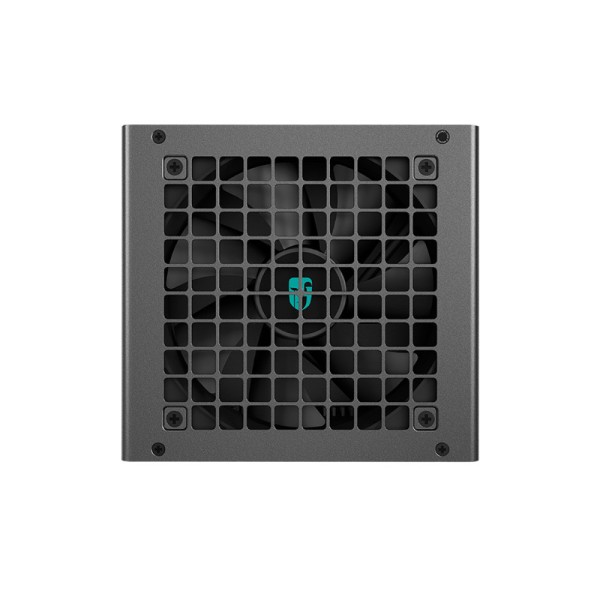

120mm Hydro-Bearing Fan
The hydro-bearing fan adjusts its speed according to cooling demand to maintain airflow during operation.
Comprehensive Protection
Includes protection against over-power, over-voltage, short-circuit, over-temperature, over-current and under-voltage conditions, alongside additional listed protections.
Power Delivery and Cooling Technology
The PN650D uses active PFC, full-bridge SRC LLC topology and DC-to-DC conversion. This circuit design supports efficient conversion and regulated power delivery for compatible system components.
Its ATX 3.1 design includes a 12V-2x6 GPU power cable. DeepCool specifies up to 450W for this cable, so check the exact graphics-card power requirements before choosing this PSU.
The 120mm hydro-bearing fan adjusts its speed in response to cooling needs. The manufacturer lists a hold-up time of at least 16ms at 80% load, a Power Good signal of 100–150ms and a 0–40°C operating-temperature range.
The power supply is rated for a mean time between failures (MTBF) of 100,000 hours. MTBF is a statistical reliability measure, not a guarantee that an individual unit will operate for that length of time.
Technical Specifications
Specifications are based primarily on DeepCool's manufacturer documentation and matching listings for the JGIN-V2 model. The 12V-2x6 cable power rating is stated as 450W in the manufacturer's product description; verify the exact regional packaging and graphics-card compatibility before purchase.
Ideal Use Cases
Mainstream Gaming PCs
Suitable for compatible gaming systems whose total power requirements fit within 650W and whose GPU connection requirements match the supplied cables.
Everyday Productivity
Provides efficient power for compatible home, office and study desktops used for daily computing tasks.
Modern Component Builds
ATX 3.1 support and a 12V-2x6 cable make it a candidate for compatible newer hardware, subject to GPU power and connector requirements.
Long-Term Desktop Builds
The advertised 10-year warranty offers long-term manufacturer coverage, subject to the applicable warranty terms.
Before You Build
- Confirm that 650W is sufficient for your exact CPU, GPU and other components, including peak power demand.
- DeepCool's product description specifies up to 450W for the supplied 12V-2x6 cable. Do not assume that every 16-pin connector or GPU power requirement is interchangeable.
- This is a non-modular PSU. Its cables are permanently attached, so plan cable routing before installation.
- The CPU/EPS connectors and PCIe connectors serve different purposes. Use each connector only for its intended component.
- Confirm the product's regional model, warranty documentation and included cable arrangement with the seller before purchase.
Frequently Asked Questions
1. Is the DeepCool PN650D a 650W power supply?
Yes. The PN650D is rated for 650W of continuous output for compatible desktop configurations.
2. What does 80 PLUS Gold certification mean?
It indicates that the PSU meets defined power-conversion efficiency requirements under specified test conditions. DeepCool advertises at least 90% efficiency at 50% load for this model.
3. Is the PN650D modular?
No. It is a non-modular power supply, so its cables are permanently attached to the unit.
4. Does the PN650D support ATX 3.1?
Yes. DeepCool specifies ATX12V 3.1 compliance for this model.
5. What is the power rating of its 12V-2x6 cable?
DeepCool's product description specifies up to 450W for the supplied 12V-2x6 cable. Check the exact graphics-card requirements and manufacturer guidance before connecting it.
6. Which cooling fan does the PN650D use?
It uses a 120mm hydro-bearing fan that adjusts its speed according to the PSU's cooling requirements.
7. What are the dimensions of the PN650D?
The manufacturer lists dimensions of 150 × 140 × 86mm (width × length × height). Check your case's PSU clearance before installation.
8. What warranty does the PN650D include?
The matching product specifications list a 10-year warranty. Confirm the applicable Indian warranty terms and seller documentation at purchase.
