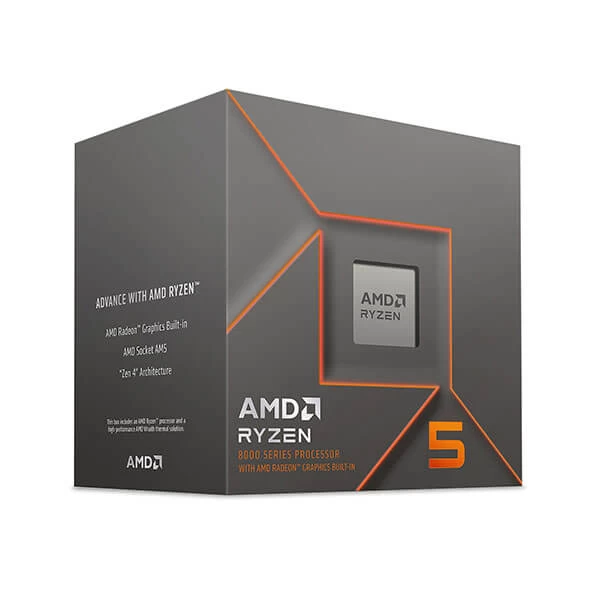

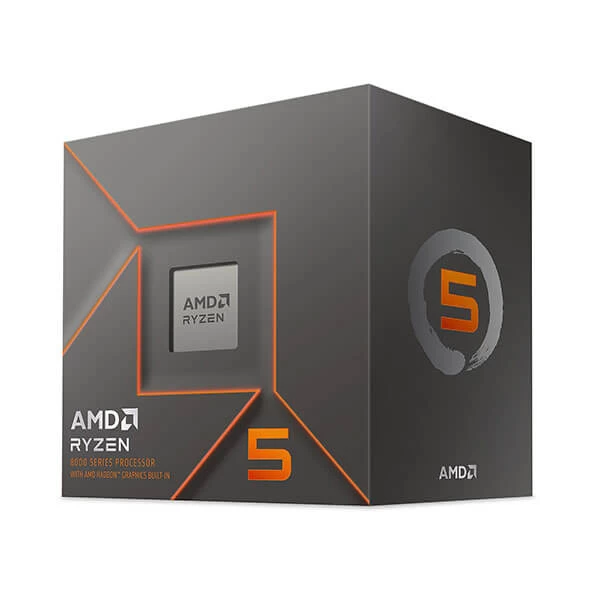

AMD Ryzen 5 8500G
A 6-core, 12-thread AM5 desktop processor combining Zen 4 and Zen 4c CPU cores with AMD Radeon 740M integrated graphics for capable CPU and graphics performance in a single processor.
AMD Ryzen 5 8500G: Efficient AM5 Performance with Radeon Graphics
The AMD Ryzen 5 8500G is an 8000G Series desktop processor designed for users who want a modern AM5 platform with both CPU processing and integrated graphics in a single chip. It combines 2 Zen 4 cores and 4 Zen 4c cores for a total of 6 cores and 12 threads.
With a maximum boost frequency of 5.0GHz, 22MB of combined L2 and L3 cache, DDR5 memory support and integrated AMD Radeon 740M Graphics, the 8500G can be used for everyday productivity, compact PCs, entry-level gaming systems, home computers and builds where a discrete graphics card is not required immediately.
Key Features & Technologies
Zen 4 + Zen 4c Architecture
The 8500G combines 2 full Zen 4 cores with 4 compact Zen 4c cores, providing 6 CPU cores and 12 threads for a wide range of desktop workloads.
Up to 5.0GHz Boost
A 3.5GHz base clock and boost frequency of up to 5.0GHz provide responsive CPU performance for everyday applications, multitasking and supported demanding workloads.
Radeon 740M Integrated Graphics
Radeon 740M integrated graphics features 4 graphics cores running at up to 2.8GHz, allowing a compatible system to operate without a dedicated graphics card.
DDR5 Memory Support
The AM5 platform uses DDR5 memory across two memory channels, with AMD specifying up to 96GB maximum memory for the Ryzen 5 8500G.
PCIe 4.0 Connectivity
PCIe 4.0 connectivity provides bandwidth for compatible graphics cards, NVMe storage and expansion hardware, with 14 total native lanes and 10 usable lanes.
65W Efficient Platform
With a 65W default TDP and configurable TDP range of 45–65W, the 8500G is suited to compact and efficiency-focused desktop builds.
Radeon 740M Graphics Built Into the Processor
The Ryzen 5 8500G includes AMD Radeon 740M Graphics with 4 graphics cores and a maximum graphics frequency of 2.8GHz. This allows compatible AM5 systems to provide display output and graphics processing without requiring a discrete GPU.
Technical Specifications
* Official maximum memory speed varies with DIMM configuration: DDR5-5200 with 2 DIMMs and DDR5-3600 with 4 DIMMs under AMD's specified configurations.
Who Is the AMD Ryzen 5 8500G For?
Entry-Level Gaming PCs
Radeon 740M integrated graphics allow users to build a gaming-capable AM5 desktop without purchasing a discrete GPU immediately.
Compact PCs
Integrated graphics can simplify compact desktop builds where space, power consumption or system cost makes a discrete graphics card unnecessary.
Home & Productivity PCs
6 cores and 12 threads provide a capable foundation for office applications, browsing, media consumption, multitasking and everyday desktop workloads.
Upgradeable AM5 Builds
The AM5 platform provides an upgrade path for users who want to start with integrated graphics and add a discrete GPU or move to a higher-end compatible processor later.
Before You Build
- Choose an AM5 motherboard: The Ryzen 5 8500G uses the AM5 socket. Compatible chipset families include A620, B650/B650E, X670/X670E, X870/X870E, B840 and B850.
- DDR5 memory is required: The 8500G is an AM5 DDR5 processor. DDR4 memory cannot be used with this platform.
- Integrated Radeon graphics are included: Radeon 740M provides display output and graphics processing without requiring a discrete GPU.
- Dual-channel memory matters: The integrated GPU uses system memory, so a properly configured dual-channel DDR5 kit is recommended for a balanced build.
- PCIe 4.0 platform: The 8500G provides PCIe 4.0 connectivity rather than PCIe 5.0 through the processor.
- Cooling: The processor is specified with an AMD Wraith Stealth thermal solution. A stronger aftermarket cooler can be considered for sustained heavy workloads or overclocking.
- Future GPU upgrade: You can start with the integrated Radeon 740M and add a dedicated graphics card later if your gaming or GPU-compute requirements increase.
Frequently Asked Questions
How many cores and threads does the Ryzen 5 8500G have?
The AMD Ryzen 5 8500G has 6 CPU cores and 12 threads, using a combination of Zen 4 and Zen 4c cores.
What is the maximum boost clock of the Ryzen 5 8500G?
The Ryzen 5 8500G has a 3.5GHz base clock and can boost up to 5.0GHz.
Does the Ryzen 5 8500G have integrated graphics?
Yes. It includes AMD Radeon 740M integrated graphics with 4 graphics cores and a maximum graphics frequency of 2.8GHz.
Can I build a PC without a graphics card using the Ryzen 5 8500G?
Yes. The integrated Radeon 740M provides graphics functionality, allowing a compatible desktop to operate without a discrete graphics card.
What socket does the Ryzen 5 8500G use?
The Ryzen 5 8500G uses AMD's AM5 socket and requires a compatible AM5 motherboard.
Does the Ryzen 5 8500G support DDR5 RAM?
Yes. The Ryzen 5 8500G supports DDR5 memory across two memory channels, with AMD specifying up to 96GB maximum memory.
Does the Ryzen 5 8500G have Ryzen AI?
No. Unlike the Ryzen 7 8700G and Ryzen 5 8600G, the Ryzen 5 8500G does not include the dedicated Ryzen AI NPU.
Is the Ryzen 5 8500G unlocked?
Yes. AMD specifies the Ryzen 5 8500G as unlocked and it supports AMD EXPO, Precision Boost Overdrive, Curve Optimizer and Ryzen Master.
Does the Ryzen 5 8500G come with a cooler?
AMD specifies the Ryzen 5 8500G with an AMD Wraith Stealth thermal solution.
Building Around the Ryzen 5 8500G?
Start with an AM5 motherboard and dual-channel DDR5 memory, use the built-in Radeon 740M graphics, and add a dedicated GPU later if your performance requirements grow.
