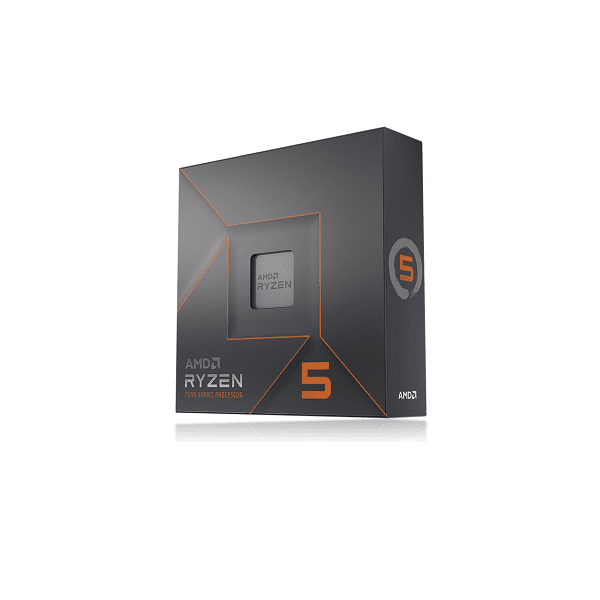

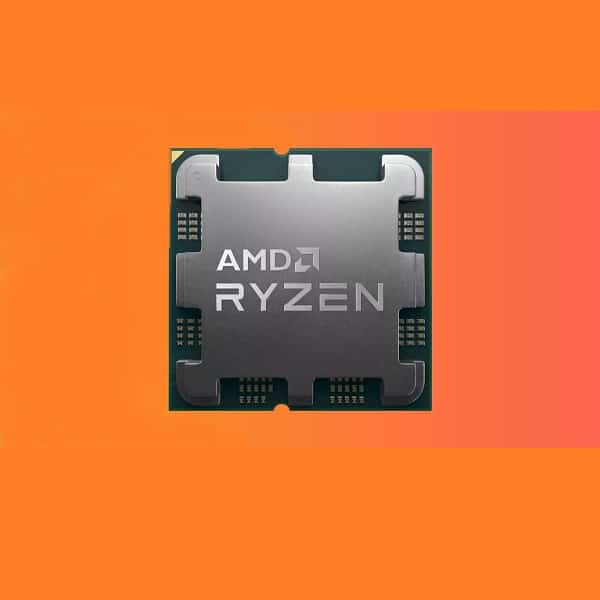

AMD Ryzen 5 7600X
6-Core / 12-Thread Zen 4 Desktop Processor with up to 5.3 GHz Boost Clock, 38 MB Total Cache, DDR5 and PCIe 5.0
AMD Ryzen 5 7600X – Zen 4 Performance on AM5
The AMD Ryzen 5 7600X is a 6-core, 12-thread desktop processor built on AMD's Zen 4 architecture. With a 4.7 GHz base clock and boost clocks of up to 5.3 GHz, it is designed for gaming, productivity, multitasking and enthusiast desktop systems.
The Ryzen 5 7600X uses the AM5 socket and supports DDR5 memory and PCIe 5.0 connectivity. It is unlocked for overclocking and supports AMD EXPO memory overclocking, Precision Boost Overdrive, Curve Optimizer and AMD Ryzen Master. Unlike many previous Ryzen desktop processors, the 7600X also includes basic integrated AMD Radeon Graphics, so a discrete graphics card is not mandatory for basic display output. ([amd.com](https://www.amd.com/en/products/processors/desktops/ryzen/7000-series/amd-ryzen-5-7600x.html))
Key Features & Technologies
Zen 4 Architecture
Built using AMD's Zen 4 architecture with 6 CPU cores and simultaneous multithreading for 12 processing threads.
Up to 5.3 GHz Boost
A 4.7 GHz base clock and up to 5.3 GHz maximum boost provide high operating frequencies for demanding desktop workloads.
32 MB L3 Cache
The processor features 32 MB of L3 cache and 6 MB of L2 cache, providing 38 MB of combined L2 and L3 cache.
PCIe 5.0 Support
PCIe 5.0 connectivity provides the AM5 platform with a high-bandwidth interface for compatible graphics, storage and expansion hardware.
DDR5 & AMD EXPO
Supports dual-channel DDR5 memory and AMD EXPO technology for supported memory overclocking configurations.
Unlocked for Overclocking
AMD lists the Ryzen 5 7600X as unlocked and supporting Precision Boost Overdrive, Curve Optimizer and AMD Ryzen Master.
Platform Technologies
Ryzen 5 7600X brings Zen 4 processing together with the AM5 platform, DDR5 memory, PCIe 5.0 connectivity and AMD's enthusiast-oriented tuning technologies.
6C / 12T Architecture
DDR5 Memory Overclocking
Dynamic CPU Boost
Next-Generation Connectivity
CPU Tuning & Monitoring
Technical Specifications
* AMD's official maximum memory-speed specification varies by DIMM configuration. DDR5-5200 is specified for 2x1R and 2x2R configurations, while 4-DIMM configurations are rated lower.
AMD Ryzen 5 7600X Use Cases
Gaming PCs
A strong CPU foundation for modern gaming systems, paired with a suitable dedicated graphics card according to the target resolution and game requirements.
High-Performance Desktop Builds
Suitable for responsive desktop systems where high CPU frequencies, DDR5 memory and PCIe 5.0 connectivity are useful.
Content Creation & Productivity
The 6-core, 12-thread configuration can be used for photo editing, software development, office productivity and other multithreaded desktop workloads.
AM5 Upgrade Platform
An AM5 processor for builders moving to DDR5 memory and the newer PCIe 5.0 desktop platform.
Before You Build
- AM5 motherboard required: Ryzen 5 7600X uses the AM5 socket. AMD lists A620, B650, B650E, X670, X670E, X870, X870E, B840 and B850 chipset support.
- DDR5 memory required: AM5 Ryzen 7000 processors use DDR5 memory rather than DDR4.
- CPU cooler required: The Ryzen 5 7600X does not include a thermal solution. AMD recommends a premium air cooler for optimal performance.
- Dedicated GPU is optional: The processor includes basic AMD Radeon Graphics with 2 graphics cores at 2200 MHz, although a dedicated graphics card is recommended for gaming and GPU-intensive workloads.
- PCIe 5.0 platform: The processor supports PCIe 5.0 and provides 28 native PCIe lanes, of which 24 are usable from the processor.
- Overclocking support: The processor is unlocked and supports AMD EXPO, Precision Boost Overdrive, Curve Optimizer and Ryzen Master.
FAQ – Common Buying Questions
Is AMD Ryzen 5 7600X good for gaming?
The Ryzen 5 7600X is a 6-core, 12-thread Zen 4 processor designed for enthusiast desktop use and gaming systems. Pairing it with an appropriate dedicated graphics card allows the complete system to be configured around the desired resolution and gaming workload.
Does Ryzen 5 7600X have integrated graphics?
Yes. AMD specifies integrated AMD Radeon Graphics with 2 graphics cores running at up to 2200 MHz. A dedicated GPU is still recommended for gaming and graphics-intensive workloads. ([amd.com](https://www.amd.com/en/products/processors/desktops/ryzen/7000-series/amd-ryzen-5-7600x.html))
How many cores and threads does Ryzen 5 7600X have?
The AMD Ryzen 5 7600X has 6 CPU cores and 12 threads based on AMD's Zen 4 architecture. ([amd.com](https://www.amd.com/en/products/processors/desktops/ryzen/7000-series/amd-ryzen-5-7600x.html))
What is the maximum boost clock of Ryzen 5 7600X?
The Ryzen 5 7600X has a 4.7 GHz base clock and a maximum boost clock of up to 5.3 GHz. ([amd.com](https://www.amd.com/en/products/processors/desktops/ryzen/7000-series/amd-ryzen-5-7600x.html))
Which motherboard is compatible with Ryzen 5 7600X?
AMD lists A620, B650, B650E, X670, X670E, X870, X870E, B840 and B850 chipsets. The exact motherboard model and BIOS support should be checked before purchase. ([amd.com](https://www.amd.com/en/products/processors/desktops/ryzen/7000-series/amd-ryzen-5-7600x.html))
Does Ryzen 5 7600X support PCIe 5.0?
Yes. AMD specifies PCIe 5.0 support with 28 native PCIe lanes and 24 usable processor lanes. ([amd.com](https://www.amd.com/en/products/processors/desktops/ryzen/7000-series/amd-ryzen-5-7600x.html))
Does Ryzen 5 7600X come with a CPU cooler?
No. AMD lists the thermal solution as not included and recommends a premium air cooler for optimal performance. ([amd.com](https://www.amd.com/en/products/processors/desktops/ryzen/7000-series/amd-ryzen-5-7600x.html))
Does Ryzen 5 7600X support DDR5?
Yes. Ryzen 5 7600X uses dual-channel DDR5 memory and supports AMD EXPO memory overclocking technology. ([amd.com](https://www.amd.com/en/products/processors/desktops/ryzen/7000-series/amd-ryzen-5-7600x.html))
Building a Ryzen 5 7600X PC?
The Ryzen 5 7600X moves your build to AMD's AM5 platform. Pair it with a suitable B650 motherboard, DDR5 memory and a capable CPU cooler, then choose your graphics card according to the workload.
