ADATA LEGEND Series

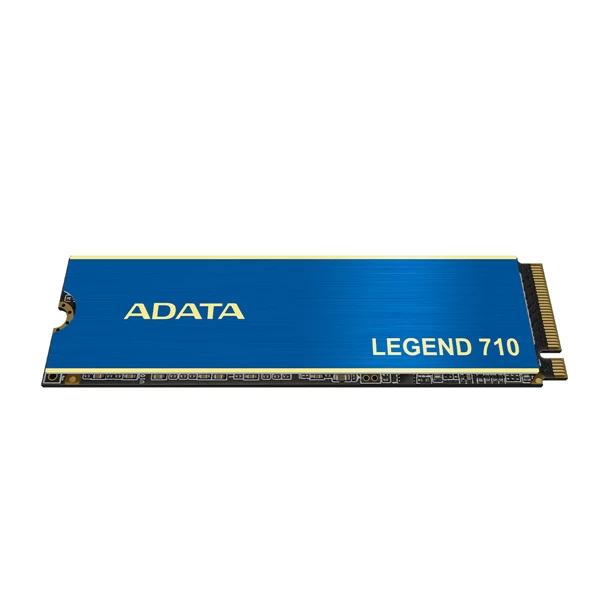

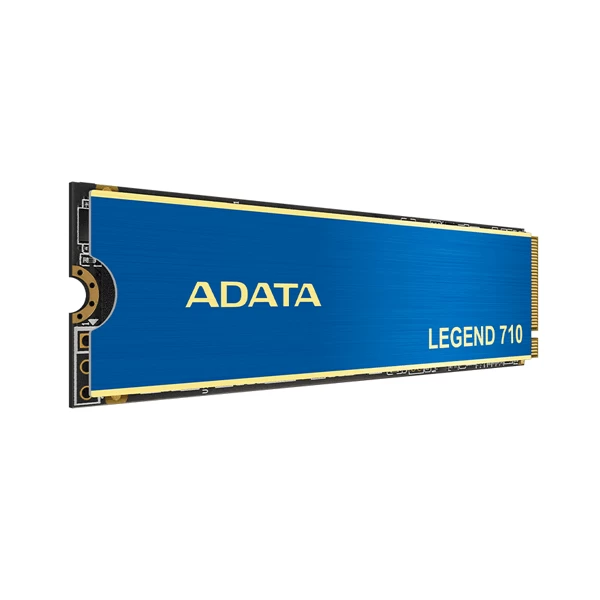

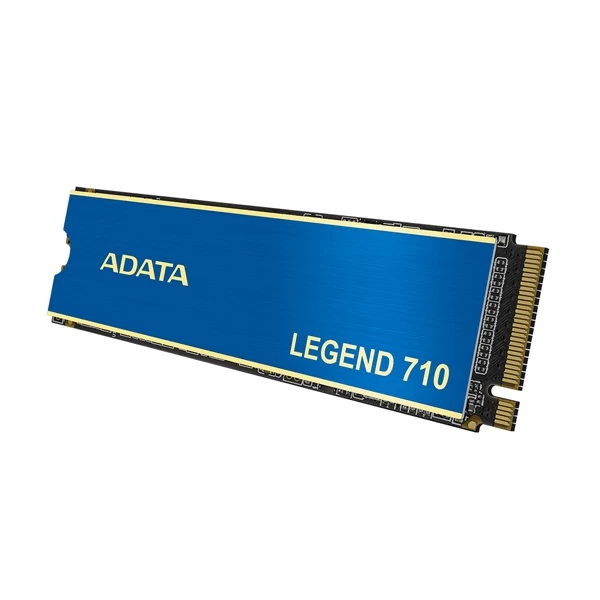

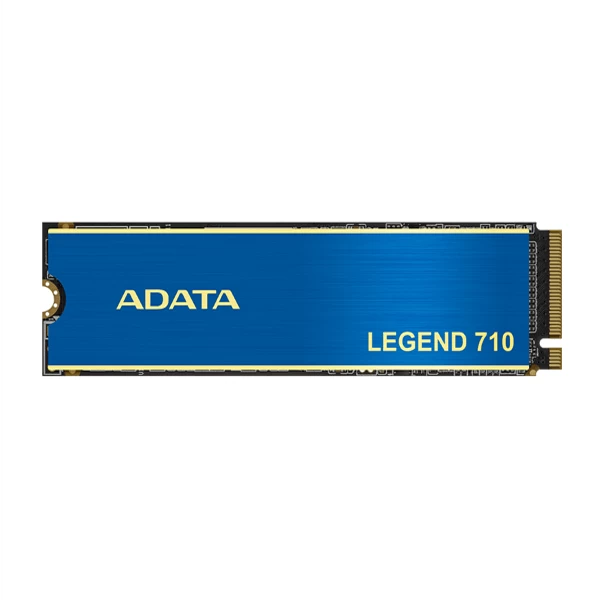

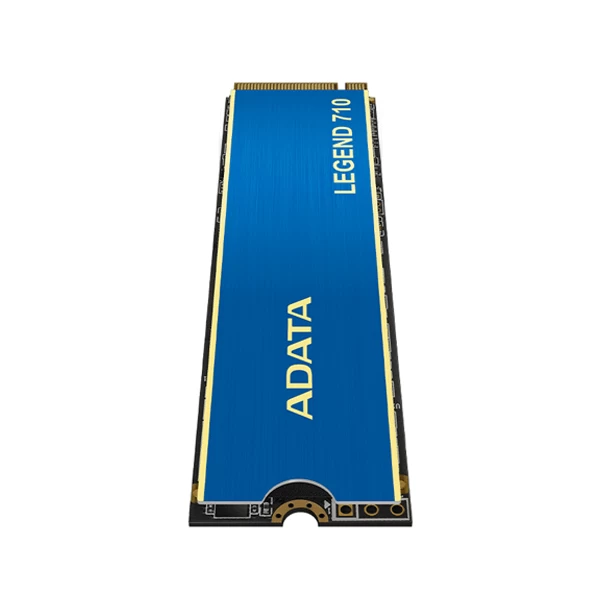

ADATA LEGEND 710 2TB NVMe SSD
High-capacity solid-state storage with PCIe Gen3 x4 performance, NVMe 1.4 support and sequential speeds of up to 2,400MB/s read and 1,800MB/s write.
Key Highlights
Storage Capacity
2TB
Room for games, applications, creative projects and large files.
Sequential Read
2,400MB/s
Manufacturer-rated maximum sequential read speed.
Sequential Write
1,800MB/s
Designed for responsive file transfers and everyday workloads.
Compact Design
M.2 2280
A compact internal SSD format for compatible desktop PCs and laptops.
Introduction to the ADATA LEGEND 710 2TB SSD
The ADATA LEGEND 710 2TB is an M.2 NVMe solid-state drive built for users who need substantial storage capacity and faster data access than traditional hard drives can provide. Its PCIe Gen3 x4 interface and NVMe 1.4 support make it suitable for compatible systems used for gaming, productivity and creative applications.
With manufacturer-rated sequential speeds of up to 2,400MB/s for reading and 1,800MB/s for writing, the LEGEND 710 is designed to improve storage responsiveness. It also incorporates 3D NAND flash, Host Memory Buffer (HMB) support and a heatsink intended to help manage operating temperatures.
Features and Technologies
PCIe Gen3 x4 and NVMe 1.4
Uses a PCIe Gen3 x4 interface with NVMe 1.4 support for fast access to stored data on compatible systems.
3D NAND Flash
3D NAND flash provides the storage foundation for this high-capacity solid-state drive.
Heatsink Design
ADATA states that the included heatsink can reduce temperatures by up to 15%. Actual results depend on the system and operating conditions.
Host Memory Buffer
HMB support helps the SSD use host system memory for supported drive-management functions.
LDPC Error Correction
Advanced hardware LDPC ECC technology helps detect and correct data errors.
AES 256-bit Encryption
Supports AES 256-bit hardware encryption for compatible security implementations.
Fast Storage for Everyday Creation
The LEGEND 710 combines PCIe Gen3 x4 bandwidth, NVMe support and a compact M.2 form factor. Its rated speeds can help reduce storage-related waiting during file access, application launches and large-file transfers. Performance varies with the host system, workload, drive capacity and other operating conditions.
Technical Specifications
| ADATA LEGEND 710 2TB SSD Specifications | |
|---|---|
| Manufacturer | ADATA |
| Series | LEGEND 710 |
| Model / SKU | ALEG-710-2TCS |
| EAN | 4711085939470 |
| Capacity | 2TB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen3 x4 |
| Protocol | NVMe 1.4 |
| NAND Flash | 3D NAND |
| Controller | Realtek RTS5766DL |
| Sequential Read (Max.) | Up to 2,400MB/s |
| Sequential Write (Max.) | Up to 1,800MB/s |
| 4KB Random Read | Up to 200K IOPS |
| 4KB Random Write | Up to 150K IOPS |
| Dimensions (with heatsink) | 80 × 22 × 3.13mm |
| Dimensions (without heatsink) | 80 × 22 × 2.15mm |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Shock Resistance | 1500G / 0.5ms |
| MTBF | 1,500,000 hours |
| TBW (Max. Capacity) | 520TB |
| Encryption | AES 256-bit support |
| Warranty | 3-year limited warranty |
Performance figures are manufacturer-rated maximums and may vary with system configuration, workload and other operating conditions. Warranty is subject to ADATA's applicable terms.
Ideal Use Cases
Gaming PCs
Store a large game library and improve storage responsiveness on compatible gaming systems.
Creative Workstations
Keep project files, media assets and working data on high-capacity solid-state storage.
Everyday Productivity
Use it for applications, documents, multitasking and general computing on compatible PCs.
Storage Upgrade
Expand internal storage in a compatible system with an available M.2 slot supporting PCIe NVMe SSDs.
Before You Buy or Install
- Confirm that your motherboard or laptop has an M.2 2280 slot that supports PCIe NVMe storage.
- Check your system manual for supported M.2 interfaces and any shared-lane or slot-availability restrictions.
- Do not assume that every M.2 slot supports NVMe; some systems have M.2 slots intended for SATA drives only.
- Check physical clearance and heatsink compatibility before installation. Avoid stacking heatsinks unless the motherboard and drive instructions explicitly allow it.
- Back up important data before replacing a drive or migrating your operating system.
- Advertised maximum speeds depend on the host system, software, workload and other conditions; actual results may vary.
