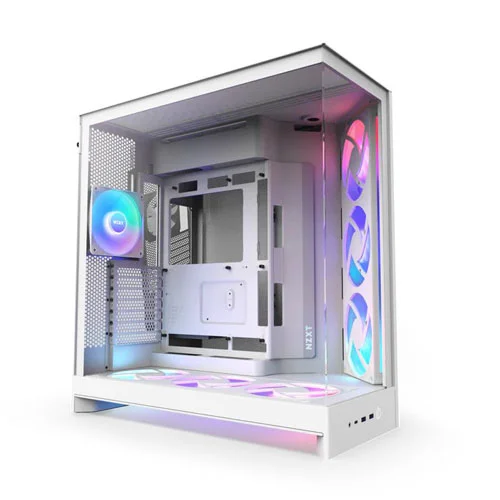

NZXT H9 Flow RGB Plus Large Dual-Chamber ATX Mid-Tower Case (white)

Overview

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

Dual-Chamber Design

Separates main components from the PSU and drives for improved thermal performance and cable management.

Optimized Airflow

Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

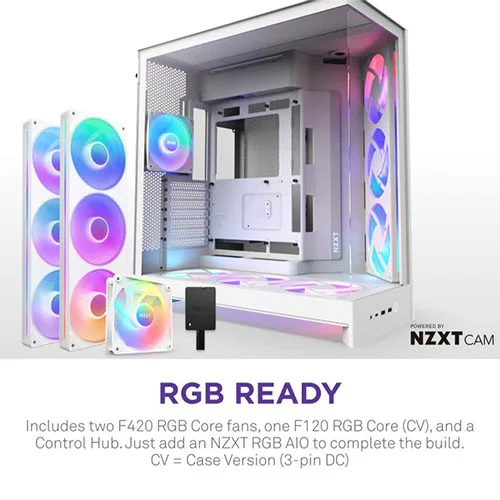

RGB Ready

Includes two F420 RGB Core single-frame fans, one F120 RGB Core (CV) fan in the rear, and an NZXT Control Hub. CV = Case Version (3-pin DC)

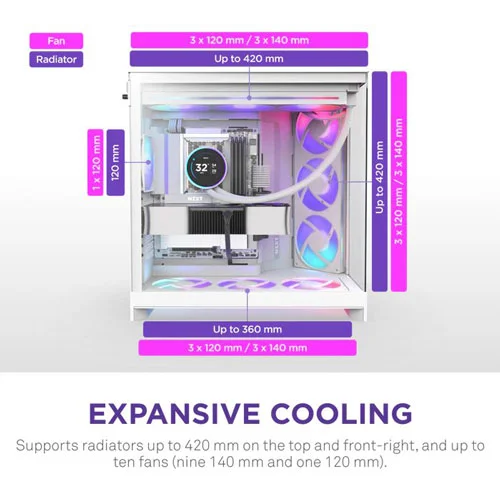

Ten-Fan Capacity

Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

Panoramic View

Showcase every detail of your build with seamless, wraparound tempered glass paneling.

Large Radiators & GPUs

Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

Easy Cable Management

Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.

Back-Connect Ready

Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

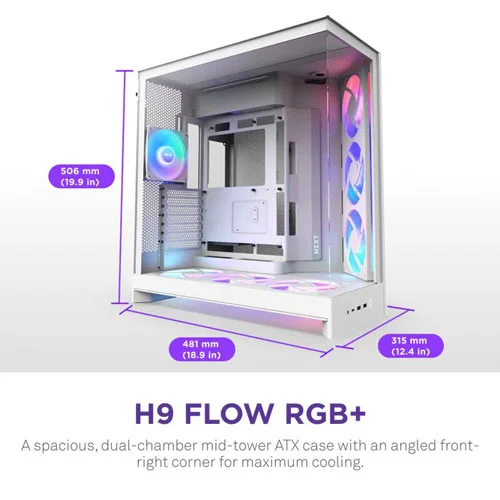

Dimensions



Height

506 mm (19.9 in)

Width

315 mm (12.4 in)

Depth

481 mm (18.9 in)

Volume

76.7 L

Weight

13.4 kg (29.54 lb)

General



Enclosure Type

Mid-tower

Motherboard Compatibility

E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

Rear-Connecting Motherboard Support (BTF, Project Zero)

Yes (ATX)

Materials

SGCC steel, clear tempered glass (white), tinted tempered glass (black)

Clearance



CPU Cooler Height

165 mm

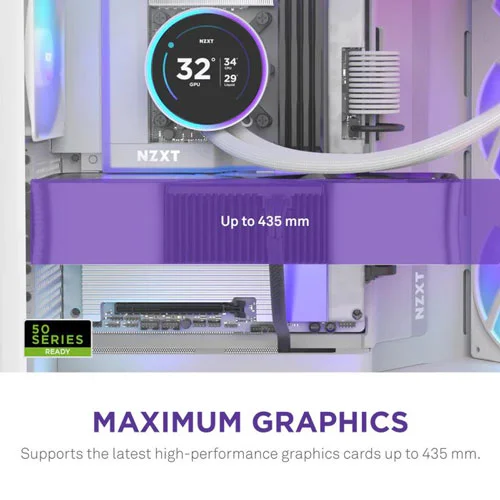

GPU Length

Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)

PSU Length

200 mm

Top Radiator & Fan Thickness

Up to 80 mm (360 mm) Up to 62 mm (420 mm)

Front I/O Ports



USB 3.2 Type-A

2

USB 3.2 Gen2x2 Type-C

1

Headset Jack

1

Expansion Slots



Standard

7

Vertical

0

Drive Bays



2.5"

4+2

3.5"

2

Fan Support



Front-Right

3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)

Top

3 x 120 mm / 3 x 140 mm

Bottom

3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)

Rear

1 x 120 mm (1 x F120 RGB (CV) included)

Fan Specs - F420 RGB Core



Model

F420 RGB Core

Speed

2,000 ± 200 RPM

Airflow

98.61 CFM

Static Pressure

3.2 mmH2O

Noise

34.5 dBA

Fan Connector

8-pin

Fan Specs - F120 RGB Core (CV)



Model

F120 RGB Core (CV)

Speed

1,300 ± 130 RPM

Airflow

55.17 CFM

Static Pressure

1.27 mmH2O

Noise

26.1 dBA

Fan Connector

3-pin

Control Hub Specs



Fan Channels

3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control)

RGB Channels

4 x NZXT 8-pin / 1 x NZXT RGB

Max LED Support

Each NZXT 8-pin channel supports a maximum of 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to NZXT 5 devices.

System Requirements

USB 2.0 Internal Header 8-pin PCIe Power

Warranty



Warranty

2 years

Product Info



Model Number

CM-H92FW-P1 CM-H92FB-P1 CM-H92FW-P2 CM-H92FB-P2

UPC

810074847889 , 810074847896 , 815671019530 , 815671019547

EAN

5056547207674 ,  5056547207681 , 5056547208886 , 5056547208893
