| Model Name |

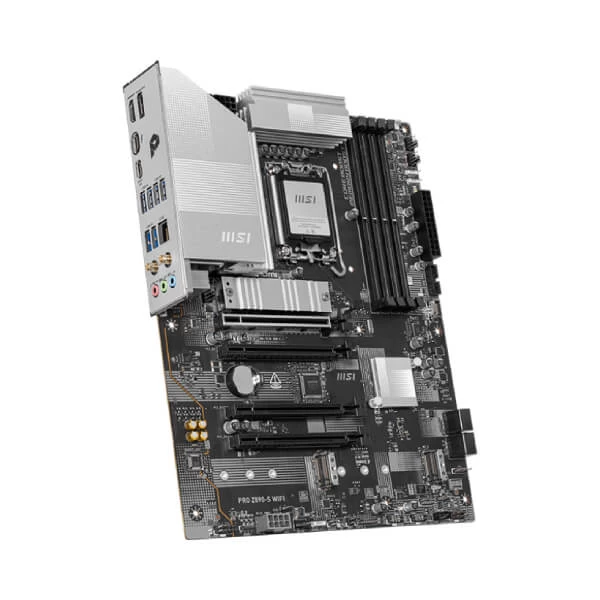

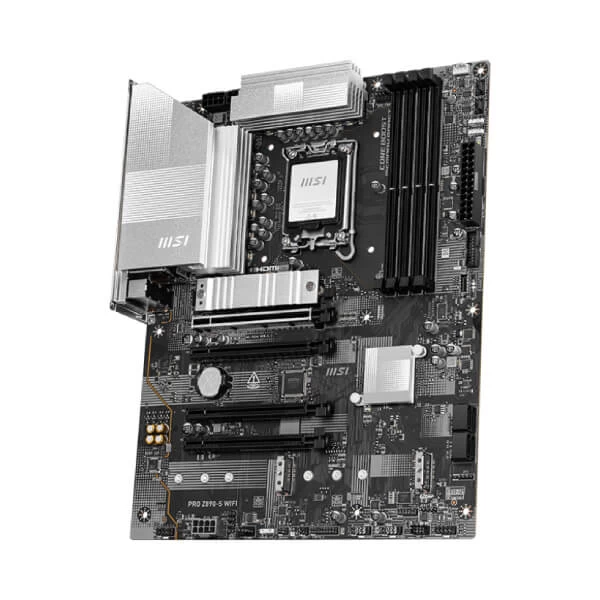

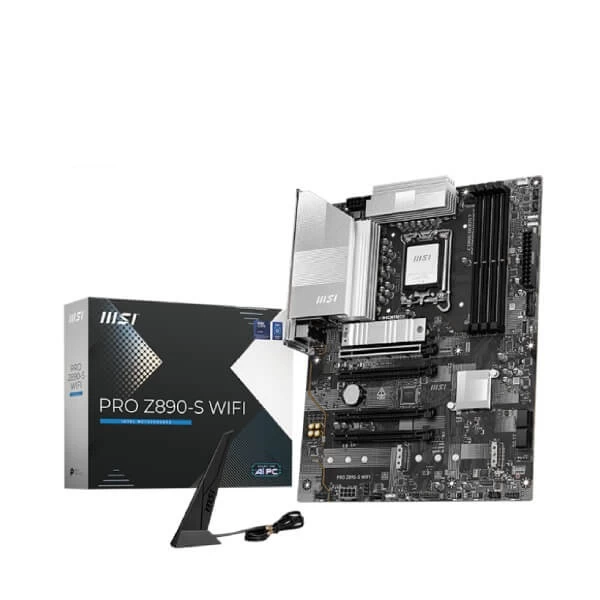

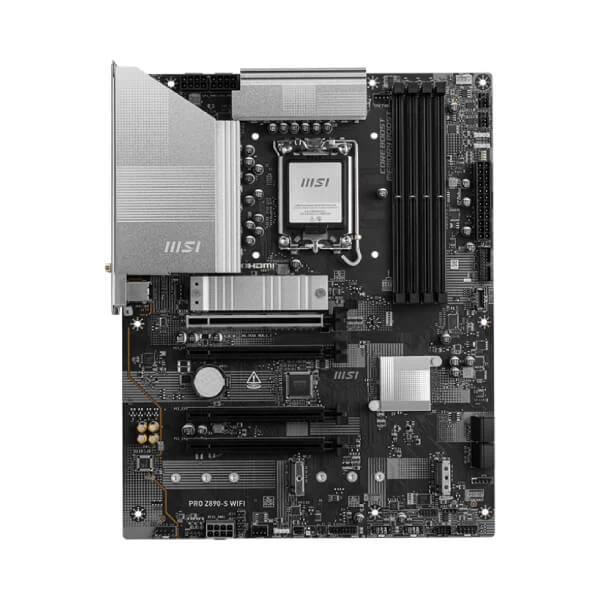

PRO Z890-S WIFI |
| Chipset |
Supports Intel® Core™ Ultra Processors (Series 2) |
| LGA 1851 |
| Memory |
|
| 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Max. overclocking frequency: |
| • 1DPC 1R Max speed up to 8600+ MT/s |
| • 1DPC 2R Max speed up to 7200+ MT/s |
| • 2DPC 1R Max speed up to 4800+ MT/s |
| • 2DPC 2R Max speed up to 4800+ MT/s |
| Supports Intel® POR Speed and JEDEC Speed |
| Supports Memory Overclocking and Intel® XMP 3.0 |
| Supports Dual-Controller Dual-Channel mode |
| Supports Non-ECC, Un-buffered memory |
| Supports CUDIMM |
| • The DIMM slots on this motherboard have double-sided latches. |
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. |
| Onboard Graphics |
1x HDMI™ |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| 1x DisplayPort |
| Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| 1x Type-C DisplayPort |
| Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz |
| Slot |
4x PCI-E x16 slot |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) |
| Audio |
Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio |
| Storage |
3x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 4x SATA 6G |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices |
| Onboard Thunderbolt |
1x Thunderbolt4 ports (Rear) |
| Supports up to 40Gbps transfer rate with Thunderbolt devices |
| Supports up to 20Gbps transfer rate with USB4 devices |
| Supports up to 10Gbps transfer rate with USB 3.2 devices |
| Supports up to 5V/3A,15W power charging |
| Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices |
| Supports up to 8K display |
| USB |
4x USB 2.0 (Front) |
| 6x USB 5Gbps Type A (Rear) |
| 2x USB 5Gbps Type A (Front) |
| 1x USB 20Gbps Type C (Rear) |
| 1x USB 20Gbps Type C (Front) |
| LAN |
Realtek® 8125D 2.5Gbps LAN |
| Internal IO |
1x Thunderbolt5 card connector(JTBT5, support RTD3) |
| 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x Power Connector(PCIE_PWR 8pin) |
| 1x CPU Fan |
| 1x Combo Fan (Pump_Sys Fan) |
| 4x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Tuning Controller connector(JDASH) |
| 3x Addressable V2 RGB LED connector (JARGB_V2) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports |
| 2x USB 5Gbps Type A ports |
| 1x USB 20Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH |
Intel® Wi-Fi 7 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps |
| Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Supports Bluetooth® 5.4**, MLO, 4KQAM |
| LED FEATURE |
4x EZ Debug LED |

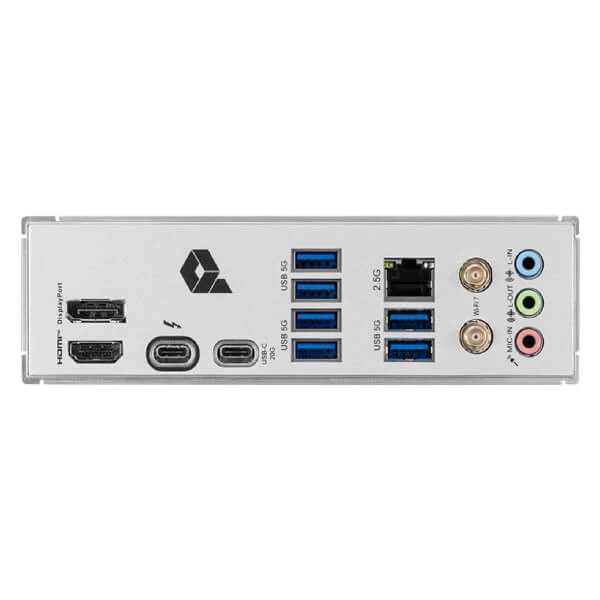

| BACK PANEL PORTS |
|
| DisplayPort |
| USB 5Gbps Type-A |
| 2.5G LAN |
| Wi-Fi / Bluetooth |
| Audio Connectors |
| HDMI™ |
| Thunderbolt™ 4 40Gbps (Type-C) |
| USB 20Gbps Type-C |
| USB 5Gbps Type-A |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit |
| PCB Info |
ATX |
| 243.84mmx304.8mm |
| Warranty |
3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice. |
