| Chipset |
INTEL Z790 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| LGA 1700 |
| Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s |
| Max. overclocking frequency: |
| • 1DPC 1R Max speed up to 7800+ MHz |
| • 1DPC 2R Max speed up to 6600+ MHz |
| • 2DPC 1R Max speed up to 6400+ MHz |
| • 2DPC 2R Max speed up to 5600+ MHz |
| |
| Supports Intel® XMP 3.0 OC |
| Supports Dual-Controller Dual-Channel mode |
| Supports non-ECC, un-buffered memory |
| Onboard Graphics |
1x HDMI™ |
| Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* |
| 1x DisplayPort |
| Support DP 1.4, maximum resolution of 8K 60Hz* |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
3x PCI-E x16 slot |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio |
Realtek® ALC4080 Codec |
| 7.1-Channel USB High Performance Audio |
| Supports S/PDIF output |
| Storage |
4x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 6x SATA 6G |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |

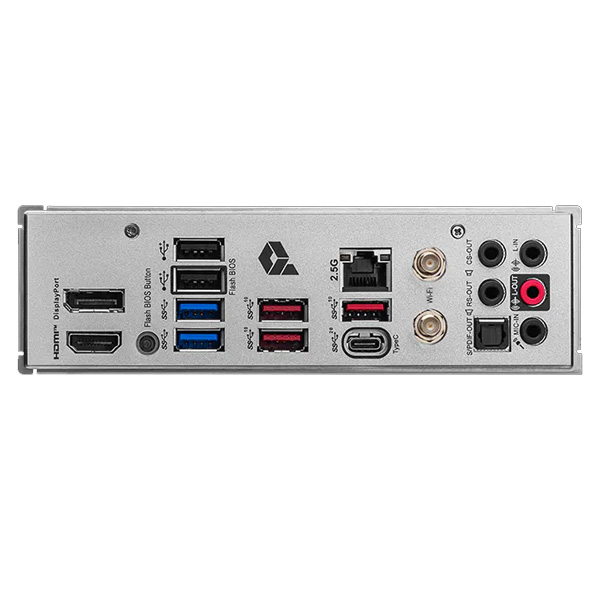

| USB |
2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 2x USB 5Gbps Type A (Rear) |
| 2x USB 5Gbps Type A (Front) |
| 3x USB 10Gbps Type A (Rear) |
| 1x USB 10Gbps Type C (Front) |
| 1x USB 20Gbps Type C (Rear) |
| LAN |
Intel® 2.5Gbps LAN |
| Internal IO |
1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 1x Pump Fan |
| 6x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Tuning Controller connector(JDASH) |
| 3x Addressable V2 RGB LED connector (JARGB_V2) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
| 4x USB 2.0 ports |
| 2x USB 5Gbps Type A ports |
| 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH |
Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| Supports 802.11 a/ b/ g/ n/ ac/ ax |
| |
| Supports Bluetooth® 5.3**, FIPS, FISMA |
| |
| * 6GHz band support may depend on every country’s regulations and Wi-Fi 6E requires Windows 11. |
| ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. |
| LED FEATURE |
4x EZ Debug LED |
