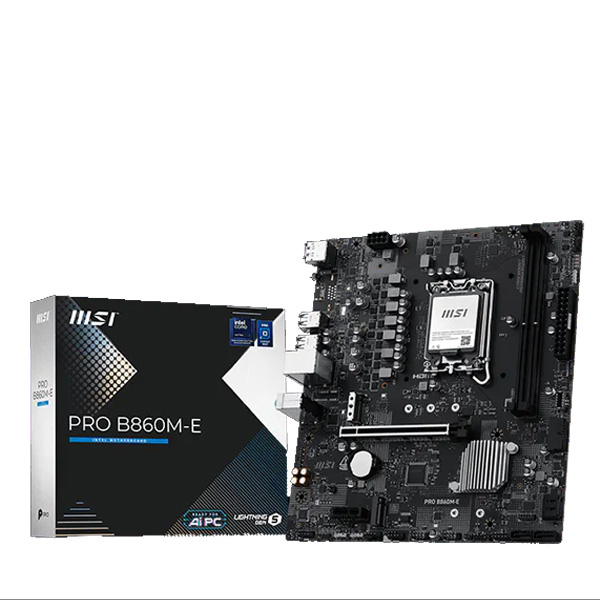

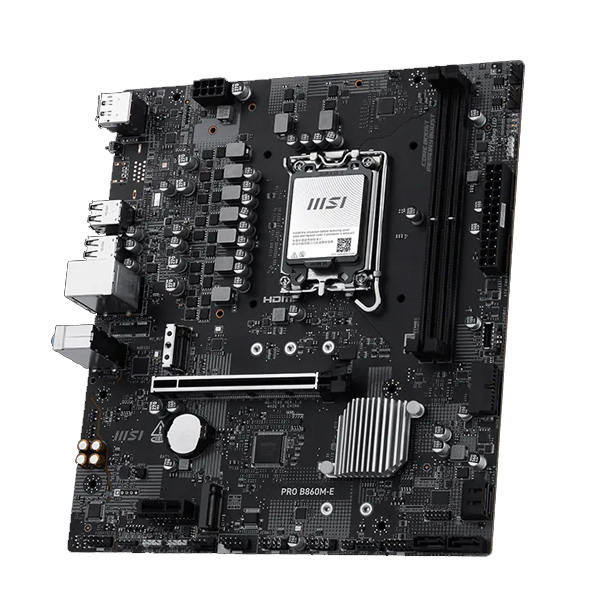

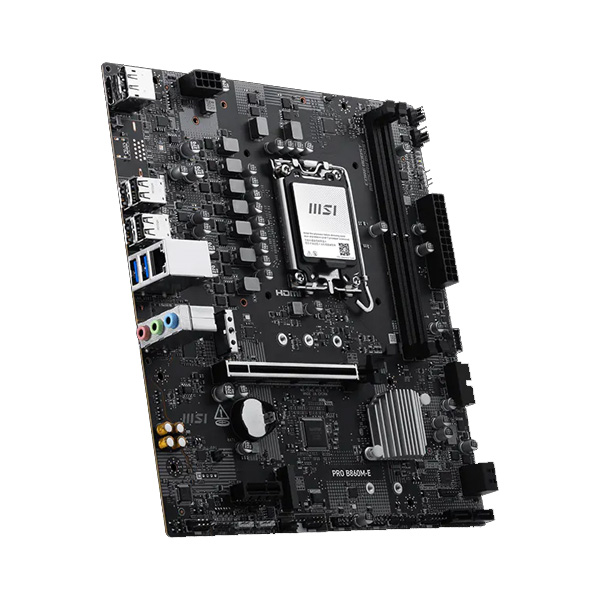

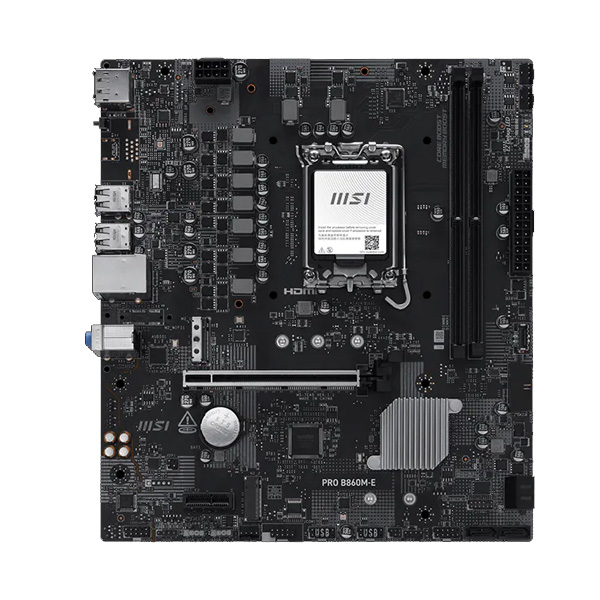

MSI Pro B860M-E Intel LGA 1851 Ddr5 M-Atx Motherboard
PRO B860M-E is engineered with many exclusive features of MSI, PCIe 5.0 M.2, EZ PCIe Clip II, 5G LAN, and Front Type-C, ready for the Intel Core Ultra processors
Welcome to Clarion Computers Pvt. Ltd
MSI Pro B860M-E Intel LGA 1851 Ddr5 M-Atx Motherboard
In stock
Out of stock
₹9,999.00
- PRO-B860M-E
- Motherboards
FAQs
Yes, we provide GST billing for all eligible purchases. You will receive a GST invoice with your order.
Yes, this product includes official brand warranty as per the manufacturer’s terms.
Yes, EMI options (including No-cost EMI on select cards) may be available at checkout depending on your bank and order value.
Orders placed before the daily cut-off time are dispatched the same day (working days). Actual delivery time depends on your pincode.
| Chipset | INTEL B860 | |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) | |
| LGA 1851 | ||
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB | |
| Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s | ||
| Max. overclocking frequency: | ||
| • 1DPC 1R Max speed up to 9066+ MT/s | ||
| • 1DPC 2R Max speed up to 7200+ MT/s | ||
| Supports Intel® POR Speed and JEDEC Speed | ||
| Supports Memory Overclocking and Intel® XMP 3.0 | ||
| Supports Dual-Controller Dual-Channel mode | ||
| Supports Non-ECC, Un-buffered memory | ||
| Supports CUDIMM | ||
| • The DIMM slots on this motherboard have double-sided latches. | ||
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. | ||
| Onboard Graphics | 1x HDMI™ | |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* | ||
| 1x DisplayPort | ||
| Support DisplayPort 1.4, maximum resolution of 4K 60Hz* | ||
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | ||
| Slot | 1x PCI-E x16 slot | |
| 1x PCI-E x1 slot | ||
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | ||
| PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) | ||
| Audio | Realtek® ALC897 Codec | |
| 7.1-Channel High Definition Audio | ||
| Storage | 2x M.2 | |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices | ||
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | ||
| 4x SATA 6G | ||
| *Please refer to the manual for M.2 SSD heatsink restrictions. | ||
| USB | 4x USB 2.0 (Rear) | |
| 4x USB 2.0 (Front) | ||
| 2x USB 5Gbps Type A (Rear) | ||
| 2x USB 5Gbps Type A (Front) | ||
| 1x USB 10Gbps Type C (Front) | ||
| LAN | Realtek® 8126 5Gbps LAN | |
| Internal IO | 1x Power Connector(ATX_PWR) | |
| 1x Power Connector(CPU_PWR) | ||
| 1x CPU Fan | ||
| 2x System Fan | ||
| 2x Front Panel (JFP) | ||
| 1x Chassis Intrusion (JCI) | ||
| 1x Front Audio (JAUD) | ||
| 1x Com Port (JCOM) | ||
| 1x Tuning Controller connector(JDASH) | ||
| 3x Addressable V2 RGB LED connector (JARGB_V2) | ||
| 1x RGB LED connector(JRGB) | ||
| 1x TPM pin header(Support TPM 2.0) | ||
| 4x USB 2.0 ports | ||
| 2x USB 5Gbps Type A ports | ||
| 1x USB 10Gbps Type C ports | ||
| LED FEATURE | 4x EZ Debug LED | |
| Chipset | INTEL B860 | |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) | |
| LGA 1851 | ||
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB | |
| Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s | ||
| Max. overclocking frequency: | ||
| • 1DPC 1R Max speed up to 9066+ MT/s | ||
| • 1DPC 2R Max speed up to 7200+ MT/s | ||
| Supports Intel® POR Speed and JEDEC Speed | ||
| Supports Memory Overclocking and Intel® XMP 3.0 | ||
| Supports Dual-Controller Dual-Channel mode | ||
| Supports Non-ECC, Un-buffered memory | ||
| Supports CUDIMM | ||
| • The DIMM slots on this motherboard have double-sided latches. | ||
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. | ||
| Onboard Graphics | 1x HDMI™ | |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* | ||
| 1x DisplayPort | ||
| Support DisplayPort 1.4, maximum resolution of 4K 60Hz* | ||
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | ||
| Slot | 1x PCI-E x16 slot | |
| 1x PCI-E x1 slot | ||
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | ||
| PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) | ||
| Audio | Realtek® ALC897 Codec | |
| 7.1-Channel High Definition Audio | ||
| Storage | 2x M.2 | |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices | ||
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | ||
| 4x SATA 6G | ||
| *Please refer to the manual for M.2 SSD heatsink restrictions. | ||
| USB | 4x USB 2.0 (Rear) | |
| 4x USB 2.0 (Front) | ||
| 2x USB 5Gbps Type A (Rear) | ||
| 2x USB 5Gbps Type A (Front) | ||
| 1x USB 10Gbps Type C (Front) | ||
| LAN | Realtek® 8126 5Gbps LAN | |
| Internal IO | 1x Power Connector(ATX_PWR) | |
| 1x Power Connector(CPU_PWR) | ||
| 1x CPU Fan | ||
| 2x System Fan | ||
| 2x Front Panel (JFP) | ||
| 1x Chassis Intrusion (JCI) | ||
| 1x Front Audio (JAUD) | ||
| 1x Com Port (JCOM) | ||
| 1x Tuning Controller connector(JDASH) | ||
| 3x Addressable V2 RGB LED connector (JARGB_V2) | ||
| 1x RGB LED connector(JRGB) | ||
| 1x TPM pin header(Support TPM 2.0) | ||
| 4x USB 2.0 ports | ||
| 2x USB 5Gbps Type A ports | ||
| 1x USB 10Gbps Type C ports | ||
| LED FEATURE | 4x EZ Debug LED | |
| 1x EZ Memory Detection LED |
Hardware
- MSI
- MSI B860
- Micro ATX
- LGA 1851
- Intel B860
- ...
- ...
