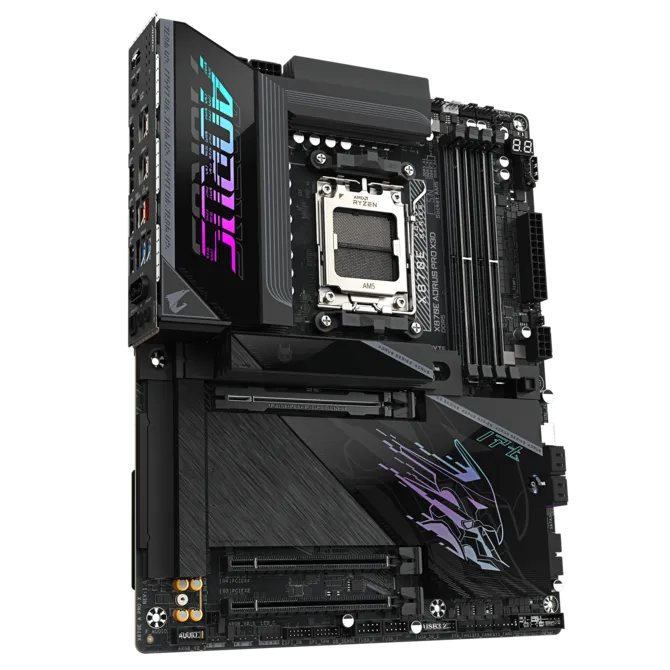

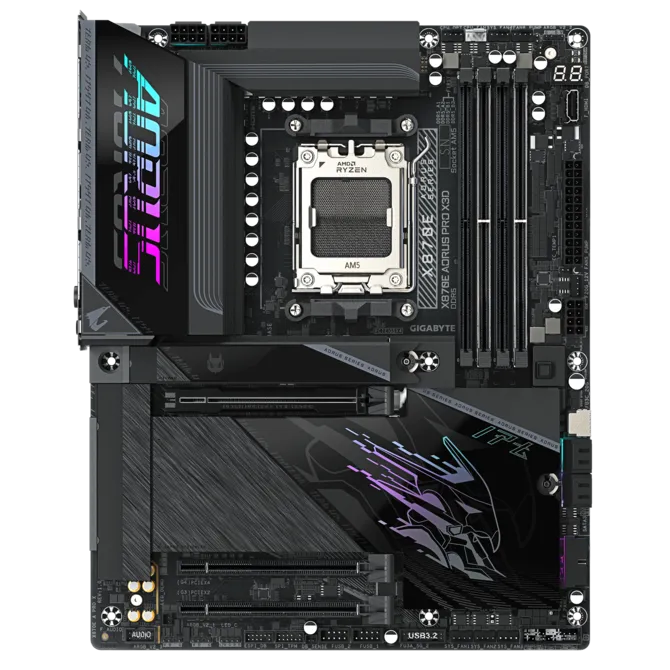

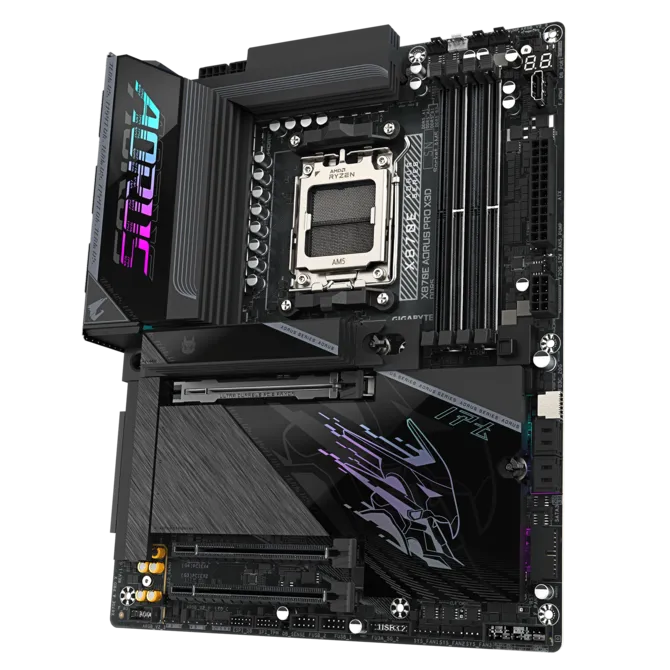

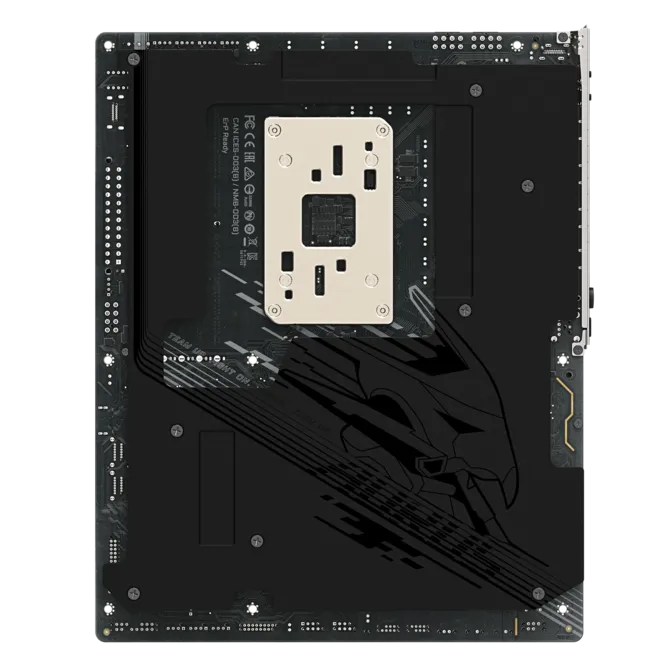

CPU
|
AMD Socket AM5, support for:
|
| AMD Ryzen™ 9000 Series Processors/ |
| AMD Ryzen™ 8000 Series Processors/ |
| AMD Ryzen™ 7000 Series Processors |
| (Go to GIGABYTE's website for the latest CPU support list.) |
|
Chipset
|
AMD X870E
|
|
Memory
|
Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
|
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Dual channel memory architecture |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
Onboard Graphics
|
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
|
| - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz |
| * Support for DisplayPort 1.4 version and HDR |
| Integrated Graphics Processor with AMD Radeon™ Graphics support: |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| ** Support for native HDMI 2.1 TMDS compatible ports. |
| - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
| * Support for HDMI 1.4 version |
| (Graphics specifications may vary depending on CPU support.) |
|
Audio
|
Realtek® ALC1220 CODEC |
| * The back panel line out jack supports DSD audio. |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Support for S/PDIF Out |
|
LAN
|
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module
|
Qualcomm® Wi-Fi 7 QCNCM865 |
| - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| - BLUETOOTH 5.4 |
| - Support for 11be 320MHz wireless standard |
| (Actual data rate may vary depending on environment and equipment.) |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
| ***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
|
Expansion Slots
|
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
|
| AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
| AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Chipset: |
| - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
|
Storage Interface
|
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
|
| AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: |
| AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| * The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in theM2B_CPU connector, both theM2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable. |
| 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| 4 x SATA 6Gb/s connectors |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
USB
|
CPU+ASMedia USB4® controller:
|
| - 2 x USB4® USB Type-C® ports on the back pane |
| CPU: |
| - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| Chipset+USB 3.2 Gen 1 Hub: |
| - 4 x USB 3.2 Gen 1 ports available through the internal USB headers |
| Chipset: |
| - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging) |
| * For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors." |
| - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| - 3 x USB 3.2 Gen 1 ports on the back panel |
| - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
Internal I/O Connectors
|
1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors |
| 1 x PCIe power connector |
| 1 x CPU fan header |
| 1 x CPU fan/water cooling pump header |
| 4 x system fan headers |
| 2 x system fan/water cooling pump headers |
| 3 x addressable RGB Gen2 LED strip headers |
| 1 x RGB LED strip header |
| 4 x SATA 6Gb/s connectors |
| 4 x M.2 Socket 3 connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
| 2 x USB 3.2 Gen 1 headers |
| 2 x USB 2.0/1.1 headers |
| 1 x noise detection header |
| 1 x HDMI port (Note) |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) |
| 2 x temperature sensor headers |
| 1 x reset jumper |
| 1 x Clear CMOS jumper |
| (Note) Actual support may vary by CPU. |
|

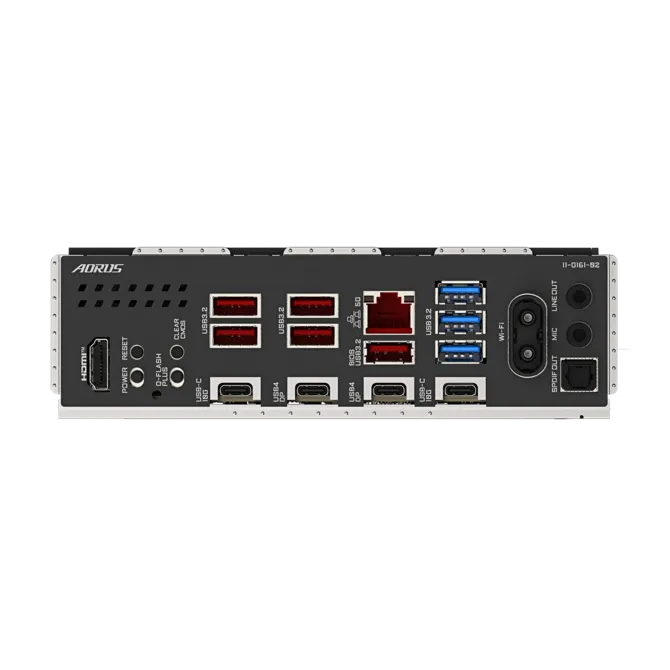

Back Panel Connectors
|
1 x HDMI port (Note)
|
| 1 x reset button |
| 1 x power button |
| 1 x Clear CMOS button |
| 1 x Q-Flash Plus button |
| 5 x USB 3.2 Gen 2 Type-A ports (red) |
| 2 x USB Type-C® ports, with USB 3.2 Gen 2 support |
| 2 x USB4® USB Type-C® ports (DisplayPort (Note)) |
| 1 x RJ-45 port |
| 3 x USB 3.2 Gen 1 ports |
| 2 x antenna connectors (2T2R) |
| 2 x audio jacks |
| 1 x optical S/PDIF Out connector |
| (Note) Actual support may vary by CPU. |
|
I/O Controller
|
Voltage detection |
| Temperature detection |
| Fan speed detection |
| Water cooling flow rate detection |
| Fan fail warning |
| Fan speed control |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| Noise detection |
|
BIOS
|
1 x 512 Mbit flash
|
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique Features
|
Support for GIGABYTE Control Center (GCC)
|
| |
Support for Q-Flash |
| |
Support for Q-Flash Plus |
| |
Support for Smart Backup |
|
Bundled Software
|
Norton® Internet Security (OEM version)
|
|
Operating System
|
Support for Windows 11 64-bit |
|
Form Factor
|
ATX Form Factor; 30.5cm x 24.4cm
|
