DEEPCOOL PL-D V2 SERIES POWER SUPPLY

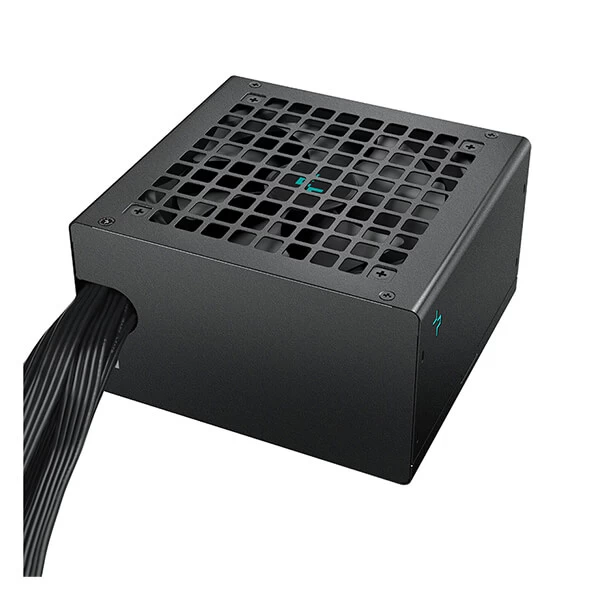

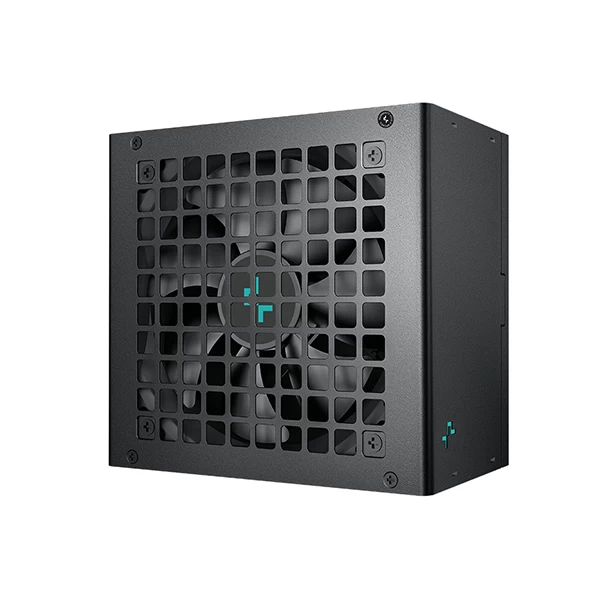

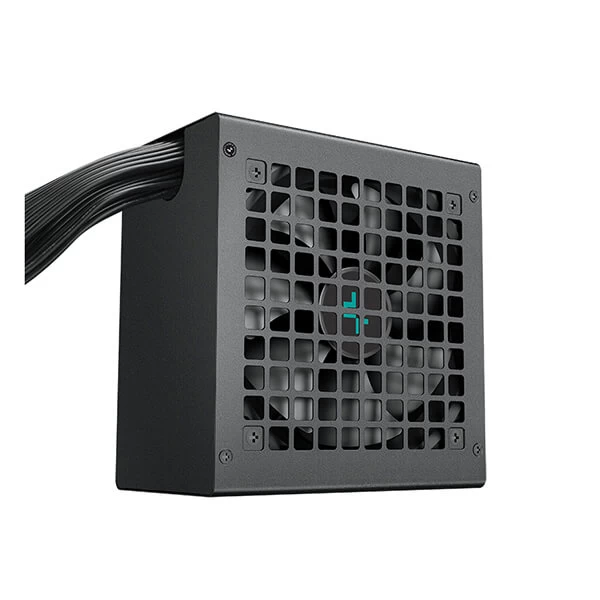

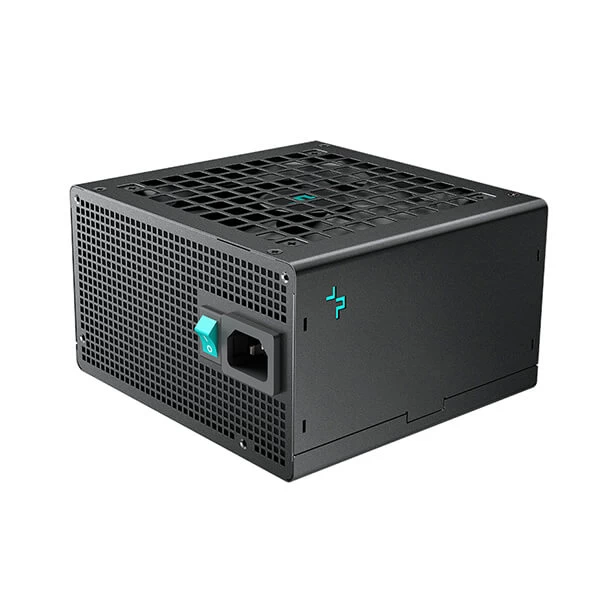

DeepCool PL750D V2 750W ATX 3.1 Power Supply
Reliable 750W continuous power with 80 PLUS Bronze efficiency, a native 12V-2x6 GPU cable rated for up to 450W, and a 120mm hydro-bearing fan for compatible modern PC builds.
DeepCool PL750D V2 at a Glance
Introduction
The DeepCool PL750D V2 750W Power Supply (R-PL750D-FC0B-IN-V2) is designed for compatible gaming PCs, mainstream workstations and everyday desktop systems. Its 750W continuous output and single high-capacity +12V rail provide power for suitable processors, graphics cards and other system components.
Built around Intel's ATX 3.1 power-supply standard, the PL750D V2 includes a native 12V-2x6 GPU power cable rated for up to 450W. This provides a direct power connection for compatible graphics cards, while the PSU's overall 750W capacity still needs to match the complete system's power requirements.
Its 80 PLUS Bronze verification and additional Cybenetics Silver and PPLP Silver certifications provide efficiency credentials across different certification programmes. A 120mm hydro-bearing fan, active PFC and DC-to-DC conversion complete the design.
The PL750D V2 uses permanently attached, non-modular cables. This keeps the cabling straightforward but means unused leads must be managed inside the case.
Key Features
750W Continuous Power
Delivers 750W of rated continuous output, with the full 750W available on the +12V rail for compatible CPU and graphics-card power requirements.
Multi-Certified Efficiency
Carries 80 PLUS Bronze verification alongside Cybenetics Silver and PPLP Silver certifications. DeepCool specifies at least 85% efficiency at a typical 50% load.
Native 12V-2x6 GPU Cable
Includes a native 16-pin 12V-2x6 cable rated for up to 450W, intended for compatible modern graphics cards requiring this power connection.
ATX 3.1 Compliance
Designed for the ATX12V 3.1 standard, including the ability to handle specified short-duration system power excursions under the standard's test conditions.

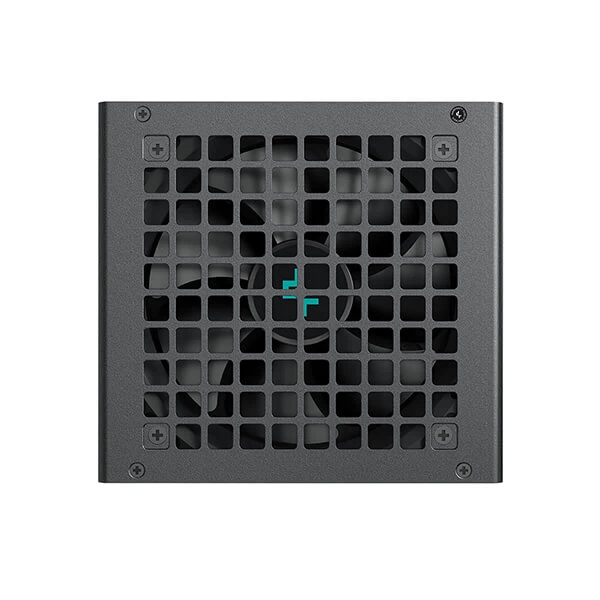

120mm Hydro-Bearing Fan
The hydro-bearing fan provides active airflow to cool the power supply during operation, helping maintain reliable thermal performance within its specified operating conditions.
Comprehensive Protection
Includes over-power, over-voltage, short-circuit, over-temperature, over-current, under-voltage, surge and no-load protection features.

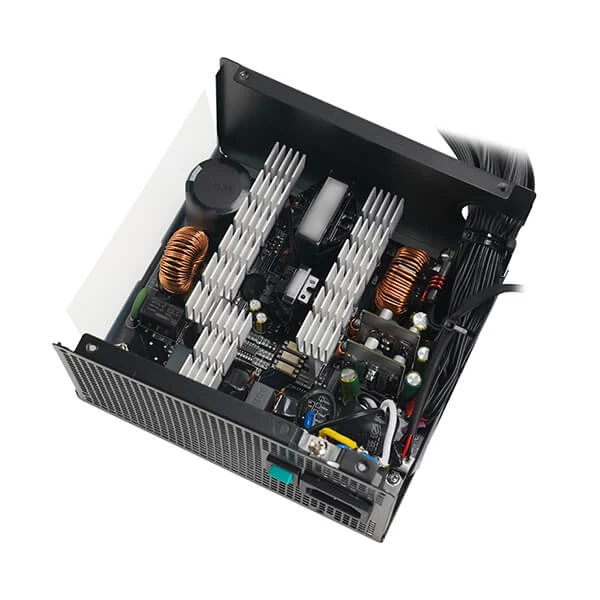

Power Delivery and Protection Technology
The PL750D V2 combines active power factor correction (PFC) with DC-to-DC conversion. Its +12V rail is rated at 62.5A, equivalent to 750W, while the combined +3.3V and +5V output is rated at 100W maximum.
ATX 3.1 compliance supports specified short-duration power excursions, helping the PSU accommodate brief changes in system power demand. The native 12V-2x6 cable is rated for up to 450W, so check both the graphics card's connector requirements and the complete system's power consumption before choosing this model.
The protection suite covers common electrical and thermal fault conditions: OPP, OVP, SCP, OTP, OCP, UVP, SIP and NLO. DeepCool also specifies a hold-up time of at least 16ms and a Power Good signal timing of 100–150ms.
The power supply is rated for operation from 0°C to 40°C, with a stated MTBF of 100,000 hours. MTBF is a statistical reliability measure, not a guarantee of an individual unit's service life.
Technical Specifications
Specifications are based primarily on DeepCool's official PL750D V2 product documentation. Connector counts refer to the supplied cable configuration. Confirm the exact regional package and warranty terms with the seller.
Recommended Use Cases
Mainstream Gaming PCs
Suitable for compatible gaming systems whose combined CPU and GPU requirements fit within the 750W power budget.
Modern GPU Builds
The native 12V-2x6 cable can power compatible graphics cards rated for up to 450W through that connection, subject to the full system's power requirements.
Home and Office Workstations
Provides continuous power for compatible productivity systems used for development, multitasking and everyday professional workloads.
Budget-Conscious Builds
Combines a 750W rating and modern GPU connector support in a straightforward non-modular design for users prioritising essential features.
Before You Buy
- The PL750D V2 is non-modular. Its cables are permanently attached, so plan cable management before installation.
- The native 12V-2x6 cable is rated for up to 450W. This does not mean every 450W graphics card is automatically suitable for a 750W PSU; assess the complete system's power demand.
- DeepCool lists ATX 3.1 compatibility and the ability to handle specified short-duration power excursions. Check the GPU manufacturer's recommended PSU wattage and connector requirements.
- The PSU measures 150 × 140 × 86mm. Verify cabinet clearance and cable-routing space before installation.
- Use only the cables supplied with this PSU. Never mix modular cables from another PSU, even if their connectors appear to fit.
- For high-power GPUs, heavy overclocking or future upgrades, consider overall wattage headroom and transient requirements rather than selecting a PSU by its GPU connector alone.
Frequently Asked Questions
1. Is the DeepCool PL750D V2 a 750W power supply?
Yes. It is rated for 750W of continuous output, with the full 750W available on the +12V rail.
2. Is the PL750D V2 modular?
No. It is a non-modular power supply, so its cables are permanently attached. Unused leads must be managed inside the case.
3. Does it support ATX 3.1?
Yes. DeepCool lists the PL750D V2 as an ATX12V 3.1 power supply designed to handle specified short-duration power excursions under the standard.
4. Does it include a native 12V-2x6 GPU power cable?
Yes. The official PL750D V2 specification lists one native 16-pin 12V-2x6 cable rated for up to 450W for compatible graphics cards.
5. What efficiency certifications does it have?
DeepCool lists 80 PLUS Bronze, Cybenetics Silver and PPLP Silver certifications. It specifies at least 85% efficiency under a typical 50% load.
6. Is 750W enough for a modern gaming PC?
It can be suitable for many gaming systems, but compatibility depends on the exact CPU, GPU, other components and peak power demand. Check the graphics-card manufacturer's PSU recommendation before buying.
7. Which protection features are included?
The listed protections are OPP, OVP, SCP, OTP, OCP, UVP, SIP and NLO, covering several over-power, voltage, current, temperature, short-circuit and input-related fault conditions.
8. What warranty does the DeepCool PL750D V2 include?
The manufacturer and Indian retail listings specify a five-year warranty, subject to the applicable warranty terms and conditions.
