CORSAIR CX SERIES POWER SUPPLY
Corsair CX650 650W 80 PLUS Bronze Power Supply
Reliable 650W continuous power, Bronze-rated efficiency and low-noise cooling in a compact ATX design for everyday desktop PCs and gaming builds.
Corsair CX650 at a Glance
Introduction
The Corsair CX650 650W 80 PLUS Bronze Power Supply (CP-9020278-IN) is designed for desktop users who need dependable power delivery for everyday computing, productivity and compatible gaming systems. Its 650W continuous output provides a practical foundation for a wide range of mainstream PC configurations.
With 80 PLUS Bronze efficiency rated up to 88%, the CX650 is designed to reduce energy wasted as heat compared with less efficient power supplies under comparable conditions. Its thermally controlled 120mm fan adjusts cooling according to load, helping keep noise down during lighter workloads.
The compact 125mm-long chassis helps simplify installation in many modern ATX-compatible cases. Its non-modular cabling keeps the design straightforward, although unused cables must be managed inside the case.
Key Features
650W Continuous Power
Delivers a rated 650W of continuous power, including up to 624W available on the +12V rail for compatible CPU and graphics-card power requirements.
80 PLUS Bronze Efficiency
Bronze certification with efficiency of up to 88% helps reduce conversion losses and heat generation under suitable operating conditions.

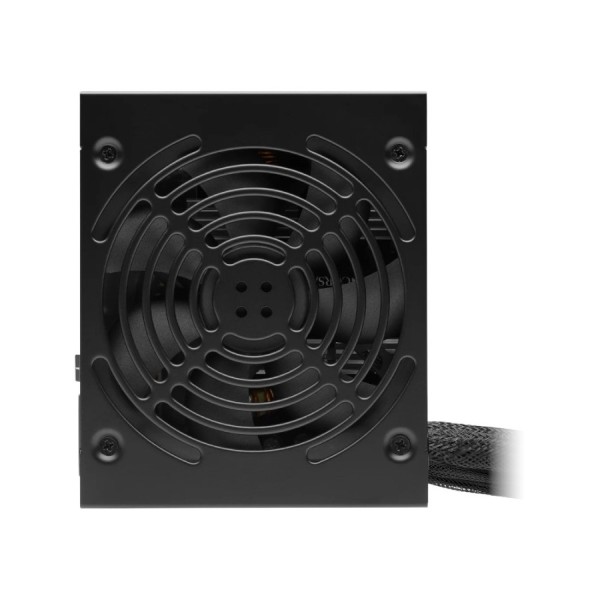

Thermally Controlled Fan
The 120mm sleeve-bearing fan adjusts its speed according to thermal requirements to balance cooling and noise during operation.
Compact 125mm Chassis
The short PSU body makes installation easier in many modern cases and leaves additional room for cable routing in compatible builds.
Essential Power Connectors
Includes a 24-pin motherboard cable, a 4+4-pin CPU power cable, two PCIe 6+2-pin connectors, three SATA connectors and two peripheral connectors.
Manufacturer Warranty
Backed by a five-year manufacturer warranty, subject to Corsair's applicable warranty terms and conditions.
Power Delivery and Cooling Technology
The CX650 uses an ATX12V v2.31 design with a single +12V rail rated at 52A, equivalent to 624W. This rail supplies the primary power demands of the processor and graphics card, subject to the system's total power requirements.
Its thermally controlled 120mm fan increases cooling as required rather than operating at a fixed maximum speed. This approach helps balance cooling performance with acoustics during everyday workloads.
The 80 PLUS Bronze rating indicates certified power-conversion efficiency under defined test conditions. Actual efficiency varies with system load and input conditions; the rating does not guarantee a fixed electricity-bill saving.
Technical Specifications
Specifications are based on manufacturer documentation. Check the graphics card's connector requirements and the complete system's power demand before purchase.
Ideal Use Cases
Everyday Desktop PCs
Suitable for compatible home and office systems used for browsing, communication, productivity and general computing.
Mainstream Gaming
A potential fit for gaming PCs using compatible processors and graphics cards whose power requirements suit a 650W supply.
Home and Study Workstations
Supports suitable productivity and study systems that need dependable power for daily workloads and peripherals.
Compact ATX Builds
The 125mm PSU length helps with installation in many compatible cases where internal clearance and cable routing matter.
Before You Build
- Check the processor and graphics-card manufacturers' recommended PSU wattage before selecting this unit.
- The CX650 is non-modular, so its cables cannot be detached from the PSU. Plan cable management accordingly.
- The listed GPU power connectors are PCIe 6+2-pin. This model does not list a native 12V-2x6 GPU power connector.
- For graphics cards requiring a 16-pin power connection, follow the GPU manufacturer's approved connection method and adapter instructions. Confirm that the PSU's available connectors and capacity are suitable.
- Do not exceed the PSU's rated capacity. For high-power GPUs, substantial overclocking or future upgrades, consider a suitably rated PSU with the required native connectors and appropriate ATX specification.
Frequently Asked Questions
1. Is the Corsair CX650 a 650W power supply?
Yes. The Corsair CX650 (CP-9020278-IN) is rated for 650W of continuous power. Its +12V rail is rated at 52A, or 624W.
2. What does 80 PLUS Bronze mean?
It is an efficiency certification indicating that the PSU meets defined conversion-efficiency requirements under specified test conditions. Corsair advertises efficiency of up to 88% for this model; actual efficiency varies with load and input conditions.
3. Is the Corsair CX650 modular?
No. It is a non-modular power supply, meaning its cables are permanently attached to the unit. Unused cables must be tucked away inside the case.
4. Which GPU power connectors does it provide?
Corsair lists one PCIe cable with two 6+2-pin connectors. Check the graphics card's power connector and recommended PSU requirements before purchasing.
5. Does the CX650 have a native 12V-2x6 connector?
A native 12V-2x6 connector is not listed in the manufacturer's specifications for this model. Graphics cards requiring a 16-pin connector need a compatible, manufacturer-approved connection solution.
6. Is 650W enough for a gaming PC?
It can be suitable for many mainstream gaming builds, but compatibility depends on the processor, graphics card, other components and peak power demand. Always check the component manufacturers' recommendations.
7. What is the length of the Corsair CX650?
The PSU has a compact 125mm chassis length. Confirm the case's PSU clearance and cable-routing space before installation.
8. What warranty does the Corsair CX650 include?
Corsair specifies a five-year warranty for this model, subject to the manufacturer's applicable warranty terms and conditions.
