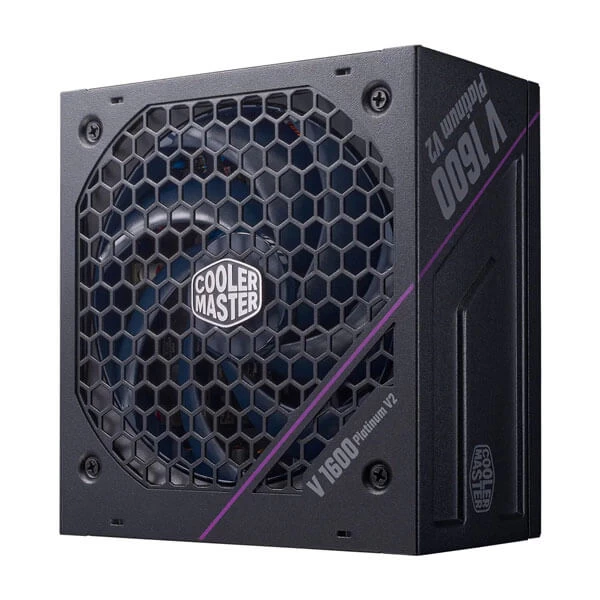

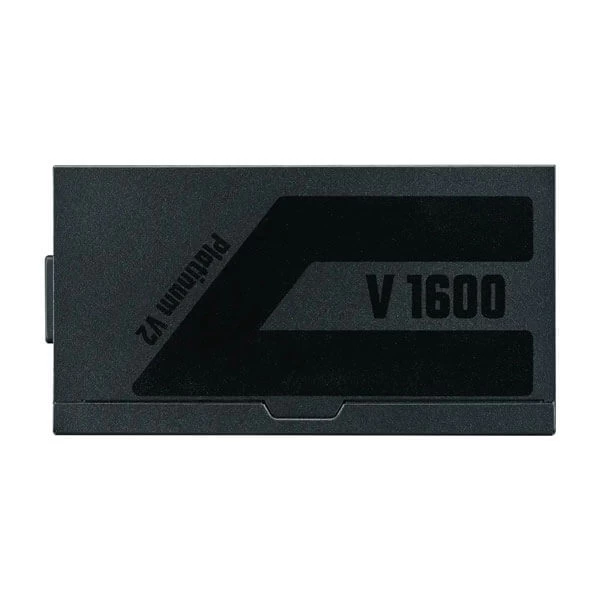

Cooler Master V Platinum 1600 V2 1600W Fully Modular Power Supply
Built for demanding flagship PCs, high-performance workstations and multi-GPU configurations, the V Platinum 1600 V2 combines 1600W of power, 80 PLUS Platinum efficiency, ATX 3.1 support and two native 12V-2x6 GPU power connections.
Key Highlights
Power Capacity
1600W
High-capacity power delivery for demanding builds.
Efficiency
80 PLUS Platinum
Rated efficiency of at least 92% at typical load.
GPU Power
2 × 12V-2x6
Two native 90-degree GPU power connectors.
Warranty
12 Years
Long-term manufacturer warranty, subject to terms.
Introduction
The Cooler Master V Platinum 1600 V2 is a high-capacity power supply designed for systems that require substantial and reliable electrical power. With a rated output of 1600W, it is suited to flagship gaming PCs, professional workstations and compatible multi-GPU systems that demand significant power headroom.
Its ATX 3.1 design includes two native 12V-2x6 GPU power connections with 90-degree connectors, making it particularly relevant for supported modern graphics cards. The fully modular cabling system allows builders to connect only the cables required for their configuration.
An 80 PLUS Platinum efficiency rating, a 135mm Mobius fan with an LDB bearing, and a stated 12-year warranty round out the package. As with any high-wattage PSU, actual system compatibility depends on component requirements, case clearance, connector placement and the manufacturer's installation guidance.
Features of the Cooler Master V Platinum 1600 V2
1600W High-Capacity Output
Provides substantial rated power for demanding CPUs, high-end graphics cards, workstation components and other compatible hardware.
80 PLUS Platinum Efficiency
The Platinum rating and stated efficiency of at least 92% at typical load help reduce conversion losses compared with less efficient designs under comparable conditions.
ATX 3.1 and Dual 12V-2x6
Supports the ATX 3.1 standard and provides two native 12V-2x6 GPU power connections, each specified for up to 600W where supported by the PSU and compatible graphics card.
Fully Modular Cabling
Detachable cables simplify cable routing, help reduce unused cable clutter and make it easier to maintain an organised system interior.
135mm Mobius Fan
The Mobius fan uses an LDB bearing and features a zero-RPM operating mode for silent fan operation when cooling conditions permit.
Multiple Protection Systems
Includes over-power, over-voltage, over-temperature, over-current, short-circuit and under-voltage protection, along with surge and inrush protection.
Power, Cooling and Cable Technology
Interleaved Active PFC
Active power-factor correction with an interleaved design helps manage input current and reduce power loss within the PSU's conversion system.
Thermal Management
The Mobius fan and anodised heat sinks are designed to support airflow and heat dissipation. Fan behaviour depends on the PSU's temperature and load.
Zero-RPM Fan Mode
The fan can stop spinning when operating conditions allow, reducing fan noise at lighter loads. It will run when additional cooling is needed.
Dual Native GPU Connections
Two 12V-2x6 connections offer flexible power connectivity for supported graphics-card configurations. They do not guarantee compatibility with every dual-GPU system.
Technical Specifications
Brand
Cooler Master
Product Series
V Platinum Series
Model
V Platinum 1600 V2
Model Number
MPZ-G002-AFAP-BIN
Rated Power
1600W
Form Factor
ATX
ATX Version
ATX 12V 3.1
Modularity
Fully Modular
Efficiency Certification
80 PLUS Platinum
Typical Load Efficiency
≥ 92%
Power Factor Correction
Active PFC
Input Voltage
100–240V AC
Input Current
16–8A
Input Frequency
50–60Hz
Dimensions (L × W × H)
160 × 150 × 86mm
Fan Size
135mm
Fan Bearing
LDB (Mobius Fan)
Fan Speed
2400 ± 10% RPM
Operating Temperature
0–50°C
Power Good Signal
100–150ms
Hold-Up Time
≥ 16ms
MTBF
> 100,000 Hours
ErP 2014 Lot 3
Compliant
Warranty
12 Years
Power Output Ratings
+12V
133.3A / 1600W
+3.3V
20A
+5V
20A
Combined +3.3V / +5V
120W
-12V
0.3A / 3.6W
+5Vsb
3A / 15W

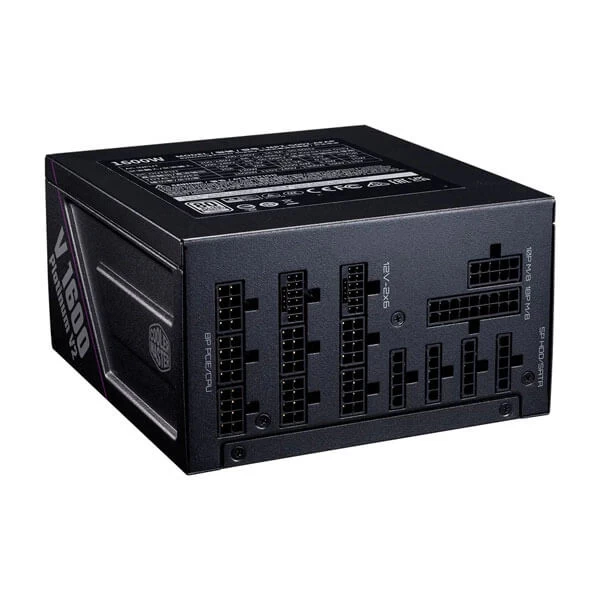

Connector Configuration
ATX Motherboard
1 × 24-pin (650mm)
EPS CPU Power
1 × 4+4-pin (650mm)
EPS CPU Power
1 × 8-pin (650mm)
PCIe GPU Power
5 × 6+2-pin (550mm)
12V-2x6 GPU Power
2 × 12V-2x6 (650mm)
SATA Power
16 connectors across 4 cable runs
Peripheral Power
4 × 4-pin connectors
Cable lengths and connector counts are based on the listed product specification. Confirm the supplied regional package and cable labels before installation. Never mix modular PSU cables from different models unless explicitly approved by the manufacturer.
Ideal Use Cases
Flagship Gaming PCs
Suitable for compatible high-end gaming systems with power-hungry processors and flagship GPUs.
Professional Workstations
A high-capacity power option for compatible 3D rendering, simulation, visualisation and compute workloads.
Multi-GPU Configurations
Two native 12V-2x6 connections offer added flexibility for compatible systems, subject to total power draw and GPU requirements.
Enthusiast PC Builds
Designed for premium builds where substantial power capacity, modular cabling and current-generation GPU connections are priorities.
Before You Build
- Check PSU clearance: The unit measures 160 × 150 × 86mm. Verify the case's PSU space, cable-routing room and clearance around other components.
- Calculate total system power: Match the PSU to the combined requirements of the CPU, GPUs and other components, including transient power demands.
- Verify GPU connections: Confirm the graphics card's required connector type and power rating. The presence of two 12V-2x6 connectors does not mean every two-GPU combination is supported.
- Check motherboard CPU power: Use the supplied EPS connectors according to the motherboard manual. Do not confuse EPS CPU power cables with PCIe GPU power cables.
- Use only the correct modular cables: PSU-side pinouts can differ between models. Use the cables supplied for this PSU or manufacturer-approved replacements.
- Plan electrical supply: A 1600W PSU can draw substantial current at high load. Ensure the wall outlet, wiring and power distribution equipment are appropriate for the intended system.
- Understand efficiency: 80 PLUS Platinum describes conversion efficiency under specified test conditions; it does not mean the PC always consumes 1600W or that efficiency is fixed at every load.
Frequently Asked Questions
1. What is the wattage of the Cooler Master V Platinum 1600 V2?
It is rated for 1600W of continuous power output, making it suitable for compatible high-performance gaming PCs and workstations with substantial power requirements.
2. Does this PSU support ATX 3.1?
Yes. The V Platinum 1600 V2 supports ATX 12V 3.1 and includes two native 12V-2x6 GPU power connections.
3. What does the 80 PLUS Platinum rating mean?
It indicates a high level of power-conversion efficiency under the certification's defined test conditions. Cooler Master lists at least 92% efficiency at typical load. Actual efficiency varies with operating conditions.
4. Can this power supply run two graphics cards?
It has two native 12V-2x6 connections and is designed to offer flexibility for supported multi-GPU builds. Whether it can power a particular pair of GPUs depends on their combined power requirements, transient demand and the rest of the system.
5. Is the Cooler Master V Platinum 1600 V2 fully modular?
Yes. Its fully modular design lets builders connect the required power cables rather than leaving unused fixed cables inside the case.
6. Does its fan always spin?
No. The PSU features a zero-RPM fan mode, allowing the fan to stop under suitable operating conditions. Fan operation depends on load and temperature.
7. What is the warranty period?
The listed manufacturer warranty is 12 years, subject to the applicable regional warranty terms, proof of purchase and product conditions.
8. Will it fit in any ATX cabinet?
Not necessarily. Although it uses an ATX form factor, check that your case supports a PSU measuring 160 × 150 × 86mm and allows sufficient room for the modular connectors and cable bends.
