Cooler Master V Platinum Series
Cooler Master V Platinum 1300 V2 1300W Fully Modular Power Supply
Engineered for demanding gaming PCs and professional workstations, the Cooler Master V Platinum 1300 V2 combines 1300W power delivery, 80 PLUS Platinum efficiency, ATX 3.1 support and a native 90-degree 12V-2x6 GPU power cable in a fully modular design.
Key Highlights
Power Capacity
1300W
High-capacity output for demanding compatible systems.
Efficiency
80 PLUS Platinum
At least 92% efficiency at typical load, as specified.
GPU Connectivity
12V-2x6
Native 90-degree connector for compatible modern GPUs.
Warranty
12 Years
Manufacturer warranty, subject to applicable terms.
Introduction
The Cooler Master V Platinum 1300 V2 is a high-capacity power supply designed for enthusiast gaming PCs, high-performance workstations and compatible systems with substantial power requirements. Its 1300W rated output provides considerable power capacity for modern processors, powerful graphics cards and other demanding components.
Built around the ATX 3.1 standard, this PSU includes a native 90-degree 12V-2x6 GPU power cable for supported graphics cards. Its 80 PLUS Platinum certification indicates high power-conversion efficiency under defined testing conditions, while the fully modular design helps builders organise cables according to their system configuration.
Cooling is handled by a 135mm Mobius fan featuring a loop dynamic bearing, supported by thermal management features and a zero-RPM fan mode. With a stated 12-year warranty and multiple electrical protection systems, the V Platinum 1300 V2 is designed for demanding long-term PC builds.
Features of the Cooler Master V Platinum 1300 V2
1300W High-Capacity Output
Provides substantial rated power for compatible flagship gaming PCs, enthusiast systems and professional workstations with demanding hardware.
80 PLUS Platinum Efficiency
The Platinum certification and specified efficiency of at least 92% at typical load help reduce power-conversion losses under the relevant operating conditions.
ATX 3.1 and 12V-2x6
Supports the ATX 3.1 standard and includes a native 90-degree 12V-2x6 power cable for compatible modern graphics cards.
Fully Modular Cabling
Connect only the cables required by your components to simplify installation, reduce cable clutter and improve the organisation of your PC build.

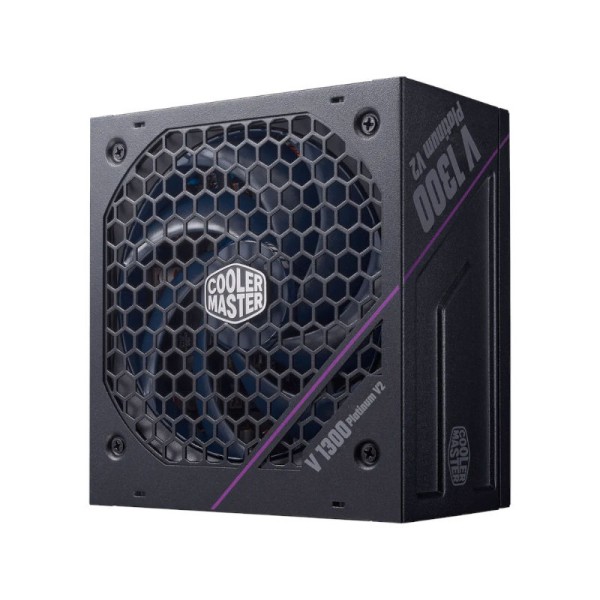

135mm Mobius Fan
The Mobius fan uses a loop dynamic bearing design intended to improve airflow, support thermal performance and reduce fan noise.
Comprehensive Protection
Includes over-power, over-voltage, over-temperature, over-current, short-circuit and under-voltage protection, plus surge and inrush protection.
Power, Cooling and Cable Technology
Interleaved Active PFC
The interleaved power-factor correction design is intended to reduce power loss, minimise current ripple and help manage electrical interference.
Mobius Fan with LDB Bearing
The 135mm Mobius fan uses a loop dynamic bearing and an airflow-focused design to support cooling performance and quieter operation.
Zero-RPM Fan Mode
The fan can stop spinning under suitable operating conditions, reducing fan noise when additional airflow is not required.
Advanced Heat Dissipation
The PSU's heat-sink design and thermal control features are intended to help manage internal temperatures during demanding operation.
Technical Specifications
Brand
Cooler Master
Product Series
V Platinum Series
Model
V Platinum 1300 V2
Model Number
MPZ-D002-AFAP-BIN
Rated Power
1300W
Form Factor
ATX
ATX Version
ATX 12V 3.1
Modularity
Fully Modular
Efficiency Certification
80 PLUS Platinum
Typical Load Efficiency
≥ 92%
Power Factor Correction
Active PFC, Interleaved Design
Input Voltage
100–240V AC
Input Current
15–7A
Input Frequency
50–60Hz
Dimensions (L × W × H)
160 × 150 × 86mm
Fan Size
135mm
Fan Bearing
LDB (Mobius Fan)
Fan Speed
2400 ± 10% RPM
Operating Temperature
0–50°C
Power Good Signal
100–150ms
Hold-Up Time
≥ 16ms
MTBF
> 100,000 Hours
ErP 2014 Lot 3
Compliant
Warranty
12 Years
Power Output Ratings
Total Rated Output
1300W
+12V Output
Rail rating: verify product label
+3.3V / +5V Output
Refer to PSU label
-12V / +5Vsb Output
Refer to PSU label

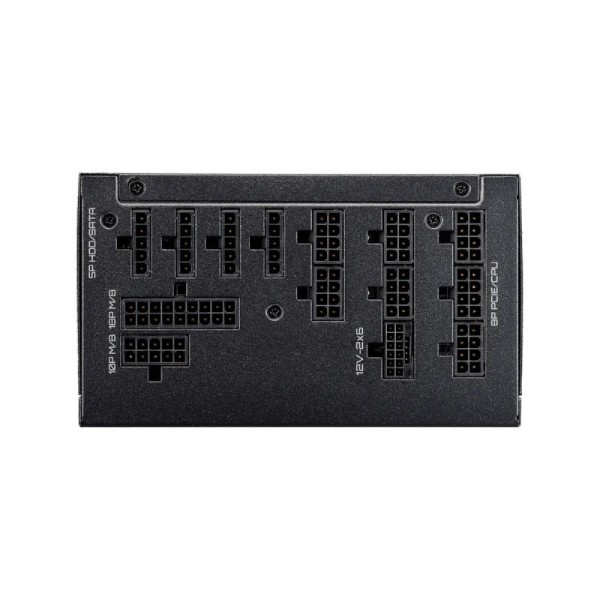

Connector Configuration
ATX Motherboard
1 × 24-pin (650mm)
EPS CPU Power
1 × 4+4-pin (650mm)
EPS CPU Power
1 × 8-pin (650mm)
PCIe GPU Power
5 × 6+2-pin (550mm)
12V-2x6 GPU Power
1 × 12V-2x6 (650mm), 90-degree connector
SATA Power
16 connectors across 4 cable runs
Peripheral Power
4 × 4-pin connectors
Connector counts and cable lengths are based on published listings for this SKU. Confirm the supplied regional package and cable labels before installation. Never mix modular PSU cables from different models unless explicitly approved by the manufacturer.
Ideal Use Cases
Flagship Gaming PCs
Suitable for compatible high-end gaming systems using powerful processors and demanding graphics cards.
Professional Workstations
A high-capacity option for compatible rendering, simulation, visualisation and compute workloads.
Modern GPU Builds
The native 12V-2x6 cable supports compatible graphics cards that use this power interface.
Enthusiast PC Builds
Designed for builders who prioritise high power capacity, Platinum-rated efficiency and modular cable management.
Before You Build
- Calculate system power requirements: Confirm that 1300W is suitable for your CPU, GPUs, storage, cooling and other components, including their transient power demands.
- Verify GPU compatibility: Check the graphics card's connector type, power rating and installation instructions before connecting the 12V-2x6 cable.
- Check cabinet clearance: The PSU measures 160 × 150 × 86mm. Allow additional room for modular connectors and safe cable bends.
- Use the supplied modular cables: PSU-side pinouts can differ between models. Never reuse modular cables from another PSU unless the manufacturer explicitly confirms compatibility.
- Connect CPU power correctly: Follow the motherboard manual for the EPS connectors. CPU power cables and PCIe GPU power cables are not interchangeable.
- Plan the electrical supply: A high-wattage PSU can draw substantial current under load. Ensure the wall outlet, wiring and power distribution equipment are appropriately rated.
- Understand efficiency ratings: 80 PLUS Platinum describes conversion efficiency under specified test conditions. It does not mean the PC continuously consumes 1300W.
Frequently Asked Questions
1. What is the wattage of the Cooler Master V Platinum 1300 V2?
It is rated for 1300W of power output, making it suitable for compatible high-performance gaming PCs and workstations with substantial power requirements.
2. Does this power supply support ATX 3.1?
Yes. The V Platinum 1300 V2 supports the ATX 12V 3.1 standard and includes a native 12V-2x6 GPU power cable.
3. What does 80 PLUS Platinum certification mean?
It indicates high power-conversion efficiency under defined certification test conditions. Cooler Master lists at least 92% efficiency at typical load for this model. Actual efficiency varies with load and operating conditions.
4. Is the Cooler Master V Platinum 1300 V2 fully modular?
Yes. The fully modular design allows you to connect only the cables required by your system, helping simplify installation and cable management.
5. What GPU power connector does it include?
It includes one native 90-degree 12V-2x6 cable, intended for compatible graphics cards. Check your GPU's power requirements and connector orientation before installation.
6. Does its cooling fan always spin?
No. The PSU supports a zero-RPM fan mode, allowing the fan to stop under suitable operating conditions. It resumes operation when additional cooling is required.
7. What is the warranty period?
The listed manufacturer warranty is 12 years, subject to applicable regional warranty terms, proof of purchase and product conditions.
8. Will it fit in any ATX cabinet?
Not necessarily. Check that your cabinet supports a PSU measuring 160 × 150 × 86mm and provides sufficient clearance for modular connectors and cable routing.
