Cooler Master MWE Series

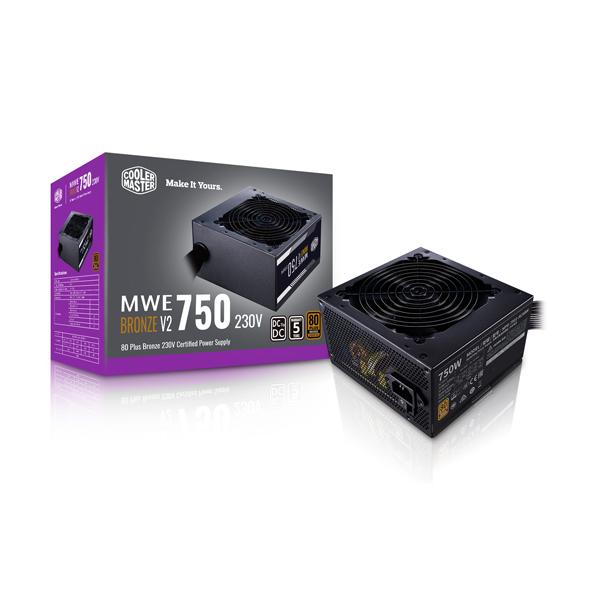

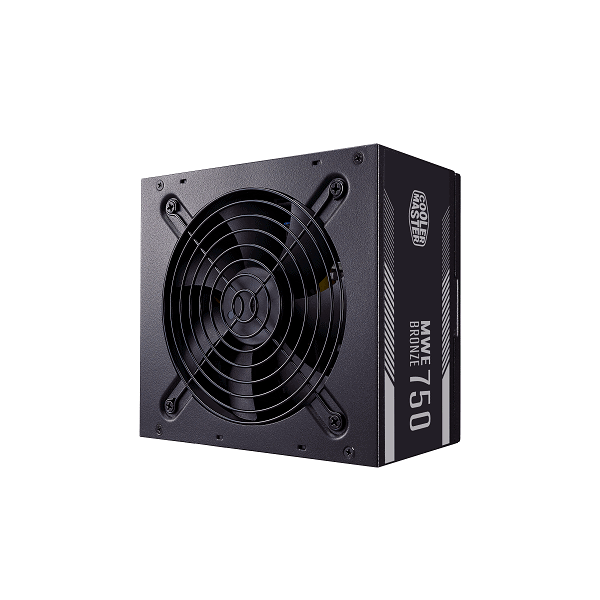

Cooler Master MWE 750 Bronze V2 750W Power Supply
Reliable power for mainstream gaming and desktop builds. The Cooler Master MWE 750 Bronze V2 combines 750W output, 80 PLUS Bronze 230V EU efficiency, DC-to-DC + LLC circuit design and a temperature-sensitive 120mm HDB fan.
Cooler Master MWE 750 Bronze V2 – Key Highlights
Rated Output
750W
For compatible PC configurations
Efficiency
80 PLUS
Bronze 230V EU certified
Cooling
120mm HDB
Temperature-sensitive fan
PCIe Connectors
4 × 6+2-Pin
For compatible graphics cards
Introduction to the Cooler Master MWE 750 Bronze V2
The Cooler Master MWE 750 Bronze V2 is a 750W non-modular power supply designed for users who need dependable power for compatible desktop and gaming systems. Its 80 PLUS Bronze 230V EU certification, active power factor correction and single +12V rail make it a practical option for mainstream PC configurations.
The PSU uses a DC-to-DC + LLC circuit design to help regulate its output voltages, while a temperature-sensitive 120mm hydraulic-dynamic-bearing (HDB) fan adjusts cooling according to operating conditions. Four PCIe 6+2-pin connectors provide flexibility for compatible graphics cards, subject to the GPU manufacturer's power recommendations.
With its standard ATX dimensions and fixed cabling, the MWE 750 Bronze V2 is designed for straightforward installation in compatible cabinets. It follows the ATX 12V 2.52 specification and should not be confused with the newer MWE Bronze V3 models that advertise ATX 3.1 support.
Key Features of the Cooler Master MWE 750 Bronze V2
750W Rated Power
Delivers up to 750W of rated output for compatible systems. Select a PSU based on the combined power needs of the CPU, GPU, drives and other installed components.
80 PLUS Bronze Efficiency
The 80 PLUS Bronze 230V EU certification indicates compliance with the applicable efficiency testing requirements at specified loads and input voltage.
DC-to-DC + LLC Circuit Design
The DC-to-DC design derives the lower-voltage outputs from the +12V rail, while LLC resonant conversion supports efficient power delivery and voltage regulation.
120mm HDB Fan
A temperature-sensitive hydraulic-dynamic-bearing fan adjusts its operation to cooling demand, helping balance heat management and acoustic output.
Single +12V Rail
The single +12V rail is rated at up to 62A, providing a combined +12V output capacity of 744W for compatible system components.
Multiple Protection Features
Listed protection features include over-voltage, over-power, short-circuit, under-voltage and over-temperature protection to help guard against specified electrical faults.
Power Efficiency, Regulation and Cooling
The MWE 750 Bronze V2 combines active PFC with a DC-to-DC + LLC circuit design. Active PFC helps improve power factor, while the DC-to-DC stage regulates the lower-voltage outputs required by PC components. The design is intended to provide stable power delivery within the unit's rated operating conditions.
Its 80 PLUS Bronze 230V EU certification applies to power-conversion efficiency under the relevant testing conditions; it is not a guarantee of overall product quality or a measure of how much power a PC will consume in every workload. Actual wall consumption depends on the computer's load and the PSU's efficiency at that operating point.
A temperature-sensitive 120mm HDB fan helps cool the internal components. The published noise figures are approximately 11.12dBA at 20% load, 20.3dBA at 50% load and 39.5dBA at full load, measured under the conditions specified by the product listing.
This model uses the ATX 12V 2.52 specification. Do not assume native 12V-2x6 cabling or ATX 3.1 compliance; those features belong to specifically identified newer models and must be verified separately.
Cooler Master MWE 750 Bronze V2 Technical Specifications
Product Name
Cooler Master MWE 750 Bronze V2
Model Number
MPE-7501-ACABW-BIN
Rated Output
750W
ATX Version
ATX 12V Version 2.52
Efficiency Certification
80 PLUS Bronze 230V EU
Power Factor Correction
Active PFC
Input Voltage
200–240V AC
Input Current
6A (listed operating range: 10–6A)
Input Frequency
50–60Hz
Dimensions (L × W × H)
140 × 150 × 86mm
Fan Size and Bearing
120mm HDB
Maximum Fan Speed
2400 RPM (listed)
Typical Efficiency
Approximately 88% (listed)
+12V Rail
62A / 744W
Circuit Design
DC-to-DC + LLC
Modularity
Non-Modular
ATX 24-Pin Connector
1 × 24-pin
CPU Power Connectors
1 × 4+4-pin EPS and 1 × 8-pin EPS (listed)
PCIe Power Connectors
4 × 6+2-pin PCIe
SATA Connectors
6
Peripheral 4-Pin Connectors
3
Protection Features
OVP, OPP, SCP, UVP, OTP
MTBF
More than 100,000 hours (listed)
Warranty
5 Years (listed)
Note: Specifications are based on listings for model MPE-7501-ACABW-BIN. Confirm the exact connector arrangement, input rating and warranty for the unit supplied by your distributor.
Recommended Use Cases
Mainstream Gaming PCs
A potential fit for compatible gaming builds using graphics cards whose power demands and connector requirements fall within the PSU's capabilities.
Home and Office Desktops
Provides substantial power capacity for compatible desktop systems used for productivity, browsing, media playback and multitasking.
Content Creation PCs
Can be considered for compatible entry-level creator systems, provided the CPU, GPU and peripherals stay within the recommended power budget.
Component Upgrades
Suitable for selected desktop upgrades when the existing cabinet, motherboard connections and graphics card power requirements are compatible.
Before You Buy the Cooler Master MWE 750 Bronze V2
- Check the total power requirements of your CPU, graphics card, storage drives and other components before selecting a 750W PSU.
- Confirm the GPU's recommended PSU wattage and required connectors. Four PCIe 6+2-pin connectors do not guarantee compatibility with every modern graphics card.
- This model is ATX 12V 2.52. Do not confuse it with the newer MWE Bronze V3 ATX 3.1 model.
- The PSU is non-modular, so unused cables must be routed and secured neatly inside the cabinet.
- Verify the cabinet's PSU mounting clearance and cable-routing space. The listed PSU dimensions are 140 × 150 × 86mm.
- Confirm the warranty, included accessories and model code on the product packaging or distributor documentation before ordering.
Frequently Asked Questions
1. What is the rated wattage of the Cooler Master MWE 750 Bronze V2?
The MWE 750 Bronze V2 is rated at 750W. Suitability depends on the complete system's power consumption and the requirements of its installed components.
2. Is the MWE 750 Bronze V2 80 PLUS certified?
Yes. This model is listed with 80 PLUS Bronze 230V EU certification, indicating efficiency compliance under the applicable test conditions.
3. Is this power supply modular?
No. The MWE 750 Bronze V2 with model number MPE-7501-ACABW-BIN is non-modular, meaning its cables are permanently attached.
4. How many PCIe power connectors does it include?
Published specifications list four 6+2-pin PCIe connectors. Always check your graphics card's exact connector and power requirements before installation.
5. What cooling fan does the MWE 750 Bronze V2 use?
It uses a temperature-sensitive 120mm hydraulic-dynamic-bearing (HDB) fan. Published specifications list a maximum fan speed of 2400 RPM.
6. Does it support ATX 3.1 and native 12V-2x6?
This model is listed as ATX 12V Version 2.52. Do not assume ATX 3.1 compliance or a native 12V-2x6 connector; those features must be confirmed for a different, specifically identified model.
7. What protection features are included?
Published specifications list over-voltage protection (OVP), over-power protection (OPP), short-circuit protection (SCP), under-voltage protection (UVP) and over-temperature protection (OTP).
8. What is the warranty period?
Retailer listings for this model specify a five-year manufacturing warranty. Confirm the warranty applicable to the exact unit and purchase date with your seller.
