ASUS ROG MAXIMUS Z890 HERO
ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA1851 ATX Motherboard
Build an advanced Intel desktop system with the ASUS ROG MAXIMUS Z890 HERO. Featuring Intel Core Ultra Series 2 processor support, DDR5 memory, PCIe 5.0 graphics and storage, six M.2 slots, Wi-Fi 7, dual Ethernet and Thunderbolt 4 connectivity.
Key Highlights
Intel Core Ultra Series 2
Designed for compatible Intel Core Ultra desktop processors (Series 2) using the LGA1851 socket and Intel Z890 chipset.
DDR5 and NitroPath DRAM
Four DDR5 DIMM slots support up to 256GB, with high-speed overclocked memory support and ASUS memory optimisation technologies.
Six M.2 Storage Slots
Three PCIe 5.0 x4 and three PCIe 4.0 x4 M.2 slots provide extensive NVMe storage expansion.
Wi-Fi 7 and Thunderbolt 4
Enjoy next-generation wireless networking, dual wired Ethernet and two Thunderbolt 4 USB Type-C ports.
Extreme Intel Performance with ROG Engineering
The ASUS ROG MAXIMUS Z890 HERO is a premium ATX motherboard built for advanced desktop systems powered by compatible Intel Core Ultra Processors (Series 2). Featuring the Intel Z890 chipset and LGA1851 socket, it combines advanced processor support, high-speed DDR5 memory, next-generation expansion and comprehensive connectivity.
Its four DDR5 memory slots support up to 256GB of memory and overclocked speeds up to 9200+ MT/s, depending on the processor and memory configuration. ASUS NitroPath DRAM Technology, DIMM Flex, DIMM FIT and AEMP III provide additional memory optimisation and tuning capabilities.
For expansion and storage, the motherboard offers a PCIe 5.0 x16 SafeSlot, six M.2 slots including three PCIe 5.0 x4 connections, four SATA 6Gb/s ports and a SlimSAS connector. The PCIe lane configuration changes when certain M.2 slots are enabled, so check the motherboard manual when planning a multi-device build.
Networking includes Wi-Fi 7, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet. Two Thunderbolt 4 ports, front USB Type-C connectivity with Quick Charge 4+ support, ROG SupremeFX audio and Polymo Lighting II complete this high-end motherboard platform.
Features and Technologies
Intel Z890 and LGA1851 Platform
Supports compatible Intel Core Ultra Processors (Series 2) through the LGA1851 socket, with the Intel Z890 chipset providing the platform foundation.
22+1+2+2 Power Stages
The robust power solution uses 22(110A)+1(90A)+2(90A)+2(80A) power stages, ProCool II connectors, MicroFine alloy chokes and premium metallic capacitors.
DDR5 and NitroPath DRAM Technology
Four DDR5 DIMM slots support up to 256GB. NitroPath DRAM Technology and ASUS memory optimisation features support high-speed memory configurations.
PCIe 5.0 x16 SafeSlot
The primary PCIe 5.0 x16 slot supports compatible next-generation graphics cards and includes ASUS SafeSlot reinforcement and Q-Release Slim functionality.
Three PCIe 5.0 M.2 Slots
Three CPU-connected M.2 slots support PCIe 5.0 x4 NVMe SSDs for high-bandwidth storage performance. Enabling M.2_3 or M.2_4 reduces the primary graphics slot to x8 operation.
Three PCIe 4.0 M.2 Slots
Three additional PCIe 4.0 x4 M.2 slots provide flexible high-speed NVMe storage expansion for compatible 2242, 2260 and 2280 drives.
ROG M.2 PowerBoost
ROG M.2 PowerBoost is designed to support simultaneous operation of all six onboard M.2 devices with enhanced power delivery.
Wi-Fi 7 Connectivity
Integrated 2x2 Wi-Fi 7 supports 2.4GHz, 5GHz and 6GHz bands, with up to 320MHz channel bandwidth and Bluetooth 5.4.
Dual Ethernet Networking
Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet offer high-speed wired networking options, supported by ASUS LANGuard.
Dual Thunderbolt 4 Ports
Two rear Thunderbolt 4 USB Type-C ports provide high-speed connectivity and support compatible DisplayPort video output and Thunderbolt devices.
Front USB Type-C Quick Charge 4+
The front USB 20Gbps Type-C connector supports Quick Charge 4+ and up to 60W power delivery when the required 8-pin PCIe power connector is installed.
ROG SupremeFX ALC4082 Audio
The SupremeFX audio solution uses the ALC4082 codec and ESS ES9219 Quad DAC, supporting up to 32-bit/384kHz front-panel playback.

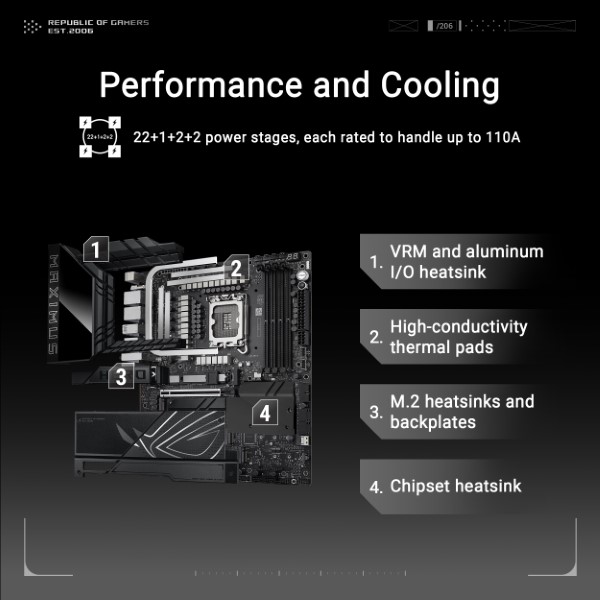

Advanced Thermal Design
Integrated I/O and VRM heatsinks, a U-shaped heatpipe, M.2 heatsinks and backplates help manage heat across critical motherboard components.

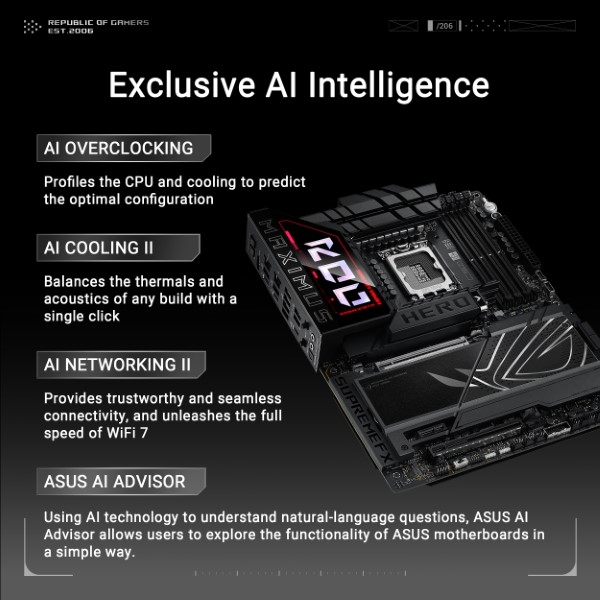

ASUS AI Technologies
AI Overclocking, AI Cooling II, AI Networking II and ASUS AI Advisor provide supported tuning, cooling, networking and setup assistance features.
ROG Extreme OC Kit
Dedicated Start, ReTry and FlexKey controls provide convenient access to selected system operation and overclocking functions.
Polymo Lighting II and Aura Sync
Polymo Lighting II on the I/O cover and three Addressable Gen 2 RGB headers provide lighting customisation through ASUS Aura Sync.

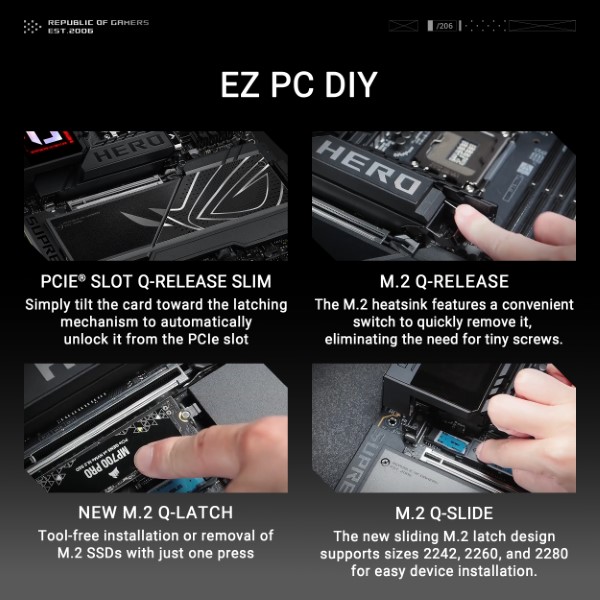

ASUS Q-Design
M.2 Q-Latch, Q-Release, Q-Slide, PCIe Q-Release Slim, Q-Antenna, Q-Code, Q-Dashboard and Q-LED simplify installation, maintenance and troubleshooting.
Six M.2 Slots with PCIe 5.0 Storage Performance
The ROG MAXIMUS Z890 HERO provides six onboard M.2 slots, including three PCIe 5.0 x4 and three PCIe 4.0 x4 connections. All six slots support ROG M.2 PowerBoost and feature substantial cooling solutions. For a multi-SSD build, check the motherboard's lane-sharing configuration: enabling M.2_3 or M.2_4 causes the primary PCIe 5.0 graphics slot to operate at x8.
Technical Specifications
Processor and Chipset
ASUS ROG MAXIMUS Z890 HERO
ROG MAXIMUS
Intel LGA1851
Intel Core Ultra Processors (Series 2)
Intel Z890
Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 (CPU dependent)
Memory Specifications
DDR5
4 × DIMM
256GB
Dual Channel
Up to 9200+ MT/s (OC), depending on CPU and memory configuration
Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)
Intel XMP, DIMM Flex, NitroPath DRAM, DIMM FIT, ASUS AEMP III
Expansion Slots and Storage
1 × PCIe 5.0 x16 (x16 or x8/x4/x4 modes)
1 × PCIe 4.0 x16 (x4 mode), 1 × PCIe 4.0 x1
6 × M.2 Key M
PCIe 5.0 x4, 2242/2260/2280/22110
PCIe 4.0 x4, 2242/2260/2280
PCIe 5.0 x4, 2242/2260/2280
PCIe 5.0 x4, 2242/2260/2280
PCIe 4.0 x4, 2242/2260/2280
4 × SATA 6Gb/s
1 × SlimSAS, PCIe 4.0 x4 or up to 4 SATA devices via separately purchased adapter cable
Networking and Connectivity
Wi-Fi 7 (802.11be), 2x2
2.4GHz, 5GHz and 6GHz
Bluetooth 5.4
Intel 2.5Gb Ethernet
Realtek 5Gb Ethernet
2 × Thunderbolt 4 USB Type-C
4 × USB Type-A, 1 × USB Type-C
4 × USB Type-A
1 × USB Type-C connector, up to 60W PD/QC4+
1 × USB Type-C connector
2 × headers supporting 4 additional ports
2 × headers supporting 4 additional ports
Display and Audio
1 × HDMI 2.1, up to 8K@60Hz with DSC
2 × Thunderbolt 4 Type-C with DisplayPort support
ROG SupremeFX 7.1 Surround Sound HD Audio CODEC ALC4082
ESS ES9219 Quad DAC
Up to 32-bit/384kHz front-panel playback
2 × Gold-plated audio jacks, 1 × Optical S/PDIF out
Internal Connectors and Features
1 × CPU Fan, 1 × CPU OPT Fan
1 × AIO Pump, 4 × Chassis Fan, 1 × W_PUMP+
1 × 24-pin Main Power, 2 × 8-pin CPU Power, 1 × 8-pin PCIe Power
3 × Addressable Gen 2
Front Panel Audio, System Panel, Thermal Sensor and Thunderbolt USB4 header
Start, ReTry, FlexKey, BIOS FlashBack and Clear CMOS
Q-Code, Q-LED, Q-Dashboard and Q-Connector
Polymo Lighting II, Aura Sync and Addressable Gen 2 RGB headers
22(110A)+1(90A)+2(90A)+2(80A) power stages
Physical Specifications
ATX
30.5 × 24.4cm
Windows 11 and Windows 10 (version and CPU support dependent)
Specifications are based on ASUS product information and documentation for ROG MAXIMUS Z890 HERO. Memory speeds, display capabilities and CPU features depend on processor, BIOS, memory configuration and installed devices. M.2 lane sharing affects the primary PCIe 5.0 graphics slot. Verify the latest CPU and memory support lists before purchase.
Ideal Use Cases
High-End Gaming PCs
Build an advanced gaming desktop with compatible Intel Core Ultra processors, DDR5 memory and next-generation graphics cards.
Enthusiast Overclocking
Explore supported CPU and memory tuning features, advanced power delivery and dedicated onboard overclocking controls.
Content Creation Workstations
Use extensive M.2 storage, high-speed networking, Thunderbolt connectivity and multi-display support for compatible creative workflows.
Advanced AI and Productivity Builds
Create a capable desktop platform for supported AI, compute-intensive and productivity applications with compatible expansion devices.
Before You Buy / Install
- This motherboard uses the Intel LGA1851 socket and supports compatible Intel Core Ultra Processors (Series 2). It is not compatible with older LGA1700 processors.
- It supports DDR5 memory only. DDR4 memory modules are not compatible.
- Check ASUS's CPU and memory support lists for your processor, memory kit and required BIOS version.
- The primary PCIe 5.0 graphics slot operates at x8 when M.2_3 or M.2_4 is enabled. Review the lane-sharing table before installing multiple PCIe 5.0 SSDs.
- For 60W front USB Type-C Quick Charge 4+ support, connect the additional 8-pin PCIe power cable to the motherboard. Without it, supported output is limited to 27W.
- Check that your PC case supports the ATX form factor and has sufficient clearance for the selected CPU cooler, graphics card and storage devices.
- Wi-Fi 7 6GHz band and 320MHz channel availability depend on local regulations, operating system and compatible wireless devices.
- Display output through HDMI and Thunderbolt depends on the installed processor's graphics capabilities. A discrete graphics card may be required for your display setup.
Frequently Asked Questions
Which processors are compatible with the ROG MAXIMUS Z890 HERO?
It supports compatible Intel Core Ultra Processors (Series 2) using the LGA1851 socket. Check ASUS's CPU support list for your exact processor.
Does this motherboard support DDR5 RAM?
Yes. It has four DDR5 DIMM slots and supports up to 256GB of dual-channel memory. DDR4 memory is not supported.
How many M.2 SSDs can be installed?
It provides six M.2 Key M slots: three PCIe 5.0 x4 and three PCIe 4.0 x4. Check the lane-sharing configuration when using M.2_3 or M.2_4.
Does the ROG MAXIMUS Z890 HERO have built-in Wi-Fi?
Yes. It includes 2x2 Wi-Fi 7 connectivity and Bluetooth 5.4, with support for 2.4GHz, 5GHz and 6GHz bands.
What Ethernet connections are available?
The motherboard includes one Intel 2.5Gb Ethernet port and one Realtek 5Gb Ethernet port.
Does this motherboard support PCIe 5.0 graphics cards?
Yes. Its primary PCIe 5.0 x16 SafeSlot supports compatible graphics cards. The slot can operate at x8 when M.2_3 or M.2_4 is enabled.
How many Thunderbolt ports are included?
It includes two rear Thunderbolt 4 USB Type-C ports with supported DisplayPort video output and connectivity for compatible Thunderbolt devices.
Does the front USB Type-C connector support fast charging?
Yes. The front USB 20Gbps Type-C connector supports Quick Charge 4+ and up to 60W power delivery when the additional 8-pin PCIe power connector is installed. Without it, the output is limited to 27W.
What is the form factor of this motherboard?
The ROG MAXIMUS Z890 HERO uses the ATX form factor and measures 30.5 × 24.4cm.
