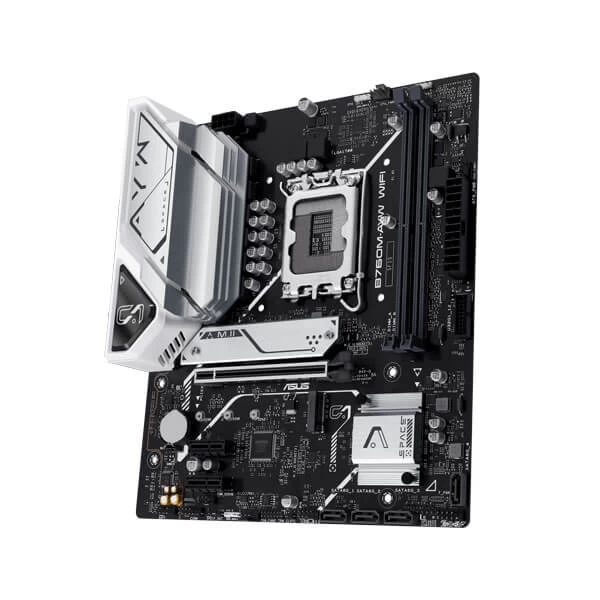

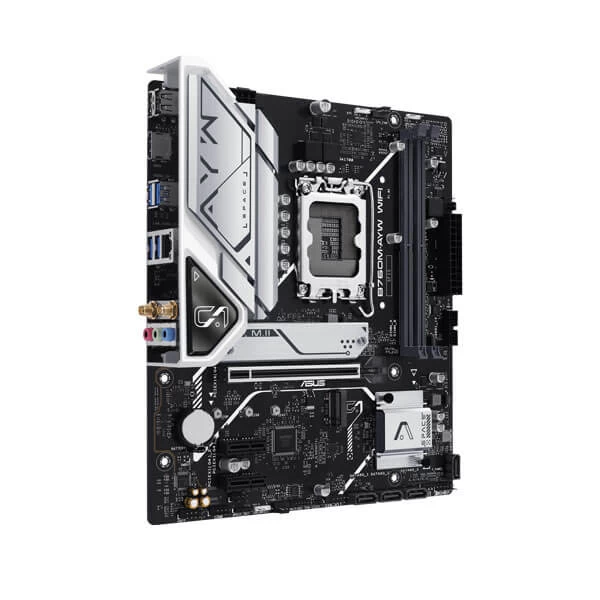

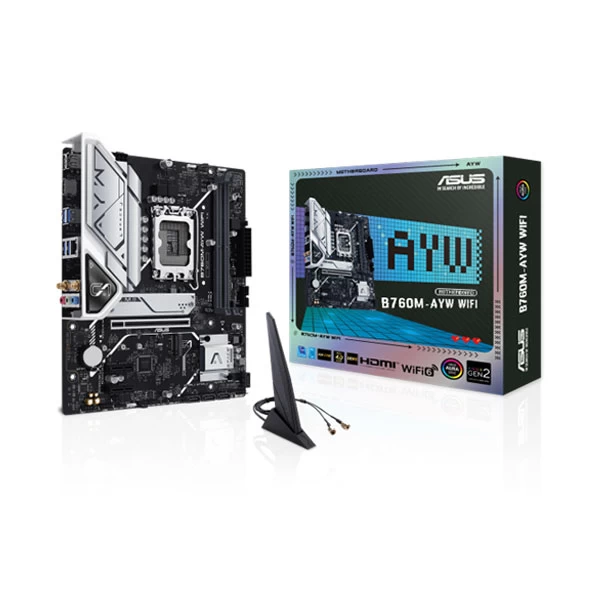

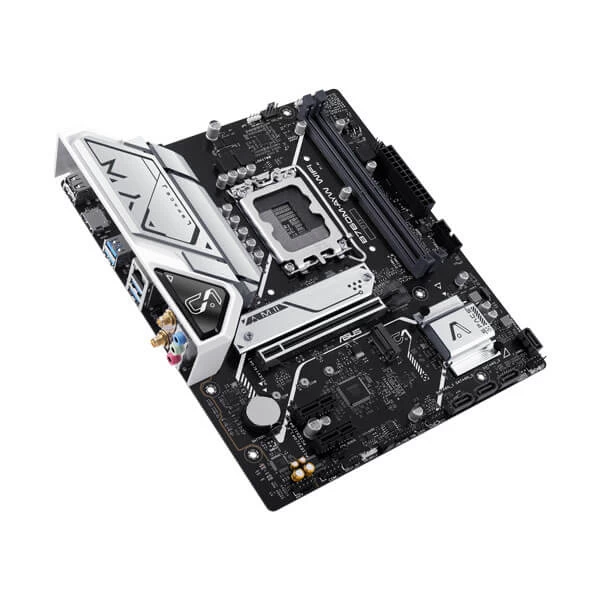

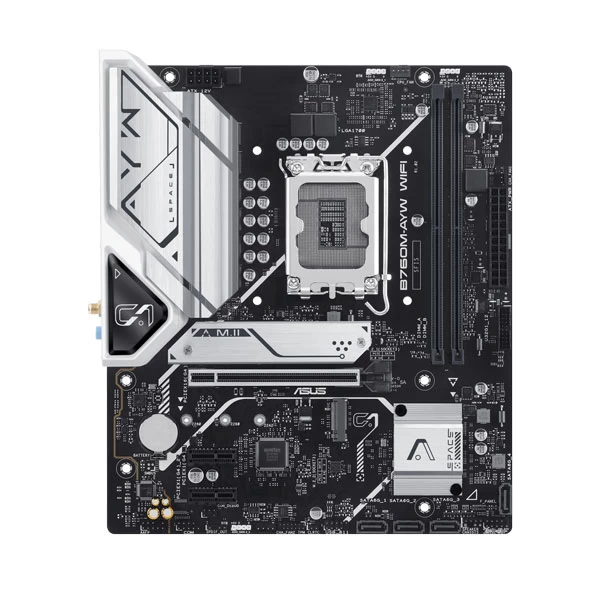

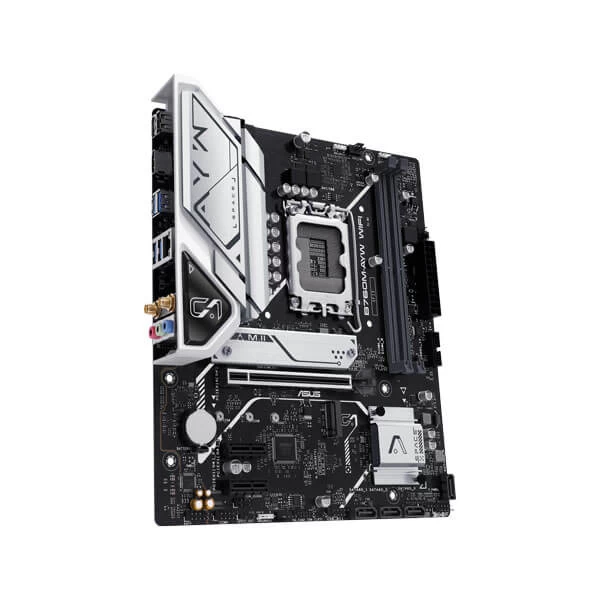

Asus B760M-AYW WiFi Intel LGA1700 M-ATX Motherboard
In stock
Out of stock
₹12,149.00
- B760M-AYW-WIFI
- Motherboards
- ASUS, Asus B760M-AYW WIFI, B760M-AYW WIFI
FAQs
Yes, we provide GST billing for all eligible purchases. You will receive a GST invoice with your order.
Yes, this product includes official brand warranty as per the manufacturer’s terms.
Yes, EMI options (including No-cost EMI on select cards) may be available at checkout depending on your bank and order value.
Orders placed before the daily cut-off time are dispatched the same day (working days). Actual delivery time depends on your pincode.
| Model: | B760M-AYW-WIFI |
| CPU: | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset: | Intel B760 Chipset |
| Memory: | 2 x DIMM slots, Max. 96GB, DDR5 |
| 8000(OC)/7800(OC)/7600(OC)/ | |
| 7400(OC)/7200(OC)/7000(OC)/6800(OC)/ | |
| 6600(OC)/6400(OC)/6200(OC)/6000(OC)/ | |
| 5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory | |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Graphics: | 1 x HDMI port |
| Expansion Slots: | Intel Core Processors (14th & 13th & 12th Gen) |
| 1 x PCIe 4.0 x16 slot | |
| Intel B760 Chipset | |
| 2 x PCIe 4.0 x1 slots | |
| Storage: | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel Core Processors (14th & 13th & 12th Gen) | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| Intel B760 Chipset: | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Ethernet: | 1 x Realtek 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth: | Wi-Fi 6 |
| Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5GHz frequency band | |
| Bluetooth v5.3* | |
| *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
| USB: | Rear USB (Total 6 ports) |
| 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 4 ports) | |
| 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports | |
| 1 x USB 2.0 header supports 2 additional USB 2.0 ports | |
| Audio: | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Feature: | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports: | 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x HDMITM port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| Internal I/O Connectors: | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 2 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports | |
| 1 x USB 2.0 header supports 2 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x Speaker header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 10-1 pin System Panel header | |
| Special Feature: | ASUS 5X PROTECTION III |
| - DIGI+ VRM | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core + | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - Q-DIMM | |
| - Q-LED Core | |
| - Q-Slot | |
| ASUS EZ DIY | |
| - ProCool | |
| ASUS Thermal Solution | |
| - M.2 heatsink | |
| - VRM heatsink design | |
| Aura Sync | |
| - Addressable Gen 2 headers | |
| Software Features: | ASUS Exclusive Software |
| Armoury Crate | |
| - Aura Sync | |
| - Fan Xpert 2+ | |
| - Power Saving | |
| - Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| - DIGI+ VRM | |
| - PC Cleaner | |
| ASUS CPU-Z | |
| MyASUS | |
| Norton 360 Deluxe (60 Days Free Trial) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS: | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability: | WOL by PME, PXE |

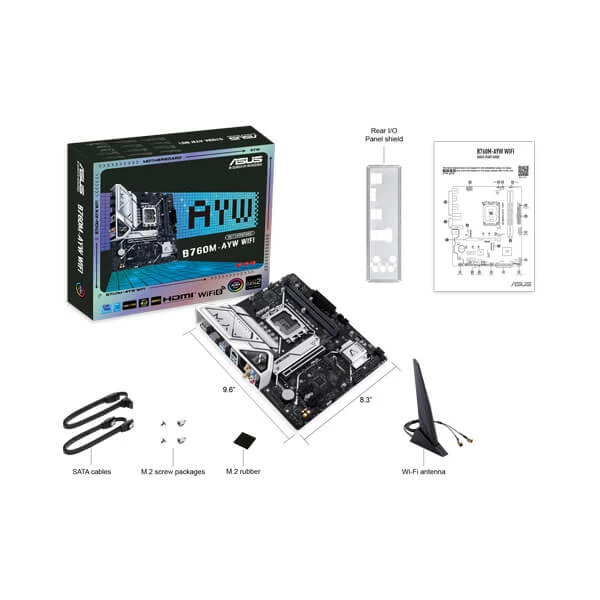

| Accessories: | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x I/O Shield | |
| 1 x M.2 Rubber Package | |
| 1 x Screw package for M.2 SSD | |
| Documentation | |
| 1 x User guide | |
| Operating System: | Windows 11, Windows 10 64-bit |
| Form Factor: | mATX Form Factor |
| 9.6 inch x 8.3 inch (24.4cm x 21.1cm) | |
| Warranty: | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice |
