| Model Name |

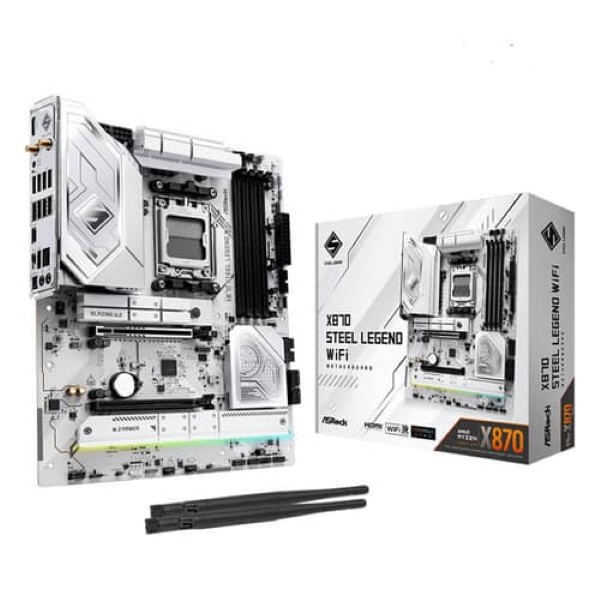

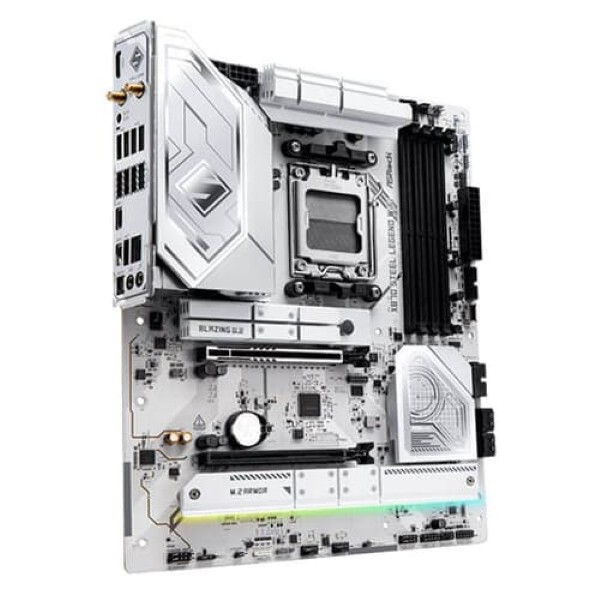

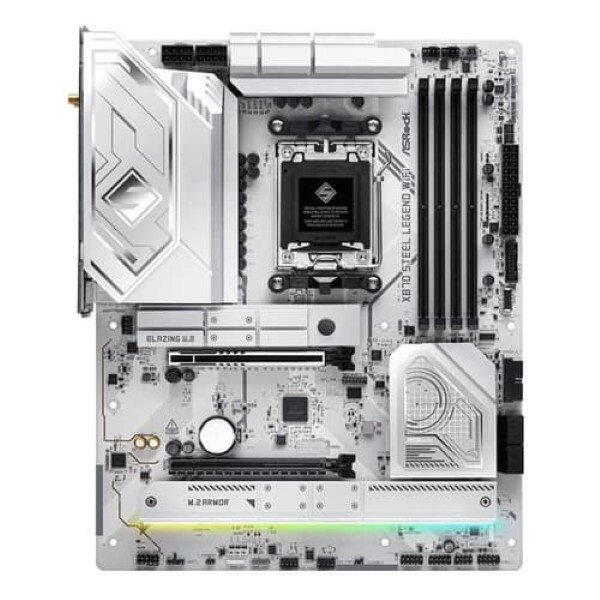

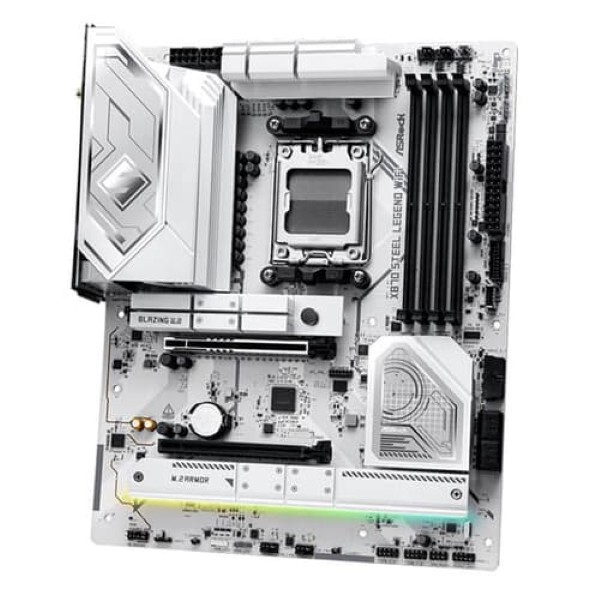

X870 Steel Legend WiFi |
| Unique Feature |
Superb Productivity |
| - PCIe Gen5 (Graphics, M.2) |
| - Dual Channel DDR5 |
| - USB4 Type-C Ports (40 Gb/s) |
| Rock-Solid Durability |
| - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor |
| - Flexible Integrated I/O Shield |
| - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) |
| Ultrafast Connectivity |
| - 2.5G LAN, 802.11be Wi-Fi 7 Module |
| - ASRock Lightning Gaming Ports |
| EZ Update |
| - BIOS Flashback Button |
| - ASRock Auto Driver Installer |
| EZ Troubleshooter |
| CPU |
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset |
- AMD X870 |
| Memory |
- Dual Channel DDR5 Memory Technology |
| - 4 x DDR5 DIMM Slots |
| - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* |
| - Max. capacity of system memory: 256GB |
| - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS |
- 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics |
Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) |
| - Individual PCB Layers for R/L Audio Channel |
| - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) |
| - Nahimic Audio |
| LAN |
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| - Dragon RTL8125BG |
| - Supports Dragon 2.5G LAN Software |
| - Smart Auto Adjust Bandwidth Control |
| - Visual User Friendly UI |
| - Visual Network Usage Statistics |
| - Optimized Default Setting for Game, Browser, and Streaming Modes |
| - User Customized Priority Control |
| Wireless LAN |
- 802.11be 2x2 Wi-Fi 7 Module |
| - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be |
| - Supports 2.4GHz/5GHz/6GHz* frequency band |
| - Supports 160MHz channel bandwidth with 6GHz* frequency band |
| - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology |
| - Supports Bluetooth 5.4 |
| - Supports MU-MIMO |
| Slots |
CPU: |
| - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* |
| Chipset: |
| - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| - Supports AMD CrossFire™ |
| - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Storage |
CPU: |
| - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* |
| Chipset: |
| - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| ASMedia ASM1061: |
| - 4 x SATA3 6.0 Gb/s Connectors |
| RAID |
|
| - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB |
CPU: |
| - 2 x USB4 Type-C (Rear) |
| - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3)) |
| - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)) |
| Chipset: |
| - 1 x USB 3.2 Gen2x2 Type-C (Front) |
| - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4)) |
| - 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front) |
| - 8 x USB 2.0 (4 Rear, 4 Front) |
| Connector |
- 1 x Thermistor Cable Header |
| - 1 x Power LED and Speaker Header |
| - 1 x RGB LED Header* |
| - 3 x Addressable LED Headers** |
| - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** |
| - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** |
| - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** |
| - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| - 1 x Front Panel Audio Connector |
| - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
| - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

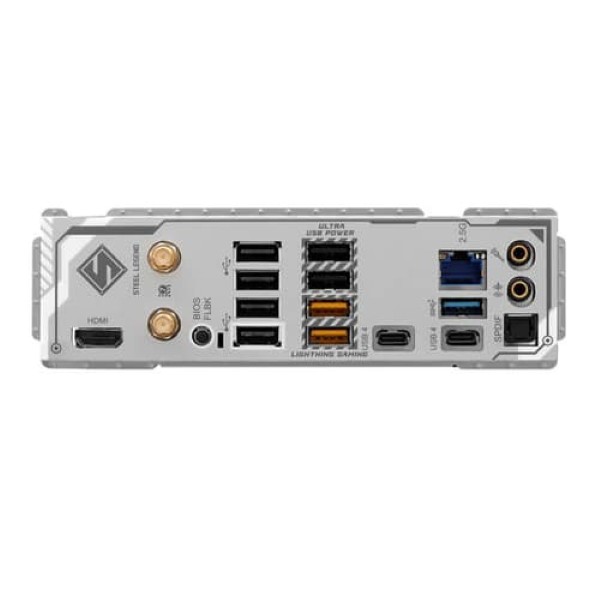

| Rear Panel I/O |
- 2 x Antenna Ports |
| - 1 x HDMI Port |
| - 1 x Optical SPDIF Out Port |
| - 2 x USB4 Type-C Ports (40 Gb/s)* |
| - 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.) |
| - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.) |
| - 4 x USB 2.0 Ports |
| - 1 x RJ-45 LAN Port |
| - 1 x BIOS Flashback Button |
| - 1 x Line Out Jack (Gold Audio Jack) |
| - 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI |
Software |
| - ASRock Motherboard Utility (A-Tuning) |
| - ASRock Dragon 2.5G LAN Software |
| - ASRock Polychrome SYNC* |
| UEFI |
| - ASRock EZ Mode |
| - ASRock Full HD UEFI |
| - ASRock Auto Driver Installer |
| - ASRock Instant Flash |
| Accessories |
- 2 x SATA Data Cables |
| - 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| - 1 x Thermistor Cable |
| Form Factor |
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| - 8 Layer PCB |
| OS |
|
| - Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications |
|
| - FCC, CE |
| - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty |
3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice |
