| Model Name |

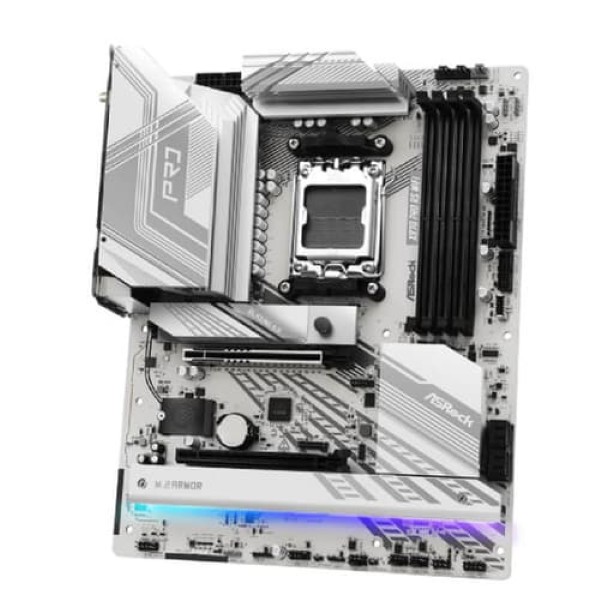

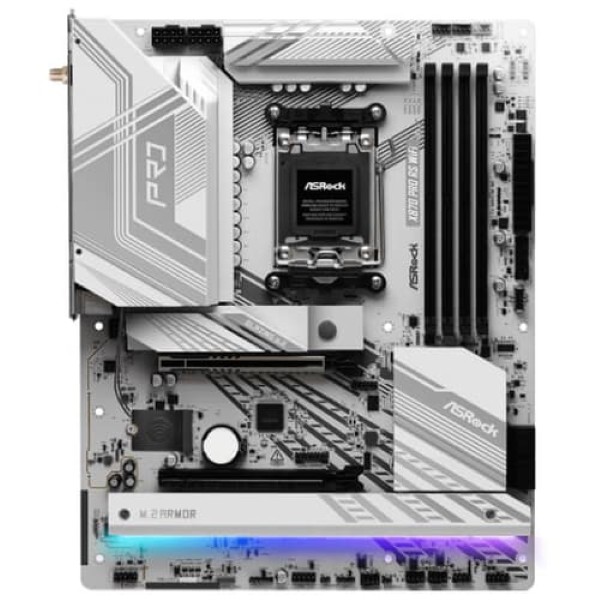

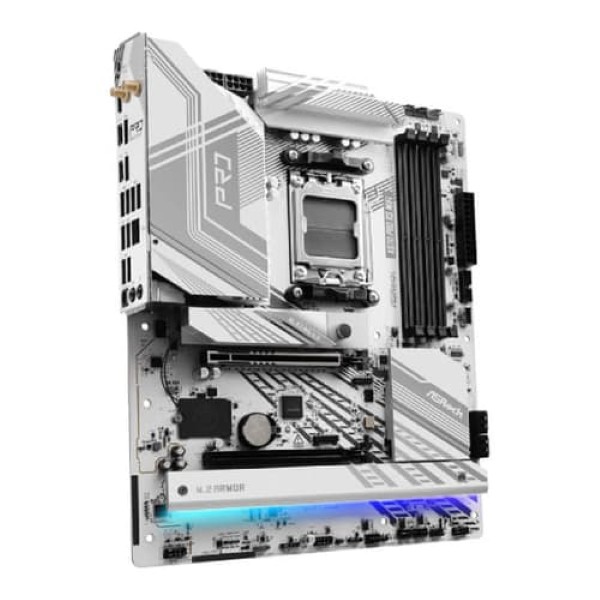

X870 Pro RS WiFi |
| Unique Feature |
Superb Productivity |
| PCIe Gen5 (Graphics, M.2) |
| Dual Channel DDR5 |
| USB4 Type-C Ports (40 Gb/s) |
|
| Rock-Solid Durability |
|
| 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor |
| Flexible Integrated I/O Shield |
| Ultrafast Connectivity |
| 2.5G LAN, 802.11be Wi-Fi 7 Module |
| EZ Update |
| BIOS Flashback Button |
| ASRock Auto Driver Installer |
|
| CPU |
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. (http://www.asrock.com/) |
|
| Chipset |
AMD X870 |
| Memory |
Dual Channel DDR5 Memory Technology |
| 4 x DDR5 DIMM Slots |
| Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) |
| Max.capacity of system memory: 256GB |
| Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|
| Please refer to Memory Support List on ASRock's website for more information. |
| BIOS |
256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics |
Integrated AMD RDNA graphics (Actual support may vary by CPU) |
| 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen 9000, 8000 and 7000 processors with embedded graphics. |
|
| Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| Impedance Sensing on Rear Out port |
| Individual PCB Layers for R/L Audio Channel |
| Nahimic Audio |
|
| LAN |
2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Dragon RTL8125BG |
| Supports Dragon 2.5G LAN Software |
| Smart Auto Adjust Bandwidth Control |
| Visual User Friendly UI |
| Visual Network Usage Statistics |
| Optimized Default Setting for Game, Browser, and Streaming Modes |
| User Customized Priority Control |
|
| Wireless LAN |
802.11be 2x2 Wi-Fi 7 Module |
| Supports IEEE 802.11a/b/g/n/ac/ax/axe/be |
| Supports 2.4GHz/5GHz/6GHz* frequency band |
| Supports 160MHz channel bandwidth with 6GHz* frequency band |
| 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology |
| Supports Bluetooth 5.4 |
| Supports MU-MIMO |
| Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. |
|
| Slots |
CPU: |
| 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| Chipset: |
| 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* |
| 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Supports AMD CrossFire |
| 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. |
| If M2_2 is occupied, PCIE2 will be disabled. |
| Supports NVMe SSD as boot disks |
| Storage |
CPU: |
| 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: |
| 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes |
| 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: |
| 2 x SATA3 6.0 Gb/s Connectors |
| Supports NVMe SSD as boot disks |
| M2_1 is the first priority for M.2 installation |
| M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. |
| If M2_2 is occupied, PCIE2 will be disabled. |
| If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode. |
|
| RAID |
Supports RAID 0 and RAID 1 for SATA storage devices |
| Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Requires additional M.2 NVMe expansion cards to support RAID 10 |
|
| USB |
CPU: |
|
| 2 x USB4 Type-C (Rear) |
| 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2)) |
| Chipset: |
| 1 x USB 3.2 Gen2x2 Type-C (Front) |
| 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front) |
| 9 x USB 2.0 (6 Rear, 3 Front) |
| All USB ports support ESD Protection |
|
| Connector |
1 x Thermistor Cable Header |
| 1 x Power LED and Speaker Header |
| 1 x RGB LED Header |
| 3 x Addressable LED Headers |
| 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) |
| 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) |
| 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
| 1 x 24 pin ATX Power Connector |
| 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| 1 x Front Panel Audio Connector |
| 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
|
| * Supports in total up to 12V/3A, 36W LED Strip |
| ** Support in total up to 5V/3A, 15W LED Strip |
| *** CPU_FAN1 supports the fan power up to 1A (12W). |
| CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W). |
| CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |

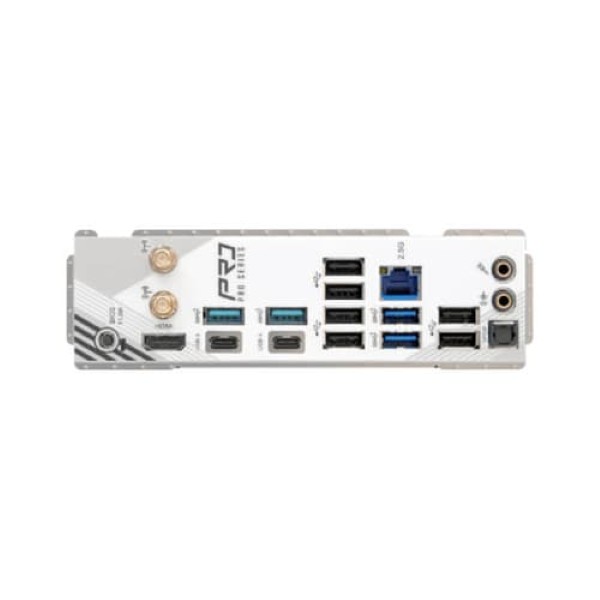

| Rear Panel I/O |
2 x Antenna Ports |
| 1 x HDMI Port |
| 1 x Optical SPDIF Out Port |
| 2 x USB4 Type-C Ports (40 Gb/s)* |
| 4 x USB 3.2 Gen1 Type-A Ports |
| 6 x USB 2.0 Ports |
| 1 x RJ-45 LAN Port |
| 1 x BIOS Flashback Button |
| 1 x Line Out Jack (Gold Audio Jack) |
| 1 x Microphone Input Jack (Gold Audio Jack) |
|
| * Supports USB PD 3.0 up to 5V@3A (15W) charging |
| Software and UEFI |
Software |
|
| ASRock Motherboard Utility (A-Tuning) |
| ASRock Dragon 2.5G LAN Software |
| ASRock Polychrome SYNC* |
| UEFI |
| ASRock EZ Mode |
| ASRock Full HD UEFI |
| ASRock Auto Driver Installer |
| ASRock Instant Flash |
|
| *These utilities can be downloaded from ASRock Live Update & APP Shop. |

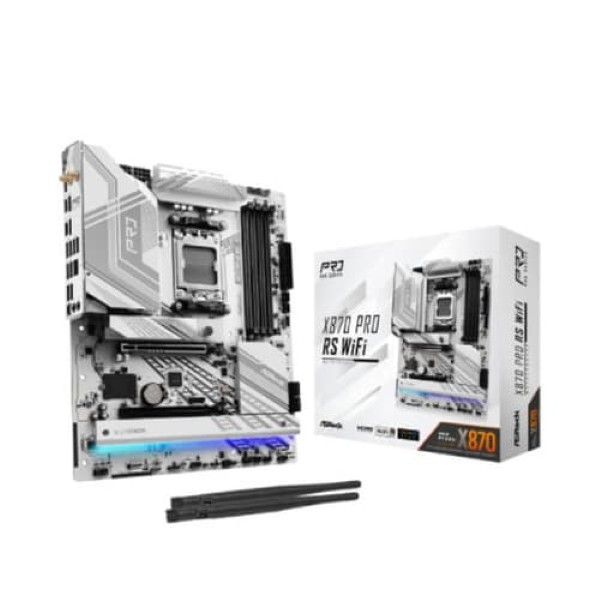

| Accessories |
2 x SATA Data Cables |
| - 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Form Factor |
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| - 8 Layer PCB |
| OS |
- Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications |
FCC, CE |
| - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty |
3 Years |
| Note |
*** Images are for Representation purposes only |
|
| *** Features, Price, Specifications are subject to change without notice. |
