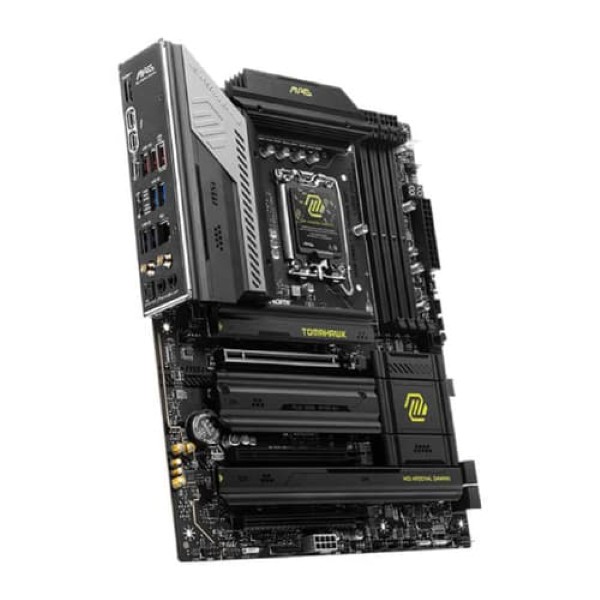

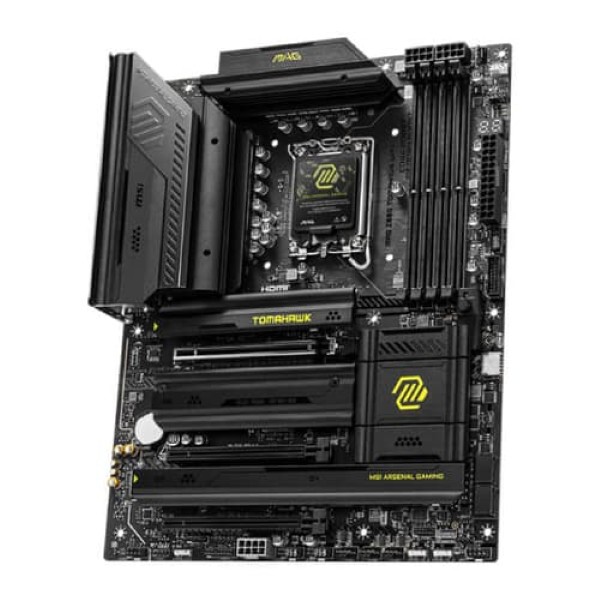

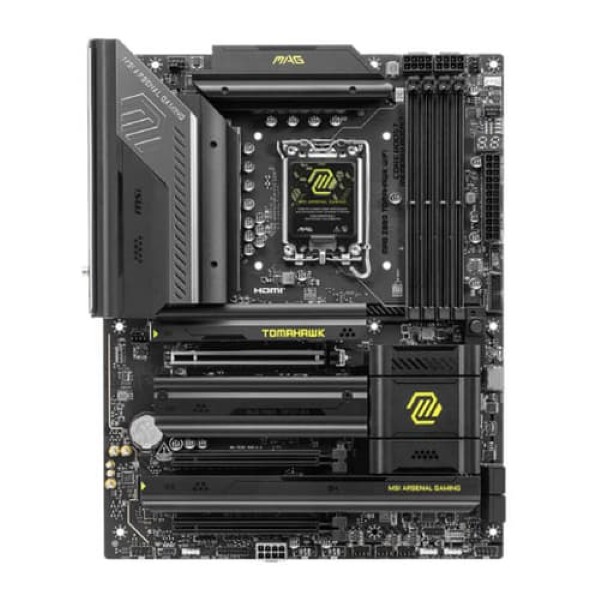

| Model |
MAG Z890 TOMAHAWK WIFI |
| Chipset |
INTEL Z890 |
| CPU |
Supports Intel® Core™ Ultra Processors (Series 2) |
| LGA 1851 |
| Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Max. overclocking frequency: |
| 1DPC 1R Max speed up to 9200+ MT/s |
| 1DPC 2R Max speed up to 7200+ MT/s |
| 2DPC 1R Max speed up to 4800+ MT/s |
| 2DPC 2R Max speed up to 4800+ MT/s |
| Supports Intel POR Speed and JEDEC Speed |
| Supports Memory Overclocking and Intel® XMP 3.0 |
| Supports Dual-Controller Dual-Channel mode |
| Supports Non-ECC, Un-buffered memory |
| Supports CUDIMM |
| The DIMM slots on this motherboard only have single-sided latches. |
| Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information |
|
| Onboard Graphics |
1x HDMI |
| Support HDMI 2.1 with FRL, maximum resolution of 4K 120Hz* |
| 2x Type-C DisplayPort |
| Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Slot |
3x PCI-E x16 slot |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Audio |
Realtek ALC1220P Codec |
| 7.1-Channel High Definition Audio |
| Supports S/PDIF output |
| Storage |
4x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 4x SATA 6G |
|
| *Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
|
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Onboard Thunderbolt |
2x Thunderbolt4 ports (Rear) |
| Supports up to 40Gbps transfer rate with Thunderbolt devices |
| Supports up to 20Gbps transfer rate with USB4 devices |
| Supports up to 10Gbps transfer rate with USB 3.2 devices |
| Supports up to 5V/3A,15W power charging |
| Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices |
| Supports up to 8K display |
|
| USB |
4x USB 2.0 (Front) |
| 4x USB 5Gbps Type A (Rear) |
| 2x USB 5Gbps Type A (Front) |
| 3x USB 10Gbps Type A (Rear) |
| 1x USB 10Gbps Type C (Rear) |
| 1x USB 20Gbps Type C (Front) |
|
| *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
| LAN |
Intel Killer E5000 5Gbps LAN |
| Internal IO |
1x Thunderbolt5 card connector(JTBT5, support RTD3) |
| 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x Power Connector(PCIE_PWR 8pin) |
| 1x CPU Fan |
| 1x Combo Fan (Pump_Sys Fan) |
| 6x System Fan |
| 1x EZ Conn-header (JAF_2) |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 3x Addressable V2 RGB LED connector (JARGB_V2) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports |
| 2x USB 5Gbps Type A ports |
| 1x USB 20Gbps Type C ports |
|
| WIRELESS LAN & BLUETOOTH |
Intel Killer BE1750x Wi-Fi 7 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps |
| Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Supports Bluetooth 5.4**, MLO, 4KQAM |
|
| * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. |
| ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| LED FEATURE |
4x EZ Debug LED |
| 1x EZ Digit Debug LED |
|

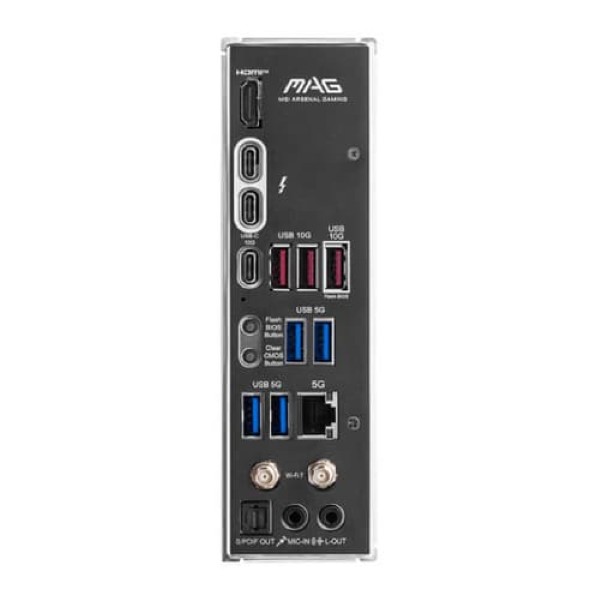

| BACK PANEL PORTS |
|
| USB 10Gbps Type-A |
| USB 5Gbps Type-A |
| 5G LAN |
| Wi-Fi / Bluetoot |
| Audio Connectors |
| HDMI |
| Thunderbolt™ 4 40Gbps (Type-C) |
| USB 10Gbps Type-C |
| Flash BIOS Button |
| Clear CMOS Button |
| USB 5Gbps Type-A |
| S/PDIF-OUT |
|
| OPERATING SYSTEM |
Support for Windows 11 64-bit |
| BOX CONTENT |
Quicl installation Guide |
| Europeon Union Regularly Notice |
| Shout-Out Flyer |
| 2x Sata Cables |
| EZ M.2 Clips II |
| EZ M.2 Clips Remover |
| USB Driver |
| Gable Sticker |
| EZ Wi-Fi Antenna |
| 1to3 EZ Conn-Cable (V2) |
| EZ Front Panel Cable |
|
| PCB Info |
ATX |
| 243.84mmx304.8mm |
|
| Warranty |
3 Years |
| Note |
*** Images are for Representation purposes only |
|
| *** Features, Price, Specifications are subject to change without notice. |
