MSI MAG SERIES POWER SUPPLY

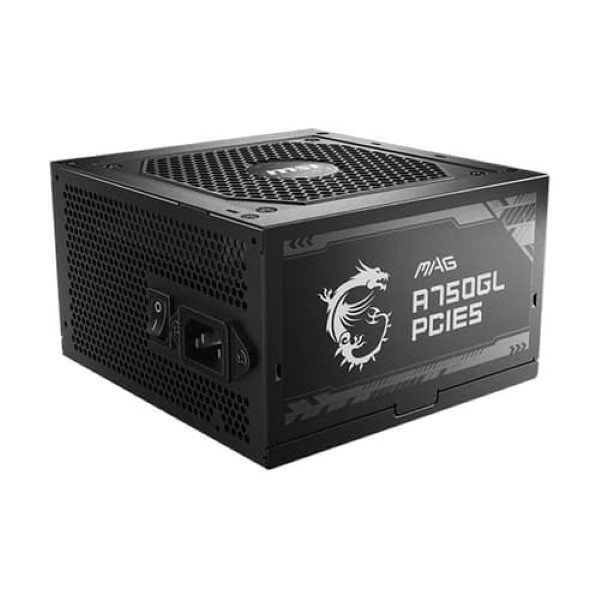

MSI MAG A750GL PCIE5 750W 80 PLUS Gold Power Supply
Reliable 750W power delivery, Gold-rated efficiency and fully modular flat cables, with ATX 3.1 readiness and a native 16-pin GPU power connection for compatible gaming builds.
MSI MAG A750GL PCIE5 at a Glance
Introduction
The MSI MAG A750GL PCIE5 750W 80 PLUS Gold Power Supply (MAG-A750GL-PCIE5) is designed for gaming desktops and performance-focused PCs that need dependable power delivery, efficient operation and flexible cable management.

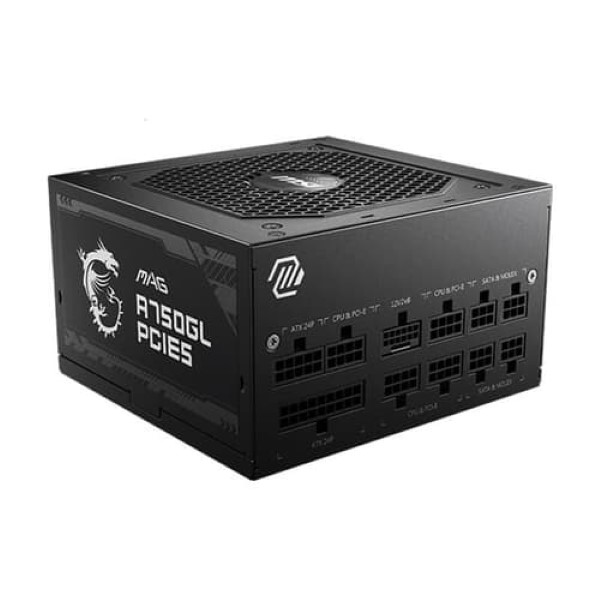

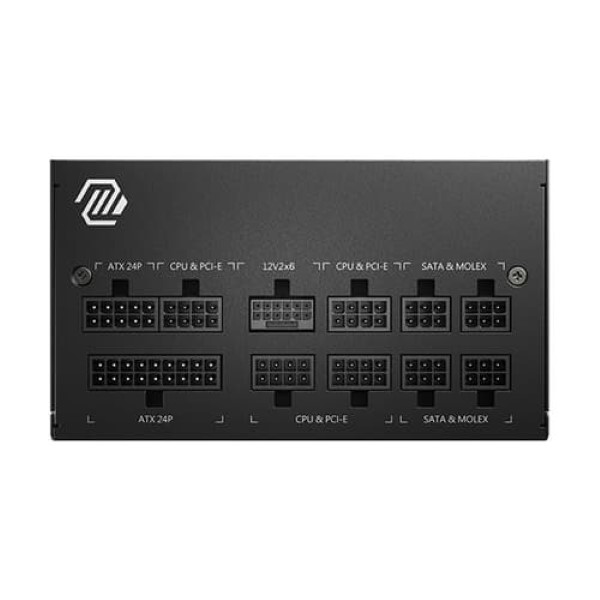

Its fully modular design lets you connect only the cables required by your configuration. Flat cables help simplify routing behind the motherboard tray and can make a cleaner-looking build easier to achieve.
The PSU features 80 PLUS Gold certification, Active PFC, LLC full-bridge topology and DC-to-DC conversion. Its 120mm Fluid Dynamic Bearing fan provides cooling, while the single +12V rail is rated at 62A, delivering up to 744W on that rail.
MSI describes this model as ATX 3.1 ready and PCIe 5.1 ready. However, its detailed specification table lists the native 16-pin connector at 450W. Check the exact model and GPU requirements before purchase.
Key Features
750W Continuous Power
Provides 750W of rated output, with up to 744W available on the +12V rail for compatible processor and graphics-card power requirements.
80 PLUS Gold Efficiency
Gold certification with advertised efficiency of up to 90% helps reduce conversion losses under suitable operating conditions.
Native 16-Pin GPU Connection
Includes a native 16-pin GPU power cable. MSI's detailed specification table lists this connector at 450W, so verify compatibility with the intended graphics card.
ATX 3.1 Ready
Designed to support ATX 3.1-related power requirements and power excursions, with MSI listing a 1500W excursion for up to 100 microseconds.

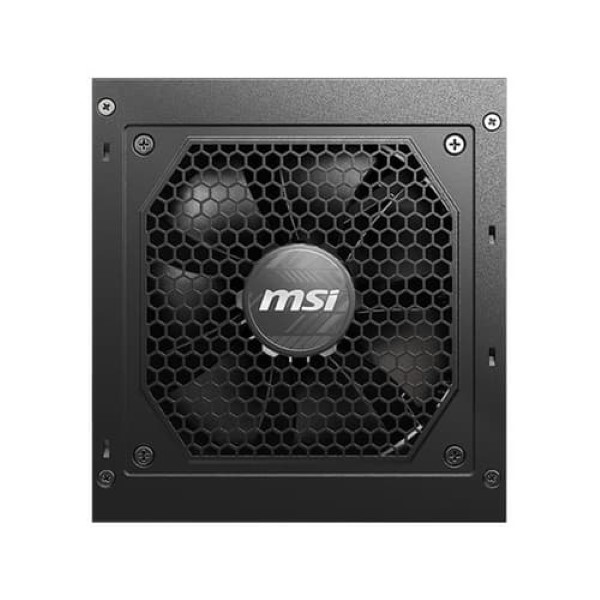

120mm FDB Fan
The Fluid Dynamic Bearing fan is designed to balance cooling performance, noise and long-term operation.
Multiple Protection Mechanisms
Includes over-current, over-voltage, over-power, over-temperature, short-circuit and under-voltage protection.
Power Delivery and Cooling Technology
The MAG A750GL PCIE5 combines LLC full-bridge topology with DC-to-DC conversion to support efficient power conversion and stable output across the PSU's rails. Active Power Factor Correction (PFC) is included in the design.
The single +12V rail is rated at 62A, equivalent to 744W. This rail supplies the main power demands of the CPU and GPU, subject to the total output rating and the requirements of the complete system.
Its fully modular flat cables can simplify cable routing and reduce unused cable clutter. The 120mm Fluid Dynamic Bearing fan provides airflow to cool the internal components.
MSI lists six protection types: OCP, OVP, OPP, OTP, SCP and UVP. These are intended to help protect the PSU and connected system against specified electrical or thermal fault conditions.
Technical Specifications
Specifications are based primarily on MSI's official MAG A750GL PCIE5 documentation. Warranty duration is listed by Indian retailers and should be confirmed for the specific unit and seller. The original PCIE5 model's specification table lists the 16-pin GPU connector as 450W; verify the label and documentation on the exact regional unit.
Ideal Use Cases
Mainstream Gaming PCs
A practical choice for compatible gaming configurations that fit within 750W and use supported GPU power connectors.
Productivity Workstations
Suitable for compatible desktops used for development, office productivity, content creation and other demanding applications.
Clean Custom Builds
Fully modular flat cables help reduce cable clutter and make it easier to route only the power leads required by the system.
Efficient Desktop Systems
80 PLUS Gold certification makes it an option for users seeking improved conversion efficiency in a compatible desktop PC.
Before You Build
- Check the recommended PSU wattage for your exact processor and graphics card before purchasing.
- MSI's detailed specification table lists the original MAG A750GL PCIE5 16-pin GPU connector at 450W. Do not assume it is rated for 600W based solely on the connector's physical appearance.
- Distinguish the original MAG A750GL PCIE5 from the newer MAG A750GL PCIE5 II. Check the exact model name on the box and product label.
- Use only modular cables supplied with this PSU or replacement cables explicitly confirmed as compatible with this exact model.
- Confirm that the case supports a standard ATX PSU and provides sufficient room for cable routing and airflow.
Frequently Asked Questions
1. Is the MSI MAG A750GL PCIE5 a 750W power supply?
Yes. It is rated for 750W total output, with up to 744W available on the +12V rail.
2. Is this PSU fully modular?
Yes. Its fully modular design lets you attach only the cables needed for your PC configuration.
3. What efficiency certification does it have?
The MAG A750GL PCIE5 carries 80 PLUS Gold certification, with MSI advertising efficiency of up to 90% under specified conditions.
4. Does it have a native 16-pin GPU power connector?
Yes. The original model includes a native 16-pin GPU power cable. MSI's detailed specification table lists its connector rating as 450W, so confirm the exact graphics-card requirements before use.
5. Is the MAG A750GL PCIE5 ATX 3.1 ready?
MSI describes the model as ATX 3.1 ready and PCIe 5.1 ready. Its detailed connector specification should still be checked when matching it to a particular GPU.
6. Which cooling fan does it use?
It uses a 120mm Fluid Dynamic Bearing fan designed to provide cooling while balancing noise and operating life.
7. What protections are included?
MSI lists OCP, OVP, OPP, OTP, SCP and UVP, covering over-current, over-voltage, over-power, over-temperature, short-circuit and under-voltage protection.
8. What warranty does the MSI MAG A750GL PCIE5 include?
Indian retail listings specify a seven-year warranty for this model. Confirm the warranty applicable to your exact unit with the seller before purchase.
