| Working Modes |
Range Extender/Access Point |
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Plug Type |
EU |
| Interface |
1 x 10/100Mbps Ethernet Port (RJ45) |
| Button |
WPS Button, RESET Button |
| Input Power |
100-240V~50/60Hz |
| Max. Power Consumption |
7.2W |
| Dimensions ( W x D x H ) |
3.06 x 1.57 x 3.15 in. (77.8 x 40 x 80 mm) |
| Antenna |
2 External Antennas |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency |
2.4 GHz and 5 GHz(11ac) |
| Signal Rate |
5GHz:Up to 433Mbps |
| 2.4GHz:Up to 300Mpbs |
| Working Modes |
Range Extender/Access Point |
| Reception Sensitivity |
5GHz: |
| 11a 6Mbps: -94dBm@10% PER |
| 11a 54Mbps: -77dBm@10% PER |
| 11ac HT20: -69dBm@10% PER |
| 11ac HT40: -66dBm@10% PER |
| 11ac HT80: -63dBm@10% PER |
| |
| 2.4GHz |
| 11g 54Mbps: -79dBm@10% PER |
| 11n HT20: -77dBm@10% PER |
| 11n HT40: -74dBm@10% PER |
| |
| |
| Wireless Modes |
Range Extender/Access Point |
| Wireless Statistic |
| Concurrent Mode boost both 2.4G/5G Wi-Fi band |
| Wireless Functions |
Wireless Statistic |
| Concurrent Mode boost both 2.4G/5G Wi-Fi band |
| Access Control |
| LED Control |
| Domain Login Function |
| Wireless Security |
WEP, WPA/WPA2-PSK encryptions, Enable/Disable SSID Broadcast |
| Transmission Power |
≤20dBm (2.4 GHz) |
| ≤20dBm (5 GHz) |
| OTHER |
| Network Services Enabled by Default |
Web Server |
| Manage and configure device through web (HTTP/HTTPS) |
| • Port: 80/443 Protocol: TCP |
| |
| DHCP Server |
| IP address assignment (DHCP) |
| • Port: 67 Protocol: UDP |
| |
| App management |
| Manage and configure device through app |
| • Port: 20001 Protocol: TCP |
| • Port: 20002 Protocol: UDP |
| OTHERS |
| Certification |
CE, RoHS |
| Package Content |

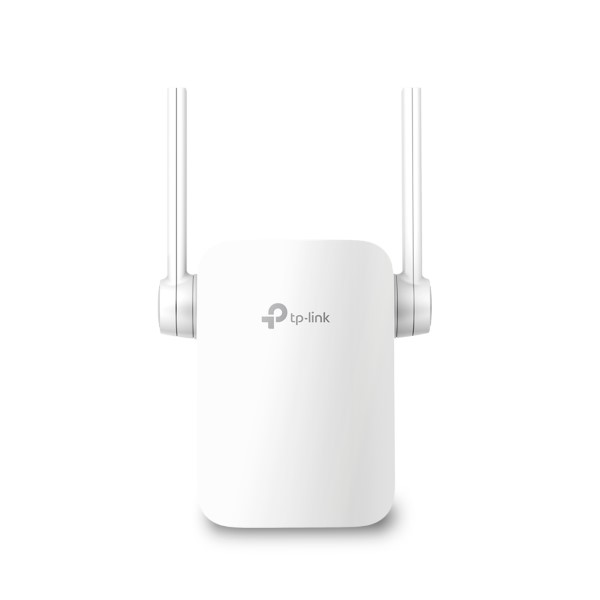

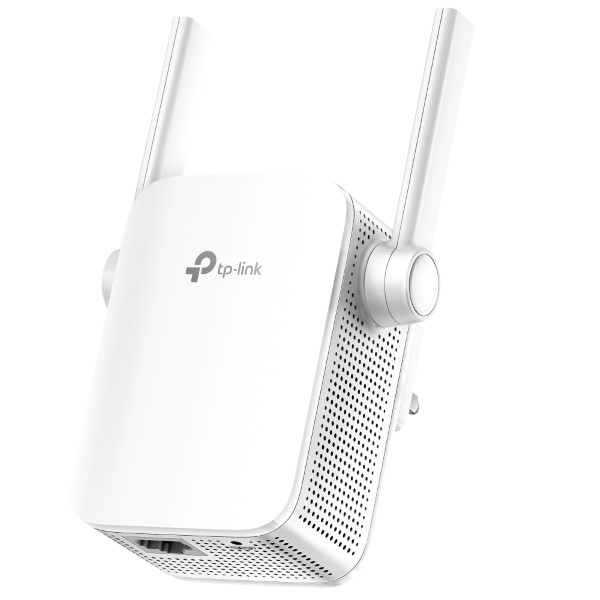

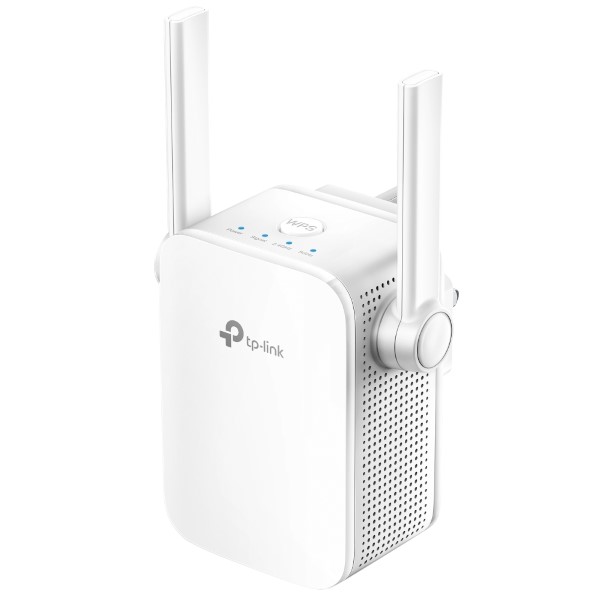

- AC750 Wi-Fi Range Extender RE205 |
| - Quick Installation Guide |
| Box Dimensions (W X D X H) |
6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm) |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) |
| Storage Temperature: -40°C~70°C (-40°F~158°F) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
