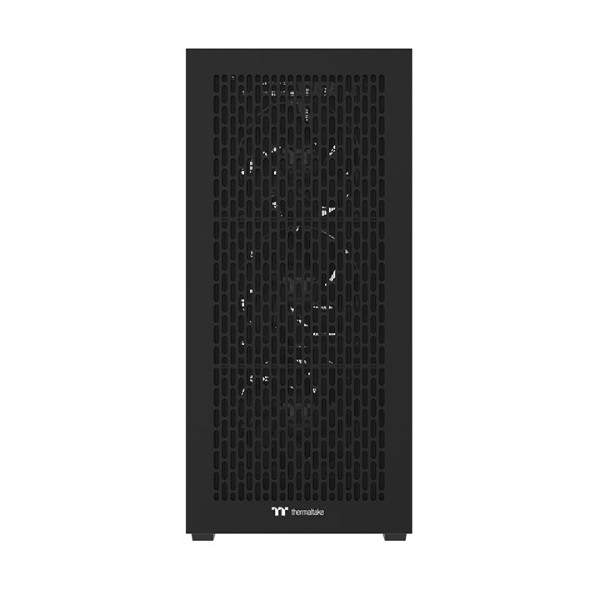

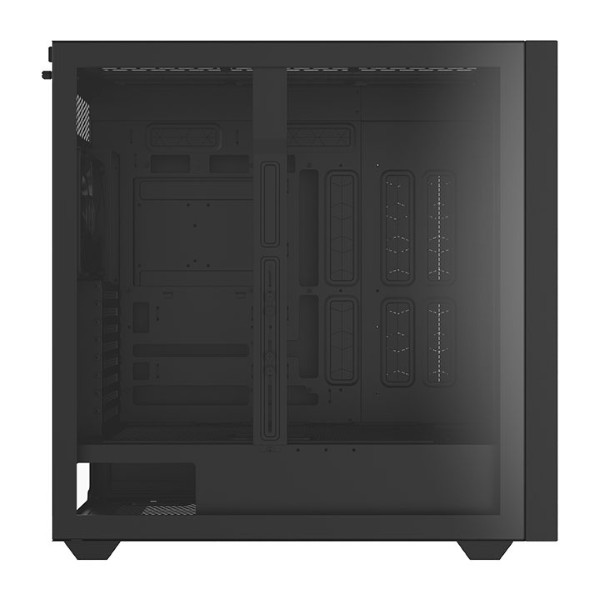

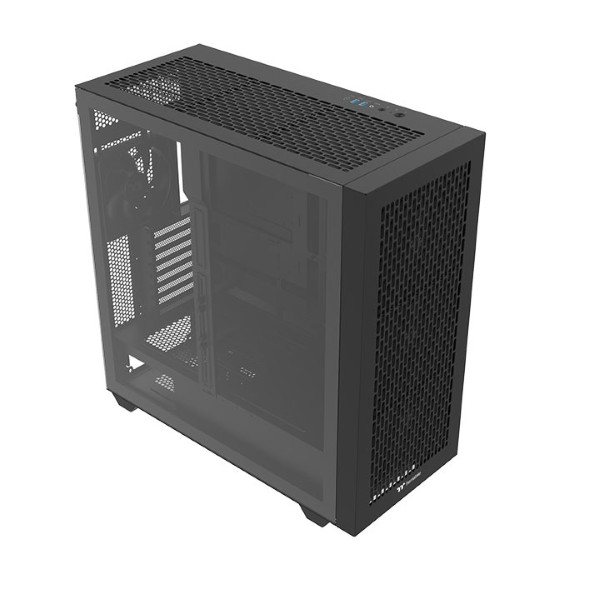

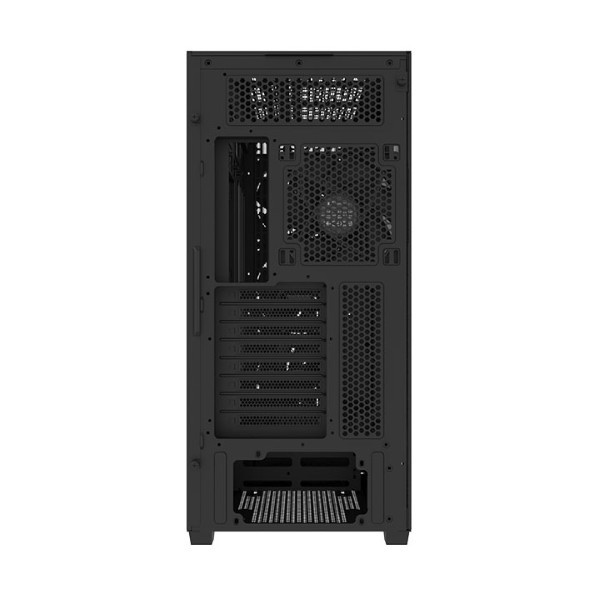

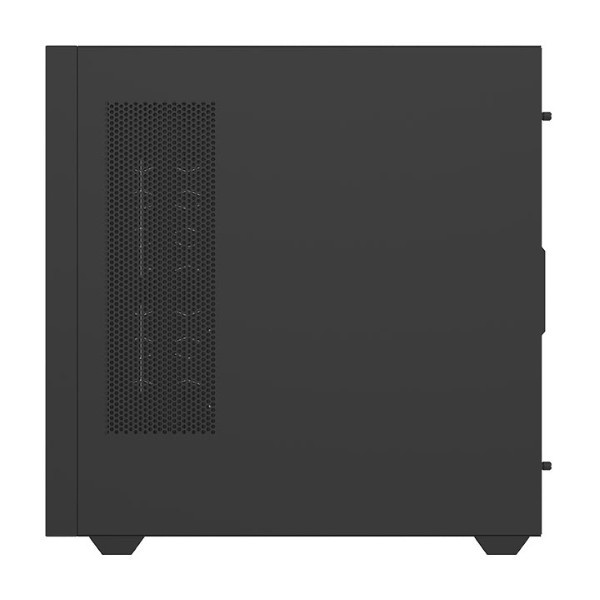

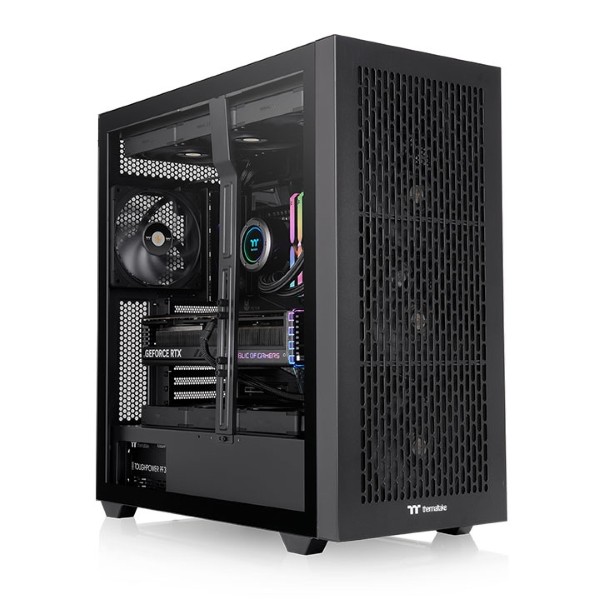

Thermaltake AX500 Full Tower Cabinet

Name: Thermaltake AX500 Full Tower Cabinet
Brand: Thermaltake
SKU: CA-11D-00F1WN-00
Price: 16190 INR
Availability: InStock

Compatible with Hidden-Connector Motherboards

The Thermaltake AX500 Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.

Excellent Radiator Support

Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.*Note: The top fan + radiator thickness limit is 82mm

Four 140mm CT140 Fans Pre-installed

Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.

Superior Cooling Support

Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.

GPU Holder

The Thermaltake AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.

Storage Support

Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5” or two 2.5” hard drives.

Tidy Cable Management

The Thermaltake AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.

Superior Hardware Support

The Thermaltake AX500 Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.

Perfect Dust Protection

The Thermaltake AX500 Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.

P/N	CA-11D-00F1WN-00
Series	AX Series
Model	AX500
CASE TYPE	Full Tower
Dimension (H x W x D)	550 x 248 x 548 mm
Dimension (H x W x D)	(21.7 x 9.8 x 21.6 inch)
PANEL	Steel + TG
Color	Black
MATERIAL	SPCC
COOLING SYSTEM	140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4
Drive Bays	5 x 3.5” , 1 x 2.5” or 6 x 2.5”
-Accessible
-Hidden
EXPANSION SLOTS	8
MOTHERBOARDS	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) ,
MOTHERBOARDS	12” x 13” (E-ATX), SSI-CEB, SSI-EEB
Hidden-Connector Motherboard	9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
FAN SUPPORT	Front:
	4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm
	3 x 140mm , 2x 140mm , 1x 140mm
	Top:
	3 x 120mm , 2x 120mm , 1x 120mm
	3 x 140mm , 2x 140mm , 1x 140mm
	Rear:
	1 x 120mm , 1 x 140mm
	Right:
	3 x 120mm , 2x 120mm , 1x 120mm
	2 x 140mm , 1x 140mm
	Power Cover:
	3 x 120mm , 2x 120mm , 1x 120mm
RADIATOR SUPPORT	Front (AIO):
	1 x 360mm, 1 x 240mm, 1 x 120mm
	1 x 420mm, 1 x 280mm, 1 x 140mm
	Top (AIO):
	1 x 360mm, 1 x 240mm, 1 x 120mm
	1 x 420mm, 1 x 280mm, 1 x 140mm
	Rear(AIO):
	1 x 120mm , 1 x 140mm
CLEARANCE	CPU cooler height limitation: 185mm(Max)
	VGA length limitation:460mm(Max)
	PSU length limitation: 200mm (Max)
