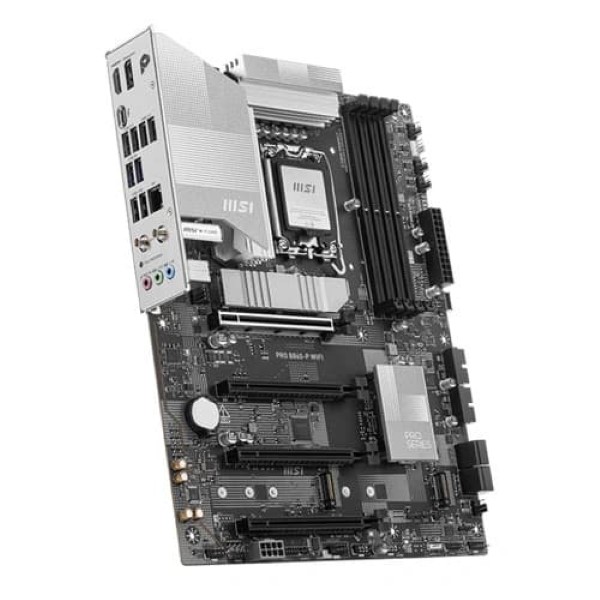

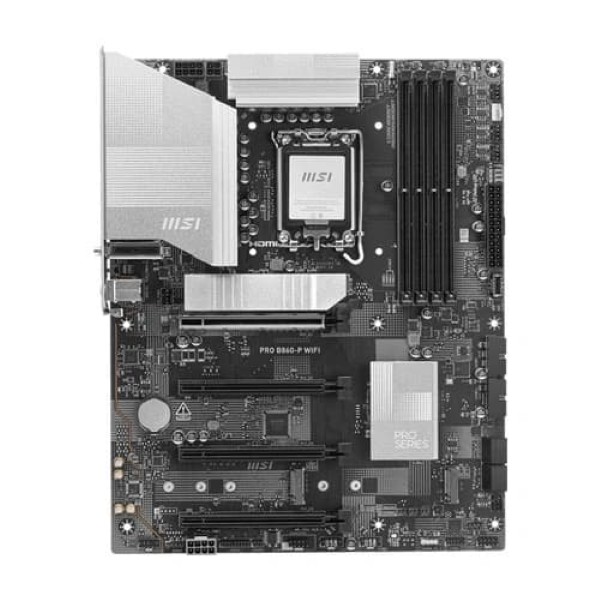

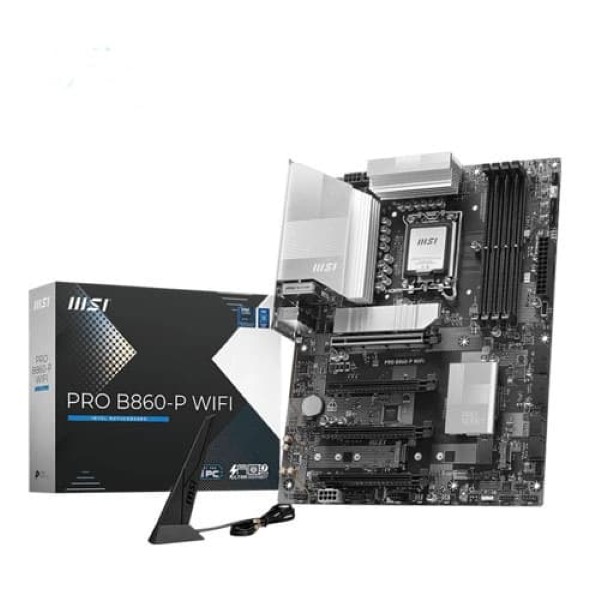

MSI Pro B860-P WiFi DDR5 Intel LGA 1851 ATX Motherboard
MSI Pro B860-P WiFi DDR5 Intel LGA 1851 ATX Motherboard
MSI Pro B860-P WiFi DDR5 Intel LGA 1851 ATX Motherboard
MSI Pro B860-P WiFi DDR5 Intel LGA 1851 ATX Motherboard
MSI Pro B860-P WiFi DDR5 Intel LGA 1851 ATX Motherboard
MSI Pro B860-P WiFi DDR5 Intel LGA 1851 ATX Motherboard
MSI Pro B860-P WiFi DDR5 Intel LGA 1851 ATX Motherboard
MSI Pro B860-P WiFi DDR5 Intel LGA 1851 ATX Motherboard

MSI Pro B860-P WiFi DDR5 Intel LGA 1851 ATX Motherboard

  • Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK,
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II
₹19,890.00
Name
Chat on WhatsApp

FAQs

Yes, we provide GST billing for all eligible purchases. You will receive a GST invoice with your order.
Yes, this product includes official brand warranty as per the manufacturer’s terms.
Yes, EMI options (including No-cost EMI on select cards) may be available at checkout depending on your bank and order value.
Orders placed before the daily cut-off time are dispatched the same day (working days). Actual delivery time depends on your pincode.

MSI Pro B860-P WiFi DDR5 Intel LGA 1851 ATX Motherboard

MSI PRO B860-P WIFI motherboard offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel Core Ultra processors.The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

One Finger for EZ GPU Installation

The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces

12+1+1+1 DRPS POWER DESIGN

Unleash and sustain the maximum performance with a flagship MSI PRO B860-P WIFI VRM design built with a total of 12+1+1+1 digital power phases. With 8+4 pin power connectors, PRO B860-P WIFI is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION

The MSI PRO B860-P WIFI PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission

Transient Voltage Suppressors (TVS)

Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

Solid Pin Design

The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads

Anti-corrosive Stainless Steel IO Shield

An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields.

Over Current Protection

MSI PRO B860-P WIFI motherboard prioritizes safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability.

The Grounding Structure of Power Phases

The MSI PRO B860-P WIFI grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.
Platform INTEL
Socket LGA1851
Cpu Type Core Ultra
Chipset B860
Memory Speed up to 8800+
Max Memory Support 256 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Website.
Graphics Port 1x HDMI,1x DisplayPort,1x Type-C
Expansion Slots 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Wireless Networking WiFi 7,Bluetooth 5.4

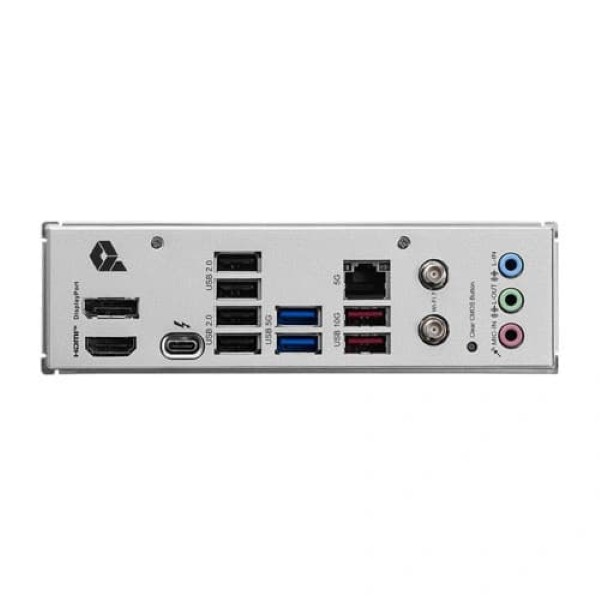

Back Panel I/O Ports DisplayPort
USB 2.0
USB 5Gbps Type-A
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 10Gbps Type-A
Clear CMOS Button
Internal I/O Connector 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Form Factor ATX
Warranty 3 Years
Note Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
