| Chipset |
AMD B850 |
| CPU |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Socket AM5 |
| Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Ryzen™ 9000 Series Processors max. overclocking frequency: |
| • 1DPC 1R Max speed up to 8200+ MT/s |
| • 1DPC 2R Max speed up to 6400+ MT/s |
| • 2DPC 1R Max speed up to 6400+ MT/s |
| • 2DPC 2R Max speed up to 6000+ MT/s |
| |
| Supports AMD POR Speed and JEDEC Speed |
| Supports Memory Overclocking and AMD EXPOTM |
| Supports Dual-Channel mode |
| Supports Non-ECC, Un-buffered memory |
| Supports CUDIMM, Clock Driver bypass mode only* |
| |
| * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. |
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics |
1x HDMI™ |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| 1x DisplayPort |
| Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
2x PCI-E x16 slot |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| |
| PCI_E1 slot |
| • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) |
| • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
| • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Audio |
Realtek® ALC897 |
| 7.1-Channel High Definition Audio |
| Storage |
2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| 4x SATA 6G |
| |
| M2_1 slot |
| • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) |
| • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
| |
| M2_2 slot** |
| • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) |
| • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| |
| *Please refer to the manual for M.2 SSD heatsink restrictions. |
| **The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |

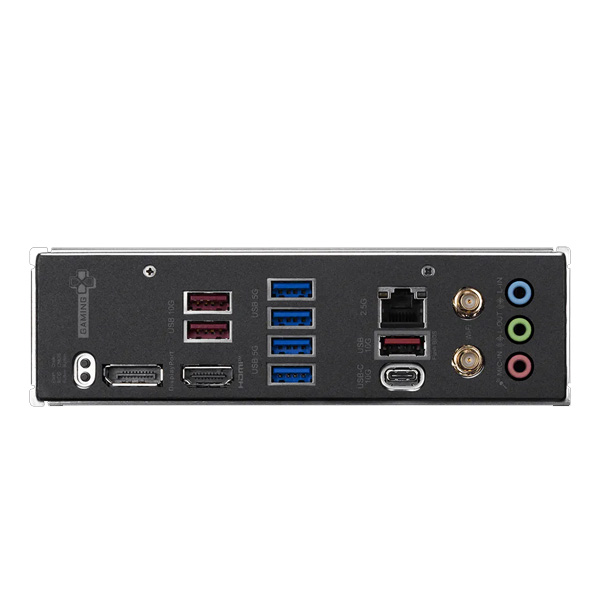

| USB |
4x USB 2.0 (Front) |
| 4x USB 5Gbps Type A (Rear) |
| 2x USB 5Gbps Type A (Front) |
| 3x USB 10Gbps Type A (Rear) |
| 1x USB 10Gbps Type C (Rear) |
| 1x USB 10Gbps Type C (Front) |
| LAN |
Realtek® 8125D 2.5G LAN |
| Internal IO |
1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 1x Combo Fan (Pump_Sys Fan) |
| 3x System Fan |
| 1x EZ Conn-header (JAF_1) |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Com Port (JCOM) |
| 1x Tuning Controller connector(JDASH) |
| 3x Addressable V2 RGB LED connector (JARGB_V2) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports |
| 2x USB 5Gbps Type A ports |
| 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH |
Wi-Fi 6E Solution |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| Supports 802.11 a/ b/ g/ n/ ac/ ax |
| |
| Supports Bluetooth® 5.3, FIPS, FISMA |
| |
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE |
4x EZ Debug LED |
| 1x EZ Memory Detection LED |
