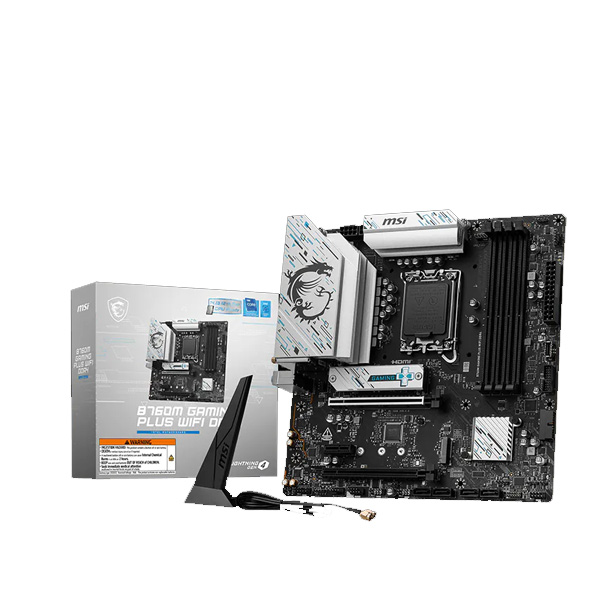

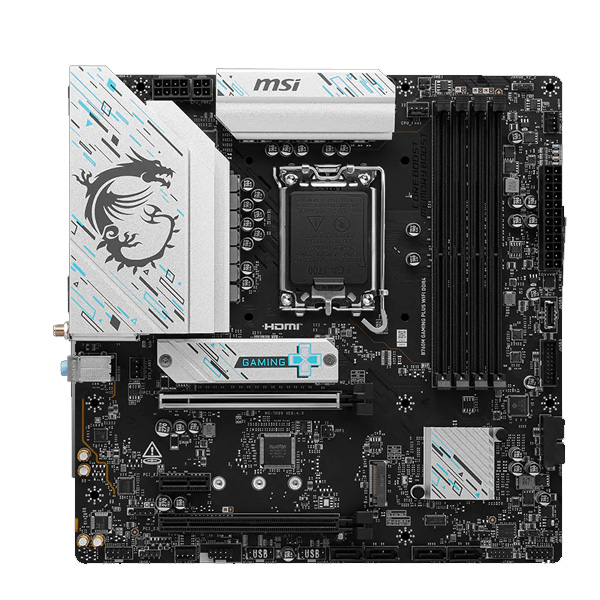

MSI B760M Gaming Plus Wifi Intel LGA 1700 Ddr5 M-Atx Motherboard

Name: MSI B760M Gaming Plus Wifi Intel LGA 1700 Ddr5 M-Atx Motherboard
Brand: MSI
SKU: B760M-GAMING-PLUS-WIFI-DDR4
Price: 16500 INR
Availability: InStock

Features:

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket

Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)

Enhanced Power Design:

12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution:

Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience

Lightning Fast Game experience:

PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G

2.5G LAN with Wi-Fi 6E Solution:

Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

High Quality PCB:

6-layer PCB made by 2oz thickened copperAudio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
CPU	LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB
	Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
	Max. overclocking frequency:
	• 1DPC 1R Max speed up to 5333+ MHz
	• 1DPC 2R Max speed up to 4800+ MHz
	• 2DPC 1R Max speed up to 4400+ MHz
	• 2DPC 2R Max speed up to 4000+ MHz

	Supports Intel® XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	2x HDMI™
	Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
	2x DisplayPort
	Support DP 1.4, maximum resolution of 4K 60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot
	1x PCI-E x1 slot
	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek® ALC897 Codec
Audio	7.1-Channel High Definition Audio
Storage	2x M.2
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
	* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 5Gbps Type A (Rear)
	4x USB 5Gbps Type A (Front)
	1x USB 5Gbps Type C (Front)
	2x USB 10Gbps Type A (Rear)
LAN	Realtek® RTL8125BG 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax

	Supports Bluetooth® 5.3, FIPS, FISMA

	* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
	** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED
