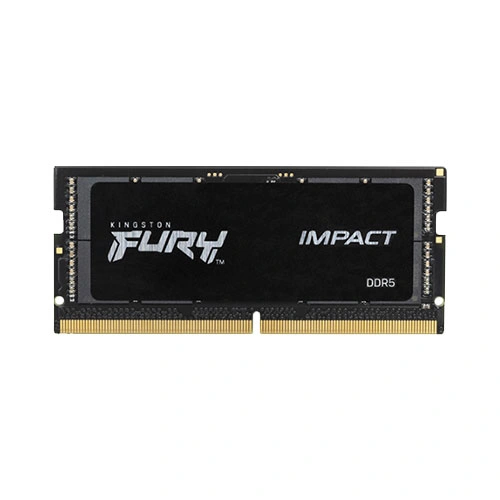

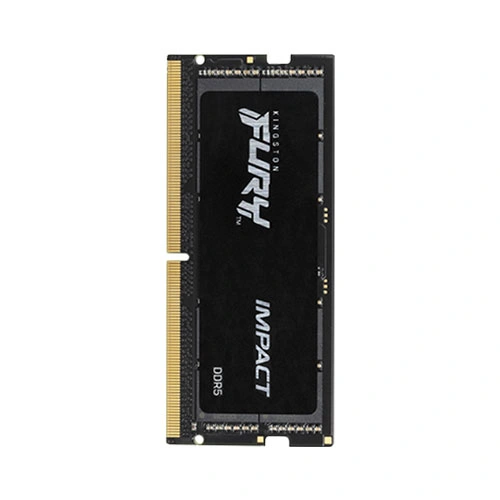

Kingston Fury Impact 32Gb 5600MHz DDR5 Laptop Memory
Features:
32GB 4G x 64-Bit
DDR5-5600 CL40 262-Pin SODIMM
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.18” (30mm)
Kingston FURY KF556S40IB-32 is a 4G x 64-bit (32GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers.
DEFAULT SPECIFICATIONS
CL(IDD): 40 cycles
Row Cycle Time (tRCmin): 48ns(min)
Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min)
Row Active Time (tRASmin): 28.56ns(min)
UL Rating: 94 V - 0
Operating Temperature: 0o C to +85o C
Storage Temperature: -55o C to +100o C
