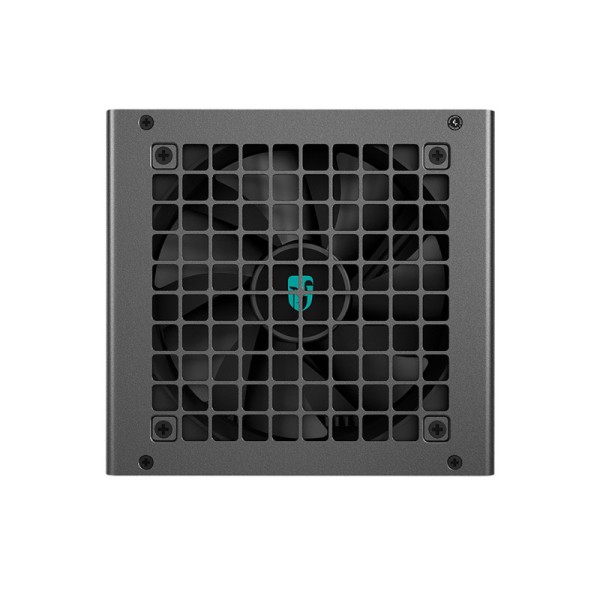

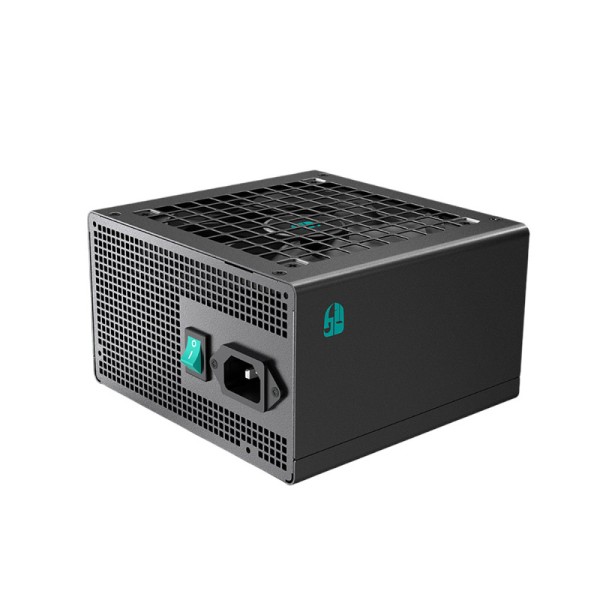

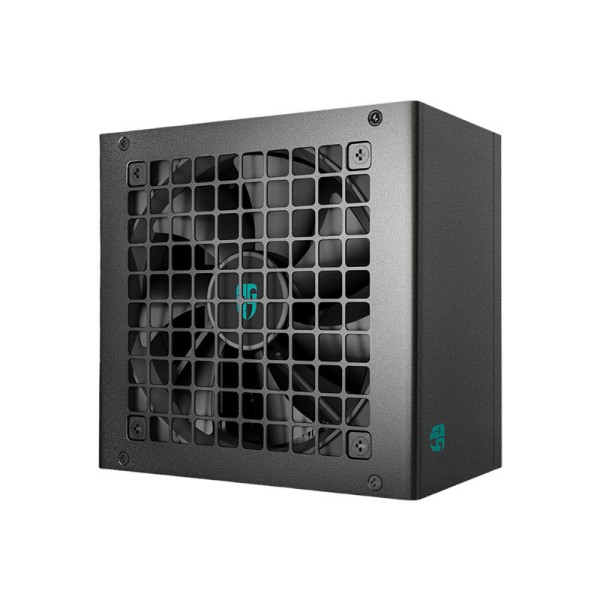

DeepCool PN750D 750Watt 80 Plus Gold ATX3.1 Non-Modular Power Supply
Original price was: ₹10,500.₹6,790Current price is: ₹6,790.
In stock
Description
DeepCool PN750D 750Watt 80 Plus Gold ATX3.1 Non-Modular Power Supply
POWER YOU CAN TRUST
Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the DeepCool PN750D power supply can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2×6 cable, the PN750D provides up to 450W for modern GPUs.
SLEEVED CABLES
The DeepCool PN750D has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium aesthetic and feel of the PSU.
DYNAMIC HYDRO BEARING FAN
The PN750D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.
Additional information
| Psu watts |
|---|
Brand
DeepCool
Specification
| Specification | |
| Model No. | R-PN750D-FC0B-JGIN-V2 |
| Cables | Main Power Connector (20+4)Pin x 1 – 1PCS |
| CPU(4+4)Pin x 1 – 2PCS | |
| PCI-E(6+2)Pin x 1 – 3PCS | |
| 12V-2×6(16Pin) x 1 – 1PCS | |
| SATA x 4 + 4Pin Peripheral x 1 – 2PCS | |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/ä¸å›½Â RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Warranty | 10 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
