| Standards and Protocols |
Wi-Fi 6 |
| IEEE 802.11ax/ac/n/a 5 GHz |
| IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX1800 |
| 5 GHz: 1201 Mbps (802.11ax) |
| 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
2-3 Bedroom Houses |
| |
| 4× Fixed High-Performance Antennas |
| Multiple antennas form a signal-boosting array to cover more directions and large areas |
| |
| Beamforming |
| Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
High |
| |
| Dual-Band |
| Allocate devices to different bands for optimal performance |
| |
| Airtime Fairness |
| Improves network efficiency by limiting excessive occupation |
| |
| 4 Streams |
| Connect your devices to more bandwidth |
| Working Modes |
Router Mode |
| Access Point Mode |
| SECURITY |
| Network Security |
SPI Firewall |
| Access Control |
| IP & MAC Binding |
| Application Layer Gateway |
| Guest Network |
1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network |
| VPN Server |
OpenVPN |
| PPTP |
| VPN Client |
• OpenVPN Client |
| • PPTP VPN Client |
| • WireGuard VPN Client |
| WiFi Encryption |
WPA |
| WPA2 |
| WPA3 |
| WPA/WPA2-Enterprise (802.1x) |
| HARDWARE |
| Processor |
Dual-Core CPU |

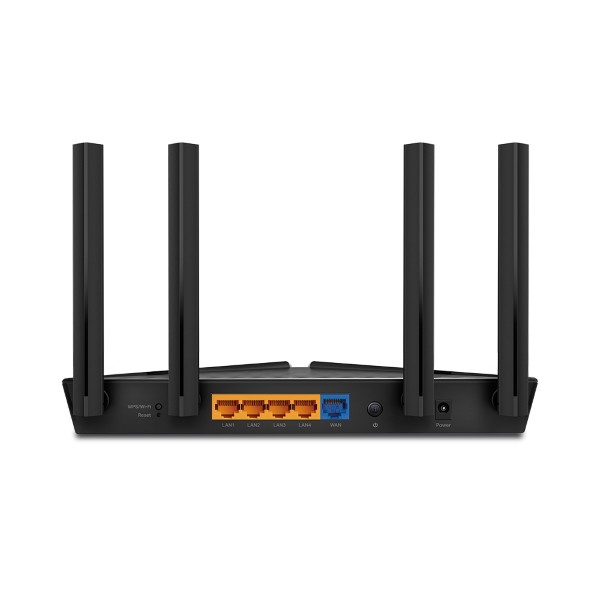

| Ethernet Ports |
1× Gigabit WAN Port |
| 4× Gigabit LAN Ports |
| Buttons |
WPS/Wi-Fi Button |
| Power On/Off Button |
| Reset Button |
| Power |
12 V ⎓ 1.5 A |
| SOFTWARE |
| Protocols |
IPv4 |
| IPv6 |
| OneMesh™ |
OneMesh™ Supported |
| Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Learn More> |
| All OneMesh Products> |
| EasyMesh |
Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. |
| Learn More> |
| Parental Controls |
URL Filtering |
| Time Controls |
| WAN Types |
Dynamic IP |
| Static IP |
| PPPoE |
| PPTP |
| L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
OTA Firmware Upgrade |
| TP-Link ID |
| DDNS |
| NAT Forwarding |
Port Forwarding |
| Port Triggering |
| DMZ |
| UPnP |
| IPTV |
IGMP Proxy |
| IGMP Snooping |
| Bridge |
| Tag VLAN |
| DHCP |
Address Reservation |
| DHCP Client List |
| Server |
| DDNS |
TP-Link |
| NO-IP |
| DynDNS |
| Management Features |
Tether App |
| Webpage |
| Check Web Emulator> |
| OTHER |
| Network Services Enabled by Default |
Web Server |
| Manage and configure device through web (HTTP/HTTPS) |
| • Port: 80/443 Protocol: TCP |
| |
| DNS |
| DNS |
| • Port: 53 Protocol: TCP & UDP |
| |
| DHCP Server |
| IP address assignment (DHCP) |
| • Port: 67 Protocol: UDP |
| |
| App management |
| Manage and configure device through app |
| • Port: 20001 Protocol: TCP |
| • Port: 30001 Protocol: TCP |
| • Port: 20002 Protocol: UDP |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| |
| Cable or DSL Modem (if needed) |
| |
| Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
| TEST DATA |
| WiFi Transmission Power |
CE: |
| <20dBm(2.4 GHz) |
| <23dBm(5.15 GHz~5.25 GHz) |
| FCC: |
| <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity |
EU Version |
| 5G |
| 11a 6Mbps: -96dbm |
| 11a 54Mbps:-75dbm |
| 11ac VHT20_MCS0: -95dbm |
| 11ac VHT20_MCS8: -71dbm |
| 11ac VHT40_MCS0: -92dbm |
| 11ac VHT40_MCS9: -66dbm |
| 11ac VHT80_MCS0: -89dbm |
| 11ac VHT80_MCS9:-62dbm |
| 11ax HE20_MCS0:-95dbm |
| 11ax HE20_MCS11: -64dbm |
| 11ax HE40_MCS0: -92dbm |
| 11ax HE40_MCS11: -60dbm |
| 11ax HE80_MCS0: -89dbm |
| 11ax HE80_MCS11:-59dbm |
| |
| 2.4G |
| 11g 6Mbps:-96dbm |
| 11g 54Mbps:-75dbm |
| 11n HT20_MCS0:-95dbm |
| 11n HT20_MCS7:-75dbm |
| 11n HT40_MCS0:-92dbm |
| 11n HT40_MCS7: -72dbm |
| 11ac VHT20_MCS0:-95dbm |
| 11ac VHT20_MCS8:-72dbm |
| 11ac VHT40_MCS0:-92dbm |
| 11ac VHT40_MCS9: -67dbm |
| 11ax HE20_MCS0:-95dbm |
| 11ax HE20_MCS11: -65dbm |
| 11ax HE40_MCS0: -92dbm |
| 11ax HE40_MCS11: -62dbm |
| |
| US Version |
| 5G |
| 11a 6Mbps: -96dbm |
| 11a 54Mbps:-75dbm |
| 11ac VHT20_MCS0: -95dbm |
| 11ac VHT20_MCS8: -71dbm |
| 11ac VHT40_MCS0: -92dbm |
| 11ac VHT40_MCS9: -66dbm |
| 11ac VHT80_MCS0: -89dbm |
| 11ac VHT40_MCS9:-62dbm |
| 11ax HE20_MCS0:-95dbm |
| 11ax HE20_MCS11: -64dbm |
| 11ax HE40_MCS0: -92dbm |
| 11ax HE40_MCS11: -60dbm |
| 11ax HE80_MCS0: -89dbm |
| 11ax HE80_MCS11:-59dbm |
| |
| 2.4G |
| 11g 6Mbps:-96dbm |
| 11a 54Mbps:-75dbm |
| 11ac VHT20_MCS0:-95dbm |
| 11ac VHT20_MCS8:-72dbm |
| 11ac VHT40_MCS0:-92dbm |
| 11ac VHT40_MCS9: -67dbm |
| 11ax HE20_MCS0:-95dbm |
| 11ax HE20_MCS11: -65dbm |
| 11ax HE40_MCS0: -92dbm |
| 11ax HE40_MCS11: -62dbm |
| PHYSICAL |
| Dimensions (W×D×H) |
10.2 × 5.3 ×1.5 in |
| (260.2 × 135.0 × 38.6 mm) |
| Package Content |

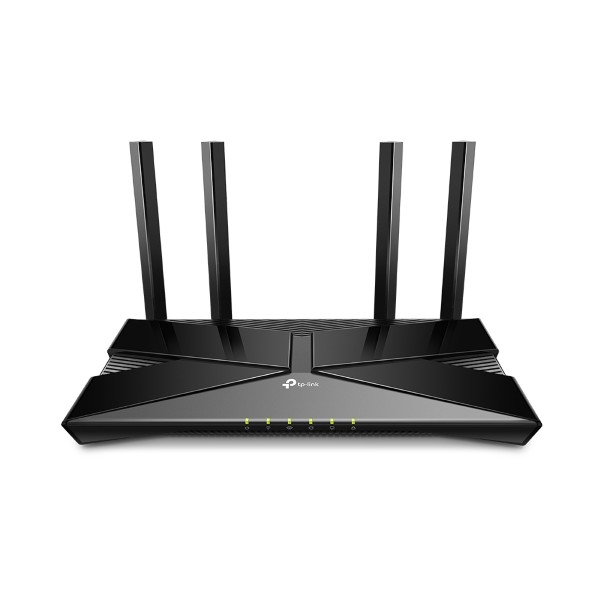

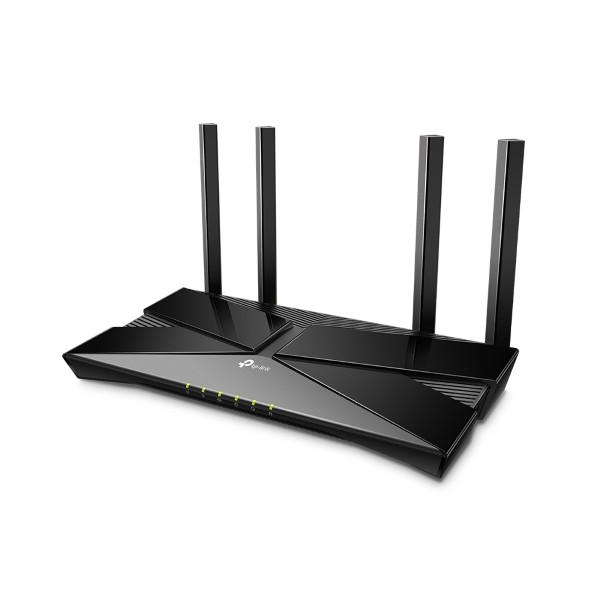

Wi-Fi Router Archer AX23 |
| Power Adapter |
| RJ45 Ethernet Cable |
| Quick Installation Guide |
