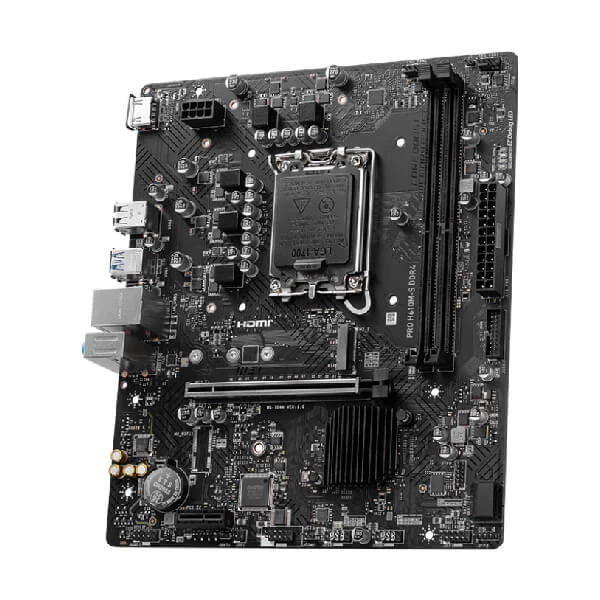

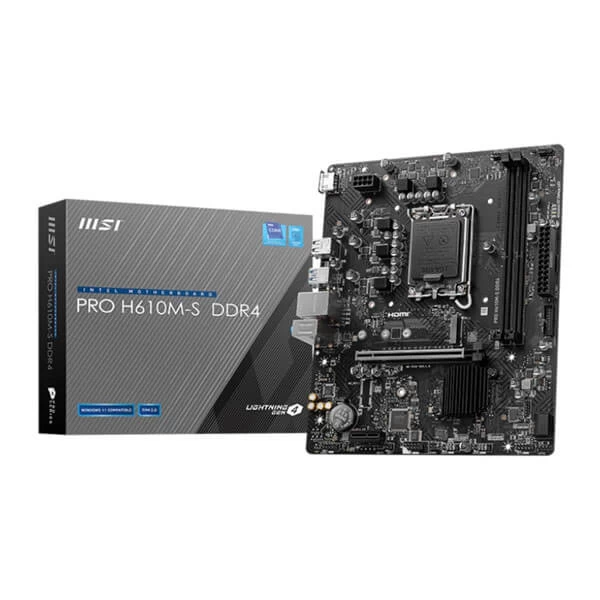

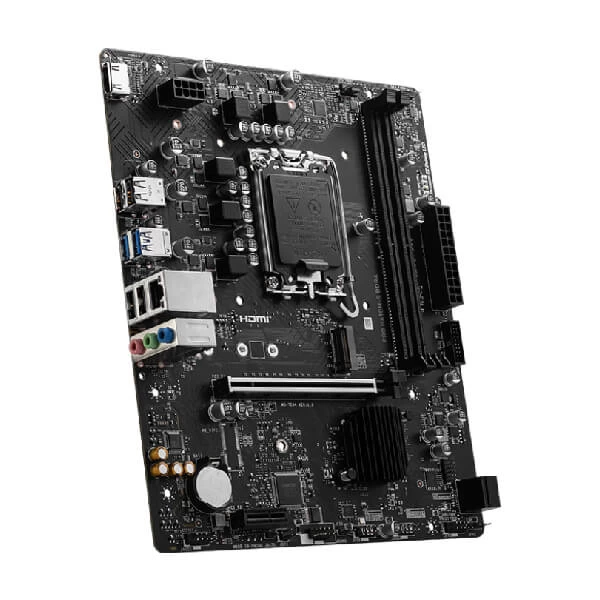

MSI Pro H610M-S DDR4 Intel LGA 1700 M-ATX Motherboard

Name: MSI Pro H610M-S DDR4 Intel LGA 1700 M-ATX Motherboard
Brand: MSI
SKU: PRO H610M-S DDR4
Price: 5790 INR
Availability: InStock

MSI

motherboard

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket

Supports DDR4 Memory, up to 3200(MAX) MHz

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Lightning Fast Experience: PCIe 4.0

Audio Boost: Reward your ears with studio grade sound quality

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Model	PRO H610M-S DDR4
Chipset	INTEL H610
CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
CPU	LGA 1700
Memory	2x DDR4, Maximum Memory Capacity 64GB
	Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
	Supports Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI
	Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed
Slot	1x PCI-E x16 slot
	1x PCI-E x1 slot
	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	1x M.2
	M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
	2x SATA 6G
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 3.2 Gen1 Type A (Rear)
	2x USB 3.2 Gen1 Type A (Front)
LAN	Realtek RTL8111H Gigabit LAN
Audio	Realtek ALC897 Codec
Audio	7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	1x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 3.2 Gen1 Type A ports
LED FEATURE	4x EZ Debug LED

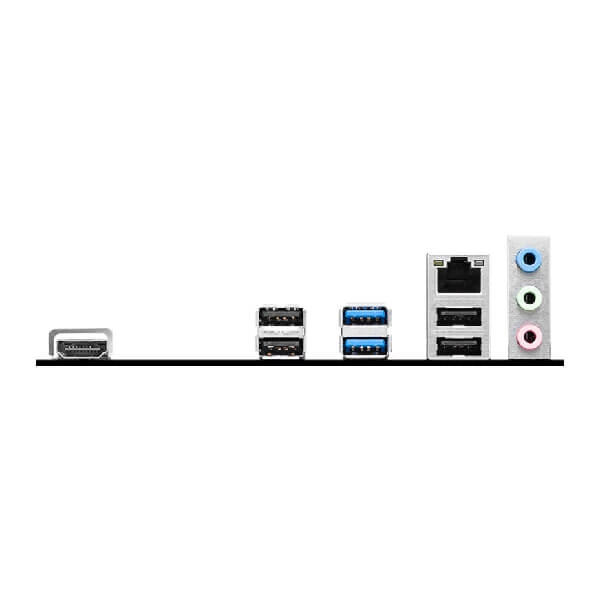

BACK PANEL PORTS	HDMI
	USB 3.2 Gen 1 5Gbps (Type-A)
	USB 2.0
	LAN port
	Audio Connectors
	USB 2.0
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info	mATX
PCB Info	200mmx236.16mm
Warranty	3 Years
Note	*** Image use for reference only
Note	*** Features, Price, Specifications are subject to change without notice.
