MSI MPG X870E Carbon WIFI DDR5 AMD AM5 ATX Motherboard

Name: MSI MPG X870E Carbon WIFI DDR5 AMD AM5 ATX Motherboard
Brand: MSI
SKU: MPG-X870E-CARBON-WIFI
Price: 48350 INR
Availability: InStock

MSI MPG X870E Carbon WiFi Motherboard, ATX – Supports AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5 Memory Boost 8400+MHz/OC, 3 x PCIe 5.0 x16, 1 x M.2 Gen5, Wi-Fi 7Feature

Premium Thermal Design:

MSI MPG X870E Carbon WIFI Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/ mK MOSTFET thermal pads / onboard M.2 Shield Frozr

EZ PCIe Release:

A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.

EZ M.2 Shield Frozr II:

The new tool-less design makes installing removing your M.2 SSD and Shield Frozr much easier

Lightning Gen 5:

MSI MPG X870E Carbon WIFI The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.

DDR5 Memory:

MSI MPG X870E Carbon WIFI A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

Quadruple M.2 Connectors:

MSI MPG X870E Carbon WIFI Onboard quadruple M.2 connectors for the maximum storage transmission speed.

Dual LAN:

MSI MPG X870E Carbon WIFI Dual premium network solution for both intranet and internet, offering a smooth gaming experience for effective network connection

Wi-Fi 7:

The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps.

Perform in Style

The MPG X870E CARBON WIFI is a gaming oriented ATX motherboard with an 18 Duet Rail Power System, constructed around the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

The MSI MPG X870E CARBON WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.Form Factor: ATXSocket Type: AM5Chipset: AMD X870EUltra Power – 18 Duet Rail Power System with 110A Smart Power StageWith exclusive Core Boost technology and EZ OC Tuning functions, the MPG X870E CARBON WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

Digital PWM IC

18 Duet Rail Power System (110A / SPS)2 Phase SOC Power1 Phase MISC Power

Frozr Design

Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

4 x DDR5 Dual Channel (8400+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.* 1DPC 1R Max. overclocking frequency 8400+ MT/s, supports AMD EXPO.

Fortified PCIe 5.0 x16 Slot

The MSI MPG X870E Carbon WIFI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.2 x PCIe 5.0/4.0/3.0 x16 slots* (one with Steel Armor II** and EZ PCIe Release)1 x PCIe 4.0/3.0 x16 slot*Supports x16x0x4 / x8x8x4

MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector

The MPG X870E CARBON WIFI motherboard features MSI’s M.2 slots:2 x Gen5 x4 128Gbps slots (with double-sided M.2 Shield Frozr)2 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don’t have to worry about lost screws or overtightening.EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.EZ Antenna: MSI’s latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna’s placement.Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.

Ultra Connect

5G LAN + 2.5G LAN: A Realtek 5Gbps LAN & Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support.

Platform	AMD
Socket	AM5
Cpu Type	Ryzen 9000,Ryzen 8000,Ryzen 7000
Chipset	X870E
Memory Speed	up to 8400+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPOTM
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only
Graphics Port	1x HDMI,2x Type-C DisplayPort
Expansion Slots	3x PCI-E x16 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
	PCI_E1 & PCI_E2 slots
	• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
	• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
	• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)
	PCI_E3 slot
	• Supports up to PCIe 4.0 x4
Wireless Networking	WiFi 7,Bluetooth 5.4

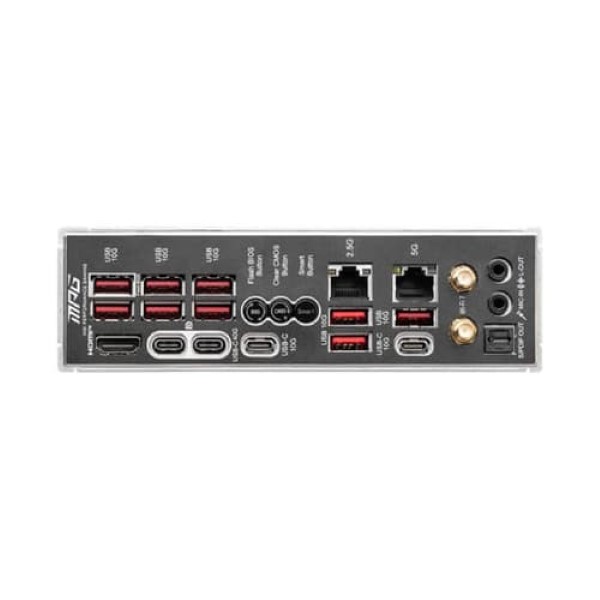

Back Panel I/O Ports	USB 10Gbps Type-A
	Flash BIOS Button
	Clear CMOS Button
	Smart Button
	2.5G LAN
	5G LAN
	Audio Connectors
	HDMI
	USB 40Gbps Type-C
	USB 10Gbps Type-C
	USB 10Gbps Type-A
	USB 10Gbps Type-C
	Wi-Fi / Bluetooth
	Optical S/PDIF Out
Internal I/O Connector	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	5x System Fan
	1x EZ Conn-header (JAF_2)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Thermal Sensor connectors(T_SEN)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 20Gbps Type C ports
Form Factor	ATX
Warranty	3 Years
Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
